30726 Nissan TD25 12V 2.8kW 9T Starter Motor Wholesale

30726 Nissan TD25 Starter Motor for Diesel Parts Wholesalers

Nissan diesel enquiries often arrive with a Lester number or a partially readable S13 marking. Adding TD25, the host vehicle or equipment and a clear 2.8kW label turns 30726 into a usable quotation line and prevents it from being merged automatically with TD27 stock.

Keep this 30726 line at 12V 2.8kW, 9T and module 3. Compare the two Ø13 holes, Ø120 circle, 95 mm engagement and short 9 mm drive position; do not substitute the 23300-10T01 TD27/TD23 2.0kW product simply because the reference families are related.

30726 12V 2.8kW 9T Starter Data and Short Drive-End Reference

The complete definition is 12V, 2.8kW, 9T, module 3 and clockwise rotation. Displaying TD25 and 2.8kW beside 30726 on bins and purchase orders gives sales and warehouse teams a clear separator from another nine-tooth Nissan S13 family.

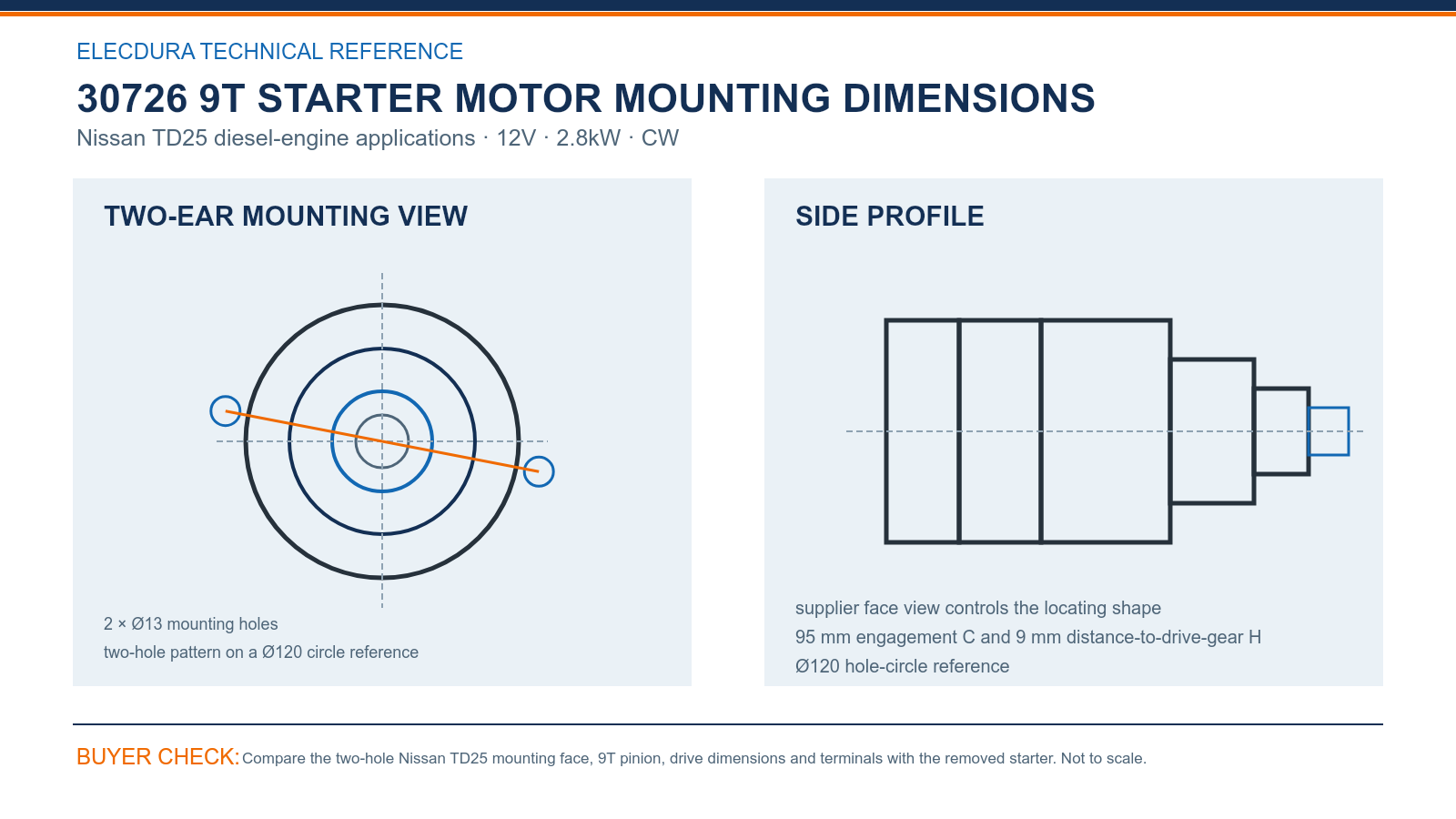

30726 Nissan TD25 Starter Motor Dimensions for Diesel Parts Buyers — compare the drawing with the removed starter before placing a volume order.

Use front and side photographs to verify the two Ø13 holes, Ø120 circle, 95 mm engagement and 9 mm distance to the drive gear. Include the terminal layout and pinion close-up so a short-drive TD25 unit can be compared without relying on the Lester number alone.

30726 and S13-106 Matching for Nissan TD25 Buyers

30726 is the main purchasing identity, supported by S13-106 and S13-106A. Because those Hitachi references also appear across other Nissan and forklift listings, keep TD25, 2.8kW and the measured drive end attached to every enquiry and delivery label.

A distributor should maintain a dedicated TD25 stock description even when supplier searches place 30726 beside TD27 numbers. Separate shelf labels, product images and sales history protect the 2.8kW requirement and make future replenishment easier to check.

30726 Starter Stock Separation for Nissan Diesel Service Networks

Receiving staff should compare the 2.8kW label, nine-tooth pinion, two-hole face, short drive position and terminals on sampled cartons. Marking the outside with 30726, TD25 and 2.8kW reduces wrong picking when several Nissan diesel starters share the same warehouse zone.

The Elecdura video shows starter assembly and electrical testing for international supply. Nissan parts buyers can use it while agreeing on first-lot checks, TD25-specific carton wording and delivery planning for the selected 30726 configuration.

30726 Nissan TD25 Starter Motor FAQs for Parts Buyers

How is this 30726 TD25 starter different from a 23300-10T01 TD27 or TD23 product?

Keep the engine and rating visible. This 30726 product defines a Nissan TD25 application with 12V, 2.8kW, nine teeth and a short two-hole drive end. A 23300-10T01 enquiry may refer to TD27 or TD23 service and should remain separate. Comparing labels and mounting photographs prevents one Nissan diesel starter from replacing another by name alone.

Which TD25 details should accompany a 30726 request?

Provide the vehicle, forklift or equipment model, serial where available, TD25 engine identification and every readable starter number. Add the 2.8kW rating label, nine-tooth pinion, mounting face and terminal views. This creates a useful Nissan diesel enquiry and allows the supplier to check the selected product without relying only on the short Lester number.

Why is the 9 mm drive position important for the 30726 starter?

The selected drive end uses 95 mm engagement and a 9 mm distance-to-drive-gear reference. Compare both with the removed unit, together with the two Ø13 holes and Ø120 circle. The short pinion position can distinguish this TD25 definition from a starter whose motor and solenoid look similar but whose drive sits farther from the mounting face.

How should S13-106 references be handled on a Nissan TD25 order?

Include S13-106 or S13-106A when those markings are present, but keep Nissan TD25 and 30726 at the front of the enquiry. The S13 references broaden supplier search and may appear in other applications. The 12V 2.8kW 9T rating, short-drive geometry and old-unit photographs determine which product should be offered.

What shelf wording can prevent 30726 picking errors?

Label the bin with 30726, Nissan TD25, 12V 2.8kW, 9T and short two-hole face. Add a small flange image if the warehouse stocks several S13-106 products. Avoid labeling the location only with the shared Hitachi number. Clear application and geometry wording helps staff choose the TD25 carton before it reaches dispatch.

What receiving checks should be made on a 30726 shipment?

Sample the 2.8kW labels, count nine teeth, compare the 95 mm and 9 mm drive references, inspect both mounting holes and verify terminal protection. Check carton identification against the accepted TD25 product. These steps give the receiving team a simple record before units are split between vehicle, forklift or diesel-service branches.

Which service information is useful for a no-crank TD25 complaint?

Record battery voltage under load, cable drop, ground condition, solenoid signal, ring-gear condition and whether the engine rotates freely. Note clicking, slow turning or grinding and attach old-starter photographs. A complete fault description helps the distributor discuss the 30726 replacement while reducing the chance that a battery or wiring issue is treated as a starter failure.

What should be emailed for 30726 wholesale pricing?

Send the TD25 vehicle or equipment details, complete 30726 and S13 markings, 12V 2.8kW label, close pinion image, straight mounting-face and terminal photographs, requested quantity, destination and deadline. Elecdura can then discuss the defined nine-tooth product, volume price breaks, sample requirements, packing and production lead time without combining it with other Nissan diesel starters.

Request 30726 Nissan TD25 Starter Motor Wholesale Pricing

Email the Nissan TD25 engine and host-equipment details, full 30726 or S13-106 marking, 2.8kW label, centered flange, pinion and terminal photographs, quantity, destination and required date to info@elecdurauto.com. Elecdura will compare the short-drive product and return wholesale pricing, packing and lead time.
