5811000800 Isuzu C233 4JB1 12V 2.8kW 9T Starter Motor Wholesale

5811000800 Isuzu Starter Motor Supply for Industrial Engine Distributors

Isuzu industrial-engine demand often arrives with an old-unit number but incomplete host-equipment information. Adding the C233, 4JB1 or 4FD1 engine and clear drive-end photographs gives 5811000800 a useful sales context for importers serving forklifts, machinery and engine rebuilders.

This 5811000800 product is defined as 12V 2.8kW, 9T and module 2.75. The 70° mounting orientation, two Ø13.5 holes, Ø120 face and Ø95 locating reference provide the physical separation needed when other Isuzu starters or cross references appear close.

5811000800 12V 2.8kW 9T Starter Specifications and 70-Degree Face

Keep 12V, 2.8kW, 9T, module 2.75 and clockwise rotation on quotations, labels and receiving sheets. The module value matters because an apparently similar nine-tooth starter can use another gear form even when the engine or OE number appears related.

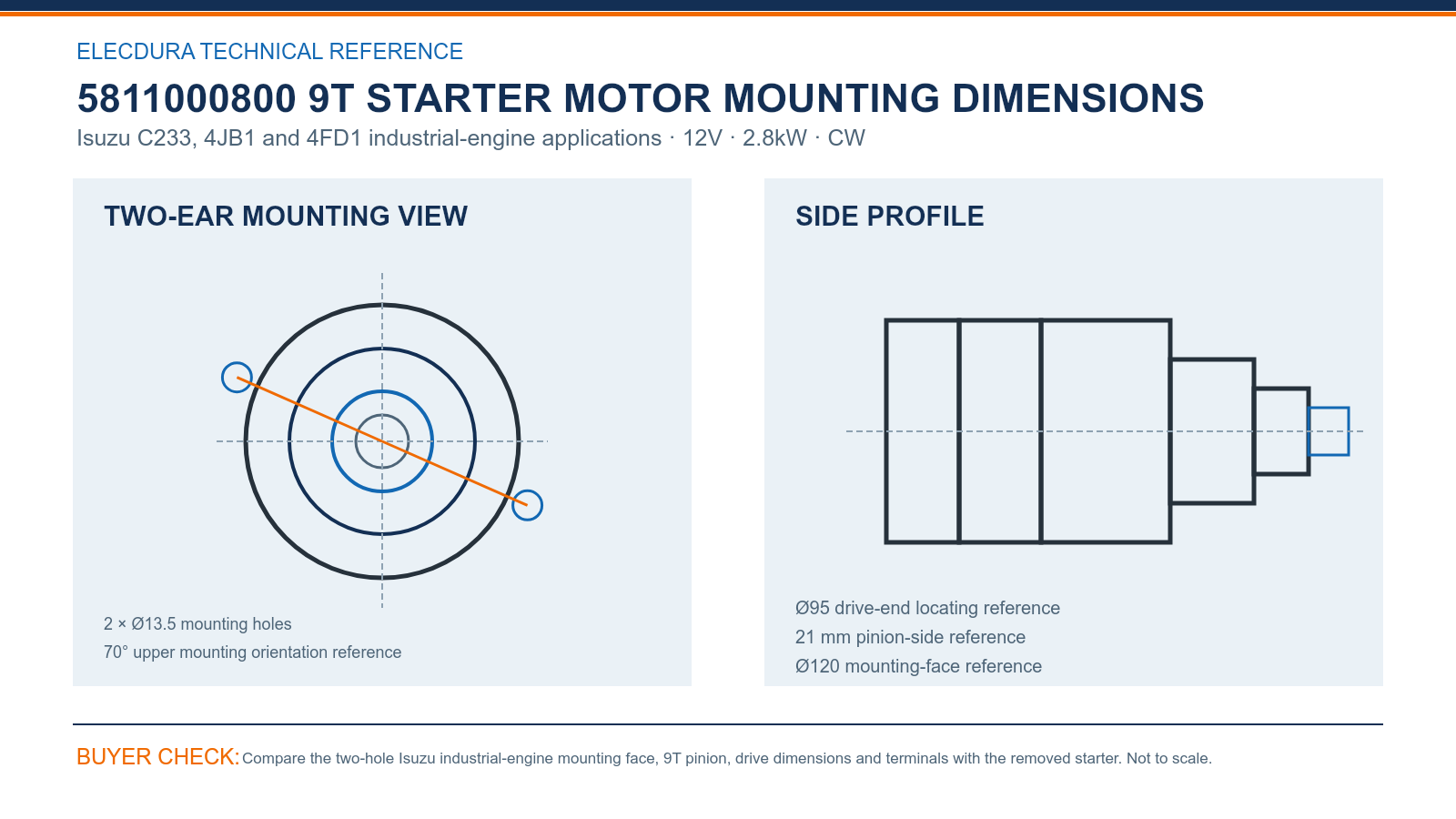

5811000800 Isuzu C233 Starter Motor Dimensions for Distributors — compare the drawing with the removed starter before placing a volume order.

Compare the two Ø13.5 mounting holes and 70° upper orientation from a centered front view. The side photograph should show the Ø95 locating surface and 21 mm pinion-side reference; include the solenoid and cable studs to confirm installation access.

5811000800 Isuzu Reference Group for C233 4JB1 and 4FD1 Buyers

5811000800 and 5811000801 lead the Isuzu search, supported by the 5811001111/1112 group, 8970848770 and several S13 numbers. List the complete number and engine together because the long cross-reference family does not describe every physical or power variation.

Distributors may stock one confirmed unit for C233, 4JB1 and 4FD1 customers only after old starters share the full electrical and mounting set. Keep quantities by engine and host equipment so sales can answer future enquiries without treating the Isuzu group as universal.

5811000800 Starter Lot Inspection for Industrial Equipment Supply

Incoming inspection should verify the 2.8kW label, module-2.75 pinion, two-ear housing, 70° orientation and terminals across sampled cartons. A photograph set linked to the shipment lot helps engine rebuilders and equipment branches discuss later replacements with the same physical baseline.

The Elecdura video shows starter production and electrical testing for export supply. Isuzu distributors can use it while agreeing on sample review, carton labels, terminal protection, neutral or private-label packaging and delivery timing for 5811000800.

5811000800 Isuzu Starter Motor FAQs for Industrial Buyers

Which engine details make a 5811000800 enquiry clear?

State whether the unit serves an Isuzu C233, 4JB1 or 4FD1 engine, then add the equipment model and serial where available. Include 5811000800 and every label number from the removed starter. Pair those records with 12V 2.8kW 9T and mounting photographs so an industrial-equipment buyer receives a defined offer rather than a broad Isuzu match.

Why must the module 2.75 pinion be confirmed on 5811000800?

The selected nine-tooth drive uses module 2.75, which is part of the gear match. A nine-tooth count by itself does not show pitch. Send a close, square pinion photograph and compare the old unit with the technical drawing. This check reduces the risk of ordering a visually similar Isuzu starter whose drive will not mesh correctly.

What does the 70-degree mounting reference show for 5811000800?

It describes the upper ear orientation on the two-hole face, alongside the Ø120 mounting reference, Ø95 locating diameter and 21 mm pinion-side value. Buyers should compare a straight flange view and terminal side. These points help determine whether the starter can seat correctly and connect without unwanted cable strain in the engine compartment.

How should a distributor handle the long 5811000800 reference group?

Copy each complete number that appears on the old unit, but avoid placing the entire cross-reference family on one bin without application data. Use C233, 4JB1 or 4FD1, 12V 2.8kW 9T and the face image as the stock definition. This keeps search coverage broad while the physical product remains clear to warehouse staff.

What first-lot checks suit a 5811000800 wholesale order?

Sample the voltage and 2.8kW labels, count nine teeth, compare module 2.75, inspect the two Ø13.5 holes and check terminal protection. Confirm the 70° face orientation against the accepted images. Recording these points before distribution gives purchasing and receiving teams one practical reference for later shipments to industrial-engine and equipment customers.

Can 5811000800 stock serve several types of industrial equipment?

It can support confirmed applications using the stated Isuzu engine and starter configuration, but the engine name alone should not authorize a substitute. Record the machine, old-unit numbers and mounting views for each new demand source. Once the physical match is established, distributors can consolidate purchasing while retaining machine-level notes for future reorders and warranty discussions.

What should a service shop test before condemning a 5811000800 starter?

Check battery capacity, cable voltage drop, ground integrity, solenoid command, terminal condition and whether the Isuzu engine turns freely. Note clicking, slow rotation or grinding. These results help distinguish a starter fault from wiring, battery or ring-gear problems and give the distributor useful information if the removed unit is returned for examination.

What should an importer send for 5811000800 price breaks?

Email the Isuzu engine and equipment details, complete 5811000800-related markings, old rating label, close pinion image, straight mounting-face and terminal photographs, quantity forecast, destination and required date. State whether the first order needs a sample or inspection report. Elecdura can then discuss volume levels, production time, packing and shipment for the defined 2.8kW starter.

Email Elecdura for 5811000800 Isuzu Starter Motor Wholesale Terms

Email the Isuzu C233, 4JB1 or 4FD1 engine details, host equipment, complete 5811000800 or S13 marking, rating label, straight mounting, pinion and terminal photographs, quantity, destination and required date to info@elecdurauto.com. Elecdura will assess the 2.8kW module-2.75 product and prepare wholesale pricing and lead time.
