Two 24V, 10-tooth aftermarket starter configurations for replacement reference 8200064: 29-8200064 at 4.5kW and FYD28-DL at 5.5kW. Both use a 32 mm pinion outside diameter; select the required configuration and installation details together.
| Quantity: | |
|---|---|
Two 24V, 10-tooth aftermarket starter configurations for replacement reference 8200064: 29-8200064 at 4.5kW and FYD28-DL at 5.5kW. Both use a 32 mm pinion outside diameter; select the required configuration and installation details together.
| Specification | 29-8200064 · 4.5kW |
|---|---|
| Configuration code | 29-8200064 |
| Rated power | 4.5kW |
| System voltage | 24V |
| Pinion teeth | 10 |
| Pinion outside diameter | 32 mm |
| Mounting register diameter | Ø89 mm |
| Specification | FYD28-DL · 5.5kW |
|---|---|
| Configuration code | FYD28-DL |
| Rated power | 5.5kW |
| System voltage | 24V |
| Pinion teeth | 10 |
| Pinion outside diameter | 32 mm |
| Rotation | Clockwise (CW) |
Use 29-8200064 or FYD28-DL in the order line as well as the power rating. Compare the specific drive housing, relay arrangement and connections rather than selecting by the 8200064 reference alone.

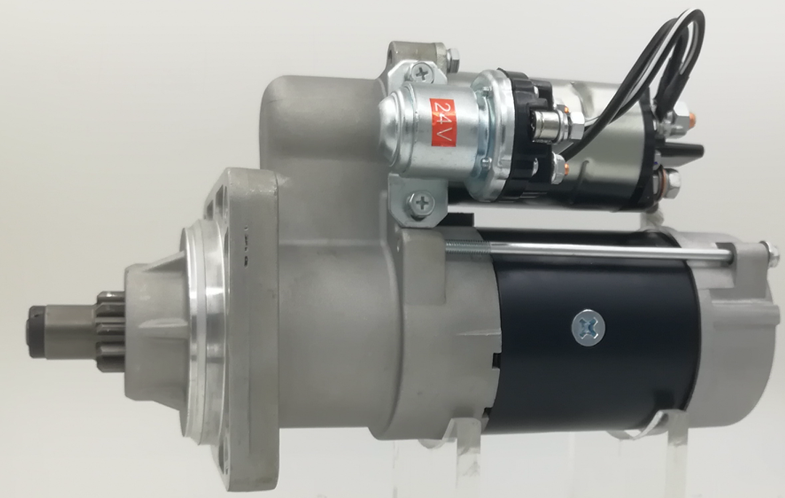

The 29-8200064 4.5kW configuration is offered for Case, Fiat and New Holland applications using a matching 8200064 starter installation.
For either configuration, provide the equipment model and installed starter number. Confirm the voltage, pinion and connection arrangement for the machine being serviced before changing from 4.5kW to 5.5kW.

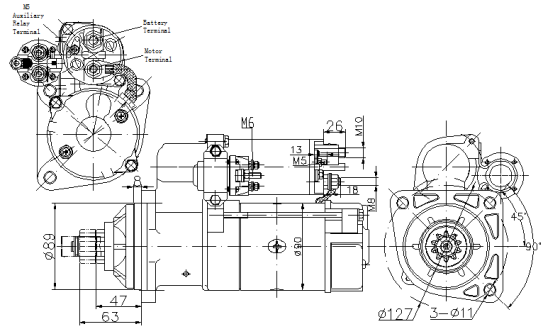

The 29-8200064 drawing shows a Ø89 mm register, three Ø11 mm mounting holes and the relay connections. These drawing dimensions belong to the 4.5kW configuration. For FYD28-DL 5.5kW orders, match its own mounting arrangement and terminal positions with the removed starter.
| Applies to | Reference | Type |
|---|---|---|
| Both | 8200064 | Replacement reference |
| 29-8200064 · 4.5kW | 10461486; Lester 6839N | Cross-references |
| FYD28-DL · 5.5kW | 3918377; 75264240; 8200064R3; DR10479623 | Additional references |
Elecdura supplies aftermarket replacements. The reference brands and numbers identify replacement applications; they do not identify the manufacturer of the supplied product.
No. A higher rating does not establish matching mounting geometry, pinion position or wiring. Order the configuration required for the application and compare its installation details.

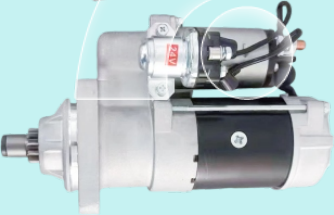

No. The drawing is labelled 29-8200064 and applies to that configuration. Use the FYD28-DL product photos and configuration code when requesting a 5.5kW replacement.

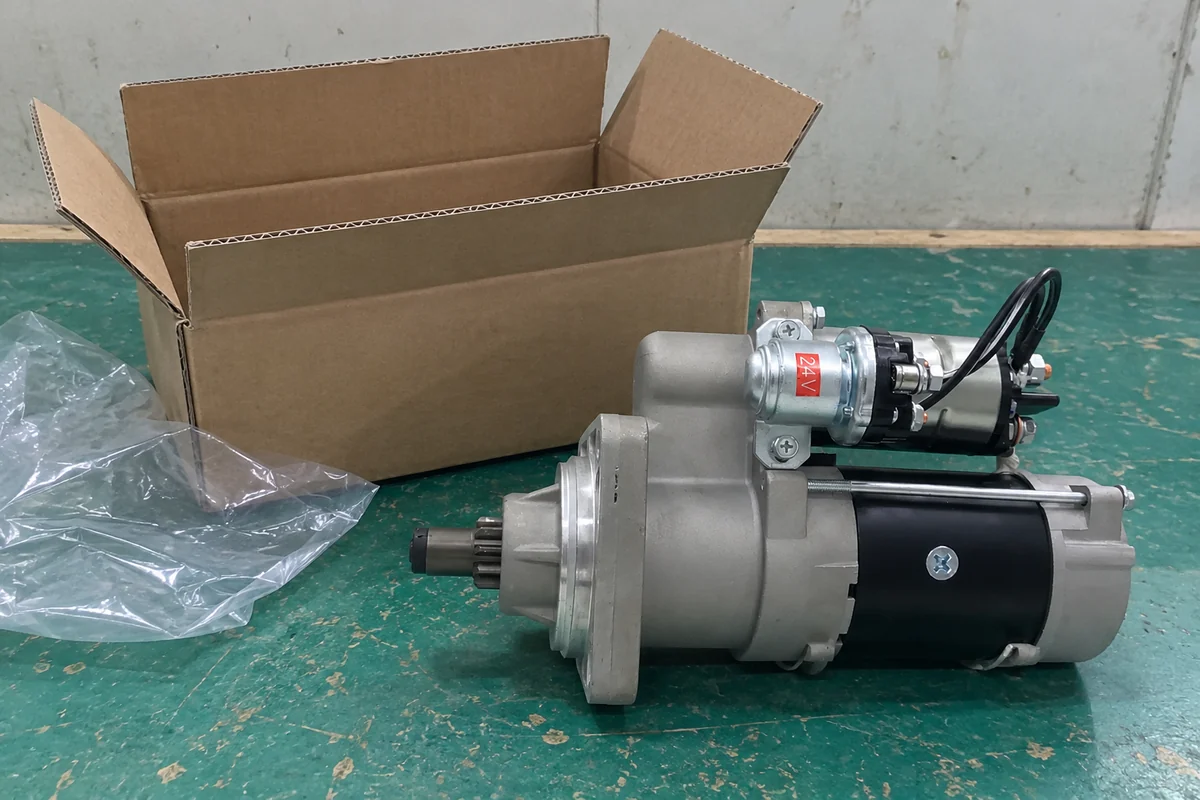

Protective packaging concept · 29-8200064 · 4.5kW · AI-assisted visualization
List separate quantities for 29-8200064 4.5kW and FYD28-DL 5.5kW. Add the equipment model, installed starter reference, destination and packaging requirements.
