S1238S Case 845 New Holland Starter Motor Wholesale

S1238S Starter Motor Distributor Application Guide for CASE 845 and New Holland RG140B

For a fleet parts team, S1238S identifies one CASE 845 and New Holland RG140B requirement. The 24V 4.0kW 10T drive assigned to the CASE 845 and New Holland RG140B catalog scope provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs S1238S with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S1238S Starter Motor Mounting Dimensions for Distributor Approval

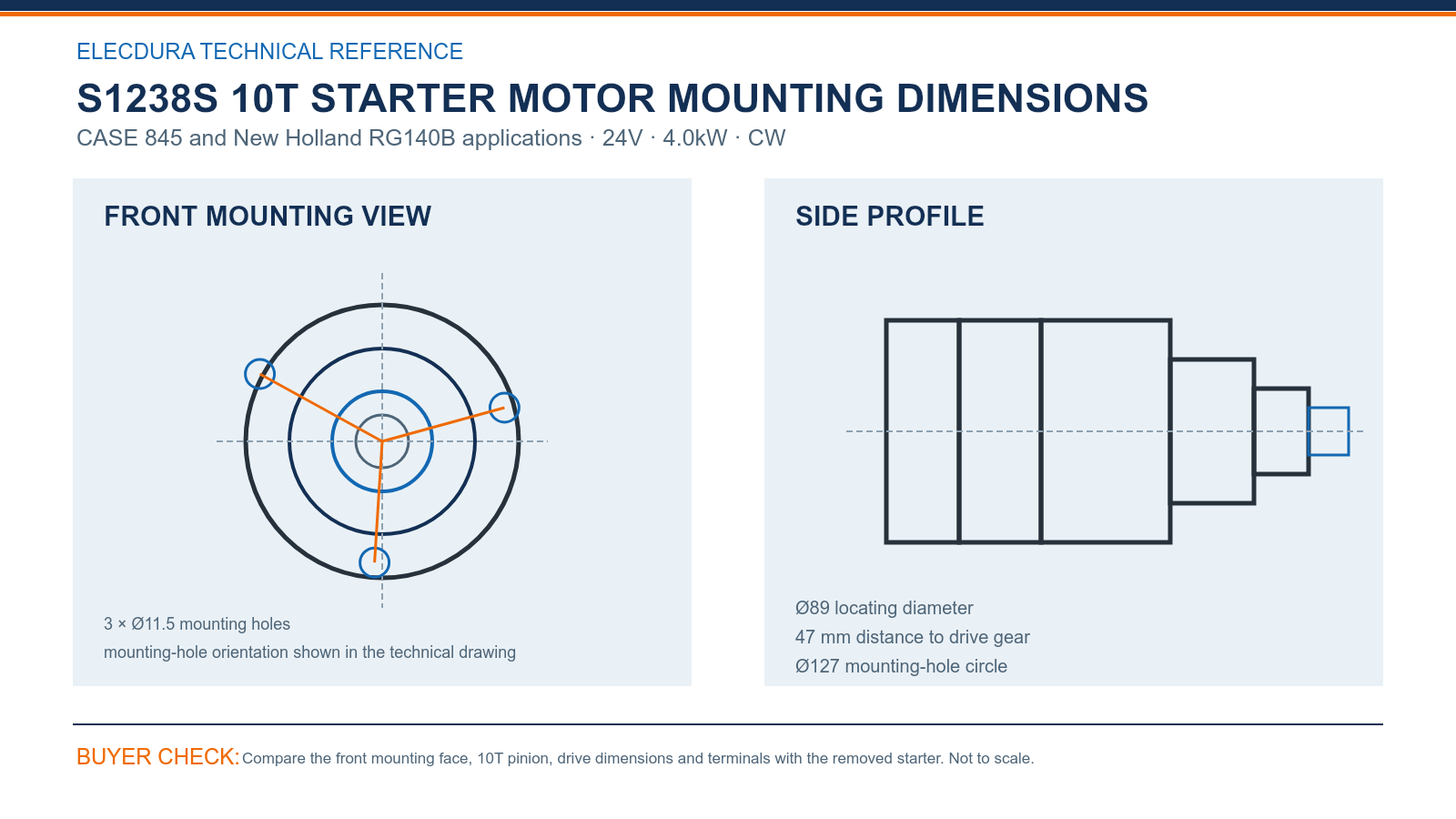

Use the S1238S technical drawing to check Ø89 locating diameter, 47 mm distance to drive gear and Ø127 mounting-hole circle. Add the 3 × Ø11.5 mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S1238S comparison with 24V, 4.0kW, the 10T drive, module 3.175 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S1238S Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with S1238S, 87739573, 8200054, 8200386, 201-29203, TS-1832, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S1238S Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S1238S, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

State the exact CASE or New Holland model and old-starter reference so the quotation does not rely on a broad equipment-brand match. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S1238S; the product decision itself still depends on the complete reference, 24V 4.0kW rating, drive end, mounting face and terminal layout.

S1238S Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving S1238S during a Case 845 New Holland branch receiving check?

For S1238S, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø11.5 mounting holes, Ø89 locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Can a purchasing team consolidate every S1238S reference into one stock line in a Case 845 New Holland branch sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S1238S, 87739573, 8200054, 8200386, 201-29203 to locate possible matches, then confirm 24V, 4.0kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

How can an importer avoid mixing S1238S with a similar drive-end version during branch sourcing?

For S1238S, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 10T, Ø127 mounting-hole circle, Ø89 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

Before removing S1238S, what should the workshop test under load in a Case 845 New Holland branch workshop?

Before fitting S1238S, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for S1238S during a Case 845 New Holland branch inspection?

For S1238S, use a straight front view to compare the 3 × Ø11.5 mounting holes and Ø127 mounting-hole circle; use the side view for Ø89 locating diameter and 47 mm distance to drive gear. Complete the check with 10T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How should CASE distributors plan stock for S1238S in a Case 845 New Holland branch program?

Forecast by municipal or contractor service cycles and retain the accepted mounting-face image for repeat branch receiving. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for S1238S in a Case 845 New Holland branch sourcing program?

A useful RFQ states S1238S, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving S1238S in a Case 845 New Holland branch review?

For a service review of S1238S, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S1238S Send a Starter Motor Distributor Enquiry

For a focused S1238S quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
