8942549221 Isuzu 4BC2 4BD1 24V 3.5kW Starter Motor Wholesale

8942549221 Isuzu 4BC2 4BD1 Starter Motor for Multi-Channel Distributors

The same reference family appears in truck, excavator and industrial-engine channels, but buyers still need one defined physical unit. A useful 8942549221 request identifies the engine, host equipment, cable side, old-unit number, quantity and delivery route so sales staff can separate application demand without losing the shared product identity.

Match 24V, 3.5kW, 9T, module 3 and clockwise rotation before checking the flange. The Ø120 face, Ø95 locating reference, two lower Ø13.5 holes, 30-degree upper ear and 21 mm drive position provide a practical defense against a nearby Isuzu starter with another nose or pinion.

8942549221 24V 3.5kW Starter Mounting Geometry and Specifications

Put 8942549221, the confirmed 4BC2, 4BD1 or 4BA1 engine, 24V, 3.5kW, 9T and CW on the same quotation line. This keeps the product searchable across reference systems while giving purchasing and warehouse teams enough detail to preserve one consistent configuration.

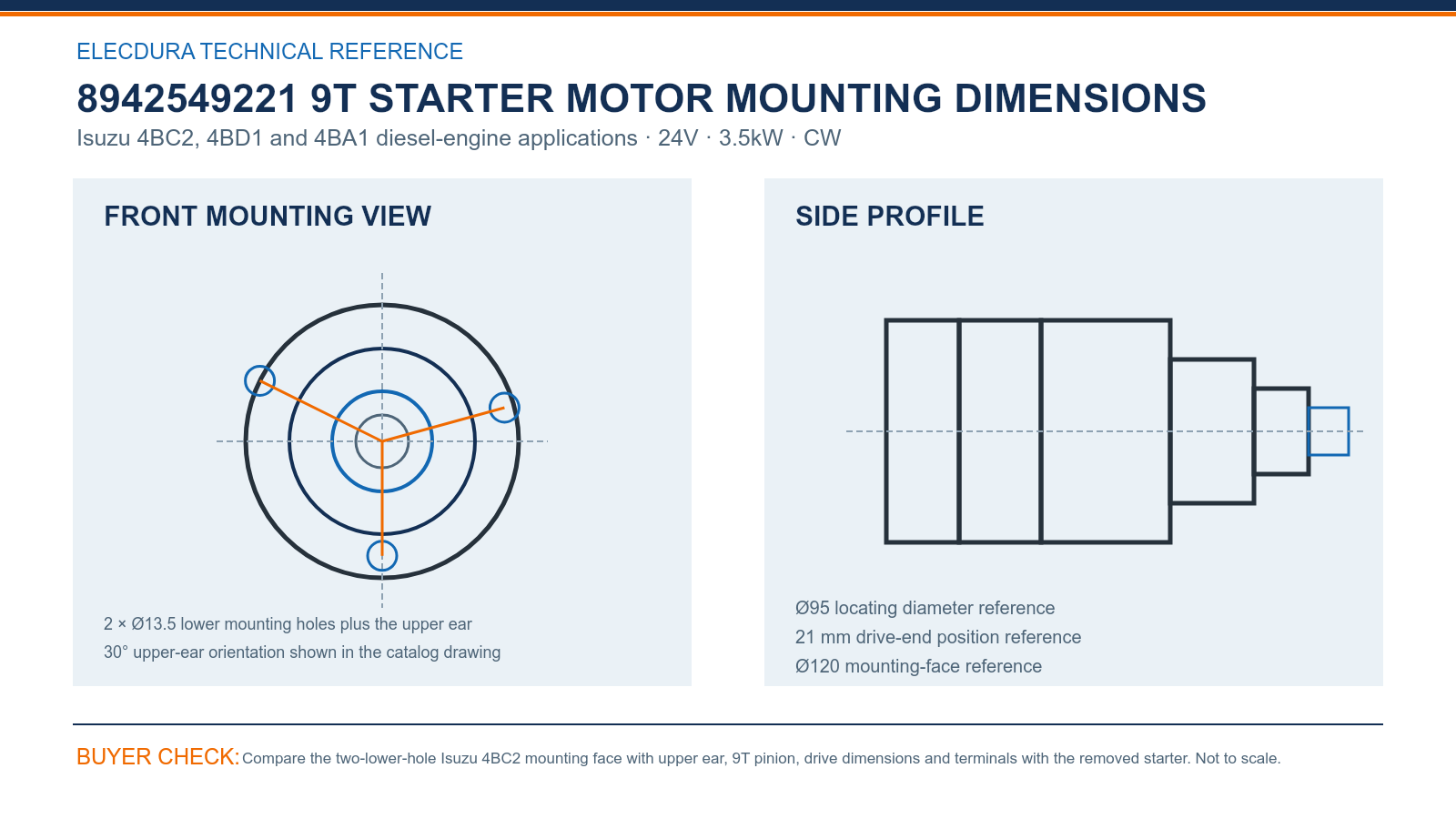

8942549221 Isuzu 4BC2 4BD1 Starter Dimensions for Distributor Matching — compare the drawing with the removed starter before placing a volume order.

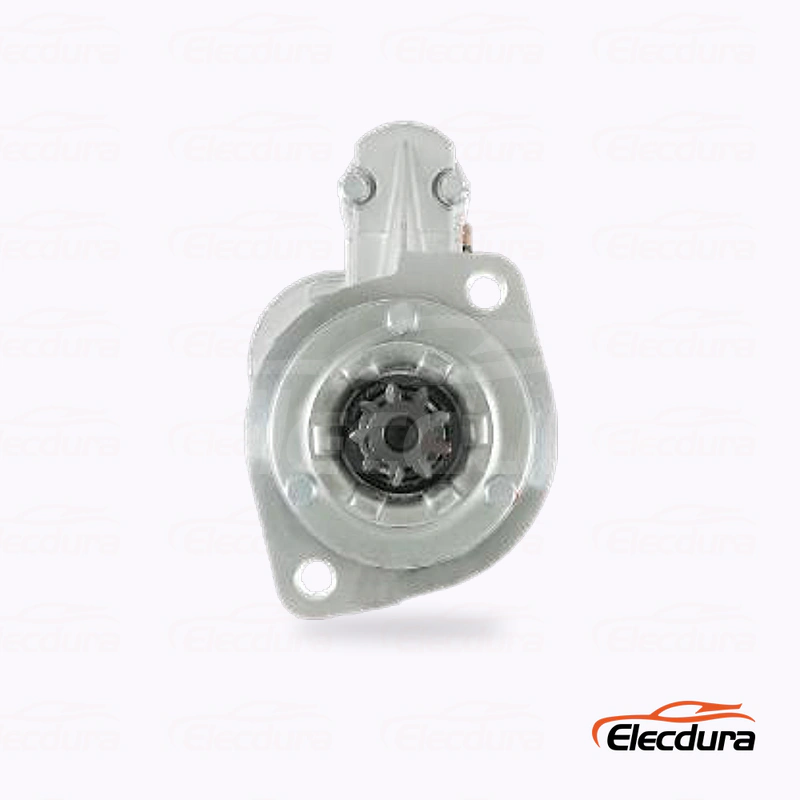

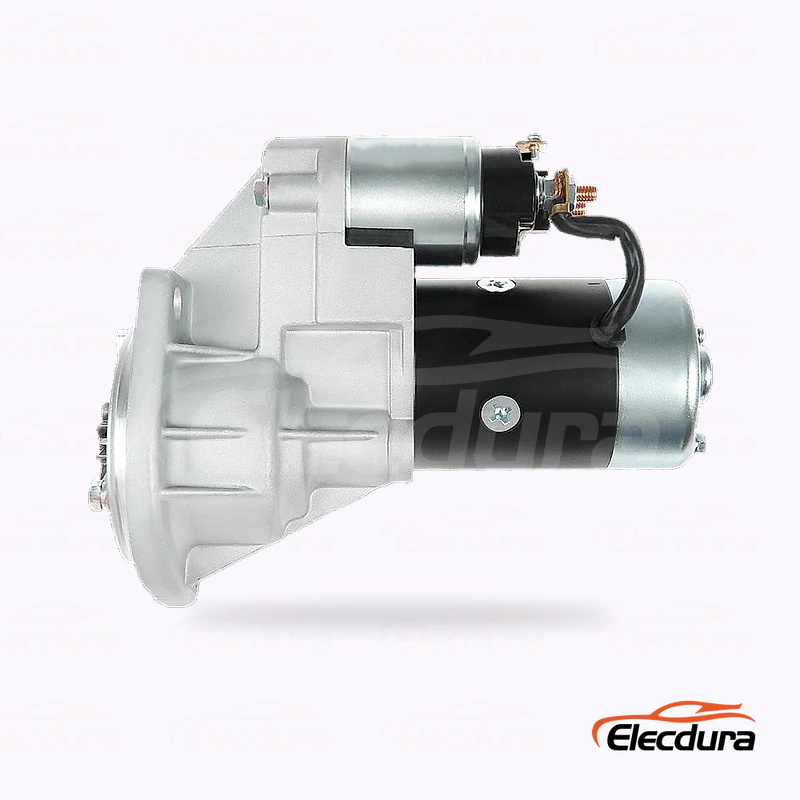

Use a straight front photograph to check the 30-degree upper ear, lower mounting holes, Ø120 face and Ø95 locating reference. The side view should show the 21 mm drive position and solenoid orientation, allowing a distributor to compare installed clearance before sending stock to a distant workshop.

8942549221 Reference Separation for Isuzu Engine and Equipment Orders

8942549221 shares a family with 5811001280, 8943334380, S24-03, S25-120, S25-161, 18284N and Yanmar 119131-77010. Use those numbers for search, but keep the engine and physical comparison visible because the broader family reaches more than one equipment and sales channel.

Record 4BC2 truck demand, 4BD1 industrial demand and 4BA1 service demand separately even when the accepted starter is shared. This helps the importer forecast by customer group, identify which branch needs emergency reserve and avoid describing the product as a universal Isuzu unit.

8942549221 Branch Stock, Diagnostics and Wholesale Supply Support

Before replacing the starter, workshops should test the 24V battery bank, loaded cable drop, grounds and start signal. Receiving teams can then sample the incoming lot for labels, nine-tooth pinions, mounting faces and terminals, keeping technical diagnosis and physical product inspection as two distinct checks.

Isuzu replacement-program buyers can review Elecdura starter assembly and electrical test procedures in this production video. The footage supports lot-sampling, packaging and repeat-delivery discussions, while the engine identity, 30-degree ear and cable-side comparison continue to define the 8942549221 product to be supplied.

8942549221 Isuzu Multi-Application Starter Questions for B2B Buyers

How should 4BC2, 4BD1 and 4BA1 demand be separated for 8942549221?

Record each engine group, host truck or machine, active population and branch destination separately, even if the accepted starter is shared. This preserves application visibility for forecasting and after-sales support. Attach the confirmed 8942549221 mounting and terminal images to every line so stock transfers do not convert a multi-channel product into a universal Isuzu claim.

Which physical features distinguish the 30-degree Isuzu mounting face?

Compare the upper ear at 30 degrees with the two lower Ø13.5 holes, Ø120 face and Ø95 locating reference. The side image should show the 21 mm drive position and solenoid direction. Together, these features provide a faster screen than outer motor shape when another S24-03-family starter is offered.

Why should 5811001280 and 8943334380 remain cross-references here?

Both numbers help purchasing locate the wider Isuzu family, but they already serve as lead identities in other product records. For this product listing, use 8942549221 as the primary number and retain the complete engine, rating and housing evidence. That avoids same-number duplication while keeping legitimate interchange search terms visible to buyers.

What confirms the correct 9T module-3 configuration for an Isuzu order?

Read the rating label, count the pinion teeth, confirm module 3 and clockwise rotation, then compare the 24V 3.5kW specification with the purchase line. Add a clear ring-gear or removed-pinion view when wear is present. These checks prevent another nine-tooth starter with a different tooth form or nose from being accepted.

How can a distributor route 8942549221 stock between truck and excavator customers?

Plan truck, excavator and industrial-engine quantities from separate sales history and response-time targets. Use one accepted physical item only where the engine and mounting checks agree, and label branch stock with the primary reference plus the supported engine group. This lets the distributor share inventory responsibly without hiding which customer channel created the demand.

What workshop tests reduce avoidable returns on this 24V starter?

Test both batteries as a bank, measure positive and ground voltage drop during cranking, verify the start signal and inspect cable lugs, engine grounds and ring gear. Record the symptoms before removal. A new 8942549221 starter cannot correct a weak battery or high-resistance cable, and those faults can quickly damage the replacement.

Which deviations should stop an incoming 8942549221 lot?

Quarantine units with a different rating label, tooth count, mounting-ear angle, locating face, terminal layout or damaged packing. Compare multiple samples with the accepted photographs and record the delivery lot. Containing a mixed version before it enters saleable stock is far cheaper than identifying the difference after branches have shipped units to customers.

What information supports a distributor quotation for several Isuzu engines?

Send the quantity by 4BC2, 4BD1 and 4BA1 application, host equipment details, complete old-unit numbers, mounting and terminal photographs, destination branches and required dates. Include packing, inspection or private-label requirements. Elecdura can then review the shared 8942549221 configuration and return price breaks, lead time and shipment planning without combining unlike installations.

Request 8942549221 Isuzu Starter Motor Distributor Pricing

Email the Isuzu engine and host-equipment details, complete 8942549221 or S24-03 marking, front, pinion and terminal photographs, quantity by branch, delivery date and packing needs to info@elecdurauto.com. Elecdura will review the 24V 9T configuration and prepare distributor pricing, lead time and shipment terms.
