8943334380 Isuzu 4BC2 11T Starter Motor Wholesale

8943334380 Starter Motor Wholesale for Isuzu 4BC2 11T Programs

Isuzu parts wholesalers often stock more than one starter for the 4BC2 engine. This 8943334380 offer is the 11-tooth line, so the pinion count must remain visible in enquiries, quotations, carton labels and warehouse descriptions.

Send the complete old-unit number, vehicle or equipment details, straight mounting-face and terminal-side photographs, quantity by branch and delivery deadline. Elecdura can then quote the specified starter without combining it with the related nine-tooth configuration.

8943334380 11T Starter Motor Specifications and Drive-End Dimensions

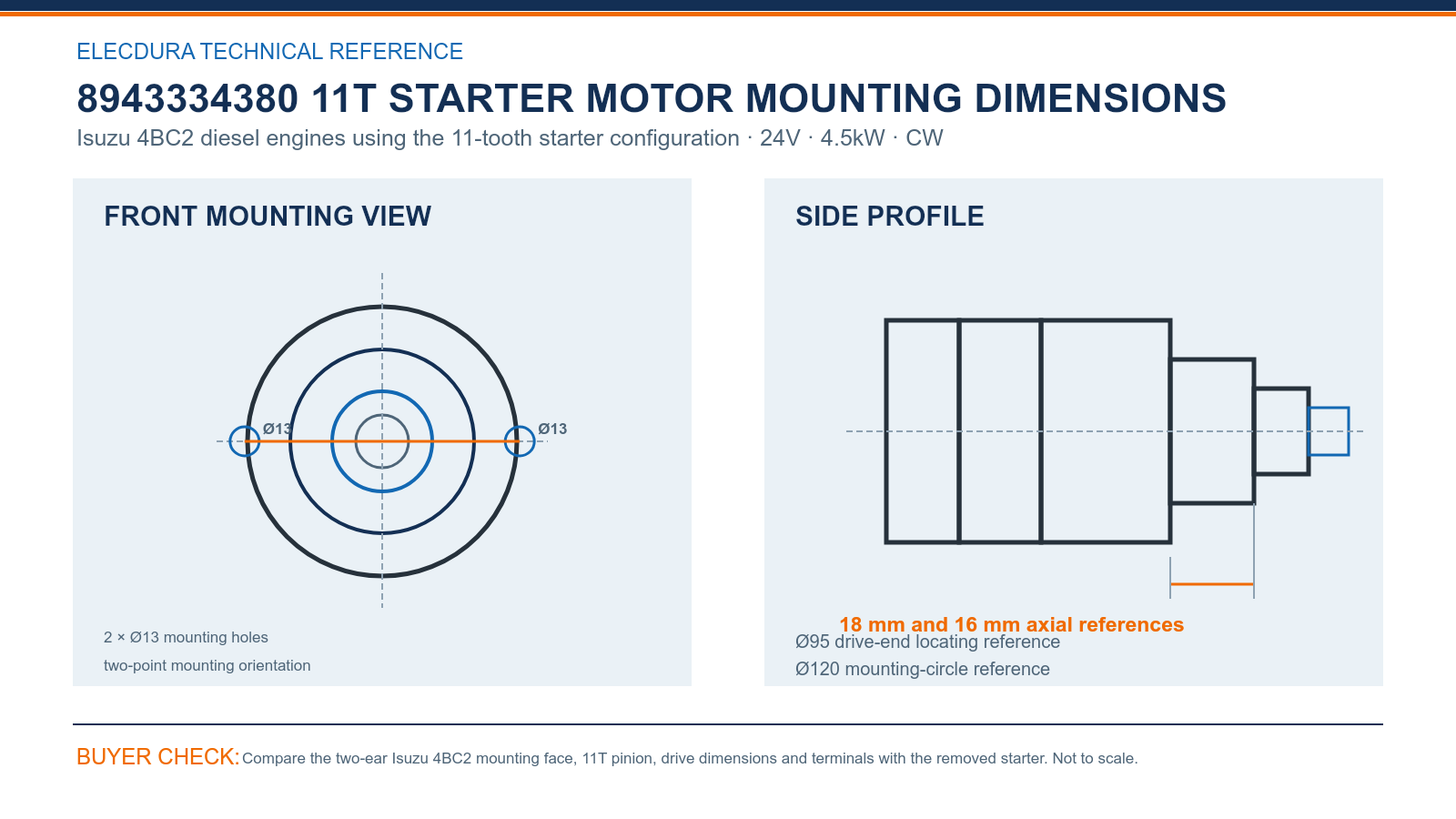

8943334380 Isuzu 4BC2 24V 4.5kW 11T starter mounting dimensions.

Use the drawing to compare the two Ø13 mounting holes, Ø95 locating reference and Ø120 mounting circle. The 18 mm and 16 mm axial dimensions show how the pinion and nose sit in relation to the mounting face.

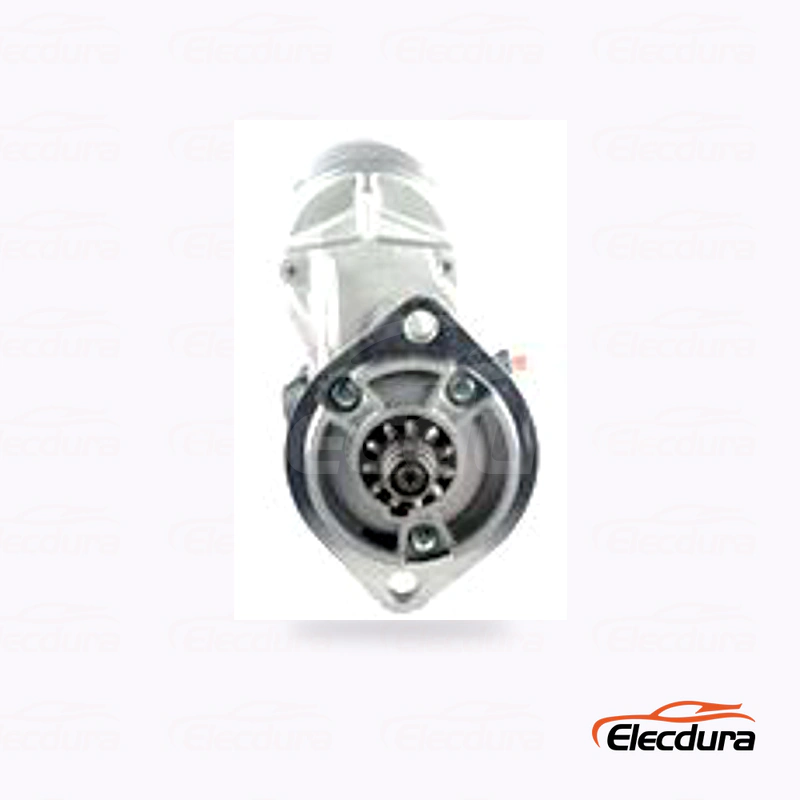

Count eleven teeth, confirm module 3 and CW rotation, then check the solenoid and cable-stud side. A housing that looks familiar should be treated as another starter when its pinion, face or terminal layout differs.

8943334380 Starter Motor Cross-References for 4BC2 Parts Buyers

1. Useful search group: 8943334380, 8942549221, 5811001950, S24-03B and S24-03C help locate the relevant 4BC2 starter family.

2. Ordering limit: Accept the reference group only with 24V, 4.5kW, 11T CW, the two-ear face and matching terminals. A nine-tooth unit belongs in a separate product and stock location.

8943334380 Starter Motor Distributor Stock and Export Supply

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Quantity, destination and packing requirements determine the final supply plan.

For multi-branch stock, identify the bin and transfer document with 8943334380 and 11T. This makes workshop withdrawals useful for replenishment and reduces the chance that a nearby 4BC2 starter is issued during an urgent request.

The video shows Elecdura starter-motor assembly and electrical testing. Selection of 8943334380 still depends on the complete reference, eleven-tooth pinion, mounting face and terminal position confirmed by the buyer.

8943334380 Starter Motor Questions for Isuzu Parts Wholesalers

How should a distributor distinguish 8943334380 from the 9T 4BC2 starter?

Read the complete reference and count the pinion before comparing the housing. This product requires 11T, module 3 and CW rotation with two Ø13 mounting holes. Keep 8943334380 and the tooth count on the enquiry, quotation and carton so the nearby nine-tooth version cannot enter the same stock line.

Which 8943334380 mounting dimensions should be checked first?

Start with the two Ø13 holes, Ø120 mounting circle and Ø95 locating reference. Then compare the 18 mm and 16 mm axial positions with the removed starter. A direct mounting-face photograph and a terminal-side view usually reveal differences that an angled overall photograph can hide.

Can S24-03B or S24-03C be ordered without seeing the old starter?

Those references can lead buyers to the correct family, but they should not replace physical confirmation. Ask for the full label, 11T pinion, voltage, output, rotation, mounting face and terminal layout. If one of these points differs, request a separate quotation rather than accepting the cross-reference alone.

What information makes an 8943334380 quotation accurate?

Provide the Isuzu vehicle or equipment model, 4BC2 engine details, every readable old-unit number, pinion and mounting photographs, required quantity and destination. Add the arrival date, carton marking and any staged-delivery need so pricing can include the correct starter, packing, lead time, warranty and freight.

How can branch warehouses prevent an 8943334380 picking error?

Use a dedicated 11T location and show 8943334380 on the bin, transfer sheet and carton. Sample the pinion and label when stock arrives, then record withdrawals against that exact item. Avoid a general 4BC2 description because it can combine physically different starter configurations in one demand history.

Which electrical tests should precede replacement of this 4BC2 starter?

Load-test the batteries and measure positive- and ground-circuit voltage drop while cranking. Inspect cable lugs, grounds and the start-control signal before removing the starter. These readings help separate a motor fault from weak batteries, excessive cable resistance, poor grounding or another vehicle electrical problem during diagnosis.

What should receiving staff inspect on an 8943334380 shipment?

Match carton and product labels to the purchase order, then sample the 11T pinion, two-ear face, locating diameter and protected terminals. Isolate shipping damage or a different configuration before stock entry. Retain the lot number and arrival photographs so later branch transfers and warranty questions remain traceable.

What records are useful for an 8943334380 after-sales review?

Send the shipment lot, installation date, operating hours, fault description and photographs of the label, pinion, mounting face and terminals. Include battery and cable readings taken during cranking. These records help distinguish product condition from application, installation, vehicle electrical or transport-related causes during a structured review.

Request 8943334380 Isuzu 4BC2 Starter Motor Pricing

Email the 4BC2 vehicle or equipment details, full old-unit number, counted pinion and mounting photographs, quantity, destination and required arrival date to info@elecdurauto.com. Elecdura will quote the specified 24V, 4.5kW, 11T CW starter motor with MOQ, packing, lead time, warranty and freight options.
