8944604170 Isuzu 4JA1 4JB1 12V 2.8kW Starter Motor Wholesale

8944604170 Isuzu 4JA1 4JB1 Starter for Parts Distributors

Isuzu 4JA1 and 4JB1 engines are supported through vehicle, industrial-engine and rebuild channels. Leading with 8944604170 and adding the engine plate, host equipment and old-unit images gives those buyers one OE-focused quotation line while preserving their different use and destination requirements.

A long list of Isuzu and Hitachi numbers does not remove the need for physical comparison. Confirm 12V 2.8kW, the 9T module-2.75 pinion, three Ø13 holes, Ø120 face, Ø95 locating diameter, 22 mm and 9.5 mm positions and 35° orientation.

8944604170 12V 2.8kW Starter Drawing with 9T Drive

The defined product uses 12V, 2.8kW, 9T, module 2.75 and clockwise rotation. Keeping module 2.75 beside the tooth count helps engine-parts buyers avoid a nine-tooth starter with a different gear form or mounting interface.

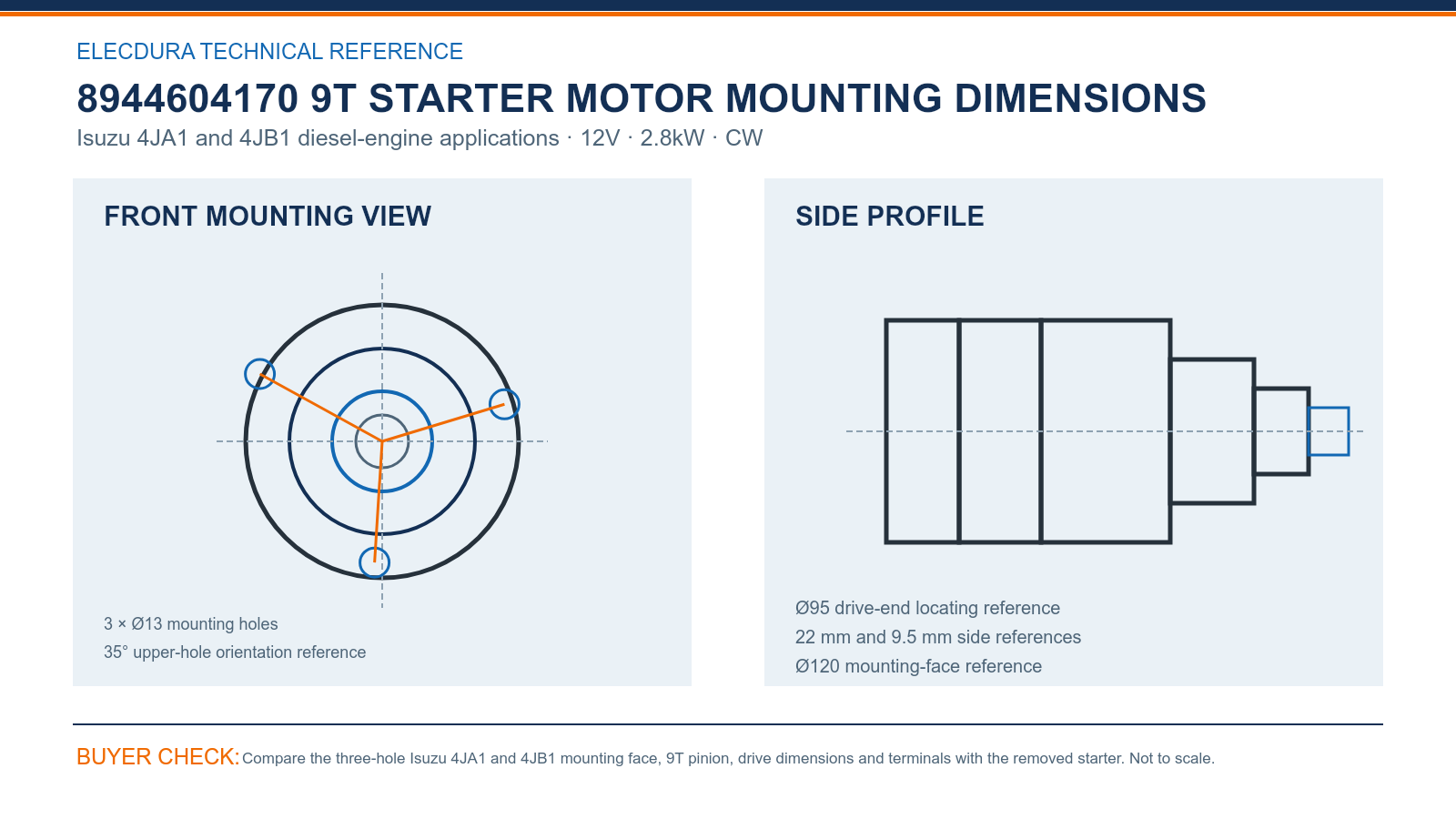

8944604170 Isuzu 4JA1 4JB1 Starter Motor Dimensions — compare the drawing with the removed starter before placing a volume order.

Compare three Ø13 holes around the Ø120 mounting face, the Ø95 drive-end locating reference, 22 mm and 9.5 mm side positions and the 35° ear orientation. A parallel flange image and an uncropped terminal view make the OE-led comparison more useful.

8944604170 Isuzu OE Matching for Engine Parts Buyers

Use 8944604170 as the leading Isuzu identity and keep every readable suffix complete. Supporting numbers from the 894, 897, S13 and S14 families improve search coverage, while the 4JA1 or 4JB1 engine and measured three-hole face determine the product being ordered.

Distributors may combine 4JA1 and 4JB1 demand after each removed starter matches the electrical rating, drive and mounting drawing. Maintaining sales history by engine, vehicle or industrial use still helps regional stocking and prevents a broad Isuzu description from replacing customer-specific demand.

8944604170 Starter Supply Support for Regional Service Stock

On the first receipt, sample multiple cartons and compare the nine-tooth pinion, three-hole face, locating surface and terminal arrangement. Record the shipment lot and keep the OE-led images with branch stock so later 8944604170 deliveries can be checked against the same physical baseline.

Elecdura's production video shows starter assembly and electrical testing for B2B programs. Isuzu distributors can use it while discussing sample quantities, carton labels, neutral or private-label packing and delivery schedules for the 8944604170 line.

8944604170 Starter Motor FAQs for B2B Buyers

Why use 8944604170 as the lead identity for this Isuzu starter?

The full Isuzu OE gives vehicle and engine-parts buyers a familiar starting point, while related 894, 897 and Hitachi numbers remain searchable. Keep 8944604170 beside the 4JA1 or 4JB1 engine, 12V 2.8kW 9T rating and three-hole photographs so the broad family resolves to one physical product.

Can 8944604170 stock serve both 4JA1 and 4JB1 demand?

It can be combined after removed units from both engine groups show the same 12V 2.8kW 9T module-2.75 drive, three-hole face and terminals. Keep quantities and sales history separated by engine and customer use. This allows one confirmed product to support purchasing while preserving useful information for regional replenishment.

Why is module 2.75 important for 8944604170?

Nine teeth do not define the gear form alone. The 8944604170 product uses a 9T module-2.75 pinion, which should agree with the removed starter and ring gear. Keep module 2.75 with 12V 2.8kW and clockwise rotation so another nine-tooth starter is not selected from voltage and appearance.

Which mounting details define the 8944604170 drive end?

Compare three Ø13 holes around the Ø120 face, the Ø95 locating diameter, 22 mm and 9.5 mm side positions and the 35° orientation. Photograph the flange square to the camera and show the terminal side separately. These views give OE-focused buyers a repeatable physical comparison for receiving and reorders.

How should an importer allocate 8944604170 stock across service regions?

Confirm one product configuration first, then use 4JA1 and 4JB1 vehicle population, previous consumption, branch distance and supplier lead time to divide stock. Keep engine and destination quantities on the packing list. This supports a consolidated purchase while preserving the regional demand information needed for later Isuzu replenishment.

What should be recorded when 8944604170 arrives?

Sample units from several cartons, verify the 2.8kW label and nine-tooth pinion, compare the three-hole face, locating surface and terminals, and inspect for transit impact. Photograph the lot and keep the full OE suffix visible. The resulting baseline helps branches check future deliveries and discuss any discrepancy clearly.

Which vehicle checks help an 8944604170 no-crank enquiry?

Record battery state, cable voltage drop, grounds, key or relay signal, starter connections and ring-gear condition before replacing the unit. Add the Isuzu engine, vehicle and starter markings. This evidence helps after-sales teams separate an electrical-system or installation issue from the 8944604170 starter and plan a more relevant response.

What belongs in an 8944604170 wholesale enquiry?

Email the Isuzu 4JA1 or 4JB1 engine plate, host vehicle or equipment, full 8944604170 or related marking, rating label, straight flange, pinion and terminal photographs, quantity by engine, packing preference and destination. Elecdura can compare the module-2.75 product and return price breaks, production timing and delivery choices.

Request 8944604170 Isuzu Starter Motor Wholesale Pricing

Send the Isuzu 4JA1 or 4JB1 engine plate, host equipment, complete 8944604170 or related marking, straight mounting, pinion and terminal photographs, quantity by engine, packing need and destination to info@elecdurauto.com. Elecdura will compare the 2.8kW product and return wholesale terms and lead time.
