8970324640 Isuzu 4HF1 11T Starter Motor Wholesale

8970324640 Starter Motor Wholesale for Isuzu 4HF1 Fleet Service

Isuzu commercial-vehicle wholesalers can source 8970324640 for a defined 4HF1 starter program. The full reference suffix matters because several S25 and Isuzu numbers circulate in the same parts channel while representing configurations that still require physical confirmation.

Provide the truck details, 4HF1 engine information, complete old-unit label, pinion and terminal photographs, quantity by depot and delivery date. Elecdura can build the quotation around the specified starter and the fleet's replenishment schedule.

8970324640 Starter Motor Dimensions for Isuzu 4HF1 Fleet Fitment

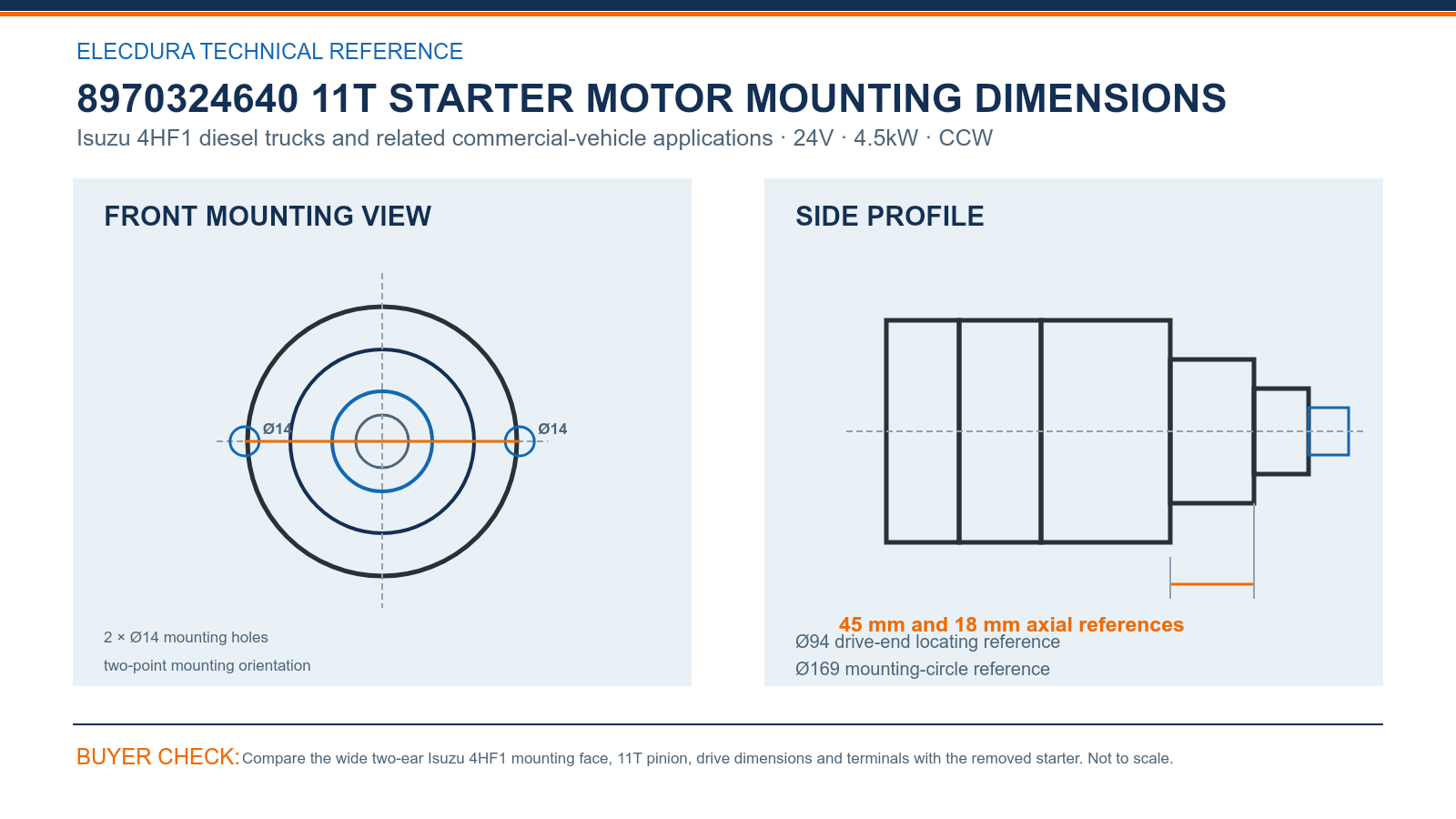

8970324640 Isuzu 4HF1 24V 4.5kW 11T CCW starter mounting dimensions.

Compare the two Ø14 mounting holes, Ø94 locating diameter and Ø169 mounting circle. The 45 mm and 18 mm axial references help verify how the 11T drive sits behind the wide two-ear face.

Confirm module 3, CCW rotation and terminal position with the removed unit. Keep the complete 8970324640 number in the comparison, since shortened Isuzu references can obscure suffixes that distinguish another truck starter.

8970324640 Isuzu 4HF1 Starter Motor Cross-Reference Control

1. Reference family: 8970324640, 8913239352, 8941337580, M008T85372 and S25-163/S25-163A/S25-163B/S25-163C can support sourcing.

2. Order confirmation: Match the complete suffix with 24V, 4.5kW, 11T CCW, two Ø14 holes, Ø169 face, Ø94 location and the actual terminal layout before combining these references.

8970324640 Starter Motor Supply for Multi-Depot 4HF1 Fleets

Wholesale orders can start from 20 pieces, normally requiring 7–15 days after order confirmation, with an 18-month warranty under agreed terms. Elecdura confirms availability, packing and freight against quantities and delivery dates for each fleet location.

A multi-depot buyer can separate roadside or workshop demand from planned reserve stock. Using the full OE, CCW and wide-face description on transfer documents keeps similar Isuzu starters from being moved into the wrong 4HF1 location.

Elecdura's video shows starter-motor assembly and electrical testing. It supports supplier review, while the 8970324640 order remains controlled by the complete reference, 4HF1 application, 11T drive, wide mounting face and terminals.

8970324640 Starter Motor Questions from 4HF1 Fleet Buyers

Why should buyers retain the complete 8970324640 suffix?

Isuzu and S25 starter numbers are often shortened in workshop communication. The complete suffix helps separate this 4HF1 unit from nearby families before physical checks begin. Keep 8970324640 on the quotation and carton, then confirm 11T, CCW rotation, mounting face and terminals with the removed starter.

Which photographs are most useful for 8970324640 fitment review?

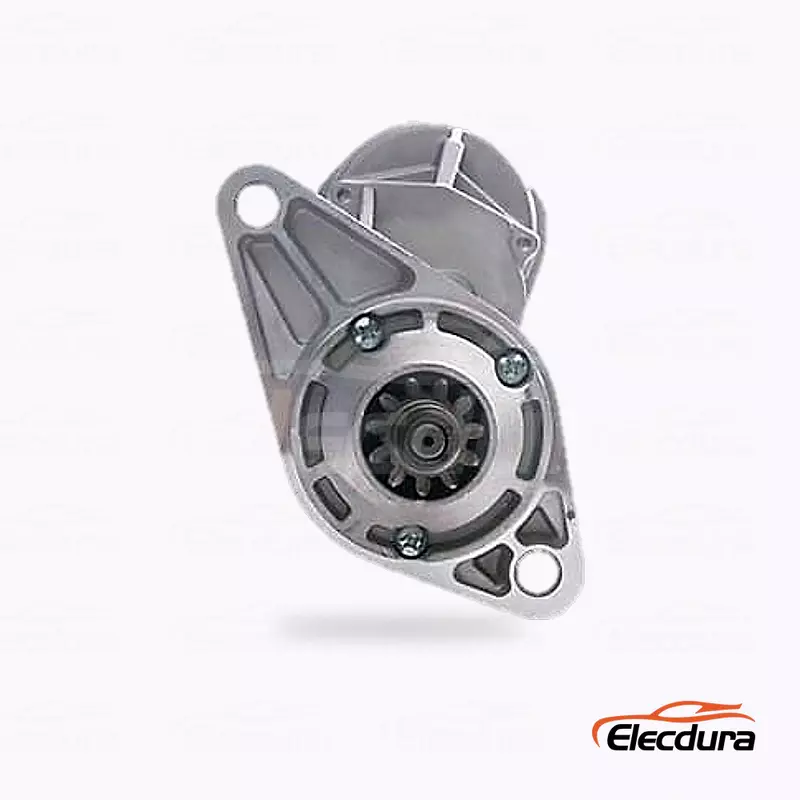

Provide a readable label, a straight drive-end view, a side view showing the solenoid and a clear terminal-side photograph. Count the pinion teeth in one image. These views allow comparison of the two Ø14 holes, broad Ø169 face and cable connections without relying on an overall angled photo.

How should a fleet compare the 45 mm and 18 mm dimensions?

Use the removed starter or a reliable measurement image and compare both axial references from the mounting face. Check the Ø94 location and Ø169 circle at the same time. These dimensions describe pinion position and nose geometry, which can differ even when two starter motors share a similar outer body.

Can every S25-163 variation be supplied as 8970324640?

The S25-163 family is useful for locating candidates, but the suffix alone does not replace confirmation. Require 24V, 4.5kW, 11T, CCW rotation, two Ø14 holes and matching terminals. If the face, direction or cable side changes, the buyer should request a separate product review.

How can several depots set a useful 8970324640 reserve?

Compare recent 4HF1 withdrawals, supported vehicle population, transfer time between depots and the cost of vehicle downtime. Separate emergency reserve from routine replenishment. Share the resulting quantities and delivery windows so Elecdura can plan stock or production without treating every location as the same demand profile.

What receiving controls protect a 4HF1 starter stock line?

Match the complete 8970324640 label and carton, then sample 11T, CCW, both Ø14 holes, Ø169 face and terminal protection. Record the shipment lot and receiving photographs. Isolate damage or any physical mismatch before distributing units to depots or placing them in the fleet's reserve stock.

What should workshops test before blaming the 8970324640 starter?

Load-test the batteries and measure positive and ground voltage drop while cranking. Check start-signal voltage, cable connections and ring-gear condition. These readings help distinguish a true motor problem from weak batteries, corroded cables, poor grounding, a control-circuit fault or mechanical resistance in the engine assembly.

Which records shorten an after-sales review for a fleet starter?

Send the delivery lot, vehicle number, installation date, mileage or hours and a precise symptom description. Include loaded electrical readings and photographs of the product label, pinion, face and terminals. This connects the returned unit to its operating history and separates product condition from installation or vehicle causes.

Request 8970324640 Isuzu 4HF1 Starter Motor Pricing

Email the Isuzu truck and 4HF1 engine details, complete 8970324640-family number, pinion, mounting and terminal photographs, quantity by depot, destination and arrival date to info@elecdurauto.com. Elecdura will quote the 24V, 4.5kW, 11T CCW starter with MOQ, packing, lead time, warranty and freight.
