8980703211 Isuzu 4HG1 11T Starter Motor Wholesale

8980703211 Starter Motor Wholesale for Isuzu 4HG1 and 4BE1

Isuzu NPR and NKR parts distributors can use 8980703211 to identify an 11T CCW starter with an unusually wide Ø169 mounting circle. Rotation and face width are central purchasing details because nearby Isuzu references can look similar in general product photographs.

Send the chassis or VIN, engine family, complete starter label, straight mounting-face and terminal views, branch quantity and delivery destination. Elecdura can then quote the defined unit instead of extending the offer across unrelated 4HG1 or 4BE1 starter variants.

8980703211 CCW Starter Motor Specifications and Wide-Face Dimensions

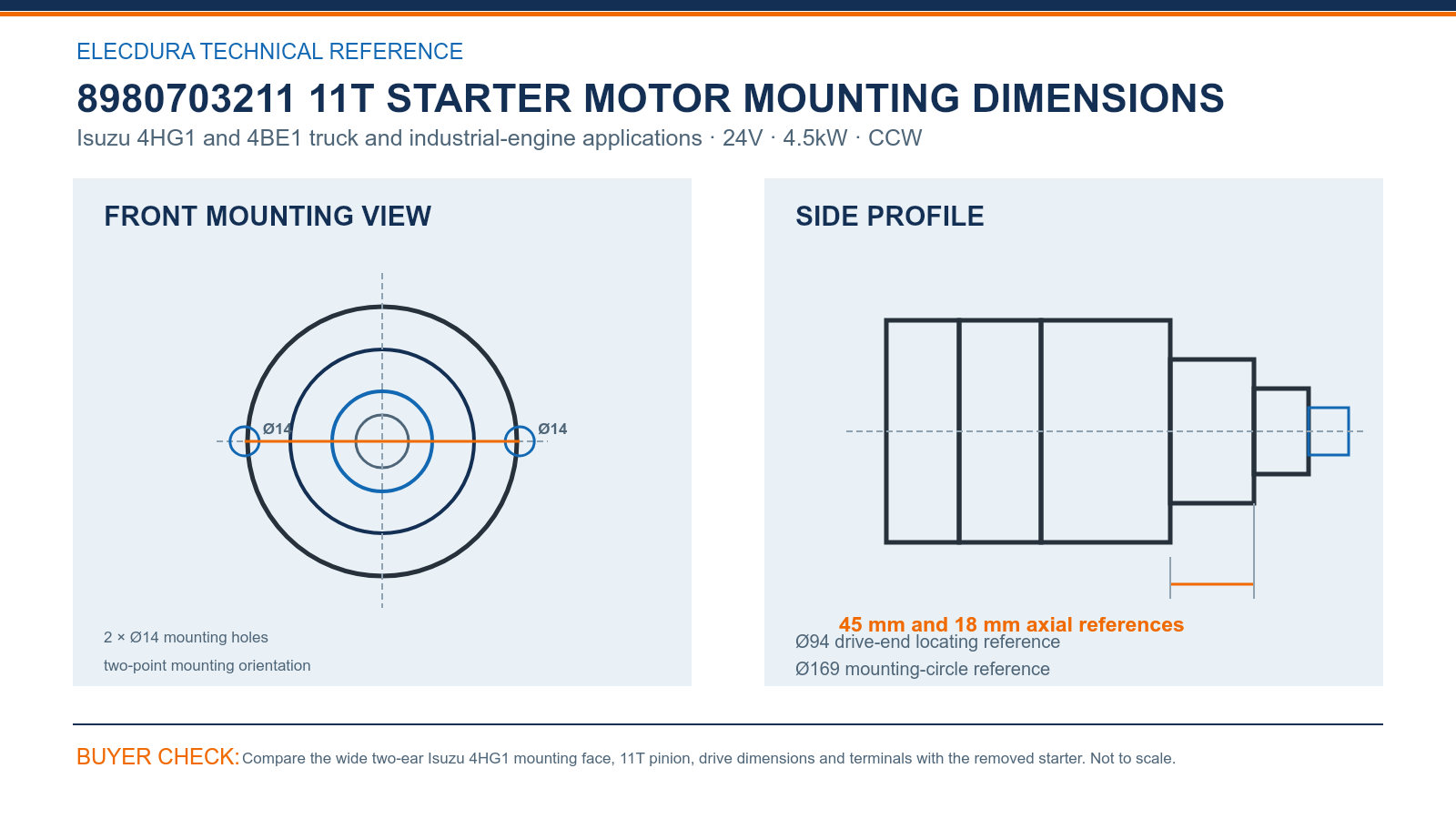

8980703211 Isuzu 4HG1 24V 4.5kW 11T CCW starter mounting dimensions.

Compare the two Ø14 mounting holes, Ø94 locating reference and Ø169 mounting circle shown in the drawing. The 45 mm and 18 mm axial positions help confirm the relationship between the 11T drive and the broad two-ear face.

Verify CCW rotation, module 3 and the connector side before placing the order. A CW unit or a smaller mounting circle should remain outside the 8980703211 stock line even when the motor body appears similar.

8980703211 Isuzu Starter Motor Reference Group for Truck Parts Supply

1. Search references: 8980703211, 8913239325, S25-505, S25-505G, S25-308A, S235-305, 113675 and 18960 can guide 4HG1 and 4BE1 product searches.

2. Fitment boundary: Require 24V, 4.5kW, 11T CCW, two Ø14 ears, the Ø169 face, Ø94 location and matching terminals. A reference match without these physical details is incomplete.

8980703211 Starter Motor Supply for Isuzu Fleet and Workshop Stock

Elecdura supports distributor quantities from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Packing and delivery are planned for the specified destination and arrival date.

Fleet depots can forecast 8980703211 from actual 4HG1 and 4BE1 withdrawals while keeping CCW and Ø169 on the warehouse description. This prevents a broad Isuzu starter category from hiding the configuration that service staff need.

The video introduces Elecdura starter-motor assembly and electrical testing. Supplier capability is visible in the process, while product selection remains based on the truck, complete OE, CCW rotation, wide face and terminals confirmed by the buyer.

8980703211 Starter Motor Questions for Isuzu Truck Parts Buyers

Why must CCW rotation be confirmed for 8980703211?

This starter is specified as CCW. A nearby Isuzu unit may share voltage, power and tooth count but rotate differently, making it unsuitable despite a similar housing. Confirm rotation from the old-unit data and physical comparison, then retain CCW on the enquiry, quotation, purchase order and receiving sheet.

How can the Ø169 mounting circle be compared accurately?

Use a direct drive-end photograph or the removed starter itself. Compare the two Ø14 holes, Ø94 locating reference and the broad Ø169 circle, then check the 45 mm and 18 mm axial positions. An angled image can distort the face and make a smaller mounting pattern appear acceptable.

Which vehicle details help confirm an 8980703211 application?

Provide the Isuzu model, chassis or VIN, engine family and every readable starter number. Add photographs of the label, pinion, mounting face and terminal side. These details are especially useful when a 4HG1 or 4BE1 parts request arrives through a workshop using a shortened reference.

How should buyers interpret S25-505 and related references?

Treat the S25 numbers as search and comparison references, not automatic proof of one physical unit. Confirm 24V, 4.5kW, 11T, CCW rotation, two Ø14 ears, Ø169 face and terminal layout. If the old starter differs, ask for another product rather than broadening the 8980703211 supply line.

What should an Isuzu fleet depot record for replenishment?

Record 8980703211 withdrawals by engine family, vehicle group and service location. Keep the CCW and wide-face description on the stock item, then add transfer time and desired reserve quantity. This produces a clearer reorder point than pooling every 24V Isuzu starter under one maintenance category.

Which items should be checked when 8980703211 stock arrives?

Check product and carton labels, sample the 11T pinion and confirm CCW identification. Compare both Ø14 holes, the Ø169 face, Ø94 location and protected terminals with the accepted reference. Photograph the lot and isolate any damage or dimensional difference before releasing units to truck branches.

What circuit tests should a workshop perform before replacement?

Measure battery voltage under cranking load, positive and ground voltage drop and start-signal voltage. Inspect terminals, grounds and ring-gear condition. These tests help determine whether the complaint comes from the starter or from weak batteries, cable resistance, poor connections, control voltage or mechanical damage elsewhere.

What details should accompany an 8980703211 warranty enquiry?

Provide the invoice or lot, vehicle identification, installation date, mileage or hours and the reported symptom. Include cranking measurements and photographs of the label, pinion, wide mounting face and terminals. This information supports a faster review of product condition, installation, vehicle electrical, application and transport factors.

Request 8980703211 Isuzu 4HG1 Starter Motor Pricing

Email the Isuzu vehicle and engine details, complete removed-unit number, CCW confirmation, wide-face and terminal photographs, quantity, destination and required arrival date to info@elecdurauto.com. Elecdura will quote the 24V, 4.5kW, 11T CCW starter with MOQ, packing, supply timing, warranty and freight options.
