Fuel Shutdown Solenoid ED340000 ED460000 for heavy-duty industrial diesel fuel-valve controls

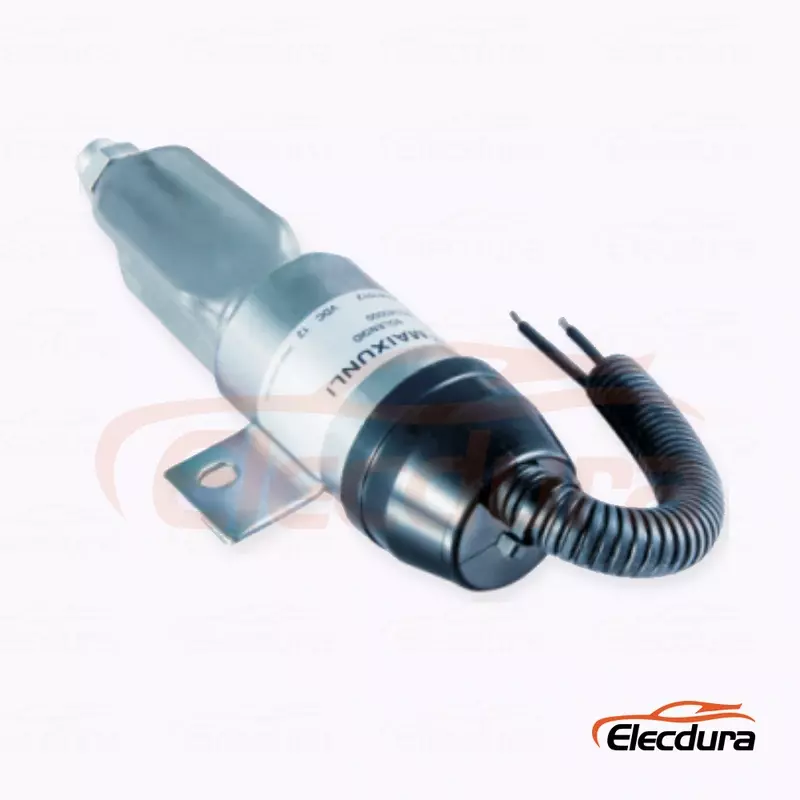

ED340000 Diesel Engine Control Actuator Solenoid

ED340000 is an actuator-style solenoid for heavy-duty industrial diesel fuel-valve controls. Selection should be based on the complete reference, supply voltage, energized direction, stroke, mounting and control method. An actuator can energize yet fail in service when installed preload or lever geometry prevents the core from reaching its intended position.

ED340000 Product Information

Control Direction and Stroke Approval for ED340000

Match the complete stamped code because winding, mounting, terminal and linkage details can differ within the same family.

Separating Actuator, Wiring and Linkage Faults on ED340000

Record the command voltage, core movement and final lever movement as separate observations. That sequence distinguishes an electrical feed problem from a solenoid that moves correctly but loses travel through a loose bracket, incorrect preload or restricted linkage.

ED340000 Replacement Approval Checklist

Release the order only after electrical, mechanical and application evidence agrees with the removed assembly. The checklist below keeps fleet, distributor and service-team information on one approval record.

ED340000 Fuel Shutoff Solenoid FAQ

How should the 12V and 24V ED340000 versions be separated?

Keep the complete voltage-specific reference and old-unit marking on the order. The 12V and 24V bodies may share mounting geometry, but their coils are not interchangeable. Confirm machine charging-system voltage at the old connector and label cartons by both OE and voltage to prevent mixed inventory.

How is energized-to-run different from energized-to-stop?

An energized-to-run actuator must remain powered while the engine operates and normally stops the engine when power is removed. An energized-to-stop unit receives power only for shutdown. Confirm the original control logic because using the wrong mode can create a no-start condition or continuous coil heating.

Why should installed preload be measured for ED340000?

Too much preload can prevent full travel and keep the pull stage working against a mechanical stop; too little can leave insufficient lever movement. Record the resting core position, commanded stroke and lever endpoints with the old actuator installed before approving a replacement.

What does movement without engine response indicate?

Electrical actuation is only the first step. Inspect the clevis, rod, cable or lever connection for free play, loose hardware and incorrect adjustment. Confirm that the final fuel-control lever reaches both run and stop positions while the actuator completes its own travel.

What should be compared with the removed ED340000 assembly?

Compare the full label, voltage, connector face, terminal count, mounting-hole centers, body orientation, output end, resting length and required travel. Add one wider installed photo showing nearby pump or linkage clearance; close product photos alone may hide the geometry that decides fitment.

How can repeat coil damage be avoided after replacement?

Correct the reason the old unit failed before installation. Check supply voltage, pull/hold timing, linkage resistance, mechanical stops, terminal tightness and heat exposure. A new coil can fail quickly when the pull stage remains energized or the plunger cannot complete its designed stroke.

What information should a distributor include in the ED340000 RFQ?

Send ED340000 / ED460000, confirmed voltage, heavy-duty industrial diesel fuel-valve controls, old-label and connector photos, bracket and output measurements, quantity, destination and packing requirement. Mixed fleets should list each voltage and configuration on separate lines so technical approval and warehouse labeling remain traceable.

Request a Quote for ED340000

Send the complete OE group, confirmed voltage, heavy-duty industrial diesel fuel-valve controls, removed-part photos, measurements and order quantity for a fitment-focused B2B quotation.
