S0251 Zetor 7340 Starter Motor Wholesale Supply

S0251 Starter Motor Wholesale Application Support for Zetor 3320 through 7340 tractor

For Zetor 3320 through 7340 tractor, S0251 gives distributors a focused starting point for quotation and branch inventory. Confirm 12V, 3.0kW, 11T and CW, with particular attention to 12V 3.0kW 11T catalog configuration for the Zetor tractor group, before combining demand from different fleets or workshops.

Build the S0251 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

S0251 Starter Motor Specifications and Drawing for Wholesale Buyers

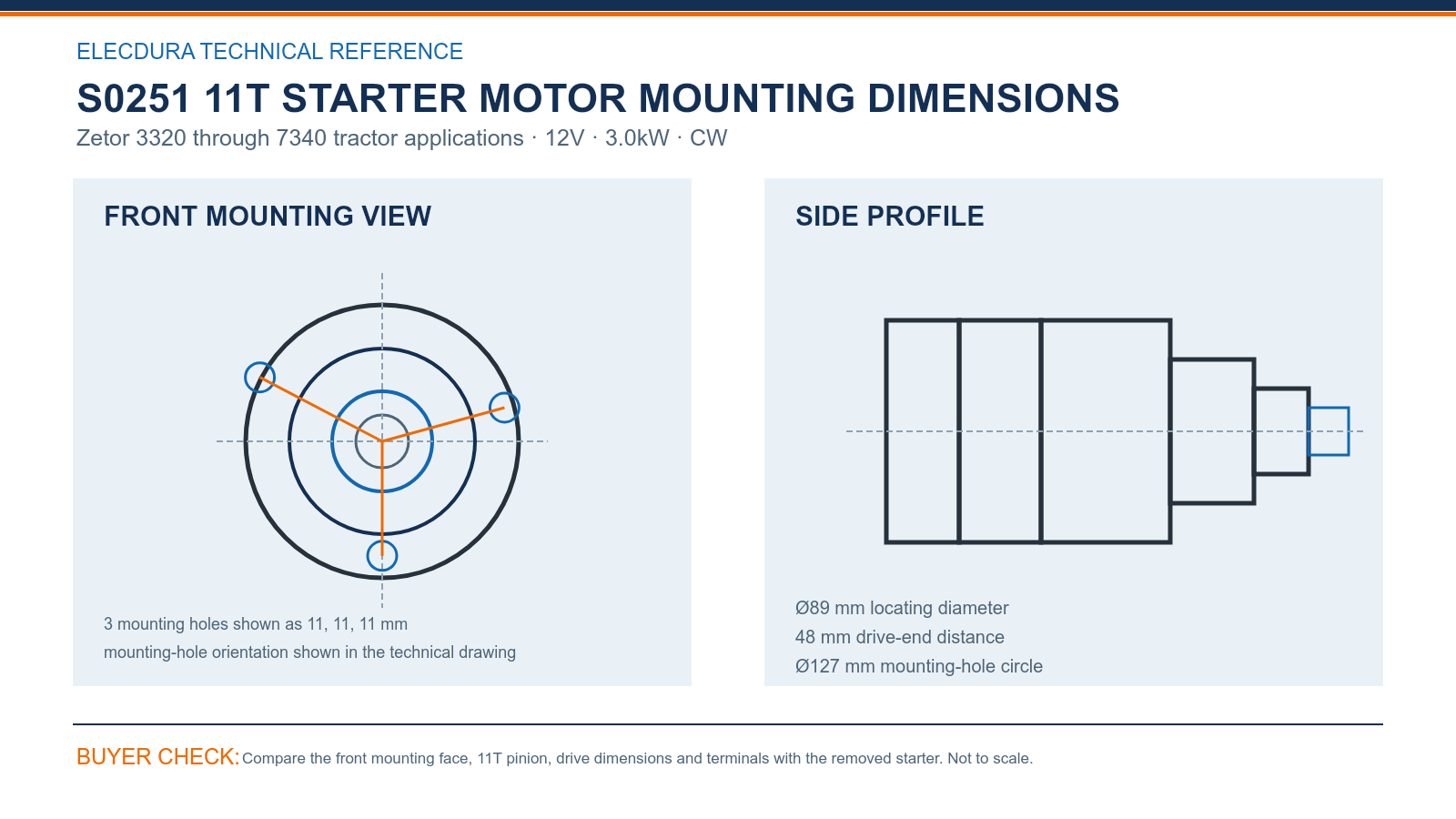

S0251 Zetor 3320 through 7340 tractor 12V 3.0kW 11T starter mounting dimensions.

Check the S0251 drawing against the removed starter at the mounting face and drive end. The critical references are 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 48 mm drive-end distance. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

Complete the S0251 comparison with 12V, 3.0kW, the 11T drive, module 3 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S0251 Starter Motor OE Cross-References for Distributor Enquiries

The S0251 cross-reference group includes S0251, 110545, 114254, 0001359047, 0001367002, 0001367032, 0001367067. Use these numbers to search supplier systems, then confirm 12V, 3.0kW, 11T, CW, mounting geometry and terminals.

For S0251, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

S0251 Starter Motor Fleet Supply and Replenishment Support

Distributors can combine an initial S0251 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

Stock planning should reflect the supported Zetor 3320 through 7340 tractor population, recent consumption and transfer time between service locations. Keeping S0251, the 11T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S0251 remains tied to the stated Zetor 3320 through 7340 tractor application, 11T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S0251 Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving S0251 during a Zetor 7340 service-network receiving check?

For S0251, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What fitment evidence makes a quotation for S0251 reliable during service-network sourcing?

Use the full old-unit number and Zetor 3320 through 7340 tractor record. Compare the 11T pinion, 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

How should a mixed-reference enquiry for S0251 be prepared in a Zetor 7340 service-network sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S0251 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Before removing S0251, what should the workshop test under load during a Zetor 7340 service-network electrical check?

Before fitting S0251, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for S0251 during a Zetor 7340 service-network inspection?

For S0251, compare 3 mounting holes shown as 11, 11, 11 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 48 mm drive-end distance in the side view. Add 11T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How should Zetor distributors plan stock for S0251 in a Zetor 7340 service-network program?

Retain model-level fitment on distributor quotations and warehouse labels. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for S0251 in a Zetor 7340 service-network sourcing program?

A useful RFQ states S0251, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving S0251 in a Zetor 7340 service-network review?

For a service review of S0251, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S0251 Request Starter Motor Wholesale Pricing

Email info@elecdurauto.com with S0251, the supported Zetor 3320 through 7340 tractor record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 12V, 3.0kW, 11T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
