S0516 Case IH D358 Starter Motor Wholesale

S0516 Starter Motor Wholesale Application Support for Case IH D358 engine and tractor

For Case IH D358 engine and tractor, S0516 gives distributors a focused starting point for quotation and branch inventory. Confirm 12V, 3.0kW, 9T and CW, with particular attention to 12V 3.0kW 9T catalog configuration for the D358 group, before combining demand from different fleets or workshops.

A useful enquiry pairs S0516 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S0516 Starter Motor Mounting Dimensions for Distributor Approval

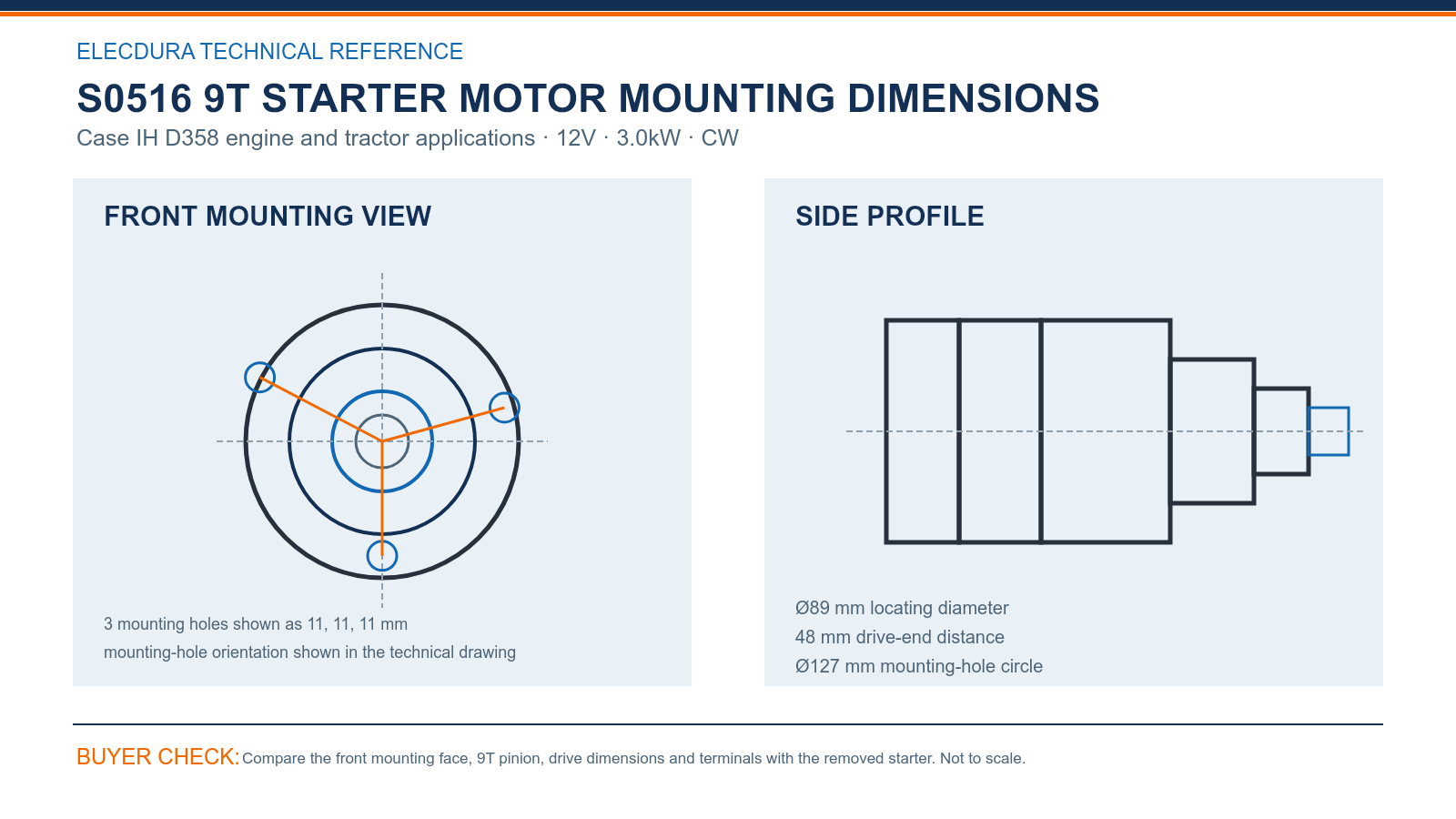

S0516 Case IH D358 engine and tractor 12V 3.0kW 9T starter mounting dimensions.

Compare S0516 at the 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. The 48 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For S0516, electrical and mechanical identity must agree: 12V, 3.0kW, 9T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S0516 Starter Motor Reference Group for Wholesale Sourcing

The S0516 cross-reference group includes S0516, 0001359022, 0001359032, 0001359101, 0001367033, AR70611, RE540304. Use these numbers to search supplier systems, then confirm 12V, 3.0kW, 9T, CW, mounting geometry and terminals.

For S0516, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

S0516 Starter Motor Bulk Order Packing and Lead-Time Support

Elecdura can prepare S0516 orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S0516 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S0516, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S0516 Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming S0516 during a Case IH D358 service-network inspection?

Align the removed starter and S0516 at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 11, 11, 11 mm and 48 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

When does a cross-reference related to S0516 need a separate quotation in a Case IH D358 service-network sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S0516 group is acceptable only when 12V, 3.0kW, 9T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Why does S0516 require a physical comparison for Case IH applications during service-network sourcing?

For S0516, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 3.0kW, 9T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Which cranking-circuit tests should precede replacement of S0516 during a Case IH D358 service-network electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0516. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Which operating factors should guide a fleet's S0516 reserve quantity in a Case IH D358 service-network program?

Review workshop consumption by the stated Case IH D358 engine and tractor population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical S0516 reorder point and avoids holding the wrong drive-end version as emergency stock.

What carton-to-product checks are appropriate for S0516 during a Case IH D358 service-network receiving check?

Use a first-lot sample to confirm S0516, 12V, 3.0kW, 9T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote S0516 without delay in a Case IH D358 service-network sourcing program?

List S0516 together with the supported equipment record, 12V, 3.0kW, 9T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for S0516 in a Case IH D358 service-network review?

For S0516, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

S0516 Ask for Starter Motor Export Pricing

Send the complete S0516 reference, Case IH D358 engine and tractor details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 12V, 3.0kW, 9T CW starter, MOQ, packing, lead time, warranty and freight.
