S0520 AGCO Power Sisu 411C Starter Motor Wholesale

S0520 Starter Motor B2B Fitment Guide for AGCO Power and Sisu Diesel 411C

AGCO and Sisu agricultural distributors, engine workshops and starter importers can source S0520 for AGCO Power and Sisu Diesel 411C. Preserve the 11T pinion and 24V 4.0kW 11T module-3 catalog configuration; do not substitute by engine family or housing appearance alone.

Send the full S0520 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

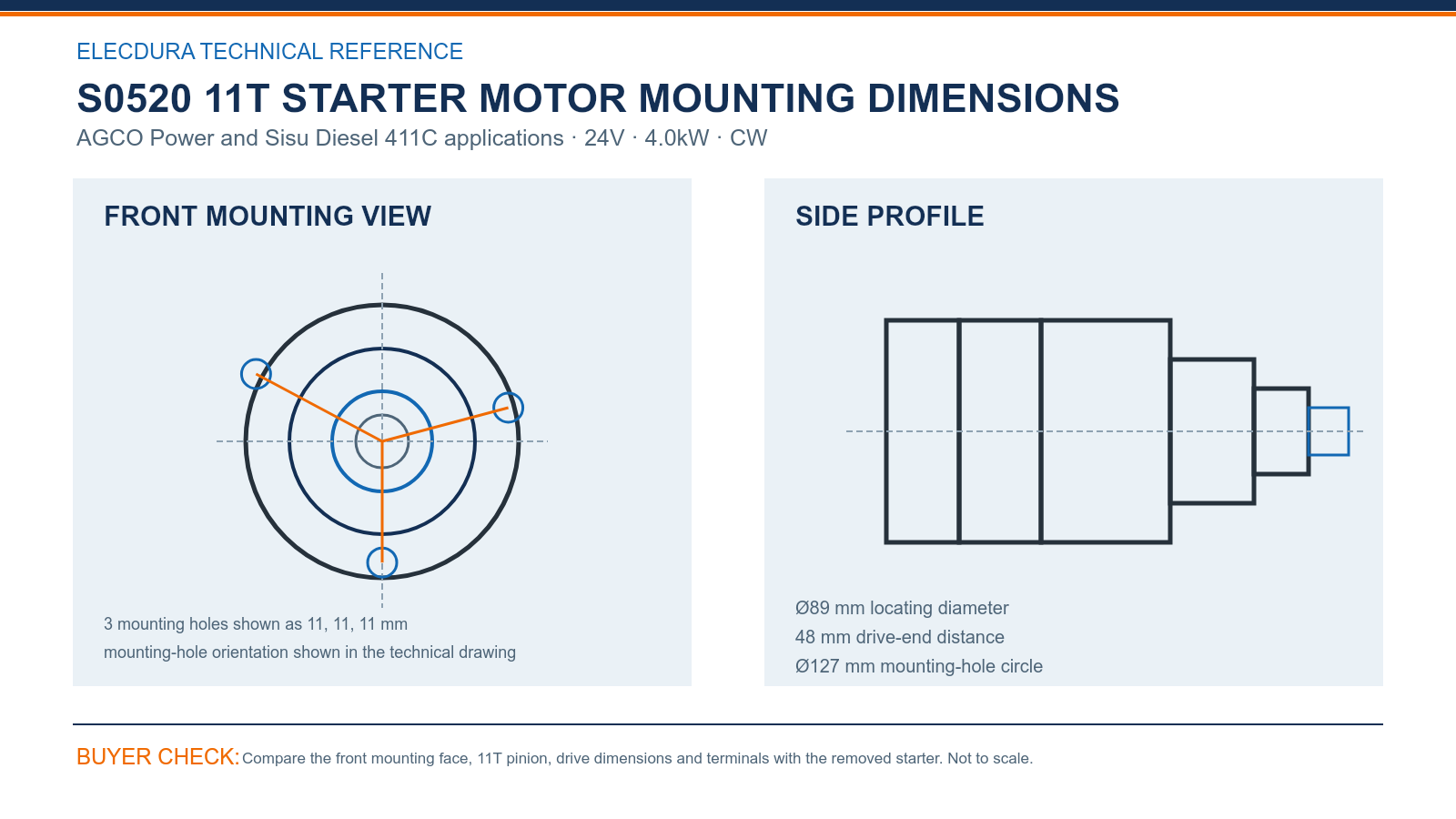

S0520 Starter Motor Drive-End Drawing for Aftermarket Distributors

Compare S0520 at the 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. The 48 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For S0520, count the 11T pinion and confirm module 3, CW rotation, 24V and 4.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

S0520 Starter Motor Reference Group for Wholesale Sourcing

1. Search group: S0520, 113484, 116070, 0001263048, 0001368037, 0001368039, 0001368041 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 4.0kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

S0520 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S0520, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Stock planning should reflect the supported AGCO Power and Sisu Diesel 411C population, recent consumption and transfer time between service locations. Keeping S0520, the 11T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for S0520 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

S0520 Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving S0520 during an AGCO Power Sisu 411C dealer receiving check?

For S0520, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What workshop readings are useful when diagnosing a starting complaint involving S0520 during an AGCO Power Sisu 411C dealer electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0520. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

How can an importer avoid mixing S0520 with a similar drive-end version during dealer sourcing?

For S0520 in AGCO Power and Sisu Diesel 411C, confirm the machine or engine identity and read the full old-unit label. Check 11T, Ø127 mm mounting-hole circle, Ø89 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item when the stated application overlaps.

When does a cross-reference related to S0520 need a separate quotation in an AGCO Power Sisu 411C dealer sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S0520 group is acceptable only when 24V, 4.0kW, 11T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

What physical controls belong on a first-lot check for S0520 during an AGCO Power Sisu 411C dealer inspection?

For S0520, compare 3 mounting holes shown as 11, 11, 11 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 48 mm drive-end distance in the side view. Add 11T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How should AGCO Power distributors plan stock for S0520 in an AGCO Power Sisu 411C dealer program?

Keep the accepted AGCO or Sisu engine record with seasonal stock planning. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for S0520 in an AGCO Power Sisu 411C dealer sourcing program?

A useful RFQ states S0520, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving S0520 in an AGCO Power Sisu 411C dealer review?

For a service review of S0520, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S0520 Start a Starter Motor Wholesale Enquiry

For a focused S0520 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
