S0562 Fendt D227-6 Starter Motor Wholesale

S0562 Starter Motor Fleet Replacement Supply for Fendt tractor applications with the D227-6 engine

S0562 supports Fendt tractor applications with the D227-6 engine sourcing where buyers need a defined electrical and drive-end match. Its 12V, 2.7kW, 9T CW specification must remain linked to the 12V 2.7kW 9T catalog configuration for the D227-6 record; a visually related unit may belong on a different RFQ line.

Before comparing S0562 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S0562 Starter Motor Technical Data for Fleet Parts Buyers

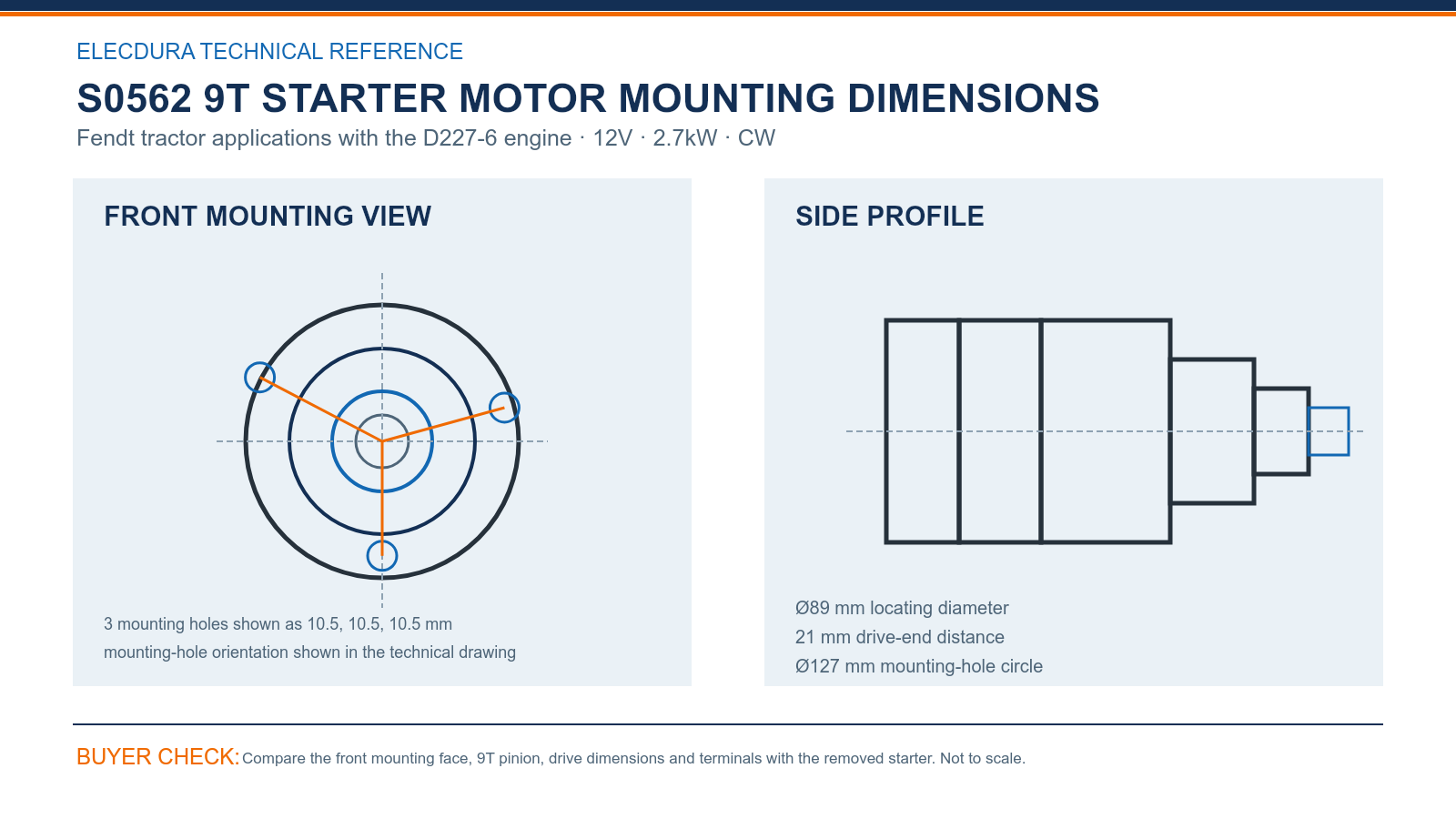

S0562 Fendt tractor applications with the D227-6 engine 12V 2.7kW 9T starter mounting dimensions.

A warehouse can confirm the S0562 interface without dismantling the unit. Measure Ø89 mm locating diameter and Ø127 mm mounting-hole circle, inspect 3 mounting holes shown as 10.5, 10.5, 10.5 mm, then verify the 21 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For S0562, count the 9T pinion and confirm module 3, CW rotation, 12V and 2.7kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

S0562 Starter Motor Reference Matching for B2B Quotations

The S0562 cross-reference group includes S0562, 111332, 112219, 0001362025, 0001362043, 0001362306, 0001362314. Use these numbers to search supplier systems, then confirm 12V, 2.7kW, 9T, CW, mounting geometry and terminals.

For S0562, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

S0562 Starter Motor Wholesale Supply and Export Planning

Wholesale planning for S0562 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Confirm the Fendt model and D227-6 engine before approving the 9T unit. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S0562 remains tied to the stated Fendt tractor applications with the D227-6 engine application, 9T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S0562 Starter Motor Questions from Commercial Buyers

How should a buyer request samples and bulk pricing for S0562 in a Fendt D227-6 workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S0562, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should buyers use the S0562 cross-reference group in a Fendt D227-6 workshop sourcing program?

A number match narrows the search but does not finish it. For S0562, compare the stated application, electrical output, 9T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What fitment evidence makes a quotation for S0562 reliable during workshop sourcing?

Use the full old-unit number and Fendt tractor applications with the D227-6 engine record. Compare the 9T pinion, 3 mounting holes shown as 10.5, 10.5, 10.5 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

What pre-installation circuit review supports replacement with S0562 during a Fendt D227-6 workshop diagnosis?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S0562 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

What should be measured on the drive end before releasing S0562 to stock during a Fendt D227-6 workshop inspection?

For S0562, check 3 mounting holes shown as 10.5, 10.5, 10.5 mm, Ø89 mm locating diameter and 21 mm drive-end distance. Record the 9T pinion, rotation and terminal position so the warehouse can isolate a mixed or incorrectly labelled unit before dispatch.

What should an importer include in the replenishment forecast for S0562 in a Fendt D227-6 workshop program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S0562, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a warehouse inspect when S0562 starter motors arrive during a Fendt D227-6 workshop receiving check?

For S0562, match carton and product labels to the purchase order, then sample 12V, 9T, 3 mounting holes shown as 10.5, 10.5, 10.5 mm and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

What traceability details should accompany a warranty enquiry for S0562 in a Fendt D227-6 workshop review?

Keep the carton or product traceability code and note when and where S0562 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

S0562 Request Starter Motor Wholesale Pricing

A complete RFQ for S0562 should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 12V 2.7kW 9T CW starter, MOQ, packaging, warranty and shipping choices.
