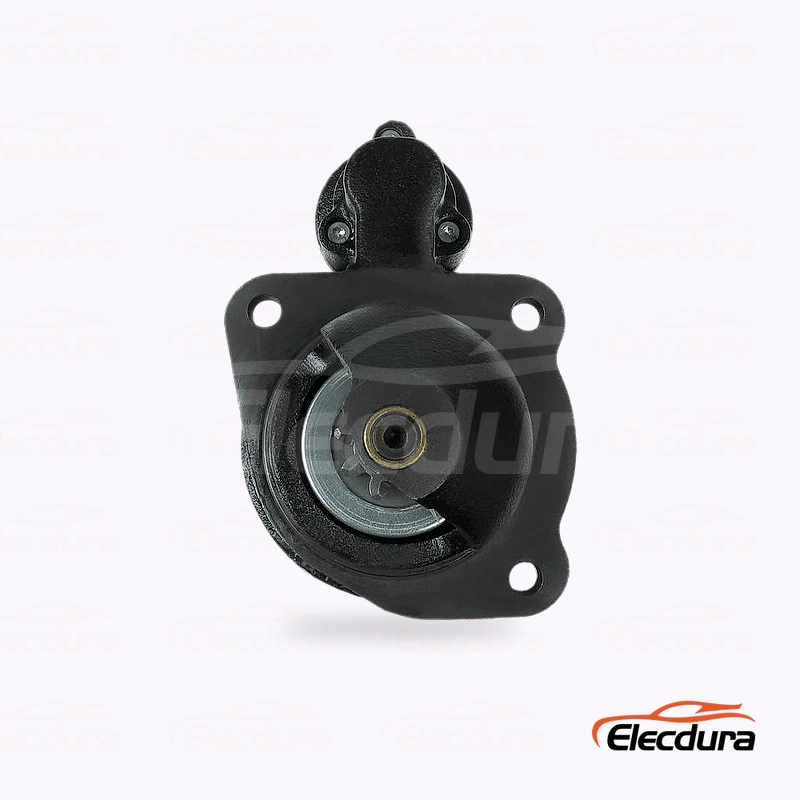

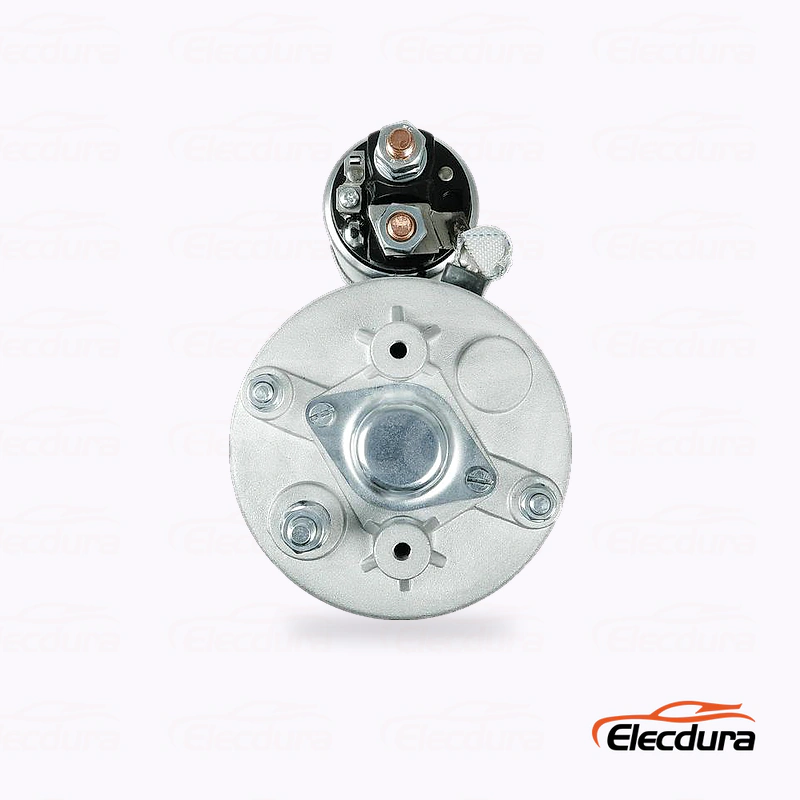

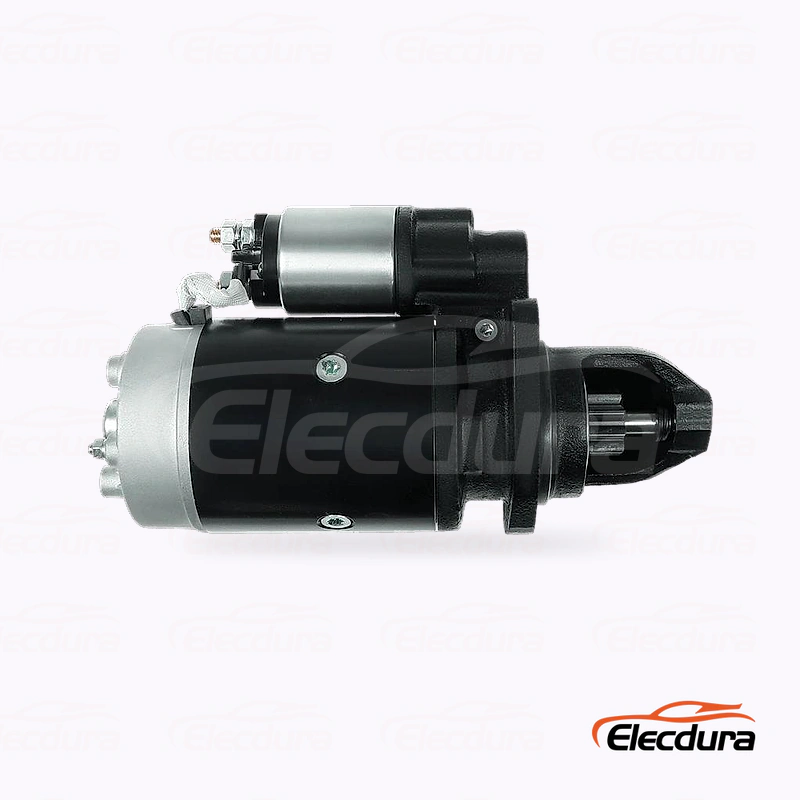

S0631S Case IH 6T-590 Starter Motor Wholesale

S0631S Starter Motor Fleet Replacement Supply for Case IH 5130, 5140 or 5150 applications with the 6T-590 engine

S0631S supports Case IH 5130, 5140 or 5150 applications with the 6T-590 engine sourcing where buyers need a defined electrical and drive-end match. Its 12V, 3.0kW, 9T CW specification must remain linked to the 12V 3.0kW 9T catalog configuration for the 6T-590 group; a visually related unit may belong on a different RFQ line.

Send the full S0631S application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

S0631S Starter Motor Drive-End Drawing for Aftermarket Distributors

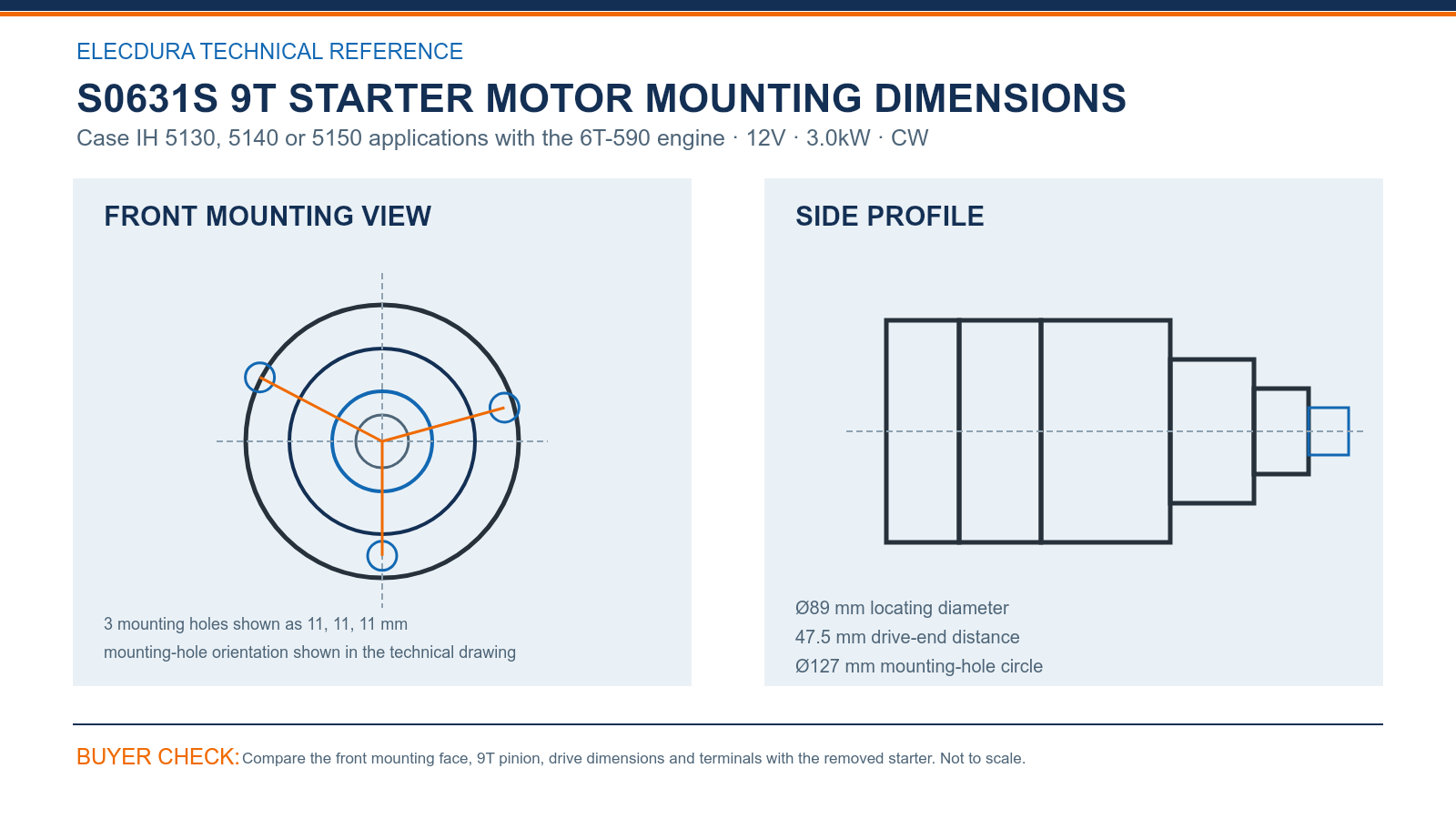

S0631S Case IH 5130, 5140 or 5150 applications with the 6T-590 engine 12V 3.0kW 9T starter mounting dimensions.

Check the S0631S drawing against the removed starter at the mounting face and drive end. The critical references are 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47.5 mm drive-end distance. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

Complete the S0631S comparison with 12V, 3.0kW, the 9T drive, module 3 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S0631S Starter Motor OE Cross-References for Distributor Enquiries

The S0631S cross-reference group includes S0631S, 111885, 0001367019, 0001367072, 0001369007, 0001369019, 0001369025. Use these numbers to search supplier systems, then confirm 12V, 3.0kW, 9T, CW, mounting geometry and terminals.

For S0631S, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

S0631S Starter Motor Fleet Supply and Replenishment Support

Distributors can combine an initial S0631S sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S0631S sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S0631S, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S0631S Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of S0631S stock in a Case IH 6T-590 workshop program?

Retain model, engine and terminal-view records for repeat farm-equipment supply. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What pre-installation circuit review supports replacement with S0631S during a Case IH 6T-590 workshop diagnosis?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S0631S helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Can S0631S be selected from the application name alone during workshop sourcing?

Confirm S0631S with the complete OE number, Case IH 5130, 5140 or 5150 applications with the 6T-590 engine record and clear front, side and terminal photographs. Check 9T, 3 mounting holes shown as 11, 11, 11 mm and 47.5 mm drive-end distance so visually related starters stay on separate order lines.

Which checks should follow an OE-number match for S0631S in a Case IH 6T-590 workshop sourcing program?

A number match narrows the search but does not finish it. For S0631S, compare the stated application, electrical output, 9T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which dimensions in the S0631S drawing should receiving teams sample during a Case IH 6T-590 workshop inspection?

For S0631S, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47.5 mm drive-end distance. Count the 9T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

What receiving records are useful for a shipment of S0631S during a Case IH 6T-590 workshop receiving check?

Receiving should verify the S0631S label, quantity and packaging before opening sampled cartons. Compare the 9T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for S0631S in a Case IH 6T-590 workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S0631S, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving S0631S in a Case IH 6T-590 workshop review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S0631S without assuming that every no-crank complaint originates inside the starter.

S0631S Ask for Starter Motor Export Pricing

Prepare the S0631S enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
