S0761S Case 580F JCB Starter Motor Wholesale

S0761S Starter Motor B2B Fitment Guide for Case 580F and JCB 805 construction-equipment

Backhoe dealers, JCB service networks and construction-parts wholesalers can source S0761S for Case 580F and JCB 805 construction-equipment. Preserve the 10T pinion and 12V 2.8kW 10T catalog configuration for backhoe and excavator service; do not substitute by engine family or housing appearance alone.

For the first S0761S order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

S0761S Starter Motor Specification Table for B2B Sourcing

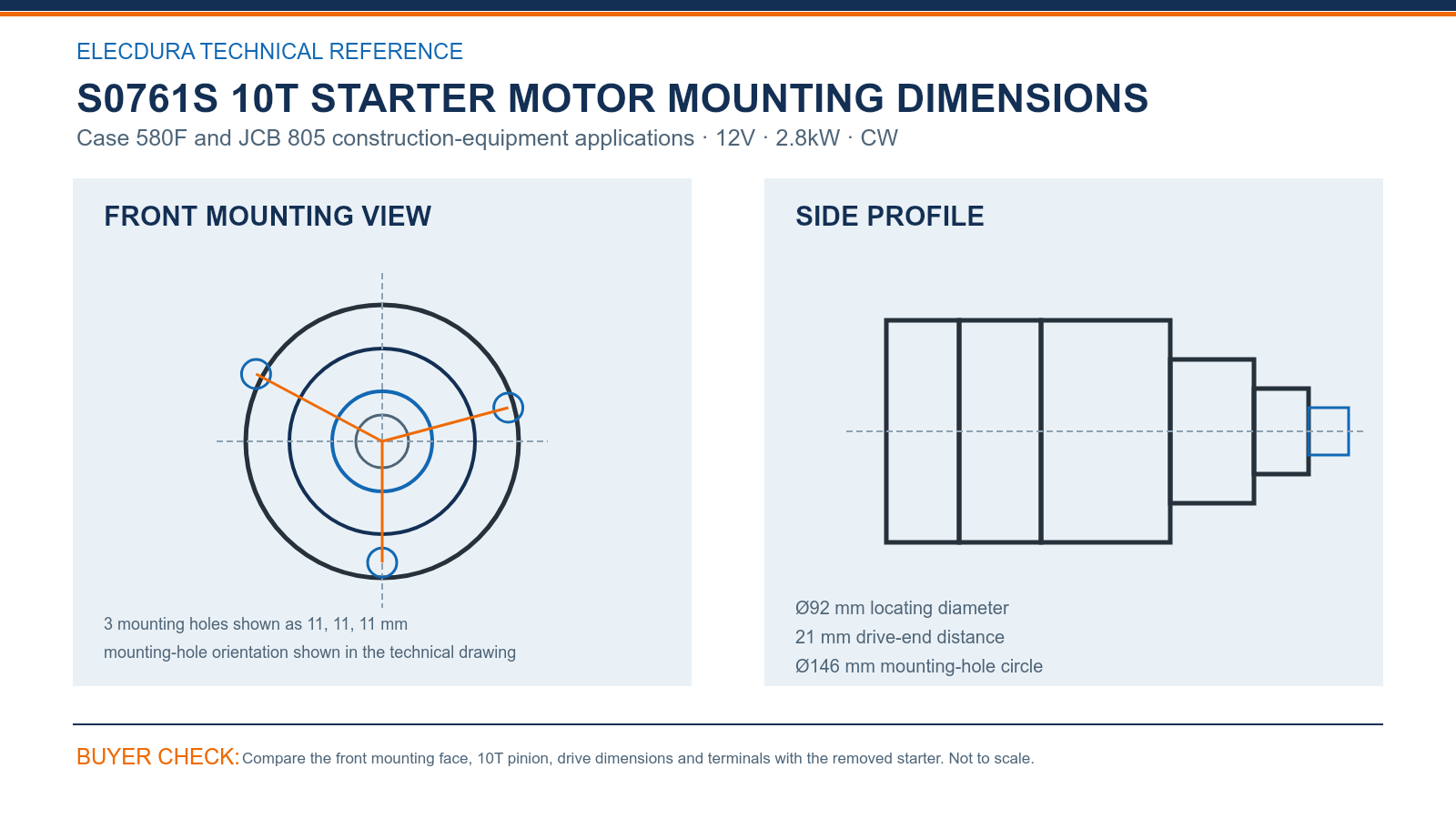

S0761S Case 580F and JCB 805 construction-equipment 12V 2.8kW 10T starter mounting dimensions.

Use the S0761S technical drawing to check Ø92 mm locating diameter, 21 mm drive-end distance and Ø146 mm mounting-hole circle. Add the 3 mounting holes shown as 11, 11, 11 mm to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S0761S comparison with 12V, 2.8kW, the 10T drive, module 3.175 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S0761S Starter Motor Cross-Reference Review for Fleet Buyers

1. Search group: S0761S, 110462, 116137, 0001362067, 702000150, 71YB11000AA, 81AB10300UB can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 2.8kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

S0761S Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for S0761S can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S0761S sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S0761S remains tied to the stated Case 580F and JCB 805 construction-equipment application, 10T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S0761S Starter Motor Questions from Commercial Buyers

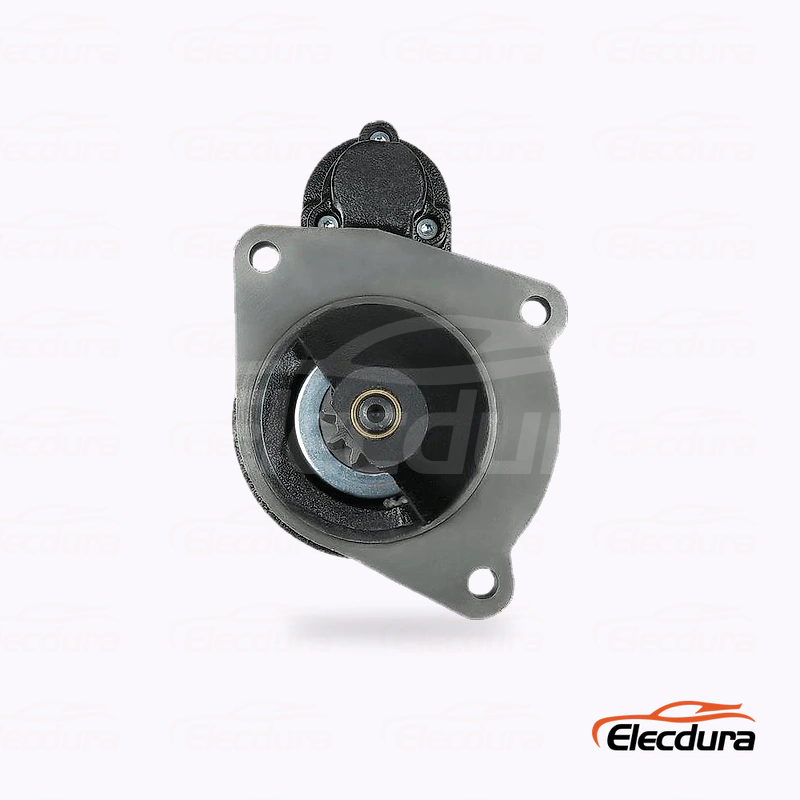

Why is a straight mounting-face photo useful for confirming S0761S during a Case 580F JCB dealer inspection?

Align the removed starter and S0761S at the mounting face. Compare Ø92 mm locating diameter, Ø146 mm mounting-hole circle, 3 mounting holes shown as 11, 11, 11 mm and 21 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can urgent service demand and routine S0761S replenishment share one enquiry in a Case 580F JCB dealer program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S0761S usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Why does S0761S require a physical comparison for Case applications during dealer sourcing?

For S0761S, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 2.8kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with S0761S identify an interchangeable unit in a Case 580F JCB dealer sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S0761S, 110462, 116137, 0001362067, 702000150 to locate possible matches, then confirm 12V, 2.8kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

How can a service team rule out cable or battery faults before fitting S0761S during a Case 580F JCB dealer electrical check?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S0761S helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

What carton-to-product checks are appropriate for S0761S during a Case 580F JCB dealer receiving check?

Use a first-lot sample to confirm S0761S, 12V, 2.8kW, 10T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote S0761S without delay in a Case 580F JCB dealer sourcing program?

List S0761S together with the supported equipment record, 12V, 2.8kW, 10T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for S0761S in a Case 580F JCB dealer review?

For S0761S, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

S0761S Request Starter Motor Wholesale Pricing

To discuss S0761S supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
