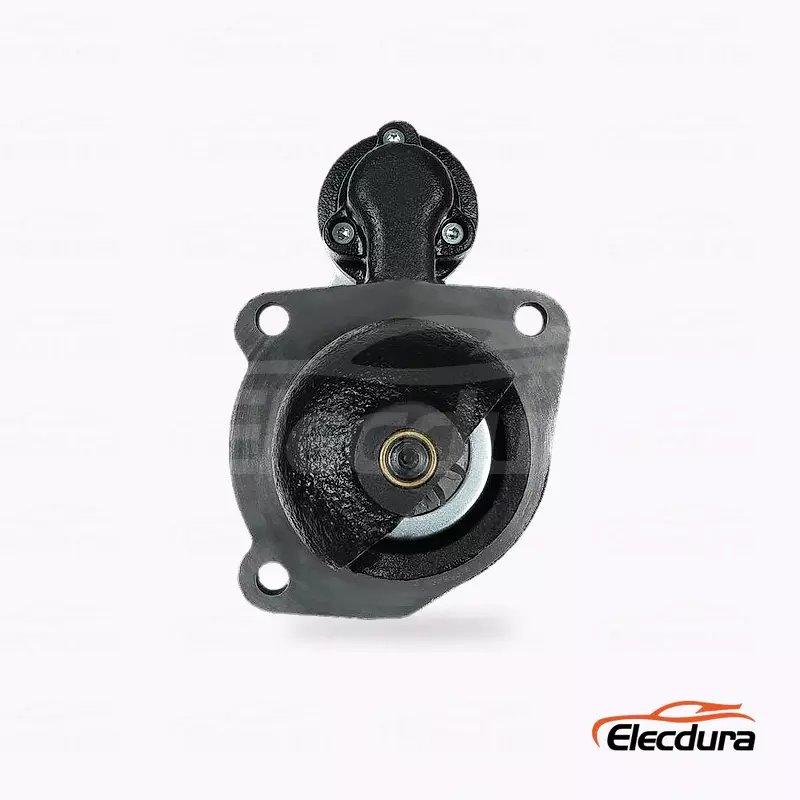

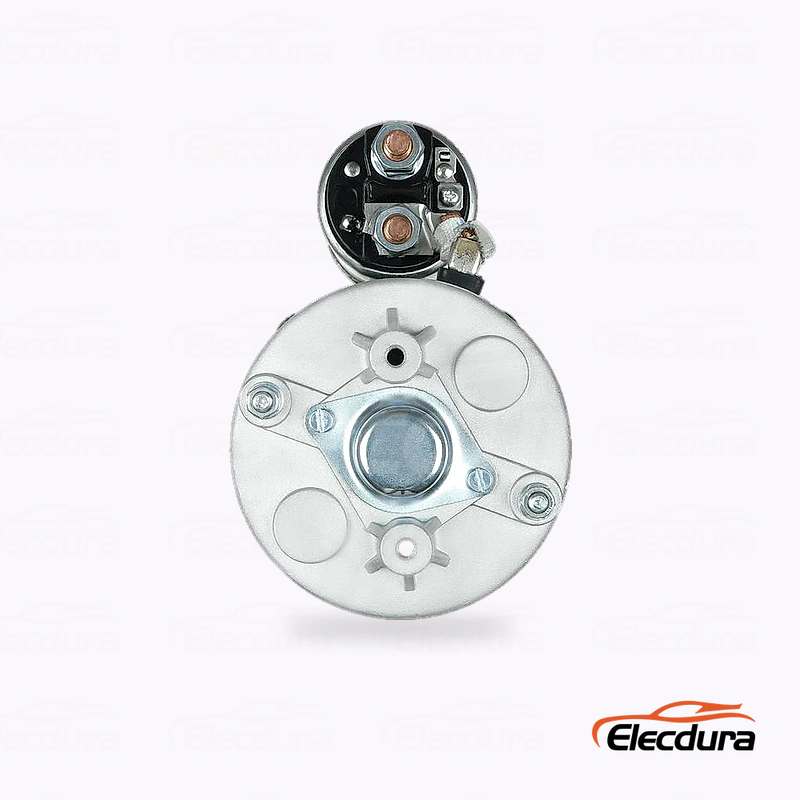

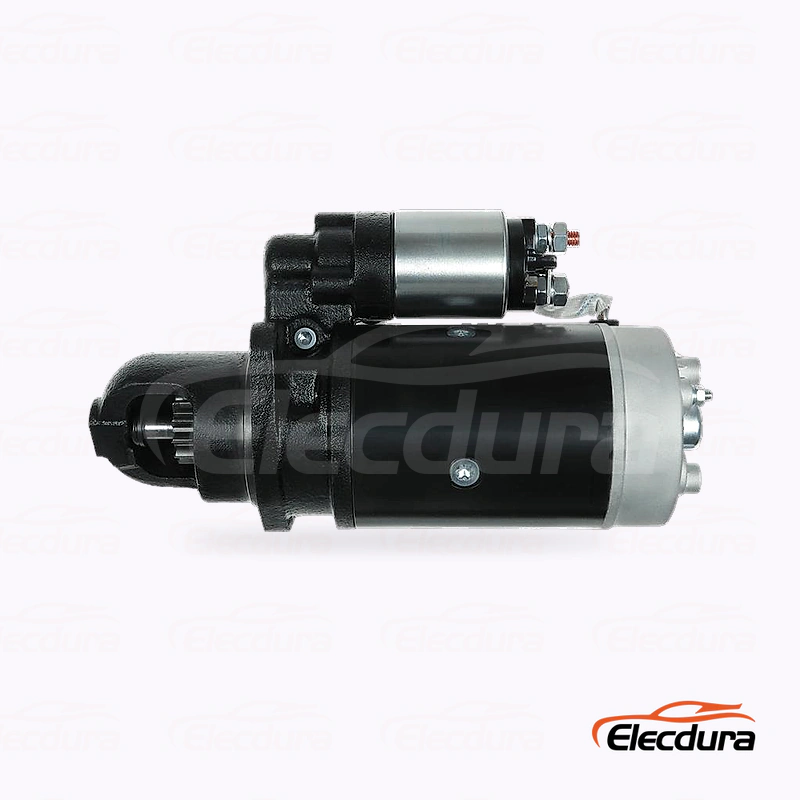

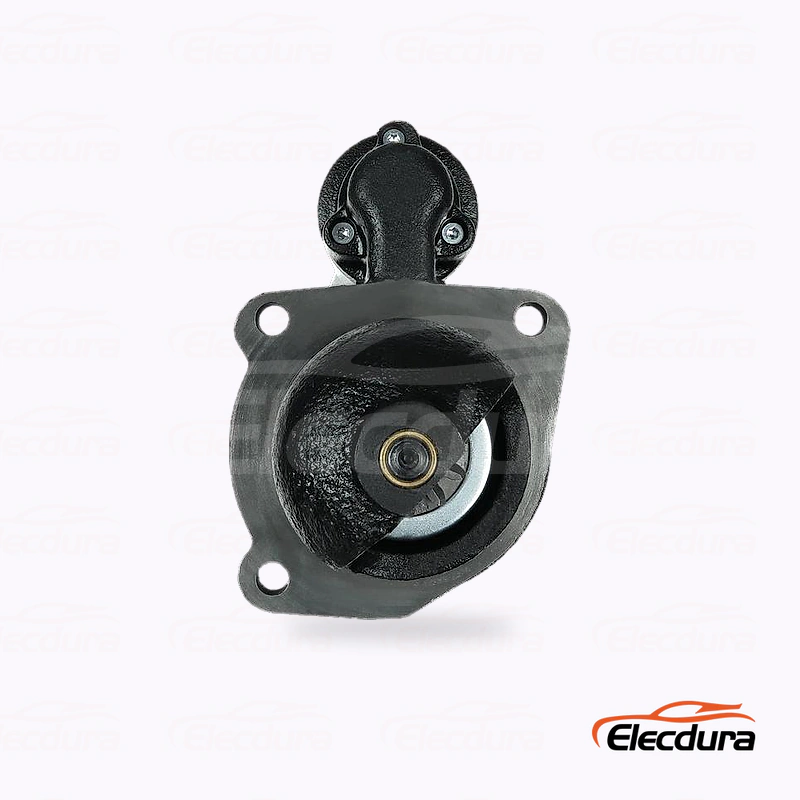

S0796S SAME Buffalo 120 Starter Motor Wholesale

S0796S Starter Motor Aftermarket Supply for SAME Buffalo 120 tractor

S0796S defines stock for SAME Buffalo 120 tractor as 12V, 3.0kW, 11T and CW. Confirm 12V 3.0kW 11T catalog configuration for the SAME Buffalo 120 before releasing a first order or replacing an approved sample.

For the first S0796S order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

S0796S Starter Motor Specification Table for B2B Sourcing

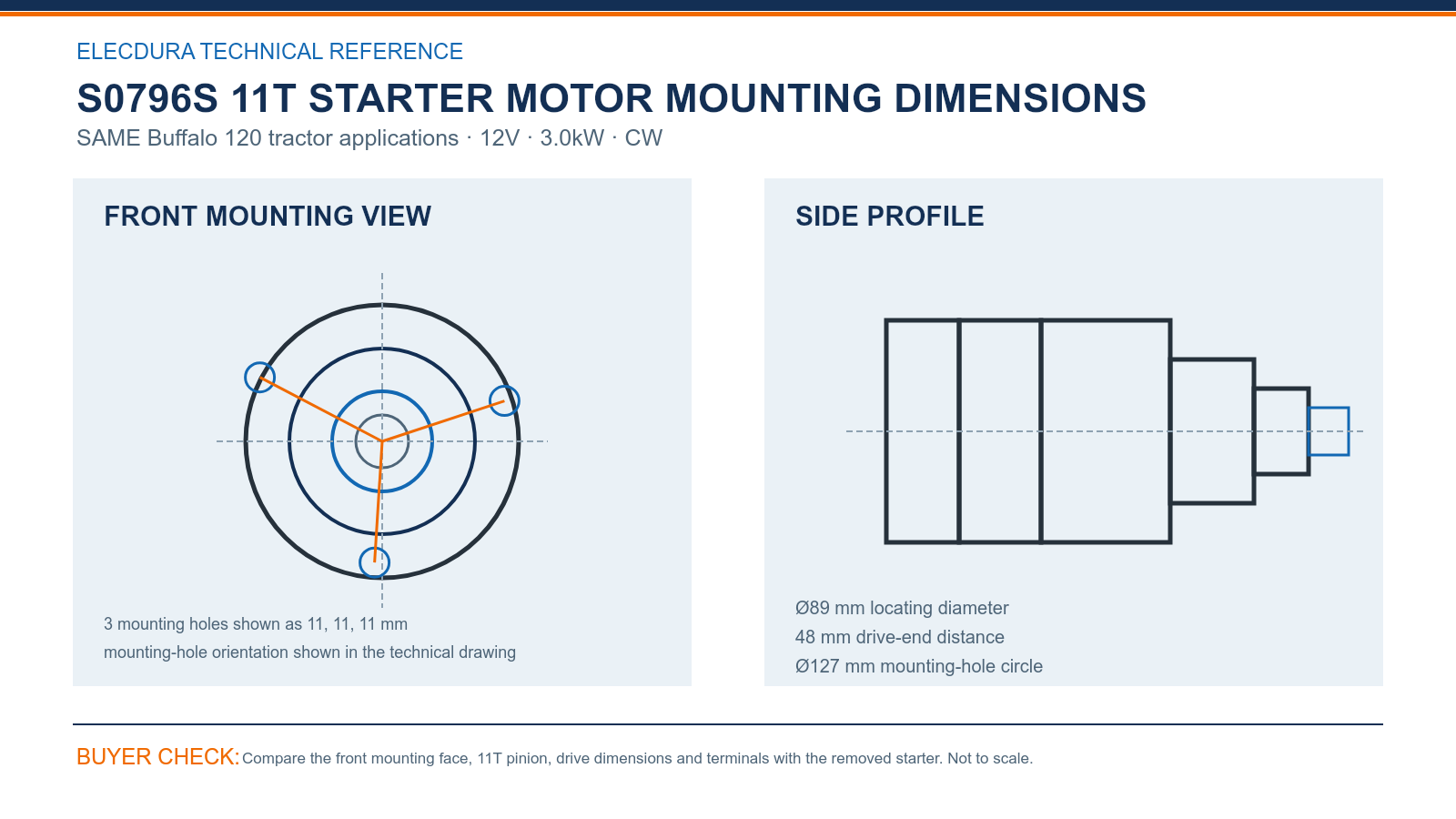

S0796S SAME Buffalo 120 tractor 12V 3.0kW 11T starter mounting dimensions.

The S0796S dimensional review starts at the mounting face: verify 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. Then compare the 48 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S0796S, count the 11T pinion and confirm module 3, CW rotation, 12V and 3.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

S0796S Starter Motor OE Number Guide for Aftermarket Supply

• Use the full number: Start with S0796S, 110551, 0001358005, 0001358009, 0001358018, 0001359001, retaining prefixes, suffixes and separators in the RFQ.

• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S0796S Starter Motor Distributor Stock and Delivery Support

Elecdura can prepare S0796S orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S0796S sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S0796S; the product decision itself still depends on the complete reference, 12V 3.0kW rating, drive end, mounting face and terminal layout.

S0796S Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of S0796S stock in a SAME Buffalo 120 regional program?

Retain the approved agricultural application for repeat dealer orders. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Why is a straight mounting-face photo useful for confirming S0796S during a SAME Buffalo 120 regional inspection?

Align the removed starter and S0796S at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 11, 11, 11 mm and 48 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can S0796S be selected from the application name alone during regional sourcing?

Confirm S0796S with the complete OE number, SAME Buffalo 120 tractor record and clear front, side and terminal photographs. Check 11T, 3 mounting holes shown as 11, 11, 11 mm and 48 mm drive-end distance so visually related starters stay on separate order lines.

Which checks should follow an OE-number match for S0796S in a SAME Buffalo 120 regional sourcing program?

A number match narrows the search but does not finish it. For S0796S, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of S0796S during a SAME Buffalo 120 regional electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0796S. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

What receiving records are useful for a shipment of S0796S during a SAME Buffalo 120 regional receiving check?

Receiving should verify the S0796S label, quantity and packaging before opening sampled cartons. Compare the 11T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for S0796S in a SAME Buffalo 120 regional sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S0796S, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving S0796S in a SAME Buffalo 120 regional review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S0796S without assuming that every no-crank complaint originates inside the starter.

S0796S Send a Starter Motor Distributor Enquiry

To discuss S0796S supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
