S0848S Case CCW Starter Motor Wholesale Supply

S0848S Starter Motor Distributor Application Guide for Case industrial-equipment

For a fleet parts team, S0848S identifies one Case industrial-equipment requirement. The 12V 3.0kW 9T counter-clockwise catalog configuration provides a clear fitment boundary for sample, stock and replacement reviews.

Build the S0848S RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

S0848S Starter Motor Specifications and Drawing for Wholesale Buyers

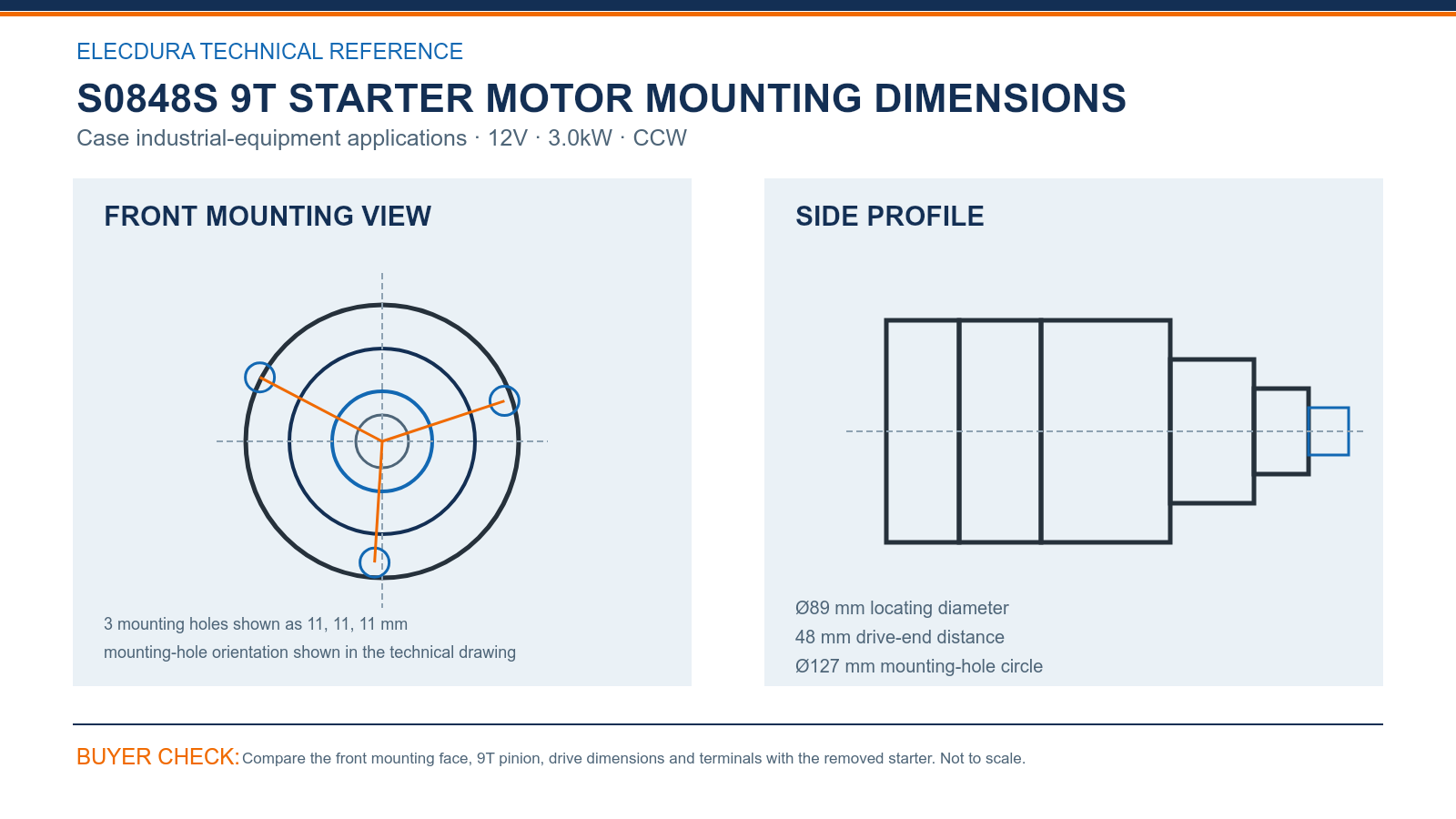

Use the S0848S technical drawing to check Ø89 mm locating diameter, 48 mm drive-end distance and Ø127 mm mounting-hole circle. Add the 3 mounting holes shown as 11, 11, 11 mm to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

The S0848S drive-end decision is completed by 9T, module 3 and CCW, together with 12V and 3.0kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

S0848S Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with S0848S, 113726, 0001367061, 245927C93, STB7061MN, 260-67112, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S0848S Starter Motor Wholesale Ordering and Export Support

For a bulk order of S0848S, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified S0848S drive end and electrical rating throughout the order.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S0848S; the product decision itself still depends on the complete reference, 12V 3.0kW rating, drive end, mounting face and terminal layout.

S0848S Starter Motor Questions from Commercial Buyers

Which checks should follow an OE-number match for S0848S in a Case CCW branch sourcing program?

A number match narrows the search but does not finish it. For S0848S, compare the stated application, electrical output, 9T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What should a distributor match before ordering S0848S for Case industrial-equipment during branch sourcing?

Use the full old-unit number and Case industrial-equipment record. Compare the 9T pinion, 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

How can a service team rule out cable or battery faults before fitting S0848S during a Case CCW branch electrical check?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S0848S helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Which S0848S dimensions are practical for a warehouse inspection during a Case CCW branch inspection?

For S0848S, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and 48 mm drive-end distance. Record the 9T pinion, rotation and terminal position so the warehouse can isolate a mixed or incorrectly labelled unit before dispatch.

What demand information helps set a sensible reorder level for S0848S in a Case CCW branch program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S0848S, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

Which physical points should be checked before S0848S enters branch stock during a Case CCW branch receiving check?

For S0848S, match carton and product labels to the purchase order, then sample 12V, 9T, 3 mounting holes shown as 11, 11, 11 mm and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

Which order conditions should be stated when asking about S0848S in a Case CCW branch sourcing program?

A useful RFQ states S0848S, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned S0848S starter in a Case CCW branch review?

For a service review of S0848S, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S0848S Send a Starter Motor Distributor Enquiry

A complete RFQ for S0848S should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 12V 3.0kW 9T CCW starter, MOQ, packaging, warranty and shipping choices.
