S0887S Case G-188D Starter Motor Wholesale

S0887S Starter Motor Fleet Replacement Supply for Case G-188D engine

S0887S supports Case G-188D engine sourcing where buyers need a defined electrical and drive-end match. Its 12V, 3.0kW, 9T CW specification must remain linked to the 12V 3.0kW 9T module-3 configuration for the G-188D record; a visually related unit may belong on a different RFQ line.

Build the S0887S RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

S0887S Starter Motor Specifications and Drawing for Wholesale Buyers

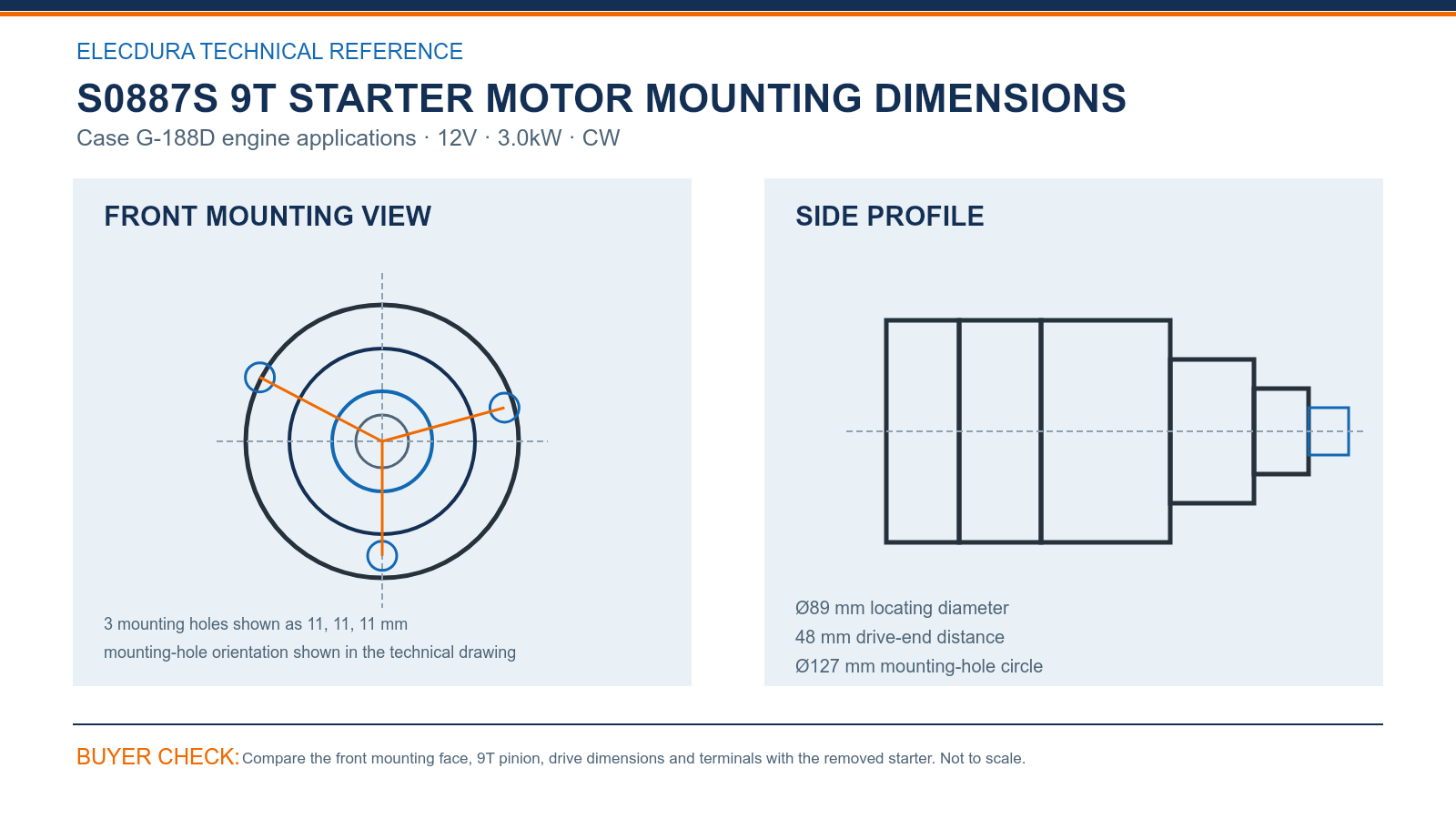

S0887S Case G-188D engine 12V 3.0kW 9T starter mounting dimensions.

The S0887S dimensional review starts at the mounting face: verify 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. Then compare the 48 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S0887S, record 9T, CW, 12V and 3.0kW, including module 3. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

S0887S Starter Motor Cross-Reference Review for Fleet Buyers

The S0887S cross-reference group includes S0887S, 0001359023, 0001359066, 0001367038, E010372, STB2581UL, LRS01066. Use these numbers to search supplier systems, then confirm 12V, 3.0kW, 9T, CW, mounting geometry and terminals.

For S0887S, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

S0887S Starter Motor Aftermarket Supply for Regional Distributors

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested S0887S quantity, destination and required arrival date.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved S0887S label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S0887S, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S0887S Starter Motor Questions from Commercial Buyers

Before removing S0887S, what should the workshop test under load during a Case G-188D workshop diagnosis?

Before fitting S0887S, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Why does S0887S require a physical comparison for Case applications during workshop sourcing?

For S0887S, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 3.0kW, 9T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with S0887S identify an interchangeable unit in a Case G-188D workshop sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S0887S, 0001359023, 0001359066, 0001367038, E010372 to locate possible matches, then confirm 12V, 3.0kW, 9T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Which mounting-face points distinguish the specified S0887S version during a Case G-188D workshop inspection?

Align the removed starter and S0887S at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 11, 11, 11 mm and 48 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

How can S0887S stock be separated by application risk in a Case G-188D workshop program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S0887S usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving S0887S during a Case G-188D workshop receiving check?

For S0887S, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 9T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S0887S in a Case G-188D workshop sourcing program?

Send the complete OE number, exact Case G-188D engine details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 3.0kW 9T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review S0887S after installation in a Case G-188D workshop review?

Keep the carton or product traceability code and note when and where S0887S was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

S0887S Ask for Starter Motor Export Pricing

A complete RFQ for S0887S should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 12V 3.0kW 9T CW starter, MOQ, packaging, warranty and shipping choices.
