S13-106 Heli CA498 12V 2.8kW 9T Starter Motor Wholesale

S13-106 Heli CA498 Starter Motor Wholesale for Forklift Parts Importers

Forklift fleets usually buy around uptime rather than vehicle age alone. A useful S13-106 enquiry identifies the Heli truck, CA498 engine, fleet size and operating pattern, allowing the distributor to separate planned replenishment from an urgent unit needed for a stopped machine.

This unit is rated at 2.8kW and uses a 9T module-3 pinion. Compare both Ø13 mounting holes, the Ø120 hole circle, 95 mm engagement, 9 mm drive position and terminal side; another S13-106 application may require a different physical configuration.

S13-106 12V 2.8kW Starter Motor Data and Mounting Reference

For purchasing, keep 12V, 2.8kW, 9T, module 3 and clockwise rotation on the same product line. That complete set gives forklift dealers a clearer warehouse identity than “S13 starter” and protects the high-output CA498 requirement during branch transfers.

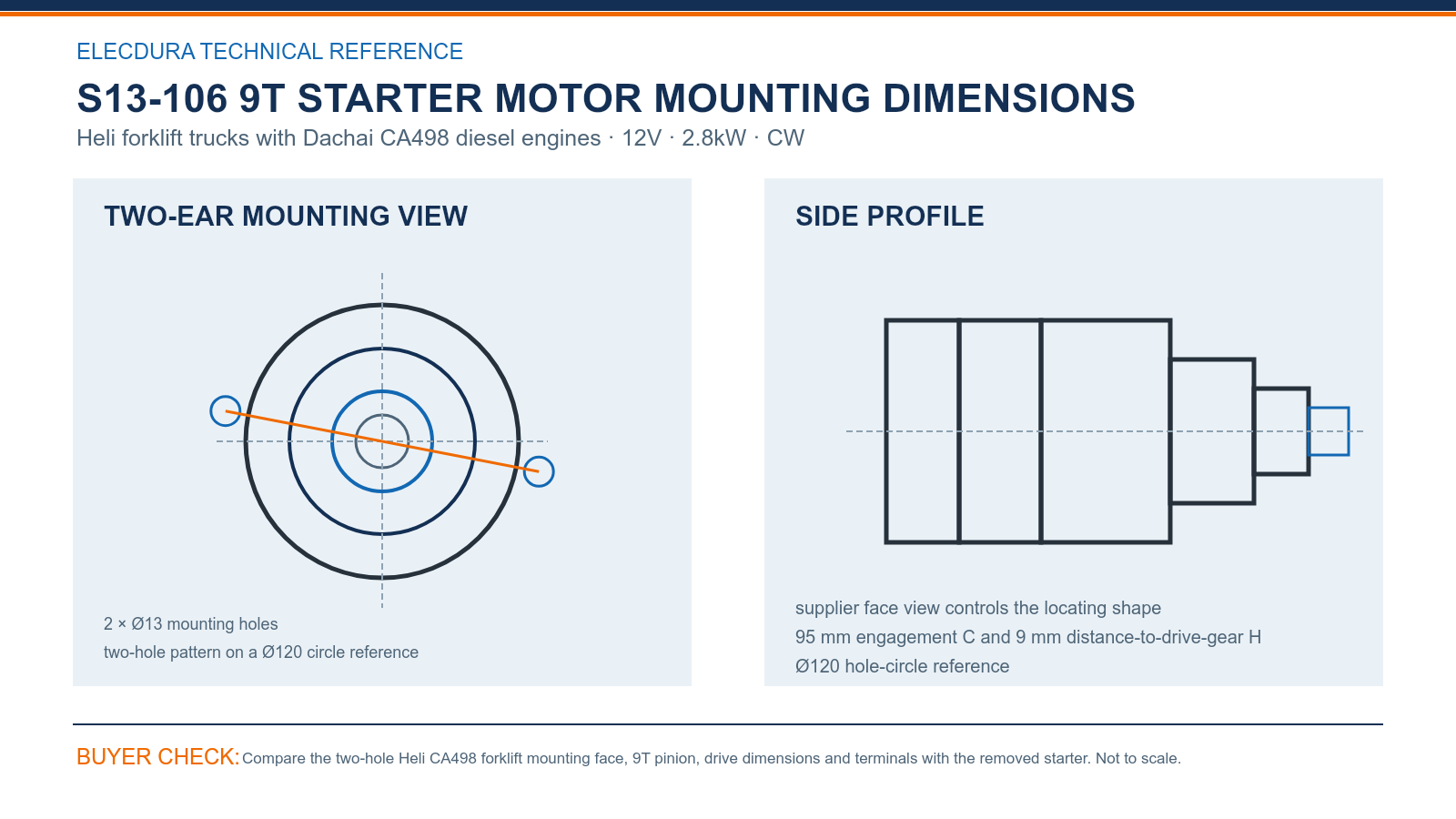

S13-106 Heli CA498 Starter Motor Dimensions for Forklift Buyers — compare the drawing with the removed starter before placing a volume order.

Use a square drive-end photograph to compare the two Ø13 holes on the Ø120 circle. A side view should show the 95 mm engagement reference, 9 mm distance to the drive gear and cable studs, because the short drive position is an important separator for this forklift unit.

S13-106 and 30726 Matching for Heli CA498 Forklift Buyers

S13-106 and S13-106A are the lead Hitachi references, with 30726 supporting supplier searches. Keep Heli and CA498 beside those numbers on quotations and cartons so the reference group is not confused with a Nissan diesel starter carrying related markings.

Dealers supporting several Heli branches can forecast S13-106 by active CA498 truck count, daily shifts and previous no-crank events. A confirmed physical baseline lets the same product serve scheduled stock and breakdown response without widening the stated application beyond the CA498-powered fleet.

S13-106 Forklift Starter Supply for Multi-Shift Service Networks

For the first incoming lot, check the 2.8kW label, nine-tooth pinion, mounting ears, terminals and carton support across sampled units. Forklift starters often move quickly from an import warehouse to service vans, so visible outer identification and drive-end protection reduce handling mistakes.

Elecdura’s production video gives forklift-parts buyers a concise view of starter assembly and electrical testing. Heli distributors can use the discussion to set sample-inspection points, confirm carton labels and plan delivery timing for branch stock serving CA498-powered trucks.

S13-106 Heli CA498 Starter Motor FAQs for Forklift Buyers

Which details identify the S13-106 starter for a Heli CA498 forklift?

State the Heli truck model, CA498 engine, S13-106 or S13-106A marking and the 12V 2.8kW 9T rating. Add clear photographs of the old mounting face, pinion and terminals. Those details let a distributor quote the short-drive forklift configuration without assuming that every starter carrying an S13-106 reference has the same application.

Why should S13-106 forklift stock be separated from Nissan-numbered starters?

S13-106 appears in more than one parts channel, so the reference alone is not a safe shelf definition. For this product, keep the Heli and CA498 application with 12V, 2.8kW, nine teeth and the two-hole face. Separate labels reduce picking errors when a warehouse also carries Nissan diesel or other S13-family starters.

What mounting measurements matter for a Heli CA498 S13-106 replacement?

Compare the two Ø13 mounting holes, the Ø120 circle reference, 95 mm engagement dimension and 9 mm distance-to-drive-gear value with the removed unit. A square photograph of the drive end is useful. These checks distinguish the compact forklift nose from housings that look similar from the motor side but sit differently at the bell housing.

How should a forklift distributor plan S13-106 reserve quantities?

Start with the number of active Heli CA498 trucks, daily shift pattern, previous starter failures, service response time and replenishment lead time. High-use warehouses may need branch stock plus one field-service unit. Once the exact 2.8kW nine-tooth version is confirmed, consumption by site provides a practical basis for reorder levels instead of a single fleet-wide guess.

What should a workshop test before replacing the S13-106 starter?

Check battery condition, cable voltage drop, grounds, key-switch signal, terminal tightness and ring-gear condition while the fault is present. Record whether the motor clicks, turns slowly or remains silent. This information helps a supplier discuss the correct S13-106 unit while the workshop addresses electrical faults that could damage a replacement or cause a repeated no-start complaint.

How should S13-106 units be packed for forklift service stock?

Support the motor and drive housing so the 9T pinion and terminal studs cannot strike the carton. Keep moisture and loose hardware away from the openings, and label each box with S13-106, Heli CA498, 12V 2.8kW and the batch. Destination branches can then receive, count and shelve the forklift item without opening every package.

Can S13-106 and 30726 be used together on a wholesale enquiry?

Yes, both numbers may help locate this product, but the enquiry should not stop at the cross-reference. Include Heli forklift and CA498 engine details, the 2.8kW label and mounting photographs. The number pair improves search accuracy, while the nine-tooth drive and compact two-hole geometry determine whether the offered starter matches the required unit.

What information is needed for S13-106 volume pricing?

Email the Heli truck model, CA498 engine information, complete old-starter numbers, rating-label image, straight mounting-face and terminal photographs, quantity by destination and required delivery date. If the order will support several warehouses, include the split. Elecdura can then discuss price breaks, production timing, packing and shipment options for the defined forklift starter.

Request S13-106 Heli CA498 Starter Motor Wholesale Pricing

Email the Heli truck model, CA498 engine details, complete S13-106 or 30726 marking, rating label, straight mounting-face, pinion and terminal photographs, fleet quantity, destination and required date to info@elecdurauto.com. Elecdura will compare the 2.8kW configuration and return wholesale pricing, packing choices and lead time.
