S14-102 Isuzu 4BC2 9T Starter Motor Wholesale

S14-102 Isuzu 4BC2 Starter for Controlled Procurement

S14-102 is used in more than one market application, so this product must be identified by more than its headline reference. The version offered here is for Isuzu 4BC2 with 12V, 2.5kW, nine teeth, module 3 and CW rotation.

A purchasing team should keep this Isuzu requirement separate from S14-102 units supplied for other engines. The application, rated power and approved sample provide the distinctions needed for a controlled order.

S14-102 Starter 9T Drive for B2B Mounting Confirmation

The compact face in the catalog uses two Ø13 mounting references, an Ø120 face reference, a 71° lower-ear relationship and 18 mm/16 mm drive-end dimensions. The drawing also provides an Ø96 locating reference for comparison.

Because the public reference family is associated with several applications, an old Isuzu 4BC2 starter, a measured customer drawing or an approved sample is required before production quantity. The product page supports the inquiry; the physical record closes the fitment decision.

S14-102 Starter Wholesale Support for Isuzu 4BC2 Buyers

Distributors can submit S14-102, S13-204, 129940-77010, 104-330 or 19708N for review, but the RFQ must state the intended Isuzu 4BC2 application and the catalog 12V 2.5kW rating. Any Yanmar or different-power request should remain on its own product line.

After sample approval, Elecdura can quote neutral cartons and review private-label packaging for qualified quantities. The label should include enough application and specification detail for warehouse staff to distinguish this version from another S14-102 item.

The video shows Elecdura starter-motor manufacturing and testing capability. It does not broaden fitment. Supply for this page remains tied to the catalog Isuzu 4BC2 application, 12V 2.5kW 9T specification and the sample-approved mounting and terminal arrangement.

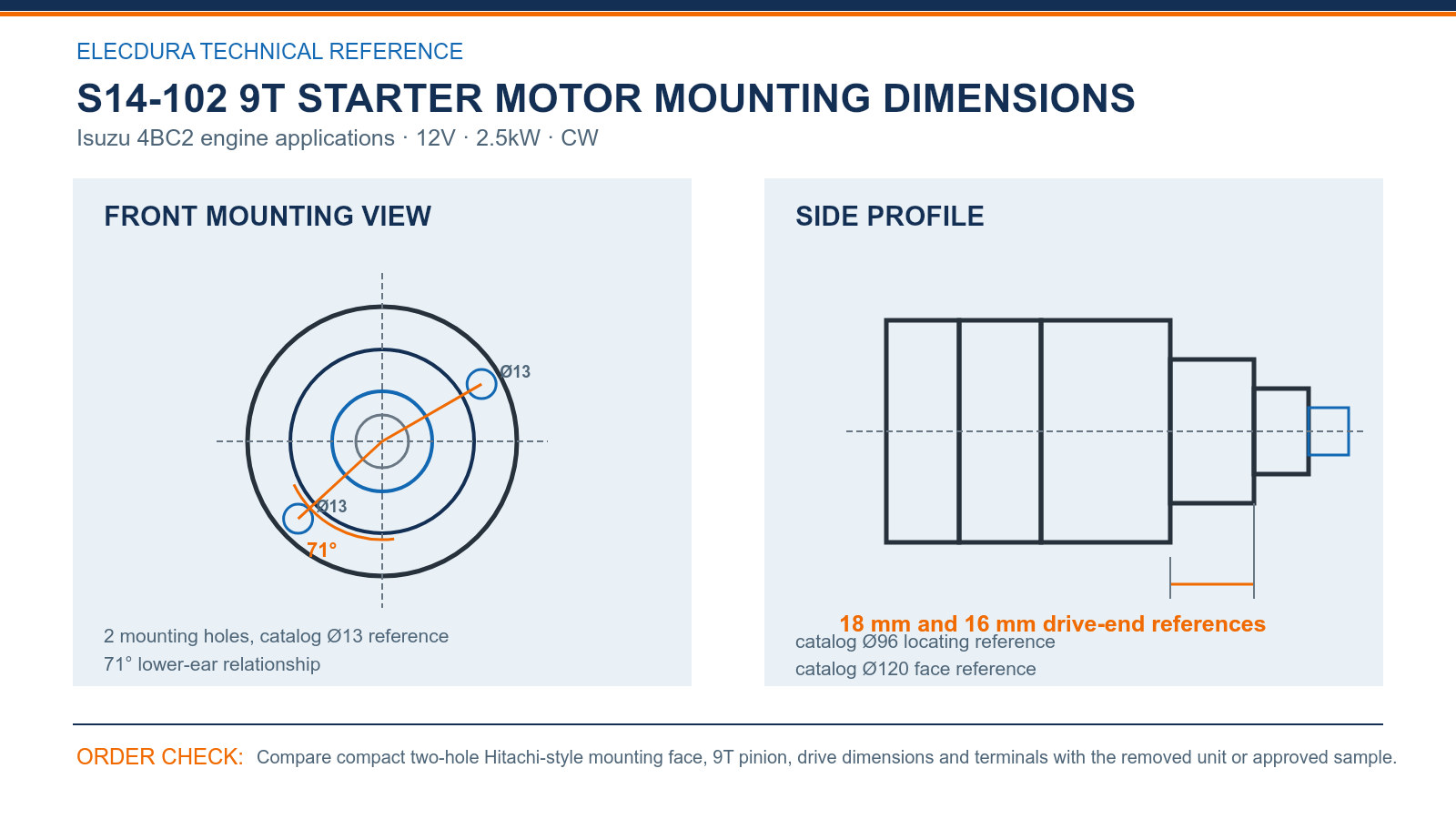

S14-102 12V 2.5kW Starter Motor Specifications and B2B Fitment Drawing

S14-102 9T starter mounting and drive-end reference for B2B sample review.

Because S14-102 appears in more than one application family, the mounting drawing provides the second level of identification. Review 2 mounting holes, catalog Ø13 reference, 71° lower-ear relationship, catalog Ø96 locating reference and 18 mm and 16 mm drive-end references.

The Isuzu sample, not a broad cross-reference assumption, should close the final fitment decision for this version.

S14-102 Isuzu 4BC2 engine Starter Motor Wholesale FAQ

Why is this S14-102 page listed for Isuzu 4BC2?

This product record is assigned to Isuzu 4BC2 and specifies 12V, 2.5kW, 9T and CW. Because S14-102 also appears in other application groups, buyers must submit an Isuzu 4BC2 old unit, drawing or sample evidence. Elecdura keeps this configuration separate from versions intended for other engines.

Is this S14-102 interchangeable with Yanmar application versions?

It should not be treated as automatically interchangeable. The application and rated power can differ, and those differences require separate purchasing records. A buyer requesting the Isuzu 4BC2 unit should provide matching sample evidence. A Yanmar requirement must retain its own engine details, specification and approved mounting record.

Which references can be reviewed for the Isuzu 4BC2 catalog version?

The reference group includes S14-102, S13-204, 129940-77010, 104-330 and 19708N. These numbers provide cross-reference starting points but do not prove the Isuzu version on their own. Add the 4BC2 engine record, 12V 2.5kW requirement, pinion image and mounting photographs before Elecdura confirms the item for quotation.

What physical features should separate this S14-102 line?

Confirm nine pinion teeth, two Ø13 mounting references, the compact face, catalog Ø120 and Ø96 features, the 71° lower-ear relationship and the 18 mm/16 mm drive-end references. Terminal orientation must also match. These points give procurement a physical definition when the same OE appears in other market applications.

Can an order proceed if only S14-102 is written on the inquiry?

Elecdura can acknowledge the inquiry, but final confirmation requires more information. Request the engine or machine record, voltage and power requirement, pinion photo, mounting-face view and terminal side. Without those controls, a bare S14-102 number could refer to the separate Yanmar version or another aftermarket configuration.

How should the first Isuzu 4BC2 sample be inspected?

Check the agreed label, 12V and 2.5kW specification, nine teeth and CW rotation. Compare both mounting holes, face and locating references, drive-end dimensions and terminals with the buyer’s Isuzu unit or drawing. Save the approved photos under this page’s unique URL so the record is not confused with Yanmar stock.

What should appear on warehouse labels for this product?

Use the chosen commercial reference together with Isuzu 4BC2, 12V, 2.5kW and 9T. If the warehouse also carries a Yanmar S14-102, keep the locations and internal purchasing records separate. Clear application and specification wording is more reliable than labeling both items only with the shared OE number.

Can this S14-102 version be supplied in private-label packaging?

Private-label packaging can be reviewed after the Isuzu 4BC2 sample is approved and the order quantity is known. Provide carton artwork, barcode rules, destination and inspection needs. Elecdura will tie the packaging record to the catalog 12V 2.5kW 9T version so it is not applied to the separate Yanmar product.

Request a S14-102 Starter Motor Wholesale Quote

State that the inquiry is for the Isuzu 4BC2 12V 2.5kW version and attach the S14-102 label, nine-tooth photo, two-hole face, terminals and quantity. Elecdura will review the sample controls before quoting this application-specific wholesale line.

Keep the Isuzu 4BC2 evidence separate from any other S14-102 application submitted by the same buyer. Elecdura can then quote this version without weakening the identity of either purchasing line.
