S2057 Case IH 1046 Starter Motor Wholesale

S2057 Starter Motor Wholesale Fitment for Case IH 1046 tractor applications with the D358 engine

Case IH dealers, agricultural service companies and heavy-duty electrical wholesalers use S2057 to keep Case IH 1046 tractor applications with the D358 engine demand tied to one 12V, 3.0kW, 9T CW configuration. The practical distinction is the 12V 3.0kW 9T module-3 configuration for the D358 engine, which should be checked before a similar heavy-duty housing is accepted.

A useful enquiry pairs S2057 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S2057 Starter Motor Mounting Dimensions for Distributor Approval

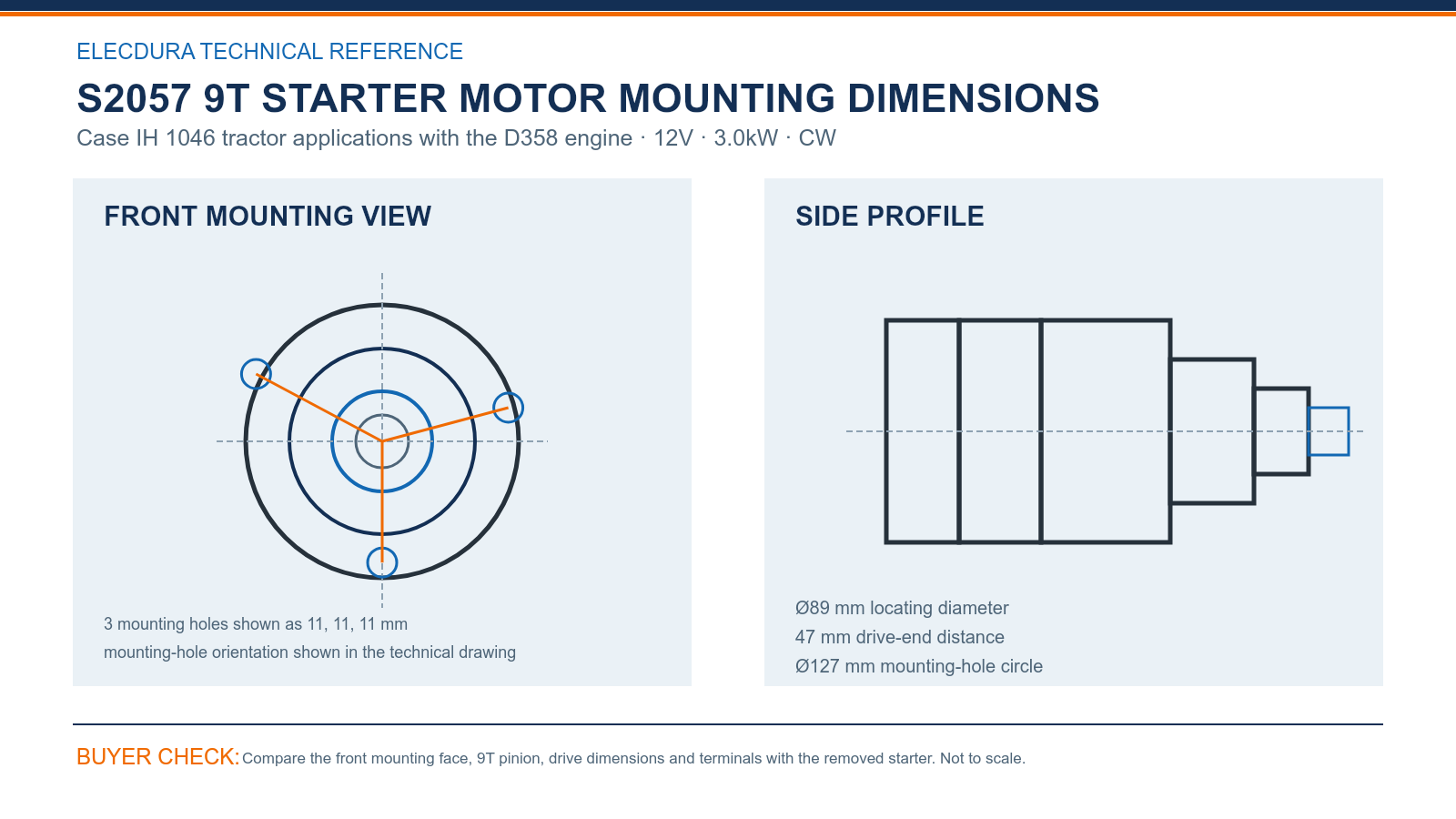

S2057 Case IH 1046 tractor applications with the D358 engine 12V 3.0kW 9T starter mounting dimensions.

Use the S2057 technical drawing to check Ø89 mm locating diameter, 47 mm drive-end distance and Ø127 mm mounting-hole circle. Add the 3 mounting holes shown as 11, 11, 11 mm to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S2057 comparison with 12V, 3.0kW, the 9T drive, module 3 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S2057 Starter Motor Reference Group for Wholesale Sourcing

1. Search group: S2057, 111752, 114335, 0001354073, 0001354080, 0001359014, 0001359074 can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 3.0kW, 9T, CW, the drawing and terminal photographs before accepting one physical unit.

S2057 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S2057, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Use the Case IH model and D358 engine record to approve the 9T drive. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S2057, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S2057 Starter Motor Questions from Commercial Buyers

How should a buyer request samples and bulk pricing for S2057 in a Case IH 1046 fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S2057, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which details separate S2057 from similar starters used around Case IH 1046 tractor applications with the D358 engine during fleet sourcing?

For S2057, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 3.0kW, 9T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Can a purchasing team consolidate every S2057 reference into one stock line in a Case IH 1046 fleet sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S2057, 111752, 114335, 0001354073, 0001354080 to locate possible matches, then confirm 12V, 3.0kW, 9T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

What pre-installation circuit review supports replacement with S2057 during a Case IH 1046 fleet electrical check?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S2057 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

What should be measured on the drive end before releasing S2057 to stock during a Case IH 1046 fleet inspection?

For S2057, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and 47 mm drive-end distance. Record the 9T pinion, rotation and terminal position so the warehouse can isolate a mixed or incorrectly labelled unit before dispatch.

What should an importer include in the replenishment forecast for S2057 in a Case IH 1046 fleet program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S2057, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a warehouse inspect when S2057 starter motors arrive during a Case IH 1046 fleet receiving check?

For S2057, match carton and product labels to the purchase order, then sample 12V, 9T, 3 mounting holes shown as 11, 11, 11 mm and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

What traceability details should accompany a warranty enquiry for S2057 in a Case IH 1046 fleet review?

Keep the carton or product traceability code and note when and where S2057 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

S2057 Ask for Starter Motor Export Pricing

Email info@elecdurauto.com with S2057, the supported Case IH 1046 tractor applications with the D358 engine record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 12V, 3.0kW, 9T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
