S25303 Nissan FD42 FD46 Starter Motor Wholesale 24V

S25303 Nissan FD42 FD46 Starter Motor Value for Wholesale Buyers

Nissan diesel-parts suppliers often serve both truck and industrial-equipment customers. Using S25303 together with the FD42 or FD46 engine identity gives sales teams a clear product starting point while preserving the application detail required for reliable repeat orders.

The Mitsubishi and Nissan numbers in this family help locate stock, but they do not show the complete installation. Compare the eleven-tooth drive, three-hole flange, locating face and terminal side before allocating a unit to an urgent vehicle or machine.

S25303 Starter Motor Specifications and Mounting Drawing for B2B Matching

The specified configuration combines 24V and 4.5kW with an 11T module-3 pinion and clockwise rotation. Keeping the electrical rating and drive data on the same purchase line prevents a similar Nissan starter from being selected by voltage alone.

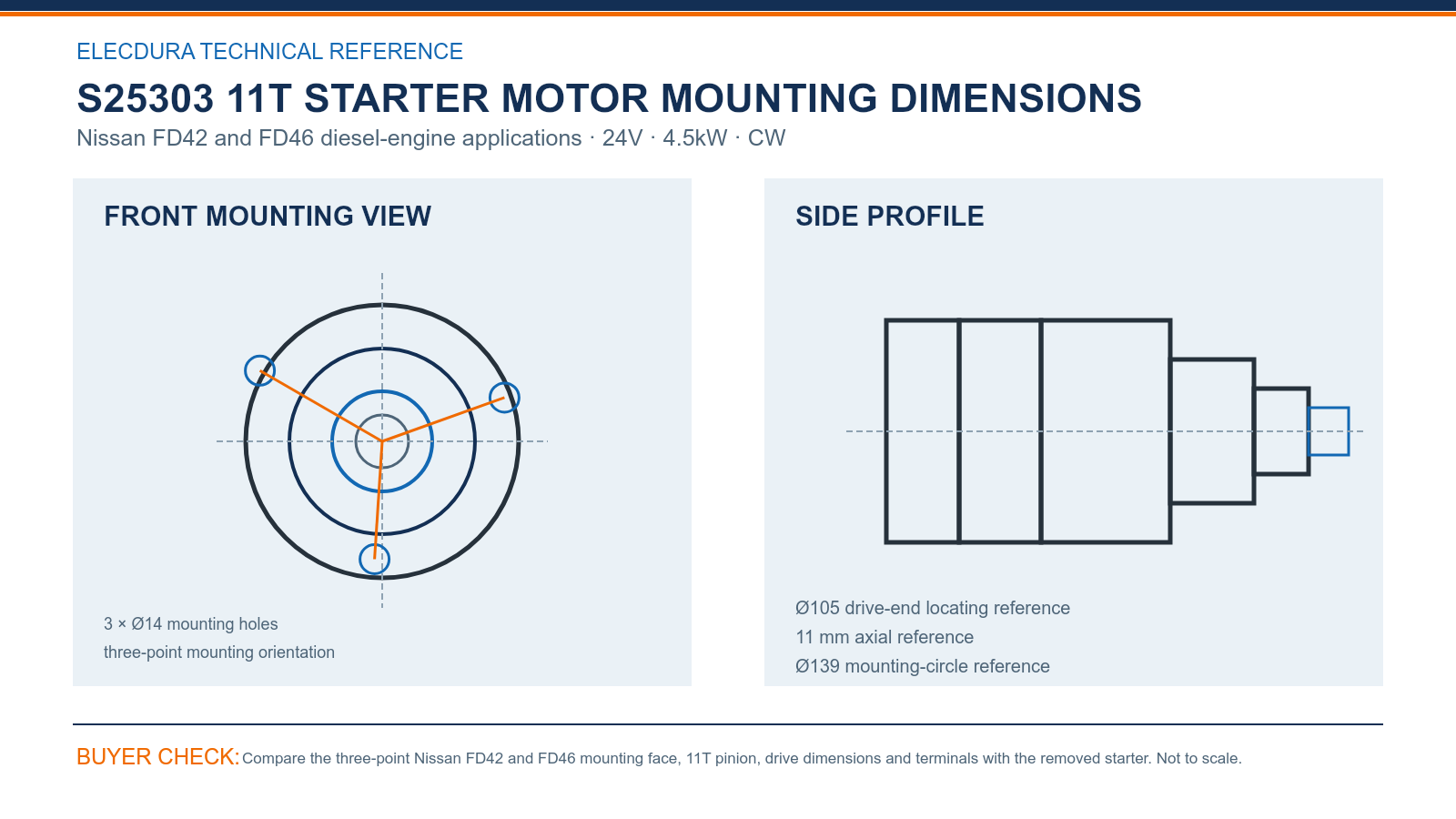

S25303 Starter Motor Dimensions for Nissan FD42 and FD46 Supply — compare the drawing with the removed starter before placing a volume order.

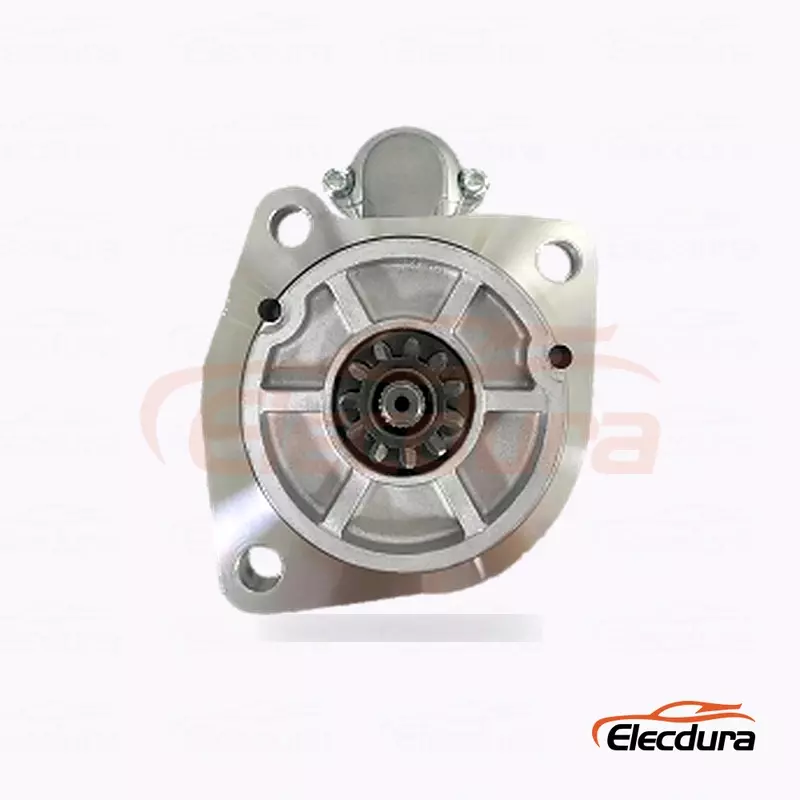

The technical drawing highlights three Ø14 mounting holes, a Ø139 mounting circle, Ø105 locating reference and 11 mm axial position. Straight front and side photographs of the removed starter make these dimensions easier to compare before volume supply.

S25303 Starter Motor OE Cross-Reference Checks for Nissan Distributors

S25303, M2T78681, M2T78682 and the listed 23300 numbers form a useful procurement search group. Buyers should keep the complete number, engine model and old-unit views together instead of widening the product to every FD-series installation.

A distributor serving FD42 and FD46 fleets can record demand by engine and equipment type. That separation helps sales, warehouse and after-sales teams retain the original fitment evidence even when both applications are purchased under one replenishment program.

S25303 Starter Motor Supply Support and Production Video for Importers

For the first incoming lot, inspect the pinion, flange, locating face, solenoid studs and shipping protection on several units. Once accepted images and dimensions are linked to the S25303 stock line, later branch transfers and replenishment become faster.

The video below introduces Elecdura starter-motor assembly and electrical testing for B2B supply. Nissan parts importers can use it to review production capability alongside their own requirements for packing, lot identification, delivery timing and application-specific receiving checks.

S25303 Starter Motor FAQs for B2B Buyers

What Nissan information should accompany an S25303 enquiry?

State FD42 or FD46 engine model, equipment or truck identity, serial information and removed-starter label on the enquiry before discussing quantity. Link that information to S25303 and photographs showing the 11T drive, three-hole flange, FD42 or FD46 identity and terminal side. This keeps the starter connected to the buyer's actual Nissan application Retain the confirmed engine and mounting comparison with the S25303 stock record for later orders.

How do S25303 and M2T78681 support the same procurement search?

Cross-reference review should begin with S25303, M2T78681, M2T78682 and the listed Nissan 23300 numbers. Keep the numbers attached to Nissan FD42 and FD46 diesel-engine applications and verify the 11T drive, three-hole flange, FD42 or FD46 identity and terminal side before purchasing. This expands reference coverage without replacing the application and mounting checks Attach the confirmed S25303 comparison to the quotation so receiving can check the same product.

Which mounting dimensions distinguish this FD42 and FD46 starter?

Measure 3 × Ø14 holes, Ø139 mounting circle, Ø105 locating reference and 11 mm axial position on the removed starter or a trusted sample. For S25303, keep square front and side photographs showing the 11T drive, three-hole flange, FD42 or FD46 identity and terminal side. This separates the correct flange from a similar Nissan heavy-duty housing Keep the matched S25303 images with branch stock details for future replenishment.

Why should the 11T module-3 pinion remain on the purchase order?

Keep 11 teeth, module 3 and clockwise rotation together in the S25303 product description and purchase order. Compare the S25303 pinion details, CW rotation and measured mounting interface rather than relying on one headline value. This protects the ring-gear interface when another 24V starter looks similar Use the confirmed S25303 combination on the purchase order and receiving sheet.

What should receiving staff inspect on the first S25303 shipment?

On the first incoming S25303 lot, inspect pinion, three-hole drive end, locating face, solenoid studs, labels and packing condition. Compare several units with accepted photographs of the 11T drive, three-hole flange, FD42 or FD46 identity and terminal side before they move to branches or jobsites. This creates a repeatable incoming standard for later lots

How can a distributor stock S25303 for both FD42 and FD46 demand?

Use quantity history by engine, active fleet, branch demand and replenishment lead time when deciding S25303 reserve quantities and warehouse labels. A description that includes the 11T drive, three-hole flange, FD42 or FD46 identity and terminal side makes repeat picking faster and clearer. This keeps the two engine programs visible while planning shared inventory Carry the agreed S25303 identity through packing and branch-transfer documents.

Which truck-side checks help explain an S25303 no-crank complaint?

Before replacing the starter, check 24V battery condition, cable voltage drop, start-command voltage, grounds and ring-gear condition. Keep the readings with the S25303 request for Nissan FD42 and FD46 diesel-engine applications so the circuit, ring gear and starter can be considered separately. This separates vehicle electrical faults from a starter issue Retain the S25303 comparison photographs with the delivery lot for after-sales review.

What details make an S25303 wholesale request ready for pricing?

A quotation request should include engine and vehicle data, old-unit number and photographs, quantity, packing, required date and destination. Keeping those details with S25303 lets sales address the product match and commercial terms in one response. This lets the quotation address both product matching and commercial delivery Include the confirmed S25303 configuration in later forecasts and repeat purchases.

Request S25303 Nissan Starter Motor Wholesale Pricing from Elecdura

Email the FD42 or FD46 engine model, every readable starter number, straight mounting and terminal photographs, required quantity, packing preference and destination to info@elecdurauto.com. Elecdura will review the S25303 configuration and prepare a practical wholesale quotation.
