0001360009 Scania 81 82 Starter Motor Wholesale 24V

0001360009 Wholesale Starter Motor for Scania 81 and 82 heavy trucks

For Scania 81 and 82 truck-parts wholesalers serving restoration, fleet and commercial repair demand, 0001360009 is identified by the 0001360009 9T module-3 configuration for the specified truck family. Older Bosch references can lead to broad substitutions unless the pinion and three-point face are compared.

Send Scania model, chassis, complete starter label, nine-tooth photograph, mounting face, quantity by destination and required arrival date. Elecdura can compare the 0001360009 9T request with the specified drive end before preparing pricing, packing, lead-time and freight terms.

0001360009 Starter Motor Dimensions for Scania Truck Distributors

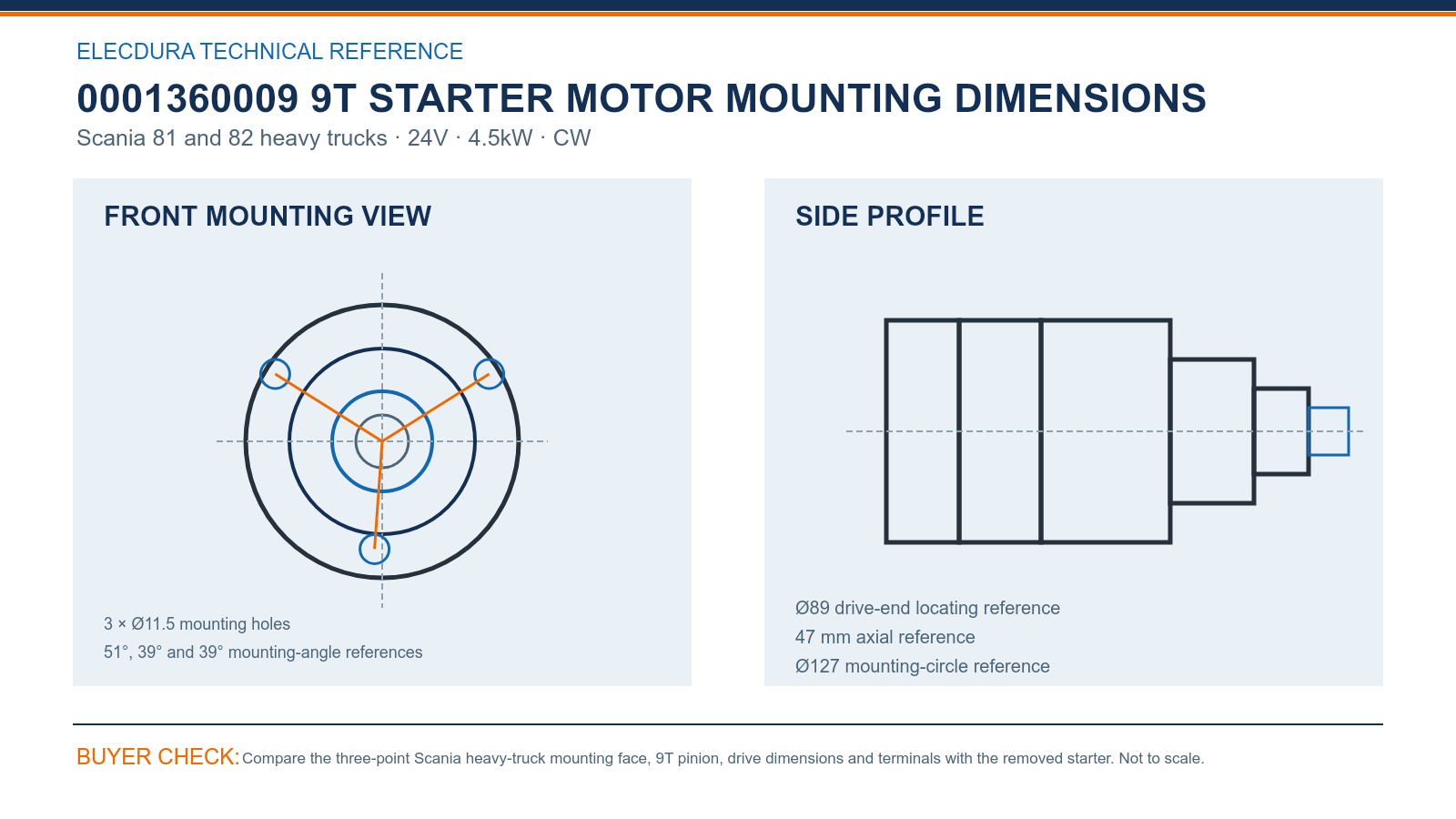

0001360009 Scania 81 82 24V 4.5kW 9T starter mounting dimensions.

Check 0001360009 9T using 3 × Ø11.5 mounting holes and 51°, 39° and 39° mounting-angle references before comparing Ø89 drive-end locating reference. The hole pattern and pilot decide whether the drive end can seat correctly in Scania 81 and 82 heavy trucks.

Count the 9T pinion and verify CW rotation before checking the cable side for Scania 81 and 82 heavy trucks. For 0001360009 9T, check the three Ø11.5 holes, Ø89 pilot, Ø127 circle, 47 mm drive reference and protected studs; resolve any disagreement before stock release.

0001360009 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with 0001360009 9T and record every complete number on the removed unit. Related references help locate 0001360009 9T, but buyers must still confirm the 0001360009 9T module-3 configuration for the specified truck family.

2. Fitment check: Keep Scania 81 and 82 heavy-duty truck applications, 24V, 4.5kW, 9T, module 3, CW and the confirmed product photographs together on the 0001360009 9T quotation. A different pinion, flange, rotation or cable position requires a separate comparison for Scania 81 and 82 heavy trucks.

0001360009 Starter Motor MOQ, Lead Time and Export Supply

0001360009 9T is available for distributor orders from 20 pieces, normally within 7–15 days after confirmation, with an 18-month warranty under agreed terms. A practical stock approach is to retain 81/82, 9T and 0001360009 on cartons and bin cards so legacy demand stays searchable.

Before releasing 0001360009 9T, check the three Ø11.5 holes, Ø89 pilot, Ø127 circle, 47 mm drive reference and protected studs. Shipping damage to 0001360009 9T or a changed construction should stay outside saleable inventory until the difference is resolved.

Use the 0001360009 9T video to review Elecdura's starter production and testing process. The footage complements, but does not replace, comparison of 0001360009 9T with the removed starter and target equipment.

0001360009 Starter Motor FAQs for Scania Parts Buyers

How can buyers distinguish 0001360009 9T from a similar starter?

Older Bosch references can lead to broad substitutions unless the pinion and three-point face are compared. Confirm 0001360009 9T by comparing the 0001360009 9T module-3 configuration for the specified truck family against the old unit's label, pinion and terminals. Keep Scania 81 and 82 heavy trucks on the enquiry; a matching rating or housing is not enough.

Which details are needed for a 0001360009 9T wholesale quotation?

Send Scania model, chassis, complete starter label, nine-tooth photograph, mounting face, quantity, destination and target date for 0001360009 9T. For Scania 81 and 82 heavy trucks, show machine-down demand apart from planned replenishment and add branch packing instructions. Elecdura can then price 24V, 4.5kW, 9T, module 3, CW with MOQ, timing, warranty and freight options for 0001360009.

What drive-end dimensions should be compared for 0001360009 9T?

For 0001360009 9T, compare 3 × Ø11.5 mounting holes, Ø89 drive-end locating reference and 47 mm axial reference. Relate those dimensions to Ø127 mounting-circle reference and the 9T pinion for Scania 81 and 82 heavy trucks. Use a straight drive-end photograph, because an oblique view may misrepresent hole position, pilot diameter or pinion depth for Scania 81 and 82 heavy trucks.

How should distributors plan stock for 0001360009 9T?

Retain 81/82, 9T and 0001360009 on cartons and bin cards so legacy demand stays searchable. Calculate the 0001360009 9T reserve from supported machines, recent withdrawals and transfer time. Keeping the Scania 81 and 82 heavy trucks and drive description on the bin helps branches avoid issuing another Scania starter during an urgent repair.

Which electrical checks should precede starter replacement on Scania 81 and 82 heavy trucks?

Record battery condition and high-current voltage drop before removal from an older truck wiring system. After removing the old starter from Scania 81 and 82 heavy trucks, inspect the mounting surface, pinion and ring gear for abnormal contact. Those readings on Scania 81 and 82 heavy trucks distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Scania starter?

Check the three Ø11.5 holes, Ø89 pilot, Ø127 circle, 47 mm drive reference and protected studs. Match the 0001360009 9T label and 24V, 4.5kW, 9T, module 3, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Scania 81 and 82 heavy trucks.

What should remain on a repeat order for Scania 81 and 82 heavy trucks?

Keep 0001360009 9T, Scania 81 and 82 heavy trucks, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps give Scania specialists a repeatable nine-tooth item instead of a loose group of vintage references.

Which records support an after-sales review for Scania buyers?

Provide chassis, mileage, repair date, lot code, symptom, test readings and aligned images of both starters for a 0001360009 9T review. For Scania 81 and 82 heavy trucks, supply duty conditions, electrical test results and like-for-like photographs of the removed and returned products. This helps Scania buyers separate product condition from installation, electrical-system, transport or application causes for Scania 81 and 82 heavy trucks.

Request 0001360009 Starter Motor Wholesale Pricing

Email Scania model, chassis, complete starter label, nine-tooth photograph, mounting face, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote 0001360009 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 9T, module 3, CW unit.
