0001362067 Ford Tractor JCB Starter Motor B2B Supplier

0001362067 Starter Motor Fitment Control for B2B Replacement Programs

Tractor, backhoe and excavator electrical-parts wholesalers usually see 0001362067 after an service-shop reference unit has failed in service and a replacement is needed without creating a second installation problem. The working scope is Ford 2000 and 3000-series tractors, selected New Holland equipment and JCB 805/806 excavator applications, with 12V, 2.0kW, 10T and CW kept together as one sellable configuration.

This Bosch/Lucas service family spans Ford tractors and JCB equipment, so the 12V, 2.0kW, 10T product record must stay connected to the complete OE and three-hole mounting geometry. The practical release point is therefore simple but strict: Use the full Bosch or Ford number, verify 10T and 12V, then compare the three-hole face, approximately Ø144.5/140.8 mm references, nose length and terminal bridge. Once documented, the same checkpoints can be reused for quotation, sample sign-off and incoming inspection.

0001362067 10T Starter Motor Technical Review for Distributors

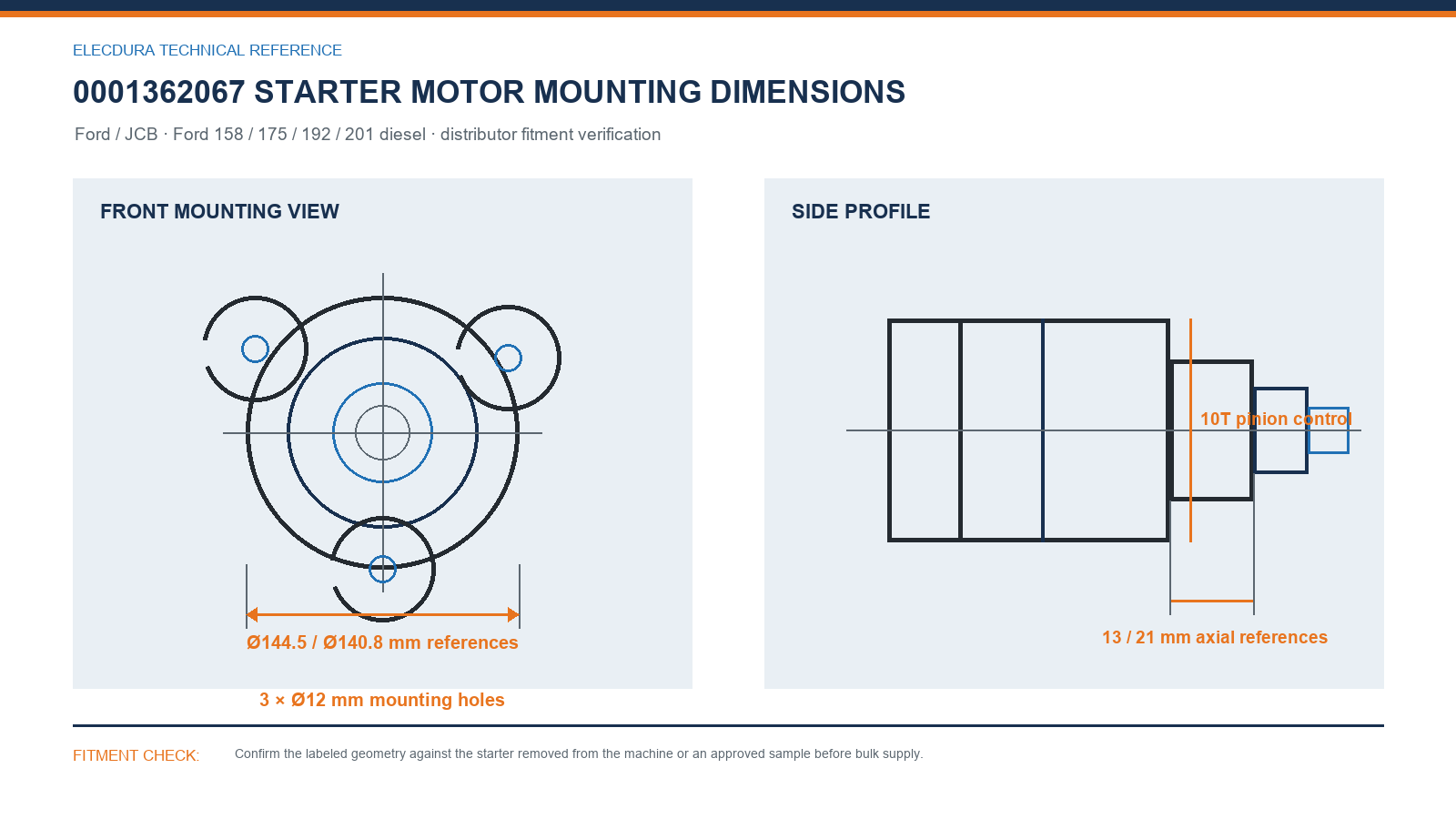

The drawing below converts the catalog geometry into a practical distributor check for the service-shop reference unit and incoming sample.

Use the full Bosch or Ford number, verify 10T and 12V, then compare the three-hole face, approximately Ø144.5/140.8 mm references, nose length and terminal bridge. The image is a fitment reference and should be checked against the service-shop reference unit or technical release sample rather than scaled from the screen.

0001362067 OE Cross-Reference Control for Wholesale Orders

0001362067, 0-001-362-067, SR400X, 538501 connect the main service channels for this product. They should stay together only when the 10T drive, 12V system and approved mounting arrangement are present on the sample.

Use the full Bosch or Ford number, verify 10T and 12V, then compare the three-hole face, approximately Ø144.5/140.8 mm references, nose length and terminal bridge. This protects margin by reducing preventable returns and gives the sales team a specific reason to request missing application data.

• Installed scope: Ford 2000 and 3000-series tractors, selected New Holland equipment and JCB 805/806 excavator applications.

• Version separator: This Bosch/Lucas service family spans Ford tractors and JCB equipment, so the 12V, 2.0kW, 10T product record must stay connected to the complete OE and three-hole mounting geometry. Use the full Bosch or Ford number, verify 10T and 12V, then compare the three-hole face, approximately Ø144.5/140.8 mm references, nose length and terminal bridge.

• Trade handoff: tractor, backhoe and excavator electrical-parts wholesalers should retain 0001362067, 0-001-362-067, SR400X, 538501, IS0579 with the accepted physical comparison and customer requirement.

For Ford / JCB Ford 158 / 175 / 192 / 201 diesel sourcing, the retained geometry combines 3 × Ø12 mm mounting holes, Ø144.5 / Ø140.8 mm references, 10T pinion control and 13 / 21 mm axial references. Additional service identifiers include IS0624, LRS212, NSB520, D1NN11000A, D4NN11000B, 27500F, 27500G. A quotation for this line should arrive with complete Bosch/Ford/Lucas number, tractor or JCB model, engine size, old starter length, mounting-face image and electrical-side image; that information lets tractor, backhoe and excavator electrical-parts wholesalers distinguish this configuration before stock is committed.

0001362067 Starter Motor Receiving and Private-Label Supply

Incoming inspection for 0001362067 should start with the product label and move to the drive end, machine-side fixing face and terminals. Do not pool Bosch-, Lucas- and Iskra-labeled units until the three-hole casting, ten-tooth drive, nose depth and terminal arrangement match the signed Ford/JCB sample.

Elecdura supports sample-led wholesale supply with a usual starting MOQ of 20 pieces and a normal lead time of 7–15 days after confirmation. Private-label requests are handled as controlled programs, with artwork and reference wording approved before production.

View Elecdura assembly and test operations below when evaluating manufacturing support for a distributor program. Product acceptance for 0001362067 still depends on the application, 10T drive and technical release sample.

0001362067 Starter Motor FAQ for B2B Procurement

For Ford 158 / 175 / 192 / 201 diesel, which identifiers should be used to request 0001362067?

In the Ford 158 / 175 / 192 / 201 diesel 0001362067 identity file, start with the entire 0001362067 or a full matching reference such as 0001362067, 0-001-362-067, SR400X, 538501, then add the Ford 158 / 175 / 192 / 201 diesel or machine record. For this Ford / JCB number set, shortened numbers can point to more than one service version. Within the 0001362067 sourcing record, a useful inquiry also includes the mounting-face and stud photographs so the factory can identify the 10T, 12V configuration without relying on the model name alone. For the Ford / JCB Ford 158 / 175 / 192 / 201 diesel item, the usable identity chain is 0001362067, 0-001-362-067, SR400X, 538501.

For Ford 158 / 175 / 192 / 201 diesel, what separates this Ford 158 / 175 / 192 / 201 diesel starter from a nearby alternative?

For the Ford 158 / 175 / 192 / 201 diesel fitment, this Bosch/Lucas service family spans Ford tractors and JCB equipment, so the 12V, 2.0kW, 10T product record must stay connected to the entire OE and three-hole mounting geometry. In this Ford / JCB application, for this reason, the separating controls are 10T, 2.0kW, the mounting geometry and stud position. For the defined 0001362067 scope, a wholesaler should place those points on the reference piece sheet and internal part master. For the Ford 158 / 175 / 192 / 201 diesel fitment, if a neighboring starter differs at any one of them, it should remain a separate quotation and warehouse line. For Ford 158 / 175 / 192 / 201 diesel, the version boundary is 10T, 2.0kW, Ø144.5 / Ø140.8 mm references and the complete OE group.

For Ford 158 / 175 / 192 / 201 diesel, how should the 10T pinion be verified?

At the 10T drive check, rotate the pinion enough to count every tooth clearly and take a close photograph before installation. For the 0001362067 pinion review, compare the count with 10T and inspect the gear outside diameter, rest position and nose clearance against the removed starter. Within the Ford 158 / 175 / 192 / 201 diesel drive record, do not infer tooth count from a similar housing or an abbreviated cross-reference, because a one-tooth difference can prevent correct engagement. The Ford / JCB release uses 10T with CW rotation, so both details belong on the sample and carton checks.

For Ford 158 / 175 / 192 / 201 diesel, which mounting details matter for 0001362067?

During mounting review for 0001362067, use the full Bosch or Ford number, validate 10T and 12V, then compare the three-hole face, approximately Ø144.5/140.8 mm references, nose length and stud bridge. At the Ford 158 / 175 / 192 / 201 diesel flange check, the technical graphic is a purchasing reference rather than a drawing to scale, so the starter taken from service or reference piece remains the final physical comparator. For the Ford / JCB installation comparison, record the mounting-hole arrangement, locating diameter, nose depth and solenoid clocking together; matching only one dimension is not enough for a volume release. For Ford 158 / 175 / 192 / 201 diesel, the drawing controls are 3 × Ø12 mm mounting holes, Ø144.5 / Ø140.8 mm references, 10T pinion control and 13 / 21 mm axial references.

For Ford 158 / 175 / 192 / 201 diesel, can 0-001-362-067 be consolidated into the same stock code?

Within the Ford / JCB interchange group, it can be reviewed within the 0001362067 reference family, but consolidation should occur only after the 12V, 2.0kW, 10T, rotation, bolt pattern and studs agree. For the 0001362067 cross-reference decision, keep suffixes visible during quotation and reference piece review. In the Ford 158 / 175 / 192 / 201 diesel stocking boundary, once a measured reference piece is signed, store the accepted cross-reference list with the SKU so later sourcing teams use the same boundary. The working scope is Ford 2000 and 3000-series tractors, selected New Holland equipment and JCB 805/806 excavator applications; it is not a universal statement for every Ford / JCB machine.

For Ford 158 / 175 / 192 / 201 diesel, what application information is needed for this Ford / JCB starter?

For this tractor, backhoe and excavator electrical-parts wholesalers inquiry, provide the equipment or vehicle model, engine designation Ford 158 / 175 / 192 / 201 diesel, production year or serial information where available, and the entire old-starter number. When quoting 0001362067, this Bosch/Lucas service family spans Ford tractors and JCB equipment, so the 12V, 2.0kW, 10T product record must stay connected to the entire OE and three-hole mounting geometry. For the Ford / JCB commercial request, these details let the factory narrow the application before the physical check and reduce the risk of approving a visually similar unit for a different engine or production change. A practical Ford 158 / 175 / 192 / 201 diesel inquiry includes complete Bosch/Ford/Lucas number, tractor or JCB model, engine size, old starter length, mounting-face image and electrical-side image.

For Ford 158 / 175 / 192 / 201 diesel, how should a first 0001362067 shipment be inspected?

At incoming inspection for 0001362067, do not pool Bosch-, Lucas- and Iskra-labeled units until the three-hole casting, ten-tooth drive, nose depth and stud arrangement match the signed Ford/JCB reference piece. During the Ford 158 / 175 / 192 / 201 diesel lot release, open cartons from more than one pallet position, compare labels and castings, and inspect stud insulation and pinion protection. For Ford / JCB warehouse acceptance, keep photographs of accepted units with the receiving record. At incoming inspection for 0001362067, if a tooth count, flange, nose or connection differs, quarantine the affected cartons before branch allocation or customer dispatch. The receiving release for this Ford / JCB starter is the combined 10T, 3 × Ø12 mm mounting holes and terminal check.

For Ford 158 / 175 / 192 / 201 diesel, what should be included in a wholesale RFQ?

For the 0001362067 supply program, send entire Bosch/Ford/Lucas number, tractor or JCB model, engine size, old starter length, mounting-face image and electrical-side image, together with the requested quantity, destination, target timing and packaging preference. When preparing the Ford 158 / 175 / 192 / 201 diesel order, state whether a reference piece is required and identify any mixed references on separate lines. For this Ford / JCB distributor line, this gives Elecdura enough commercial and technical context to validate the exact 0001362067 configuration before price, lead time and private-label details are finalized. The Ford 158 / 175 / 192 / 201 diesel commercial request should retain 0001362067, 12V, 2.0kW, 10T, quantity, destination and packaging preference on one line.

Send a B2B RFQ for 0001362067 Starter Motor Supply

Send complete Bosch/Ford/Lucas number, tractor or JCB model, engine size, old starter length, mounting-face image and electrical-side image, required quantity, destination and packaging preference. Elecdura will review the 12V, 2.0kW, 10T 0001362067 configuration and confirm sample, lead-time and wholesale-supply details before the order is released.
