028000-0621 Kubota V2203 Starter Motor 12V 1.4kW 9T

028000-0621 Kubota V2203 Starter Motor Selection for Engine and Equipment Distributors

The V2203 engine is used across construction, agricultural and industrial equipment, so an engine match alone leaves too much room for error. The 028000-0621 page controls the 12V, 1.4kW, 9-tooth family and its accepted Kubota and Denso references while keeping the final decision tied to the removed starter.

Distributor approval should distinguish this nine-tooth arrangement from nearby V2203 starters with a different drive or housing. Record the equipment maker, engine suffix, full Kubota number, flange measurements and terminal orientation. That specification packet becomes the reference for repeat orders and branch-stock transfers.

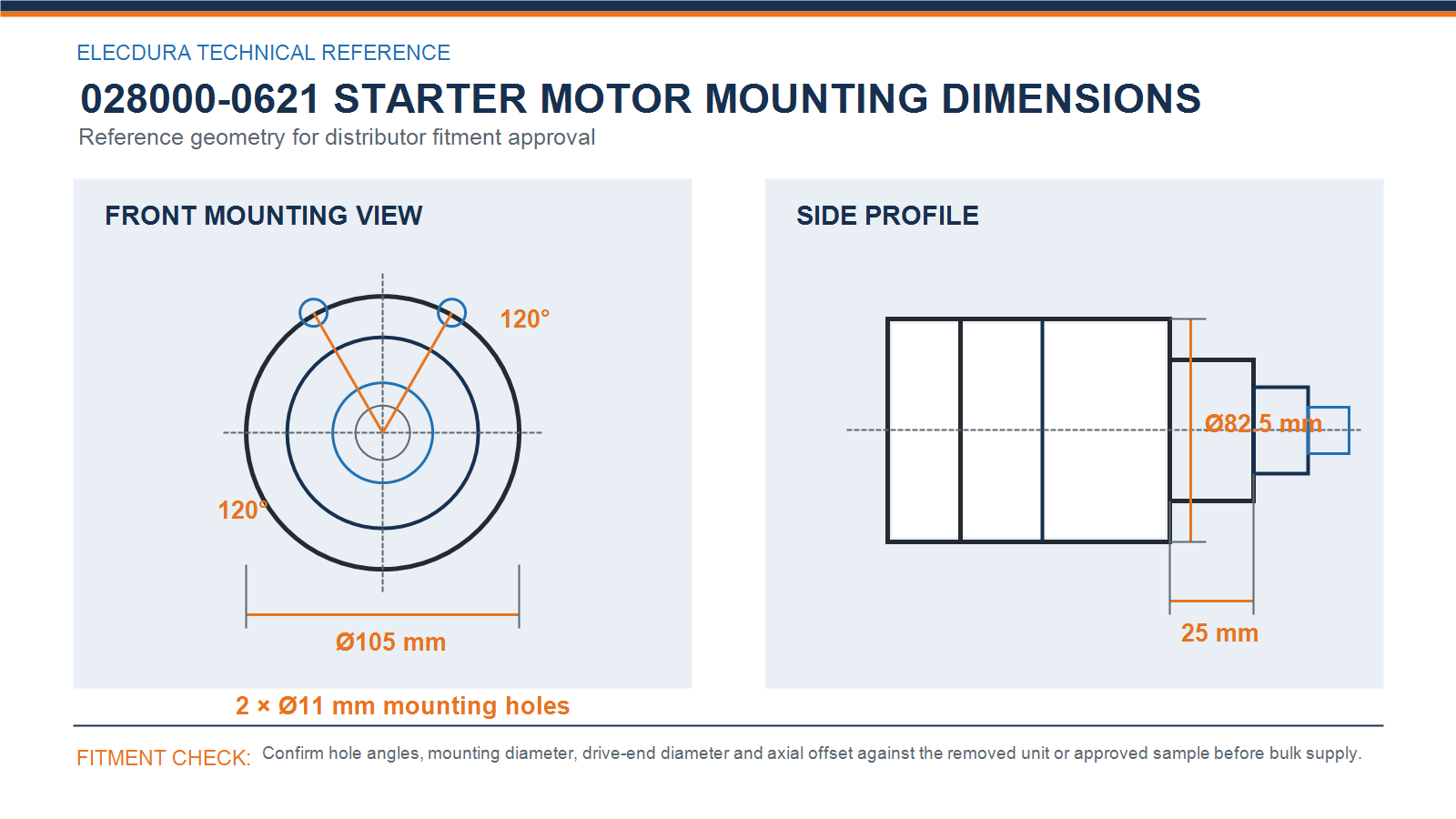

028000-0621 Starter Motor Specifications and 120-Degree Mounting Dimensions for B2B Approval

Elecdura 028000-0621 mounting reference for distributor approval. Compare the labeled geometry with the removed unit or signed sample before volume supply.

Approve the 9-tooth version only after checking the two Ø11 mm holes, 120° layout, Ø105 mm mounting reference, Ø82.5 mm drive end, 25 mm offset, nose depth and rear terminals.

028000-0621 Starter Motor Cross-References and V2203 Fitment Scope for Wholesale Buyers

The purchasing group includes early Denso 028000-0621 and 028000-3850, later 228000-4922, and Kubota 15401-63010/11/12 and 15461-63010 through selected suffixes. Because the Kubota number can supersede, keep both the original and current number in the buyer file and confirm the physical starter before consolidation.

For a V2203 inquiry, ask for the equipment manufacturer and model, engine suffix, starter label and flange photographs. Confirm nine teeth, clockwise rotation, mounting-face diameter, bolt spacing, nose depth and cable terminals. If the machine uses a turbocharged or later V2203 variant, do not carry fitment over without the full OE and physical comparison.

028000-0621 Starter Motor Sample Testing and Repeat-Supply Controls for Industrial Fleets

Check the incoming 028000-0621 group for 12V 1.4kW identification, nine teeth, correct flange machining and consistent solenoid-terminal clocking. Compare the rest position of the pinion and drive-end depth with the retained sample. Inspect shaft and terminal protection, then log label suffixes by carton before the lot is distributed.

Elecdura supports industrial-engine parts distributors and equipment service suppliers buying an approved 028000-0621 configuration. The normal MOQ begins at 20 pieces. Neutral cartons are available, while qualified private-label programs require an approved label matrix that preserves the exact Denso/Kubota interchange and avoids an unsupported all-V2203 claim.

• Engine identity: Capture the V2203 or V2203T suffix, equipment maker, serial range and readable old-starter label on the RFQ.

• Nine-tooth release: Photograph the pinion and retain a tooth-count check because neighboring Kubota starters can share voltage and power but use another drive.

• Repeat-order traceability: Link the signed sample, dimensional sheet and terminal photographs to the purchase order and receiving record.

Industrial-engine buyers can use the video to assess Elecdura assembly, electrical testing and shipment preparation for repeat supply. Fitment remains controlled by the full 028000-0621/Kubota reference, V2203 engine record, 9-tooth drive and the measured drive-end geometry shown above.

Watch the Elecdura starter motor production and testing video

028000-0621 Starter Motor FAQ for B2B Procurement

Is 228000-4922 interchangeable with 028000-0621?

228000-4922 is commonly connected to the 028000-0621 12V, 1.4kW, 9-tooth family. Treat that cross-reference as an identification path and confirm the complete suffix, Kubota OE, flange, pinion position and terminals. A distributor should not merge two stock records until a physical sample or dimensional record shows the same configuration.

Which Kubota engines use this 9-tooth starter motor?

The strongest application scope centers on V2203 and V2203T industrial engines, with selected D1503T and V1702 equipment also appearing in the same reference family. Engine family alone is not a fitment guarantee. Confirm the equipment model, engine suffix, complete Kubota part number and removed-starter geometry before a wholesale commitment.

How can buyers distinguish this starter from another V2203 unit?

Start with the complete 028000-0621 or Kubota reference, then confirm 12V, 1.4kW, nine teeth and clockwise rotation. Compare the flange diameter, mounting-hole centers, nose depth, pinion rest position and rear terminals. These physical controls separate close V2203 alternatives that may share voltage and power. Record the result against the approved equipment and engine suffix.

What if the old starter shows a 15461 Kubota number?

Provide the entire 15461-630xx suffix, because the final digits can indicate a supersession or application distinction. Cross-check it with the Denso number and engine record, then compare the mounting face and terminals. Keeping both old and current numbers in the approval file makes later replenishment more reliable for the distributor.

Can 028000-0621 be sold as a universal Kubota industrial starter?

No. Kubota industrial engines appear in many machines and can use different housings, pinions and terminal arrangements. This product should be offered only where the OE group and physical controls align. Marketing it as universal would create avoidable returns and weaken the technical credibility expected by equipment-parts buyers.

What application information should be recorded for V2203 orders?

Record the equipment brand and model, engine model with suffix, serial or production range, complete old-starter number and any superseding Kubota number. Add drive-end and terminal photographs. This package allows the supplier to confirm whether the request belongs to the 028000-0621 nine-tooth family before sample or bulk supply.

How should a distributor perform receiving inspection?

Inspect a cross-section of cartons against the signed 028000-0621 sample. Check the label, voltage and power, count nine teeth, compare flange machining and terminal clocking, and verify that protective caps prevent shipping damage. Record suffixes and isolate any different casting before the starter enters general branch stock.

What packaging options are available for bulk supply?

Neutral packaging can support regular aftermarket distribution, and private-label packaging may be reviewed for qualified quantities. Buyers should approve the carton, barcode, product label, reference matrix and protective inserts. Packaging must identify the controlled 9T configuration clearly so it is not confused with another V2203 starter in the warehouse.

Request a B2B Quote for 028000-0621 Starter Motors

Send the full 028000, 228000 or Kubota number, V2203 engine suffix, equipment model, old-starter images, quantity and market destination. Elecdura will review the 9T configuration, define any sample approval, and confirm commercial terms, packing and lead time for the distributor order.
