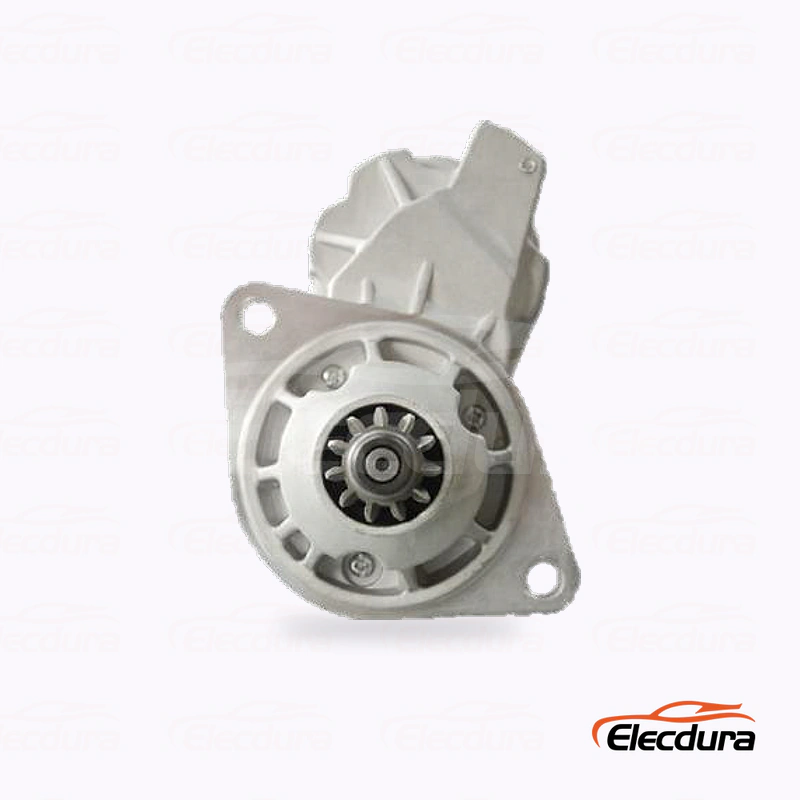

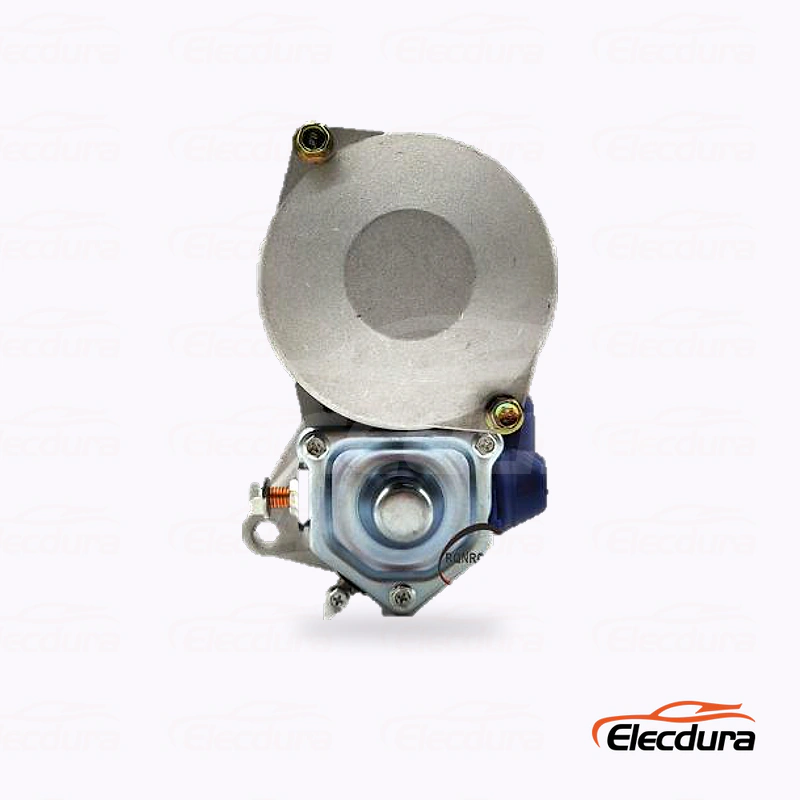

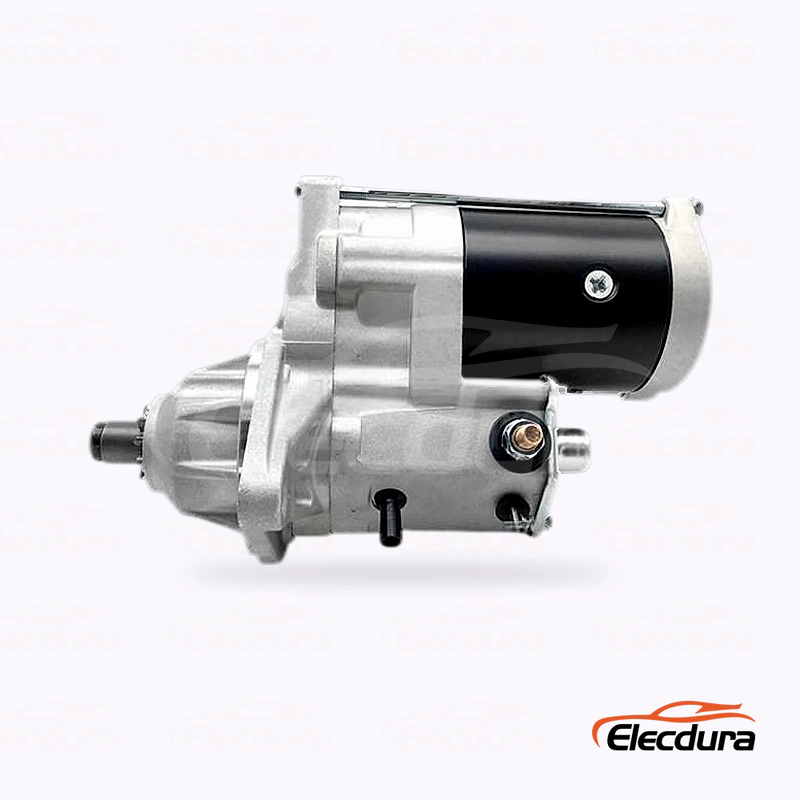

028000-4880 Hyundai 6D16T Starter Motor Wholesale 24V

028000-4880 Hyundai 6D16T Starter Motor for Equipment Wholesalers

Hyundai equipment may identify the host machine while the engine plate carries Mitsubishi 6D16T. Include both names, the equipment serial and complete 36100 or 028000 reference so the response follows the actual installation and purchasing teams can retain one understandable item history for later service.

A 6D16T engine description does not show the mounting version. Confirm the 11T module-3 drive, two Ø14 holes, Ø152 span, Ø110 drive-end reference and terminal side before volume supply. A three-ear starter or different drive position must remain outside this item even if its voltage is the same.

028000-4880 24V 5.5kW Starter Motor Specifications for Buyers

The defined electrical and drive set is 24V, 5.5kW, 11T, module 3 and clockwise rotation. Keeping these values together helps Hyundai equipment branches discuss one product and prevents a shortened OE from replacing the information needed by workshops, receiving teams and private-label cartons.

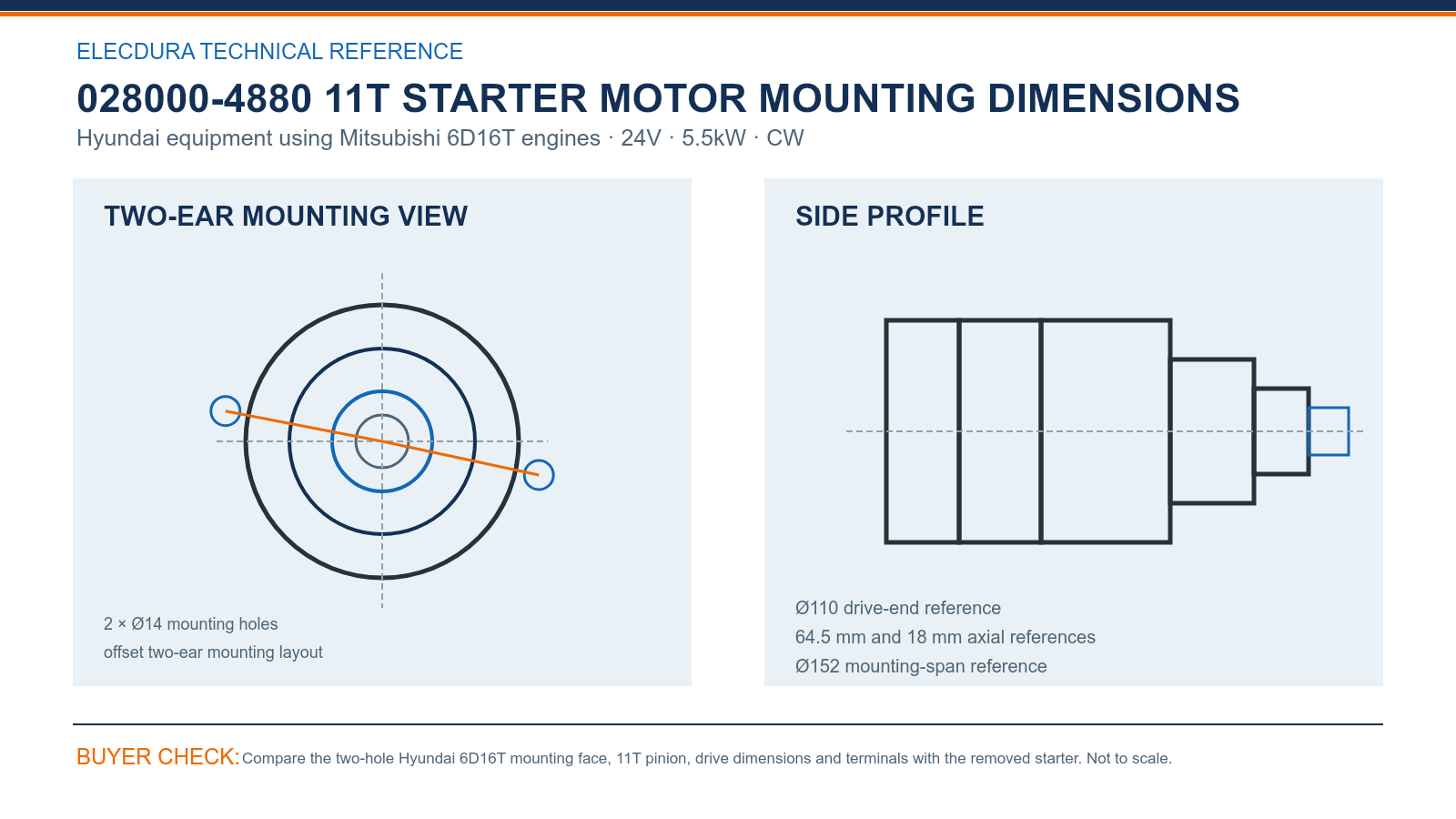

028000-4880 Hyundai 6D16T Starter Dimensions for Equipment Buyers — compare the drawing with the removed starter before placing a volume order.

Photograph the two mounting ears squarely, compare both Ø14 holes and the Ø152 span, then check the Ø110 drive-end reference and 64.5 mm plus 18 mm side positions. Matching angles are important because the long offset ears can appear symmetrical when photographed from above or below.

028000-4880 Hyundai Mitsubishi Starter Motor Fitment Checks

028000-4880 connects with 0280004880, Hyundai 3610093011, 3610093C00, 36100-93011 and 36100-93C00. Preserve hyphens where used and add the 6D16T engine plus host equipment. This reference chain supports procurement without expanding the fitment beyond the buyer's machine.

A parts distributor can group several Hyundai machines only after their old starters share the two-ear face, 11T pinion and terminals. Keep quantities by customer or service depot on the RFQ so urgent field demand, planned overhaul stock and normal branch replenishment remain visible after consolidation.

028000-4880 Starter Motor Support for 6D16T Service Stock

Receiving staff should sample the 11T drive, offset ears, locating profile and electrical studs, then store accepted images with the delivery lot. Separate the unit from three-ear 6D16 starters and mark both Hyundai and Mitsubishi 6D16T on cartons so warehouse descriptions match the language used by customers.

The Elecdura video introduces starter assembly and electrical testing for industrial B2B supply. Hyundai equipment and Mitsubishi engine-parts buyers can review that capability while defining first-lot checks, descriptive cartons, protective packing and delivery timing for their 028000-4880 program.

028000-4880 Starter Motor FAQs for B2B Buyers

Why should both Hyundai and Mitsubishi appear on the enquiry?

Hyundai identifies the host equipment, while Mitsubishi 6D16T identifies the engine family. Put both on the 028000-4880 enquiry with the machine model and serial. This wording helps equipment dealers and engine-parts buyers find the same request in their records without turning either brand name into a universal fitment claim.

How should the Hyundai 36100 reference variants be recorded?

Record 028000-4880 together with the exact Hyundai number found on the unit, such as 36100-93011 or 36100-93C00. Keep hyphens and suffix letters where shown. Add the 6D16T machine context and two-ear photographs so number formatting assists search without replacing the physical product comparison. Retain the selected suffix on later purchase orders.

Which product features separate this 6D16T starter?

The defined product combines 24V, 5.5kW, 11T, module 3 and clockwise rotation with an offset two-ear mounting face. Keep those values on one purchase line. That complete description separates it from another 6D16T starter that may share the engine name but use different power, pinion or mounting geometry.

What should be measured on the offset Hyundai mounting face?

Measure two Ø14 mounting holes and the Ø152 span from a square front view. The side view should show the Ø110 drive-end reference plus the 64.5 mm and 18 mm axial positions. Because the ears are offset, centreline comparison matters; an angled image can make the spacing appear compatible when it is not.

Can several Hyundai equipment models share one order line?

List demand by Hyundai machine model and serial before combining quantities. Consolidation is appropriate only when the old starters share 028000-4880, the 11T drive, offset two-ear face and terminal side. If one application differs, keep it on another RFQ line so a volume discount does not create a mixed product definition.

How should an altered 6D16T old starter be used for matching?

Mark every known alteration on the old starter—repaired ear, replaced nose, changed pinion or moved terminal—before it is used for comparison. Rely on unaffected drawing dimensions and the Hyundai machine record. When the alteration touches the mounting face or drive, obtain another original unit or stronger equipment data before a bulk order.

What should be inspected when 028000-4880 arrives?

On arrival, sample the 11T pinion, two Ø14 holes, Ø152 span, Ø110 locating reference and terminal insulation. Compare more than one carton with the accepted 6D16T images and record the lot. Any altered ear spacing, different drive depth or damaged terminal should remain outside saleable stock until reviewed.

What makes an 028000-4880 wholesale enquiry complete?

Send the Hyundai machine and serial, Mitsubishi 6D16T engine information, 028000-4880 and readable 36100 references, clear mounting, pinion and terminal photos, quantity, destination and required date. Add packing needs for the heavy unit. Elecdura can then quote the defined two-ear starter and suitable supply timing.

Request 028000-4880 Hyundai 6D16T Starter Motor Pricing

Send the Hyundai equipment model and serial, Mitsubishi 6D16T plate, complete 028000-4880 or 36100 reference, square two-ear, pinion and terminal photographs, quantity by depot and required date to info@elecdurauto.com. Elecdura will compare the product and return wholesale pricing and supply terms.
