028000-5860 Belarus MMZ D-260.2 Starter Motor Wholesale

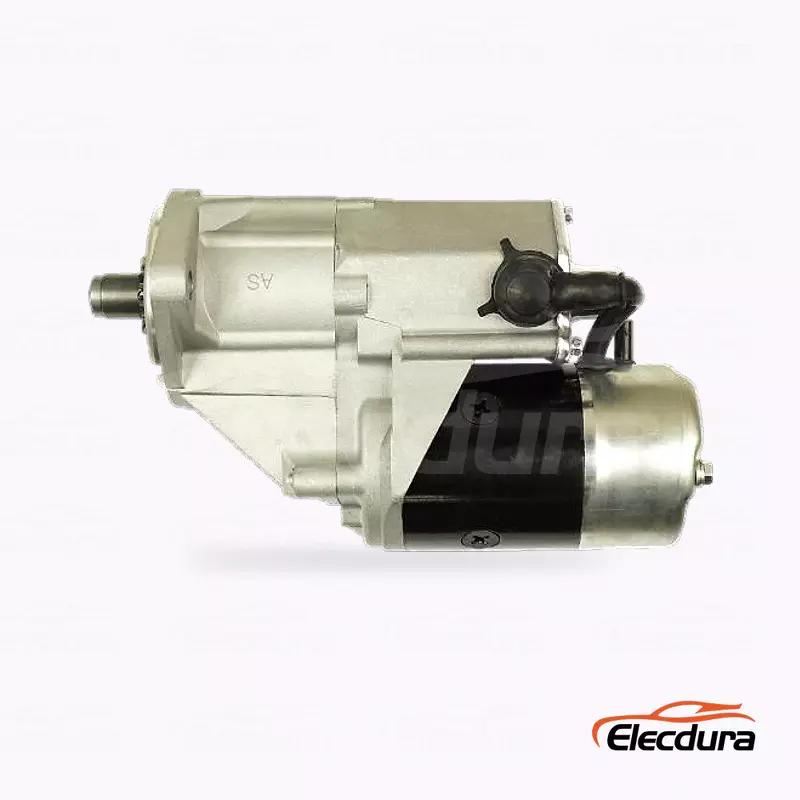

028000-5860 Wholesale Starter Motor for Belarus equipment using the MMZ D-260.2 engine

For Belarus machinery importers supporting MMZ D-260.2 engines in agricultural and industrial service, the decisive 028000-5860 check is the two-hole D-260.2 drive end, 11T pinion and Ø90 locating reference. Remote equipment can remain idle when a broadly described Belarus starter reaches the site with a different nose depth.

Include machine model, MMZ engine plate, complete starter references, direct mounting-face views, first-order quantity and shipment timing for 028000-5860 11T. This gives sales and technical teams enough information to quote the correct starter for Belarus equipment using the MMZ D-260.2 engine without relying on a broad application name.

028000-5860 Starter Motor Dimensions for Belarus Tractor Buyers

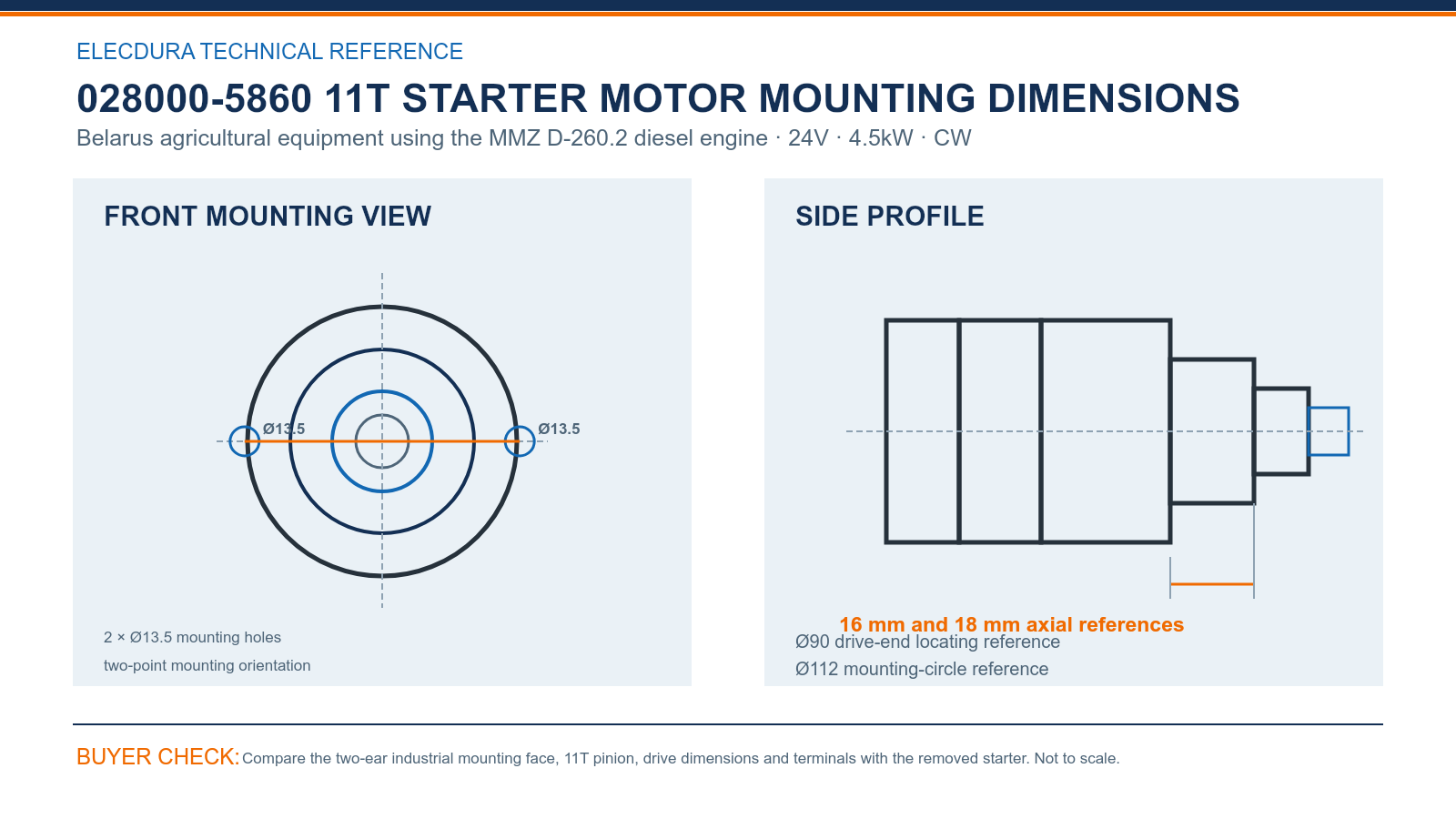

028000-5860 Belarus MMZ D-260.2 24V 4.5kW 11T starter mounting dimensions.

Use the 028000-5860 11T technical image to compare 2 × Ø13.5 mounting holes, two-point mounting orientation and Ø90 drive-end locating reference. These features show how the drive end meets Belarus equipment using the MMZ D-260.2 engine.

Keep the 028000-5860 11T dimensions together with 24V, 4.5kW, 11T, module 3, CW. Before warehouse entry, check both Ø13.5 holes, the Ø112 circle, pinion count and cable-stud protection before cartons enter field-service stock; isolate any changed construction or shipping damage.

028000-5860 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with 028000-5860 11T and record every complete number on the removed unit. Related references help locate 028000-5860 11T, but buyers must still confirm the two-hole D-260.2 drive end, 11T pinion and Ø90 locating reference.

2. Purchase-order detail: State 028000-5860, Belarus agricultural equipment using the MMZ D-260.2 diesel engine, 24V, 4.5kW, 11T, module 3, CW and the destination. Use the removed starter or confirmed sample to review any alternative before volume supply for Belarus equipment using the MMZ D-260.2 engine.

028000-5860 Starter Motor MOQ, Lead Time and Export Supply

028000-5860 11T is available for distributor orders from 20 pieces, normally within 7–15 days after confirmation, with an 18-month warranty under agreed terms. A practical stock approach is to base reserve stock on the supported machine population, seasonal workload and transport time to rural workshops.

Before releasing 028000-5860 11T, check both Ø13.5 holes, the Ø112 circle, pinion count and cable-stud protection before cartons enter field-service stock. Shipping damage to 028000-5860 11T or a changed construction should stay outside saleable inventory until the difference is resolved.

Elecdura's 028000-5860 11T production video presents starter assembly and electrical testing for B2B supply. It supports supplier evaluation, while the order for Belarus equipment using the MMZ D-260.2 engine remains tied to the buyer's fitment and delivery details.

028000-5860 Starter Motor FAQs for Belarus Parts Buyers

How can buyers distinguish 028000-5860 11T from a similar starter?

Remote equipment can remain idle when a broadly described Belarus starter reaches the site with a different nose depth. Confirm 028000-5860 11T by comparing the two-hole D-260.2 drive end, 11T pinion and Ø90 locating reference against the old unit's label, pinion and terminals. Keep Belarus equipment using the MMZ D-260.2 engine on the enquiry; a matching rating or housing is not enough.

Which details are needed for a 028000-5860 11T wholesale quotation?

Send machine model, MMZ engine plate, complete starter references, direct mounting-face views, quantity, destination and target date for 028000-5860 11T. For Belarus equipment using the MMZ D-260.2 engine, list immediate service quantity separately from routine stock and state allocation needs. Elecdura can then price 24V, 4.5kW, 11T, module 3, CW with MOQ, timing, warranty and freight options for 028000-5860.

What drive-end dimensions should be compared for 028000-5860 11T?

For 028000-5860 11T, compare 2 × Ø13.5 mounting holes, Ø90 drive-end locating reference and 16 mm and 18 mm axial references. Relate those dimensions to Ø112 mounting-circle reference and the 11T pinion for Belarus equipment using the MMZ D-260.2 engine. Work from a front-facing drive-end photograph, because an oblique view may misrepresent hole position, pilot diameter or pinion depth for Belarus equipment using the MMZ D-260.2 engine.

How should distributors plan stock for 028000-5860 11T?

Base reserve stock on the supported machine population, seasonal workload and transport time to rural workshops. Set the 028000-5860 11T reserve from supported machines, recent withdrawals and transfer time. Keeping the Belarus equipment using the MMZ D-260.2 engine and drive description on the bin helps branches avoid issuing another Belarus starter during an urgent repair.

Which electrical checks should precede starter replacement on Belarus equipment using the MMZ D-260.2 engine?

Test cold-cranking battery performance, cable resistance and the control signal before condemning the removed starter. After removing the old starter from Belarus equipment using the MMZ D-260.2 engine, check the flange, drive teeth and ring gear for unusual marks. Those readings on Belarus equipment using the MMZ D-260.2 engine distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Belarus starter?

Check both Ø13.5 holes, the Ø112 circle, pinion count and cable-stud protection before cartons enter field-service stock. Match the 028000-5860 11T label and 24V, 4.5kW, 11T, module 3, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Belarus equipment using the MMZ D-260.2 engine.

What should remain on a repeat order for Belarus equipment using the MMZ D-260.2 engine?

Keep 028000-5860 11T, Belarus equipment using the MMZ D-260.2 engine, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps reduce repeat travel and avoid sending an incompatible unit to a distant Belarus machine.

Which records support an after-sales review for Belarus buyers?

Provide equipment hours, ambient conditions, installation details, lot number and electrical test results from the service call for a 028000-5860 11T review. For Belarus equipment using the MMZ D-260.2 engine, include operating conditions and electrical readings taken before removal, then photograph the old and returned units from matching angles.

Request 028000-5860 Starter Motor Wholesale Pricing

Email machine model, MMZ engine plate, complete starter references, direct mounting-face views, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote 028000-5860 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 11T, module 3, CW unit.
