028000-6250 Kubota L4350 L4850 Starter Motor 12V 1.4kW 11T

028000-6250 Kubota L4350 L4850 Starter Motor Approval for Agricultural Distributors

Kubota L4350 and L4850 tractor inquiries often arrive with a machine model and a worn starter whose label is partly unreadable. The 028000-6250 family provides an 11-tooth, 12V 1.4kW purchasing anchor, supported by Kubota 15601-63012 and related Denso references.

Because the same reference family can appear across additional L- and M-series equipment, the quote should identify the tractor, engine and complete old-unit number. Approximately 82.5 mm locating diameter, 105 mm mounting centers, 11 mm bores and terminal orientation give the buyer practical dimensional checkpoints before sample approval.

028000-6250 Starter Motor Specifications and 125-Degree Tractor Mounting Geometry for B2B Buyers

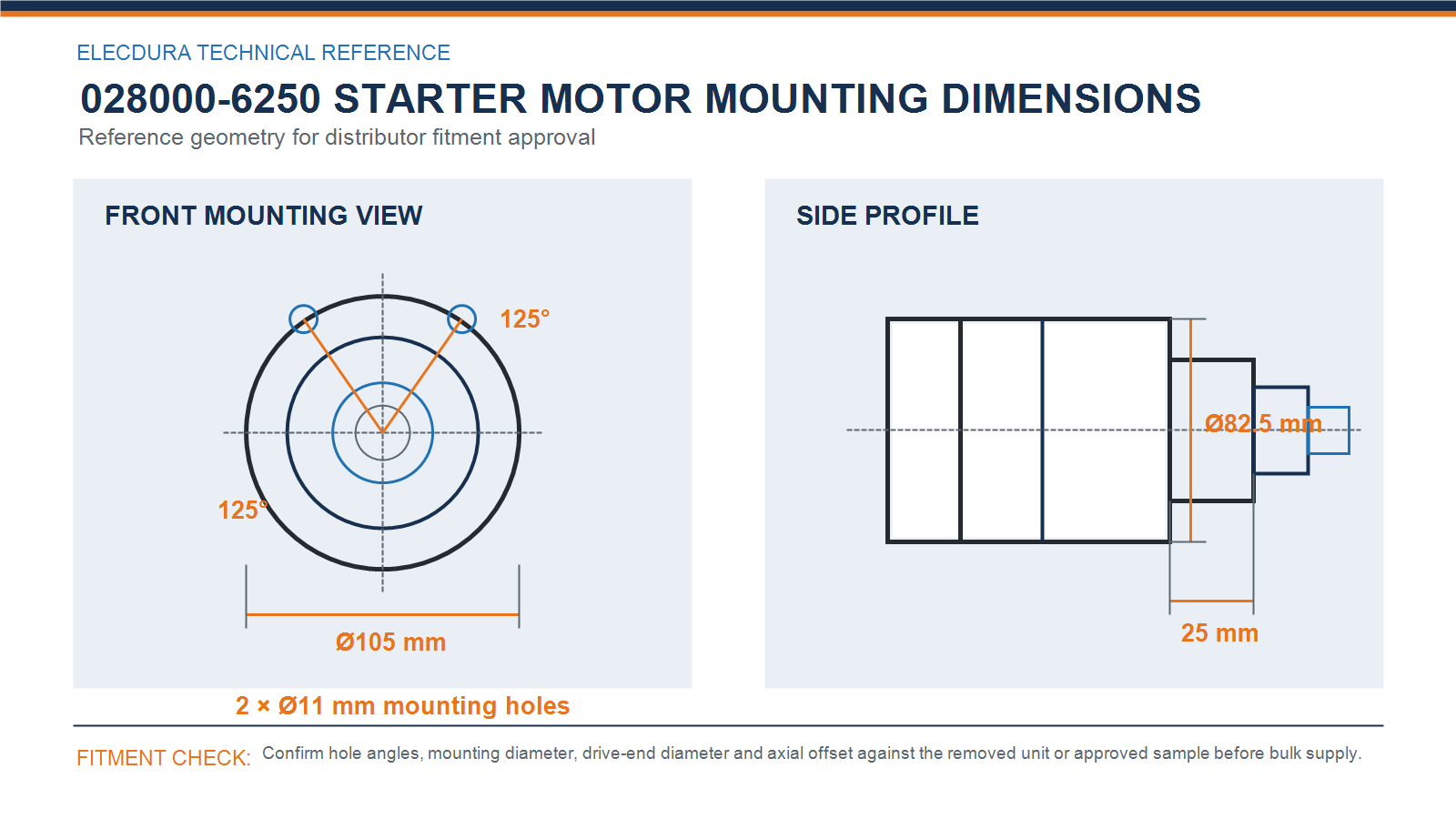

Elecdura 028000-6250 mounting reference for distributor approval. Compare the labeled geometry with the removed unit or signed sample before volume supply.

Confirm the 11-tooth pinion, two Ø11 mm mounting holes, twin 125° references, Ø105 mm mounting diameter, Ø82.5 mm drive end, 25 mm offset, nose clearance and tractor cable position.

028000-6250 Starter Motor Cross-References and Kubota Tractor Fitment for Wholesale Stocking

Denso 028000-6250 and 028000-7830 connect with multiple 128000 and 228000 numbers, while Kubota 15601-63012, 15621-63012 and 17381-63012 provide tractor-side references. AS S6439S, WAI 18412N and Lucas LRS01318 are useful aftermarket identifiers. The exact mounting and terminal record governs consolidation.

For L4350 or L4850 supply, confirm the tractor and engine record, then compare the complete starter label. Count 11 teeth and measure the locating diameter, 105 mm hole centers, mounting bores, nose depth and terminal clearance. Photograph the installed cable route if the rear terminal is close to the tractor frame or heat shield.

028000-6250 Starter Motor Dealer Receiving, Packaging and Supply Controls

Sample the shipment and verify 028000-6250-family labels, 12V 1.4kW identification, 11 teeth, approximately 82.5 mm flange and 105 mm mounting centers. Inspect the unthreaded mounting bores, pinion protection, casting finish and terminal caps. Compare one unit with the retained tractor sample before releasing the batch for dealer distribution.

This starter is positioned for agricultural-parts distributors, tractor dealers and service networks purchasing against controlled Kubota records. The normal MOQ is 20 pieces. Neutral packing and qualified private-label programs are available subject to confirmation, with the label matrix tied to the 11T 028000-6250/15601-63012 group and approved tractor scope.

• Tractor application matrix: Keep the L4350 or L4850 model, serial range, engine suffix and complete Kubota reference together instead of approving every L-series tractor.

• Dealer receiving: Check 11 teeth, the 125° hole layout, mounting diameter, nose depth and terminal protection before units are distributed to branches.

• Private-label file: Tie artwork, barcode and carton specification to the approved 028000-6250/15601-63012 configuration and not to a generic Kubota starter label.

Agricultural distributors can use the video to review Elecdura production, testing and packing capability for dealer replenishment. Product approval still depends on the L4350/L4850 tractor record, compatible V2203 or F2503 engine, 11-tooth drive and the 125° mounting geometry documented for this page.

▶ Watch the Elecdura starter motor production and testing video

028000-6250 Starter Motor FAQ for B2B Procurement

Does 028000-6250 fit Kubota L4350 and L4850 tractors?

The reference is associated with verified L4350 and L4850 applications, including compatible V2203 and F2503 engine records. Confirm the tractor serial range, complete Kubota or Denso number, 11-tooth pinion, flange diameter, 105 mm mounting centers and terminal position. A model name should start the match, not finish it.

Which Kubota OE number is most useful for this starter?

Kubota 15601-63012 is a primary purchasing reference, with 15621-63012 and 17381-63012 also appearing in the family. Provide the full number rather than an abbreviated 15601 code. Cross-check it with 028000-6250, tractor and engine details, and the physical drive end before creating or merging a distributor SKU.

What are the main physical controls for 028000-6250?

Confirm an 11-tooth pinion, approximately 82.5 mm locating diameter, about 105 mm between mounting centers and 11 mm unthreaded mounting bores. Measure nose depth and pinion rest position, then photograph the rear terminals. These dimensions help separate the product from other 12V 1.4kW Kubota starters.

Can S6439S or LRS01318 be used to identify the same family?

S6439S and LRS01318 are useful aftermarket references connected with the 028000-6250 group. They should be accompanied by the original Denso/Kubota number and tractor record whenever possible. Confirm voltage, power, 11 teeth and mounting dimensions before assuming that every listing under those references has the same terminal or housing.

Does one L-series fitment mean the starter fits all Kubota L tractors?

No. Kubota L-series tractors cover multiple engine and starter configurations. The L4350/L4850 application helps narrow the selection, but other L models require their own OE and physical checks. A distributor should publish and sell from an approved fitment list rather than extend one 028000-6250 sample across the entire series.

What engine details should accompany a tractor RFQ?

Provide the engine model and suffix, tractor model, serial or production range, complete old-starter number and photographs. For this family, V2203 and F2503 records are particularly useful, but the starter geometry remains decisive. The extra data helps identify production changes and makes repeat dealer orders more consistent.

How should dealers inspect an 028000-6250 delivery?

Sample cartons across the delivery and check labels, 12V 1.4kW identification, 11-tooth drives, flange diameter, mounting centers, bores and terminal protection. Compare the casting and pinion position with the signed sample. Record any mixed reference or geometry before the units are distributed to branches or fitted to customer tractors.

Are private-label cartons available for agricultural distributors?

Private-label cartons can be reviewed for qualified orders, while neutral packaging supports regular wholesale supply. Approve the product label, OE-reference matrix, barcode, carton strength and pinion/terminal protection. The artwork should name the controlled 11T configuration and approved tractor scope rather than imply universal Kubota L-series fitment.

Request a Distributor Quote for 028000-6250 Kubota Starter Motors

Send the Kubota tractor model, engine designation, full Denso or Kubota reference, old-unit photographs, key mounting measurements, quantity and destination. Elecdura will confirm the 028000-6250 11T specification, sample or drawing requirements, packaging and delivery terms for the wholesale order.
