028000-6560 Isuzu 4BD1 11T Starter Motor Wholesale

028000-6560 Isuzu 4BD1 Starter for Industrial Parts Programs

Industrial starter demand is often recorded by the machine owner’s local number rather than one global OE reference. This unit can be requested as 028000-6560, 17302, 5811001690 or another number in the listed group. A useful quotation therefore connects the buyer’s reference to the 12V, 2.5kW, 11T configuration and the Isuzu 4BD1 equipment record.

Elecdura recommends separating this industrial line from truck starters that share a similar nose casting. The 36°/39°/21° mounting clocking and the 38 mm/18 mm side dimensions give the purchasing team clearer approval criteria than appearance alone.

028000-6560 Starter Cross-References for Distributor Catalogs

1. Store the full customer number, including all leading zeros and suffixes.

2. Attach the Isuzu 4BD1 equipment or engine record to the inquiry.

3. Confirm the 11T pinion, three mounting holes and terminal layout from the old unit.

4. Approve one sample before combining several customer references into a stocking SKU.

This process lets a distributor sell through familiar local references while keeping the supplied starter tied to one verified physical version.

028000-6560 12V 2.5kW Starter Motor Specifications and B2B Fitment Drawing

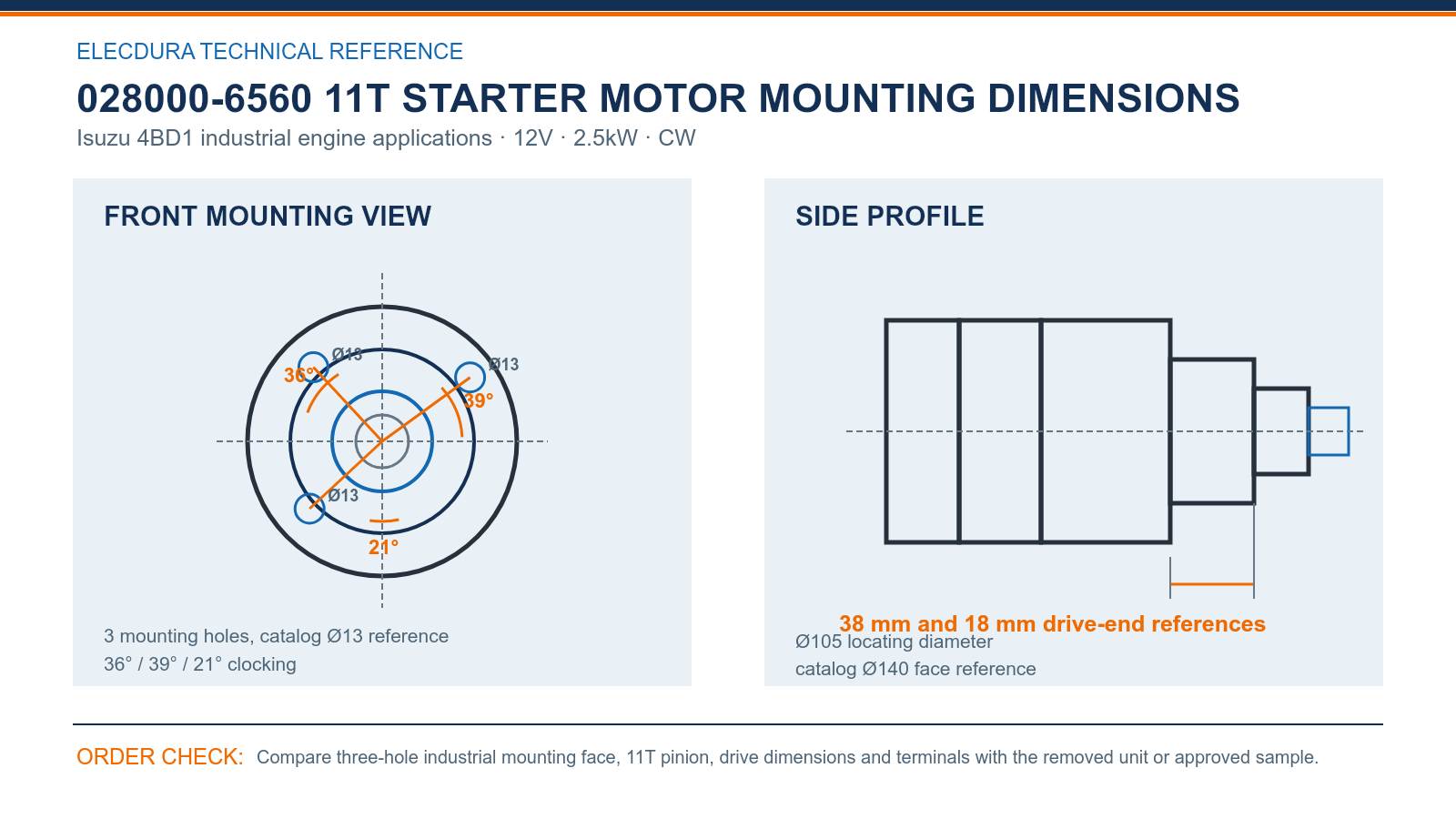

028000-6560 11T starter mounting and drive-end reference for B2B sample review.

For 028000-6560, fitment approval should move from the OE number to the mounting face. The technical reference brings together 3 mounting holes, catalog Ø13 reference, 36° / 39° / 21° clocking, Ø105 locating diameter and 38 mm and 18 mm drive-end references for sample comparison.

A straight mounting-face photograph and actual part measurements should decide any dimension that affects installation.

028000-6560 Starter Sample Approval and B2B Replenishment

For a first order, the sample record should include front, side and terminal photographs plus the measured mounting and drive-end points. When the sample is approved, Elecdura can use that record with the agreed OE group and 11T specification for later production checks.

Wholesale buyers can request neutral packaging or discuss private-label presentation for qualified quantities. Sharing the destination, annual demand, barcode format and carton requirements at quotation stage avoids treating packaging as a separate issue after the product has already been confirmed.

The following video shows Elecdura starter-motor production and electrical testing. It provides supplier-capability context; the correct item for an order is still determined by the 028000-6560 number family, Isuzu 4BD1 application, catalog specification and approved mounting details.

028000-6560 Isuzu 4BD1 industrial engine Starter Motor Wholesale FAQ

How is 028000-6560 different from another 4BD1 starter listing?

The engine name does not define every starter used around the 4BD1 family. This catalog item is specifically 12V, 2.5kW, 11T and CW with the stated three-hole geometry. Compare the full OE group, mounting clocking, drive-end distances and terminal position before treating another 4BD1 listing as the same wholesale item.

Can 16649, 17301 and 17302 be quoted together?

They can be reviewed as part of the listed reference family, but the quotation should still record the number supplied by the buyer and the exact 4BD1 application. Elecdura will use the 11T pinion, three-hole face and electrical rating to confirm whether the requested unit belongs in this product line before quantities are released.

What does the 38 mm and 18 mm side drawing control?

Those catalog dimensions help describe the nose and drive-end position from the mounting face. A wrong depth can create engagement or clearance problems even when the voltage and tooth count look correct. Check the actual starter or approved sample with suitable measuring tools; do not estimate the dimensions from a screen image.

Which Isuzu numbers are useful for 028000-6560 matching?

The catalog group includes 5811000710, 5811001081, 5811001690 and 5811001691. Send the complete number without removing leading digits and add the equipment model or 4BD1 engine record. That information gives the supplier enough context to distinguish a purchasing cross-reference from a confirmed physical interchange before quantity and packing are agreed.

Why should an industrial-equipment distributor approve a sample?

Older equipment records are often incomplete, and rebuilders may have replaced the original unit in the past. A sample approval captures the real 11T drive, mounting face, locating diameter and terminal direction. Retaining those images and measurements reduces uncertainty when the distributor later orders the same stock line for several workshops.

What should be included in a 028000-6560 RFQ?

Include the exact OE or cross-reference, Isuzu 4BD1 application, required quantity, delivery country and packaging preference. Add clear photos of the complete starter, pinion, mounting face and terminals. If the equipment is unavailable, provide any previous invoice, label or measured drawing that can support a controlled comparison.

How should receiving staff inspect this 11T Isuzu starter?

Check the agreed label, 12V and 2.5kW specification, eleven pinion teeth, clockwise rotation, three-hole mounting clocking, Ø105 locating feature and terminal orientation. Compare the unit with the approved sample rather than a generic catalog photo, then retain the inspection images under the same purchasing reference for repeat orders.

Are neutral and private-label packages available for distributors?

Neutral packaging can be quoted for standard wholesale orders. Private-label cartons, stickers and barcodes are reviewed according to quantity and program requirements. Provide artwork, labeling language, destination rules and inspection expectations before production so the packaging record remains linked to this exact 028000-6560 Isuzu configuration.

Request a 028000-6560 Starter Motor Wholesale Quote

For an 028000-6560 offer, provide the 4BD1 equipment record, full cross-reference, drive-end and terminal photographs, order volume and packaging request. The response will identify the sample controls needed before this industrial starter enters regular distributor stock.

Attach any 4BD1 machine drawing or prior sample record that can support the comparison. Elecdura can then align the industrial starter, carton labeling and replenishment requirements in one commercial offer.
