028000-8220 Toyota Land Cruiser Starter Motor Wholesale Supply

028000-8220 Toyota Starter Motor Identification for Wholesale Buyers

028000-8220 is a 12V, 1.4kW, 9T, CW-rotation starter motor for Toyota Land Cruiser 4.0L and 4.2L petrol applications using compatible 2F, 3F or 3F-E engines. The page is structured for professional sourcing, where the target is not only to find a reference but to approve the correct electrical and physical version for repeat supply.

The page is designed for 4x4 replacement-parts importers, where a wrong starter can create workshop delay, return freight and an avoidable customer claim. Tie the 2F, 3F or 3F-E engine record to Toyota 28100-60070, then check 1.4kW output, 9 teeth, nose length and terminal access. Keep this approval file with the SKU so later quotations do not expand the fitment scope beyond the verified engine or machine record.

028000-8220 Starter Motor Specifications for Distributor Approval

028000-8220 verification reference for 4x4 replacement-parts importers; compare the labeled controls with the removed unit or signed sample before volume supply.

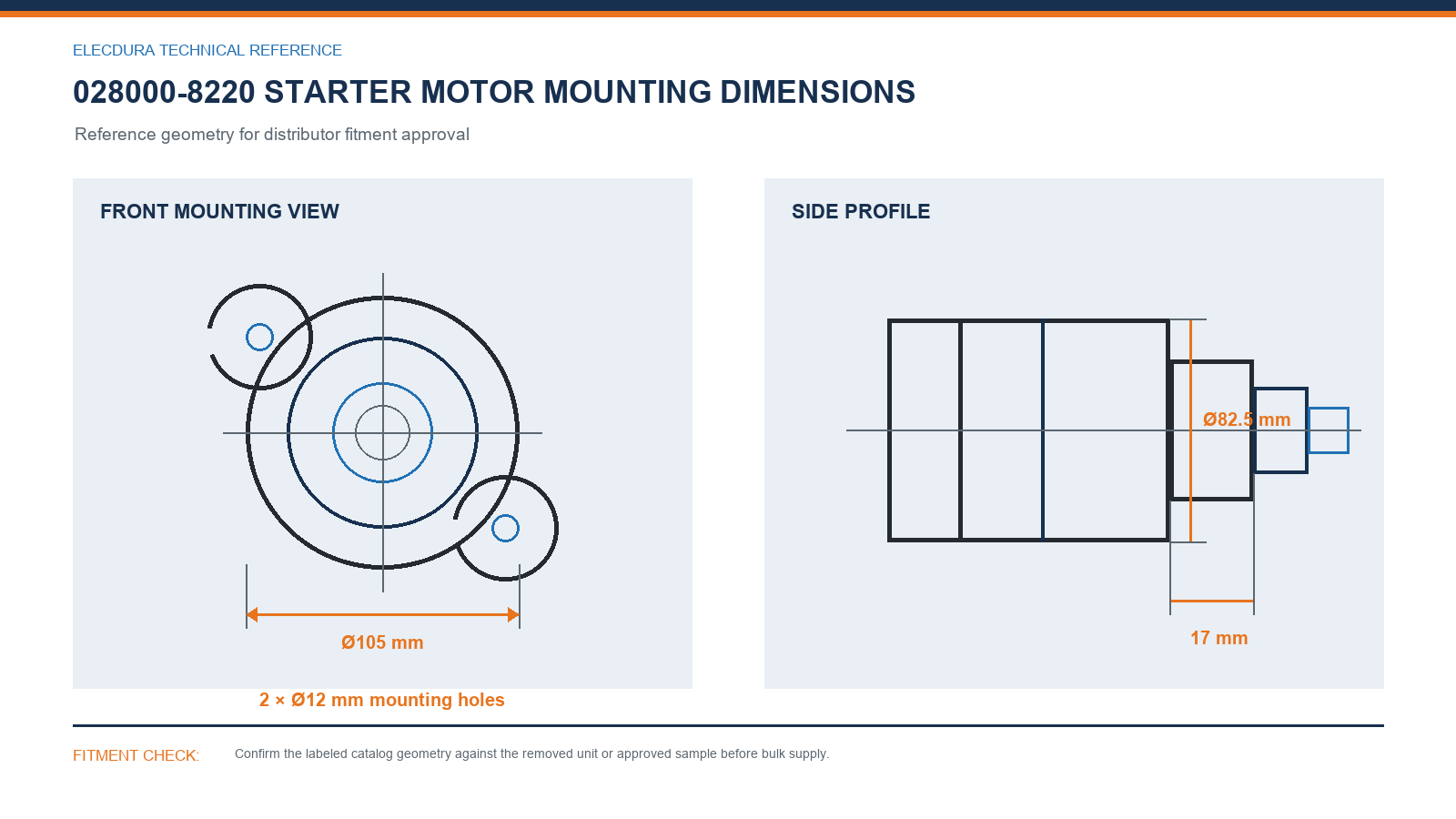

Key drawing references include Two Ø12 mm mounting holes, Ø105 mm mounting reference, Ø82.5 mm drive-end reference, 17 mm axial offset.

028000-8220 Starter Motor OE and Application Review for B2B Supply

The purchasing group begins with 028000-8220, 028000-8221, 28100-60070, 16828. These numbers connect service records and rebuilt labels, but complete references remain necessary because missing suffixes can identify a different output, pinion or housing.

Land Cruiser engine generation matters because a broad model-family search can surface higher-output or different-drive starters that are not a physical replacement. The controlled application is Toyota Land Cruiser 4.0L and 4.2L petrol applications using compatible 2F, 3F or 3F-E engines. Tie the 2F, 3F or 3F-E engine record to Toyota 28100-60070, then check 1.4kW output, 9 teeth, nose length and terminal access.

028000-8220 Starter Motor Receiving and Supply Controls for Distributors

At receipt, compare product labels, 12V identification, 9T drive, mounting face, nose and terminals with the approved sample. Inspect shaft protection, terminal covers and carton condition, then document any deviation before stock is allocated to branches. This sequence makes first-lot and repeat-lot decisions traceable.

Wholesale orders are handled from an exact OE and application record rather than a universal brand claim. The usual MOQ is 20 pieces, with neutral packing and private-label review available for qualified programs. Send separate lines for neighboring references so quotation, production label and receiving inspection remain connected to the correct 028000-8220 version.

Watch Elecdura starter-motor assembly and electrical testing below. Approval remains tied to 028000-8220, the Toyota application and this page's physical controls.

▶ Watch the Elecdura starter motor production and testing video

028000-8220 Starter Motor FAQ for B2B Procurement

What should a wholesale buyer verify for 028000-8220?

Toyota Land Cruiser 4.0L and 4.2L petrol applications using compatible 2F, 3F or 3F-E engines defines the working application scope for this engine-generation verification. Confirm 12V, 1.4kW, 9T and CW rotation, then apply this physical release: Tie the 2F, 3F or 3F-E engine record to Toyota 28100-60070, then check 1.4kW output, 9 teeth, nose length and terminal access. Keep the final comparison with the customer account so repeat orders follow the same approved starter.

Which applications are controlled on the 028000-8220 page?

028000-8220 is positioned for Toyota Land Cruiser 4.0L and 4.2L petrol applications using compatible 2F, 3F or 3F-E engines. The page does not extend that record to every Toyota product. A distributor should connect the 2F / 3F / 3F-E engine designation, machine model and available serial information to the full starter number, then retain the result as the fitment boundary for this SKU.

Can cross-references alone release a 028000-8220 bulk order?

028000-8220, 028000-8221, 28100-60070, 16828 are the principal identifiers reviewed for this Toyota starter group. They help reconcile service records and rebuilt labels, but they cannot cancel a difference in 1.4kW output, 9T drive, housing or terminals. Consolidate references only after the old unit and approved sample agree.

What electrical details matter for 028000-8220 starter selection?

The cataloged release is 12V, 1.4kW, 9T and CW rotation for 2F / 3F / 3F-E applications. Count the pinion and read the voltage or power label before comparing battery and switch terminals. This sequence keeps an electrically similar starter with another drive or connection layout out of the 028000-8220 wholesale line.

How should the 028000-8220 mounting geometry be checked?

Review Two Ø12 mm mounting holes, Ø105 mm mounting reference, Ø82.5 mm drive-end reference, 17 mm axial offset. The technical graphic is a purchasing reference, not a drawing to scale. Place the removed starter beside the sample, check the mounting face and pinion rest position, and photograph the connection side. These controls give 4x4 replacement-parts importers a practical dimensional record before approving volume supply.

What information should accompany a 028000-8220 RFQ?

For this Toyota inquiry, provide the 2F / 3F / 3F-E engine record, complete OE or cross-reference, machine model, serial or PIN where available, drive-end and terminal photographs, required quantity, destination and packaging request. Add mounting or nose measurements when the label is incomplete so the quotation remains tied to a verifiable unit.

How should distributors inspect the first 028000-8220 shipment?

4x4 replacement-parts importers should sample cartons across the delivery and verify 028000-8220 labels, 9T pinions, mounting castings, solenoid orientation and terminal protection. Compare one unit with the approved Toyota sample, quarantine any mixed reference, and store receiving photographs with the SKU before branches receive saleable inventory.

Is private-label packaging available for 028000-8220?

Private-label presentation can be reviewed for qualified 028000-8220 programs, while neutral cartons support standard wholesale orders. Artwork, barcode, carton strength and pinion protection need approval before production. The product label should state 12V, 1.4kW, 9T and the controlled Toyota reference accurately, without suggesting universal fitment.

Request a 028000-8220 Starter Motor Wholesale Quote

Send 028000-8220 or the related OE, Toyota machine and 2F / 3F / 3F-E engine details, old-starter photographs, quantity, destination and packaging request. Elecdura will review the 12V, 1.4kW, 9T configuration and sample requirements before quoting.
