028000-8320 Kubota D722 Starter Motor 12V 1.0kW 9T

028000-8320 Kubota D722 Starter Motor Fitment Controls for Compact-Equipment Buyers

Compact Kubota equipment often reaches the aftermarket with an equipment model, an engine tag and one of several superseded starter numbers. The 028000-8320 family is best controlled as a 12V, 1.0kW, 9-tooth D722 application rather than as a generic small-Kubota starter.

For K008 and K008-3 sourcing, preserve the exact engine and serial record with the approved starter. The OSGR drive, nose casting, mounting centers and terminal position should be compared side by side because nearby Kubota units can look similar in thumbnail photographs while differing at the flange or pinion.

028000-8320 Starter Motor Specifications and 30-Degree Mounting Geometry for Distributors

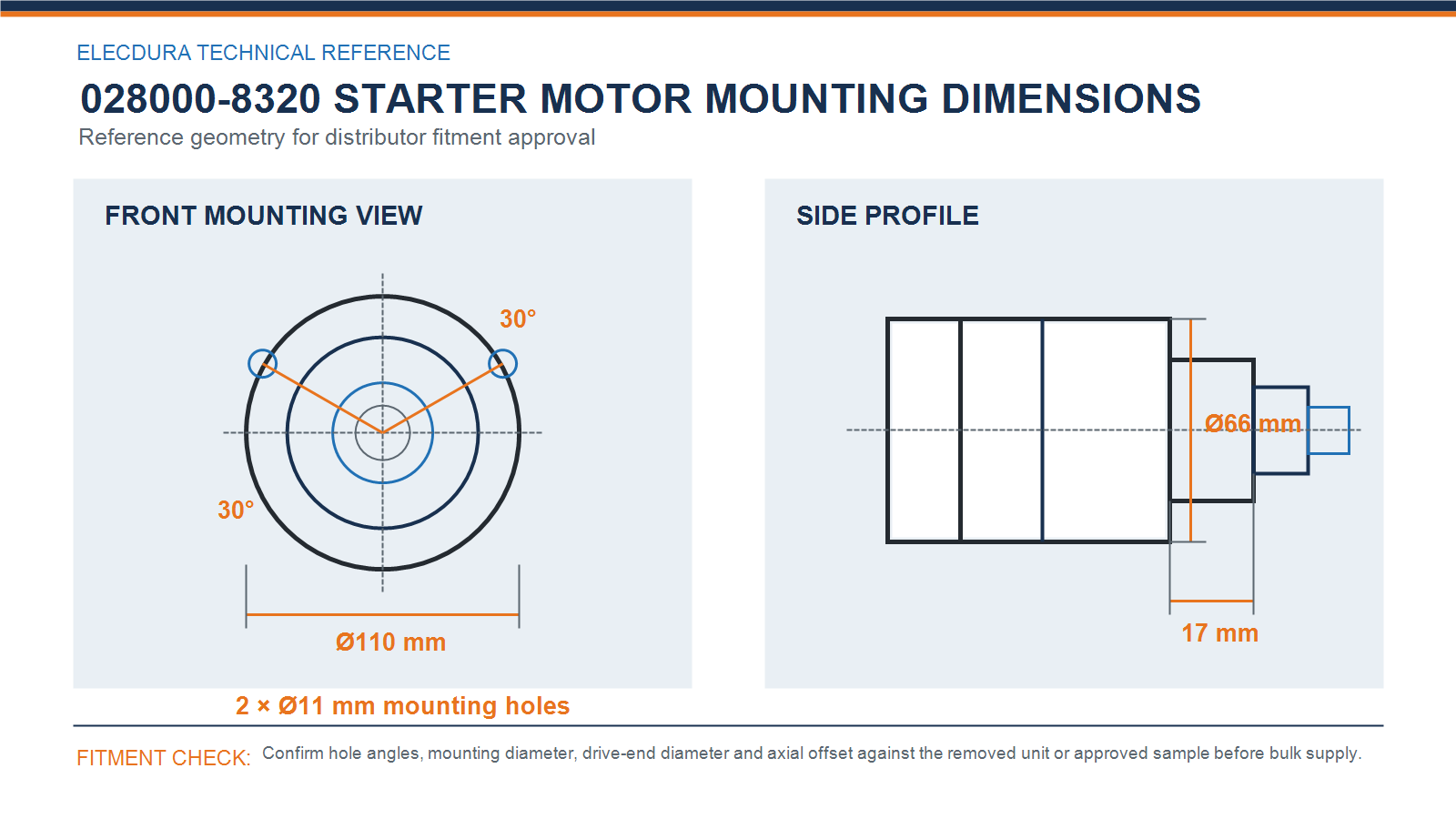

Elecdura 028000-8320 mounting reference for distributor approval. Compare the labeled geometry with the removed unit or signed sample before volume supply.

Compare the two-hole drive end, twin 30° hole references, Ø110 mm mounting diameter, Ø66 mm drive-end reference, 17 mm offset, 9-tooth pinion and terminal direction with the removed unit.

028000-8320 Starter Motor OE References and K008 Application Review for Wholesale Sourcing

Denso 028000-8320 and 028000-8321 are connected with later 128000 and 428000 references plus Kubota 15471-63011, 15504-63010/11/12 and related numbers. Use the Kubota part-number suffix and D722 equipment record together; do not approve the unit from an abbreviated 028000 number alone.

A compact-equipment distributor should obtain the K008-series model, serial range, D722 engine tag and old starter number. Check the 9-tooth pinion, OSGR body, locating diameter, bolt centers and cable-terminal clearance. These details matter in the confined excavator installation where an incorrect terminal clocking can prevent safe cable routing.

028000-8320 Starter Motor Testing, Receiving and Supply Planning for Rental-Fleet Distributors

Receive the 028000-8320 lot against the approved K008/D722 sample. Check 12V and 1.0kW identification, count all nine pinion teeth, compare the OSGR housing and drive-end casting, and inspect terminal insulation. Rotate the sample drive by hand for abnormal binding and quarantine any carton with a different suffix, nose or terminal position.

The product suits compact-equipment parts distributors and repair networks that hold traceable Kubota engine records. MOQ starts at 20 pieces, subject to commercial confirmation. For mixed D722 programs, submit each Kubota OE group as a separate line so packaging labels and stock locations remain connected to the correct 9-tooth configuration.

• K008 service record: Record the excavator model, serial range, D722 engine suffix and full Kubota number before releasing a service-kit SKU.

• Bench comparison: Set the removed starter and sample side by side to check the 9-tooth drive, 30° mounting geometry, nose depth and switch-terminal direction.

• Rental-fleet receiving: Sample cartons from different pallet positions and compare labels, pinion protection and terminal caps with the signed fleet sample.

For compact-excavator and rental-fleet programs, the video is useful for reviewing Elecdura production flow, starter testing and repeat-order capacity. It does not replace D722 engine identification or a dimensional match to the K008/K008-3 sample held by the distributor.

▶ Watch the Elecdura starter motor production and testing video

028000-8320 Starter Motor FAQ for B2B Procurement

Does 028000-8320 fit the Kubota K008-3 with a D722 engine?

The 028000-8320 family is associated with verified K008 and K008-3 D722 applications, but the model name should not be the only check. Confirm the machine serial range, engine tag, complete Kubota or Denso number, 9-tooth drive, mounting face and terminal position against the removed starter before ordering stock.

What is the controlled power rating for 028000-8320?

Use the 12V, 1.0kW, 9-tooth clockwise OSGR configuration for this page. Purchasing records should preserve all four points together with the OE number. If an old label or offer shows a different power rating, pause the match and compare the housing, starter suffix and application record before a quotation is approved.

Which Kubota references cross to this Denso starter family?

Useful Kubota references include 15471-63011, 15504-63010, 15504-63011, 15504-63012 and selected 15741 or 16871 suffixes. A suffix can identify a production change, so provide the full number. The distributor should still compare the pinion, OSGR nose, mounting centers and terminals with an approved sample. Keep the accepted suffix list in the stock record for later replenishment.

Why should Bobcat T83S not be assumed from a broad catalog listing?

Equipment-model claims can be copied across aftermarket listings even when a different starter family is used. This page is controlled around the Kubota D722/K008 application evidence and matching OE group. For any Bobcat inquiry, require the removed-unit number, engine record and physical dimensions instead of transferring fitment from a broad description.

What measurements help approve an OSGR starter for compact equipment?

Record the locating diameter, bolt-center distance, mounting-hole size, drive-end depth, pinion outside diameter and pinion rest position. Add a rear view showing the battery and switch terminals. Compact installations provide little clearance, so the terminal angle and solenoid position can be as important as voltage, power and tooth count.

Can one 028000-8320 sample approve all Kubota D722 machines?

No. The same engine family may be installed in multiple machines with different starter arrangements or production changes. Approve the sample against a defined OE group, equipment model and serial range. Store those details with the SKU so future inquiries can be checked without turning a D722 engine match into an unsupported universal claim.

How should the first 028000-8320 batch be inspected?

Use a signed reference sample and inspect cartons from the top, middle and bottom of the shipment. Confirm labels, 12V 1.0kW marking, nine teeth, nose casting, terminal insulators and packaging protection. Photograph and isolate any unit with a different Denso suffix or mounting detail before it reaches sellable inventory.

Is neutral or private-label packaging available?

Neutral packaging is available for normal distributor supply, and private-label programs can be reviewed for qualified orders. Confirm artwork, barcode logic, product references, carton protection and required marks before production. Keep the label tied to the full 028000-8320/Kubota cross-reference group so a similar starter is not packed under the same SKU.

Request a Wholesale Quote for 028000-8320 Starter Motors

For an 028000-8320 quotation, provide the Kubota reference, K008-series model and serial information, D722 engine tag, photographs of the removed starter and planned quantity. Elecdura will confirm the controlled 12V 1.0kW 9T specification, sample plan, packing and delivery terms before supply.
