028000-8400 John Deere 4-276 11T Starter Motor Wholesale

028000-8400 11T Starter Motor Buying for John Deere Dealers

The 028000-8400 family can appear in more than one pinion channel. This product must remain the 11T, module 3 version for the identified John Deere 4-276 or Bobcat 975 application, even when an aftermarket system groups the reference with another drive.

Ask for the machine model and serial, engine details, full old label and a close pinion photograph. Elecdura then compares the two-hole face, Ø82.5 locator and axial dimensions before giving a wholesale price for this distinct version.

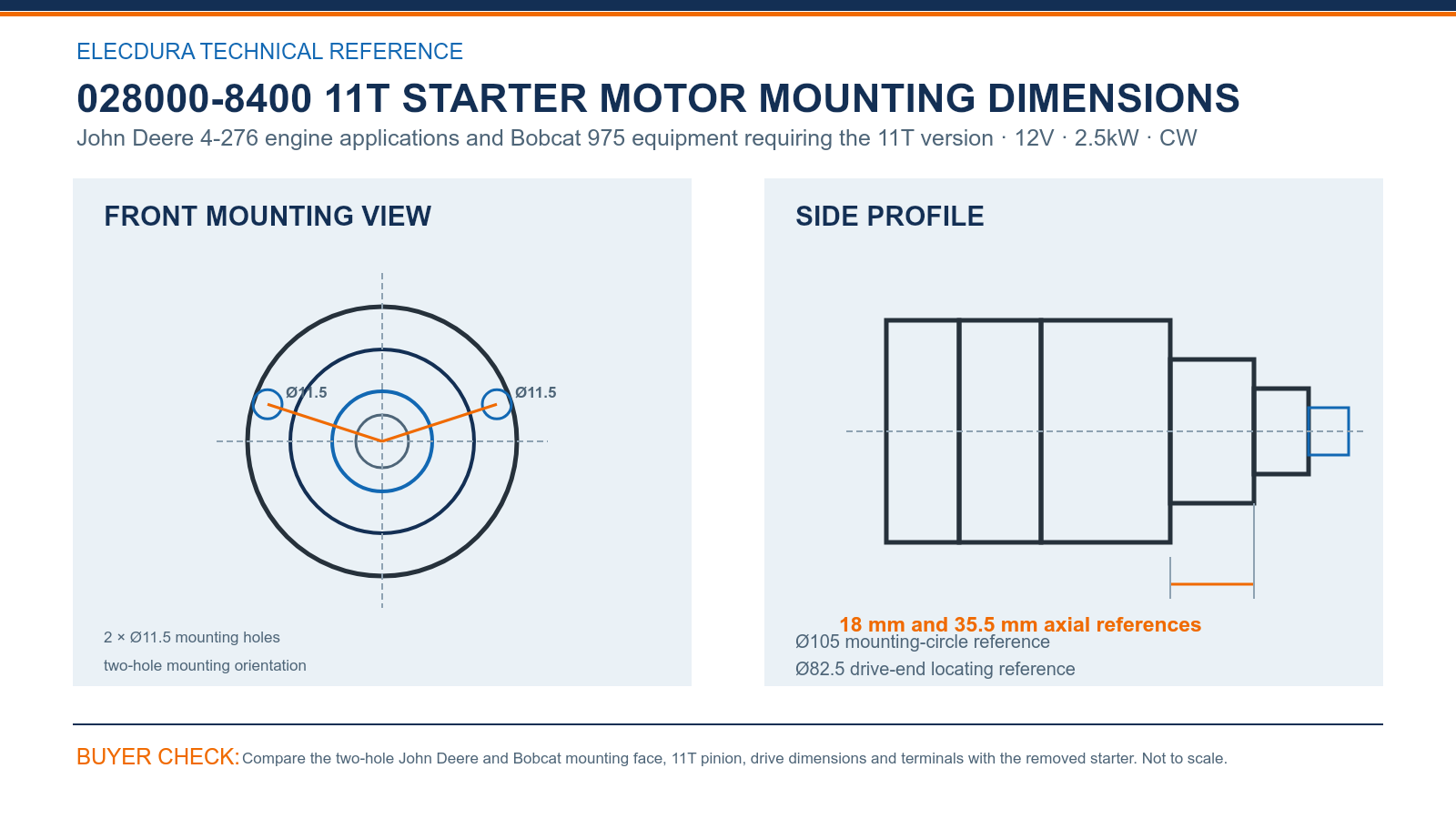

028000-8400 11T Starter Motor Drawing for Equipment Dealers

028000-8400 11T starter motor mounting and drive-end dimensions for buyer-side comparison.

The 11T version uses two Ø11.5 mounting holes on an Ø105 circle, with an Ø82.5 locating reference and 18 mm and 35.5 mm axial points. These features give equipment dealers measurable checks when the 028000-8400 family alone does not resolve the pinion version.

Keep a close photograph of the removed 11-tooth drive with the machine and engine details. Verify terminal position and cable clearance during the first fit so later branch orders can remain tied to the same two-hole configuration.

028000-8400 Starter Motor Version Checks for Bobcat Stock

RE19275, RE41799, 6631597, 91295372 and 228000-6470 support the wider reference trail. The buyer should still state 11T on the inquiry and purchase order because the same family can direct a search toward a different tooth count.

1. Photograph and count the old pinion.

2. Confirm module 3 and clockwise rotation.

3. Compare two Ø11.5 holes, locator and terminal orientation.

028000-8400 Starter Motor Supply for Legacy Equipment Service

Dealers supporting older agricultural and compact equipment can keep the 11T product separate from the alternative pinion version. A face photograph, pinion count and verified machine range on the item label reduce selection mistakes at remote service counters.

Elecdura can discuss small initial quantities, neutral cartons and later replenishment. On arrival, sample several units and verify the 11T drive, two-hole casting, full label and terminal caps before the shipment is divided among branches.

The video presents Elecdura starter-motor assembly and electrical testing. Send the John Deere or Bobcat machine details, 4-276 engine, old-unit label, confirmed 11T pinion, quantity and destination for a version-specific response.

028000-8400 Starter Motor Wholesale FAQ

How can a buyer prove this 028000-8400 product is the 11T version?

Clean and count the pinion teeth on the removed starter, then photograph the drive square to the camera. Keep the 11T count, module 3, 12V, 2.5kW and clockwise rotation on the inquiry. The machine and old-unit label should accompany that evidence so the supplier does not rely on the shared OE family alone.

Why do overlapping references require a separate product line?

Numbers such as 028000-8400, 228000-6470, RE19275 and 6631597 can appear in broader interchange systems that do not always expose the pinion version clearly. A separate 11T line protects quotations, purchase orders and warehouse bins from being merged with another drive that may have a similar housing and related references.

Which machine details are useful for Bobcat 975 demand?

Provide the Bobcat model and serial, installed 4-276 engine details and every number visible on the old starter. Add the 11T pinion, mounting face and terminal photographs. This combination helps an equipment dealer connect the physical unit to the actual machine and avoids selecting from the Bobcat model name alone.

What should be checked before replacing a slow-cranking unit?

Measure battery condition, cable voltage drop, grounds and switch signal, and confirm the engine turns freely. A weak connection can imitate a starter problem. If replacement is still required, retain those measurements with the machine serial and old label so the 028000-8400 inquiry includes both the physical version and the operating context.

How should an incoming 11T shipment be sampled?

Select cartons from different pallet positions and verify full labels, 11-tooth pinions, two-hole castings, terminal caps and packing condition. Compare one or more units with the retained Ø11.5-hole and axial measurements. Hold any different tooth count or nose arrangement before stock is transferred to service branches or urgent field jobs.

Which dimensions identify the two-hole 028000-8400 face?

Compare two Ø11.5 mounting holes on the Ø105 circle, the Ø82.5 locating feature and 18 mm and 35.5 mm axial references. Measure the removed starter directly and photograph the face square. These checks support the 11T identity and reveal a different drive end even when the motor and solenoid look familiar.

How should the two pinion versions be stored separately?

Use distinct item numbers, bins and labels that display the tooth count prominently. Add the confirmed machine range, module and a small pinion image to each warehouse line. During branch transfers, ask the receiving team to recount the drive and read the complete label before shelving either version under the shared 028000-8400 family.

What belongs in an 028000-8400 11T wholesale request?

Send the full OE or cross-reference, John Deere or Bobcat machine and serial, 4-276 engine information, old-unit label, 11T pinion photograph, mounting measurements, quantity, delivery country and packaging needs. Elecdura can then state the 12V 2.5kW clockwise configuration, MOQ, normal lead time and warranty for this distinct version.

Request a 028000-8400 Starter Motor Wholesale Quote

Send 028000-8400 or the complete John Deere, Bobcat or Denso number, machine and 4-276 engine details, old-unit label, clear 11T pinion and face photographs, quantity, destination and packing needs. Elecdura will quote the 12V 2.5kW 11T starter.

If your warehouse also carries another pinion version, state each tooth count and quantity on separate lines and retain a drive photograph with both item descriptions.
