028000-8401 John Deere 4-276 Starter Motor Wholesale Supply

028000-8401 John Deere Starter Motor Support for 4-276 Parts Dealers

Legacy John Deere equipment may arrive at the counter with a rebuilt starter, an older Denso plate or a later service number. The best starting point is the complete number visible on the removed unit, followed by confirmation of the 13-tooth drive and two-hole face used with the recorded 4-276 engine.

1. Capture the machine and engine serial information.

2. Photograph the old label and both mounting ears.

3. Show the pinion count and terminal arrangement.

Elecdura returns a defined replacement configuration and measurable receiving points, helping dealers supply older machines without relying on a broad John Deere model description.

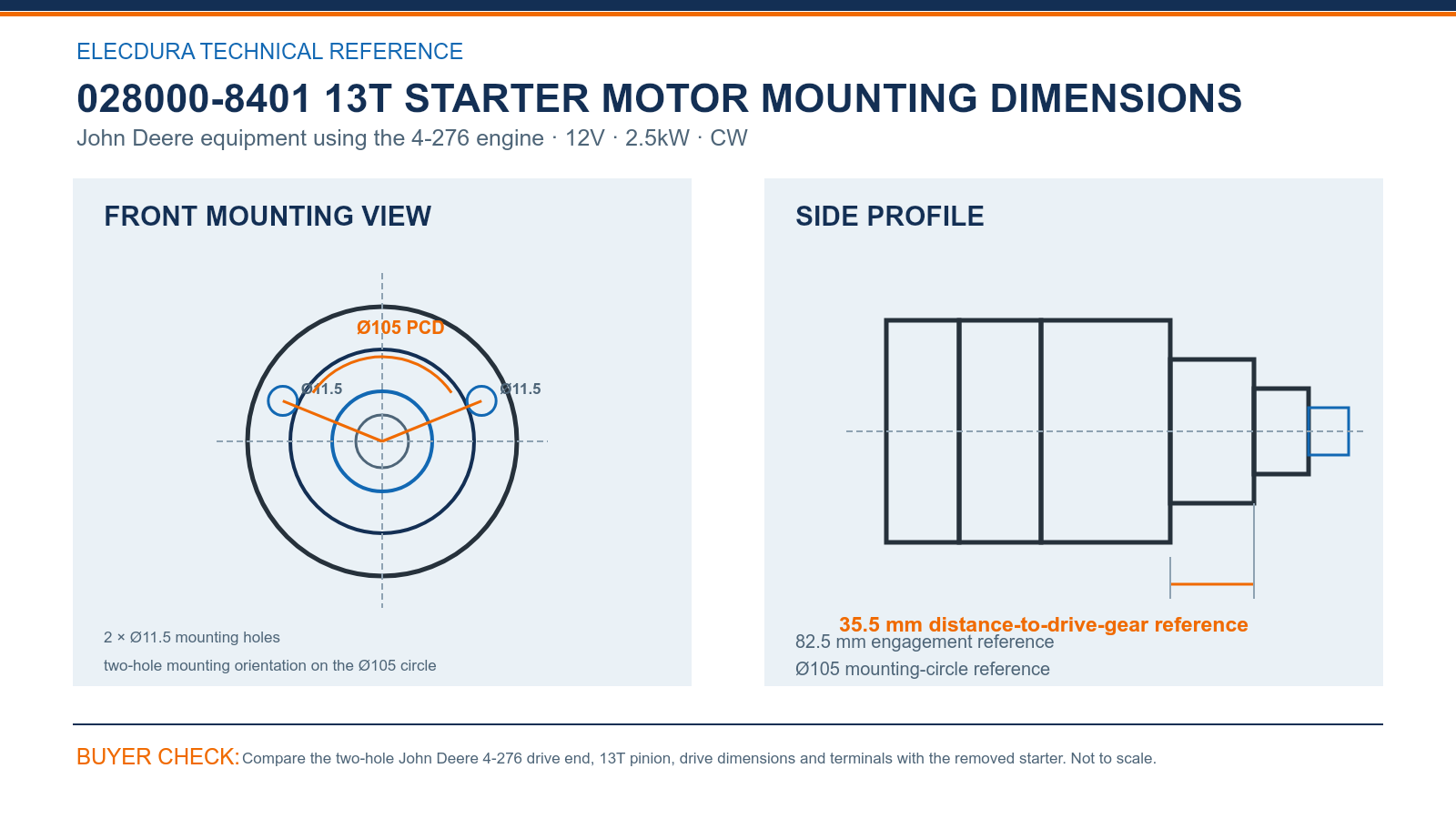

028000-8401 Starter Motor Specifications and B2B Fitment Drawing

028000-8401 13T starter motor mounting and drive-end dimensions for buyer-side comparison.

Legacy John Deere service requires the removed unit to confirm 2 × Ø11.5 mounting holes, 82.5 mm engagement reference, 35.5 mm distance-to-drive-gear reference and Ø105 mounting-circle reference. Those dimensions keep the specified 13T drive visible when a later service number points buyers toward a different version.

A dealer should retain the 4-276 machine serial, a square mounting photograph and a clear terminal image with the 028000-8401 sale. Direct measurement provides a practical reference for uncommon repairs where an older starter plate may be damaged or previously rebuilt.

028000-8401 Starter Motor OE Checks for John Deere Wholesale Orders

The purchasing trail may include 028000-8400, 028000-8402, RE19275, RE24438 or 17362N. Because service references can lead to later versions, keep 028000-8401 and the specified 13T configuration visible on the inquiry whenever that is what the removed unit shows.

• Electrical: confirm 12V and the 2.5kW specification.

• Mechanical: verify 13 teeth, module 2.54 and CW rotation.

• Fitment: compare two Ø11.5 holes, engagement and drive-gear distance.

028000-8401 Starter Motor Supply for Agricultural Service Networks

For older equipment, downtime is often extended by transport and parts identification rather than installation itself. A dealer can shorten the next repair by retaining the successful machine serial, starter label, mounting measurements and terminal photograph with the sales record.

Elecdura can quote trial quantities for uncommon service demand and combine later requirements into neutral-carton wholesale shipments. When annual usage becomes predictable, barcode labels or private packaging can be reviewed without removing the full technical reference needed by parts counters.

The video introduces Elecdura starter-motor assembly and electrical testing. Send the John Deere machine and 4-276 engine record, 028000-8401 label, drive-end photographs, quantity and destination so the reply can address the 13T unit and practical supply terms.

028000-8401 Starter Motor Wholesale FAQ

Why use 028000-8401 as the primary inquiry number?

It identifies the Denso starter version and keeps the 13-tooth configuration visible in the request. Later John Deere references can connect to related service products, but they may not communicate every physical detail. Send the exact old-unit number and 4-276 machine record so Elecdura can quote the intended drive and mounting arrangement.

How should RE19275 be compared with 028000-8401?

Use RE19275 as a cross-reference lead, not as automatic proof that every current listing is physically identical to the removed unit. Confirm 12V, 2.5kW, 13 teeth, module 2.54 and clockwise rotation, then compare both mounting holes, engagement and terminals. The machine record and removed-unit evidence should remain the final basis for the order.

What John Deere information is useful for a legacy-machine RFQ?

Provide the machine model, serial number, 4-276 engine details and any readable service history. Attach the complete starter label, a straight mounting-face image, the pinion count and terminal photograph. Older machines may have received previous conversions, so this combined record is more reliable than model year or engine name alone when selecting replacement stock.

Which mounting dimensions identify this two-hole starter?

Compare two Ø11.5 mounting holes on the Ø105 circle, the 82.5 mm engagement reference and the 35.5 mm distance to the drive gear. Measure the removed starter directly rather than scaling the technical image. Together with the 13-tooth pinion, these points help distinguish the intended drive end from a later or rebuilt John Deere unit.

What if the old starter label is unreadable?

Clean only enough to search for stamped or cast numbers without damaging the unit, then photograph every side in good light. Record the machine and engine serials, count the pinion teeth and measure the mounting face and drive position. Elecdura can use that physical evidence to narrow the request, but the buyer should avoid ordering from one blurred body photograph.

How should the first 028000-8401 installation be documented?

Record bolt alignment, full face seating, cable routing, cranking performance and pinion release on the identified John Deere machine. Save photographs of the installed unit with the machine serial and shipment lot. This gives a dealer a reliable reference for later repairs and helps diagnose whether slow cranking comes from the starter, batteries, grounds or worn cables.

What receiving checks suit low-volume legacy stock?

Open every carton in a small service order and compare the full label, 13-tooth drive, two-hole casting, terminal protection and packaging condition with the retained machine record. For larger replenishment lots, sample multiple pallet positions. Hold any different voltage, tooth count or drive-end arrangement before the product is assigned to an urgent field repair.

Can Elecdura combine 028000-8401 with other wholesale items?

Mixed replacement orders can be discussed when each line has a confirmed reference, quantity and destination. Neutral cartons are often practical for low-volume legacy products, while customer labels can be reviewed for stable programs. Keep the complete number and technical identity on the label so warehouse staff do not merge this 13T unit with another John Deere starter.

Request a 028000-8401 Starter Motor Wholesale Quote

Send 028000-8401 or the complete related number, John Deere machine and 4-276 engine details, old-unit label, mounting and terminal photographs, required quantity and destination. Elecdura will quote the 12V 2.5kW 13T CW configuration with dimensional checks and wholesale terms.

If the label is damaged, provide straight photographs with measurements of both mounting holes, the pinion and drive position. Those details give the commercial team enough physical context to respond without treating every RE19275-family inquiry as identical.
