028000-8840 Kubota KND3200E Starter Motor Support for Legacy Equipment Dealers

Dealers supporting older agricultural and industrial Kubota machines often work with incomplete records. For KND3200E demand, 028000-8840 should be tied to the 11T pinion, module 3 drive and triangular mounting nose instead of a general Kubota starter description.

Send the machine and engine identification, any remaining old-label digits and straight photographs of the face, pinion and terminals. Elecdura uses those physical anchors to prepare an offer that the dealer can compare with the unit on the bench.

028000-8840 Starter Motor Specifications and B2B Fitment Drawing

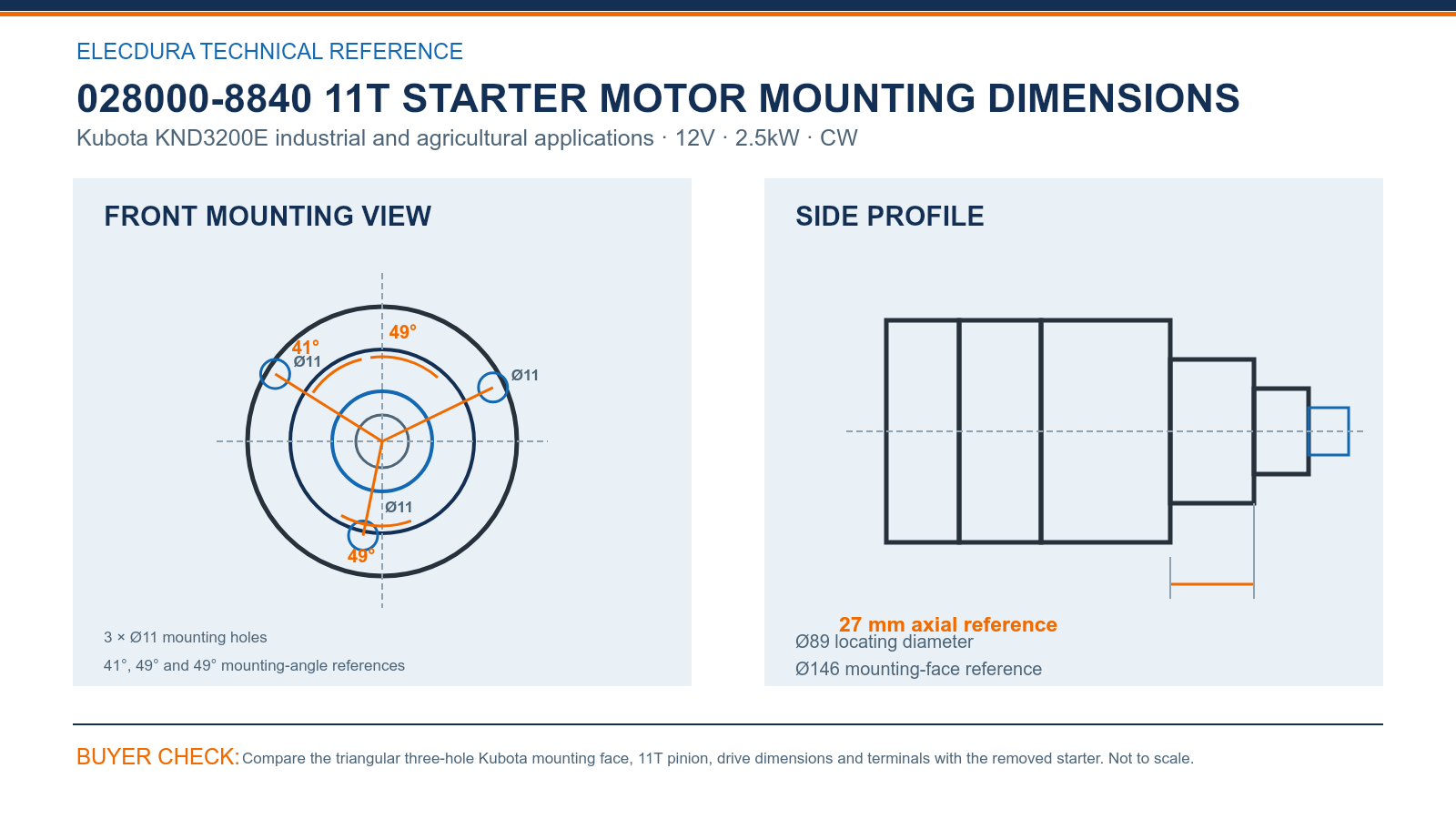

028000-8840 11T starter motor mounting and drive-end dimensions for buyer-side comparison.

The 028000-8840 face uses three Ø11 holes with 41°, 49° and 49° angle references, an Ø89 locating diameter and Ø146 mounting face. The 27 mm axial reference and 11T drive identify the KND3200E nose even when an older machine carries a rebuilt unit with a different exterior finish.

Compare the old starter square to the drawing and keep the face image with the machine serial. This creates a durable dealer reference for equipment whose service history may contain 028000-8841, 028000-8843 or a Kubota number rather than the primary Denso reference.

028000-8840 Starter Motor Denso Kubota Supersession Checks for Import Buyers

028000-8841, 028000-8843, 1418263011, 1418263012 and STN8840EC may appear in service documents for this family. Preserve the number actually found and keep KND3200E in the inquiry.

• Confirm the 11T, module 3 clockwise drive.

• Compare the Ø146 face, Ø89 locator and 27 mm axial reference.

• Do not substitute another Kubota pinion because the triangular flange looks familiar.

These checks turn a supersession chain into a usable replacement decision for older equipment.

028000-8840 Starter Motor Seasonal Stock Supply for Kubota Service Dealers

Agricultural dealers can plan 028000-8840 stock around the KND3200E machines still active in their territory and the months when field-service demand rises. A clear 11T carton description helps branches keep this starter away from newer Kubota engine families using another drive.

Provide prior repair volume, opening quantity, delivery country and the date stock is needed before the service season. Elecdura can review protective packaging for the pinion and face, neutral or dealer labels and a replenishment plan. The video below shows production and electrical testing.

The video supports supplier evaluation for dealers preparing seasonal KND3200E service stock.

028000-8840 Starter Motor Wholesale FAQ

How can a dealer identify 028000-8840 on an older KND3200E machine?

Start with the KND3200E machine and engine information, then photograph every readable part of the old label. Confirm the 11T module 3 pinion and triangular three-hole face. These anchors are more dependable than paint or motor-body shape when the starter has been rebuilt or replaced earlier in the machine's service life.

What do 1418263011 and 1418263012 add to the inquiry?

They provide Kubota reference routes that can be kept beside 028000-8840, 028000-8841 or 028000-8843. Use the exact number found on the machine or invoice and attach the KND3200E identity. The physical comparison still decides the unit, but the complete number trail helps the dealer reconcile older service documents.

Why should 028000-8840 not be replaced by a V4000 starter?

The KND3200E unit shown here uses an 11T module 3 drive, while a nearby V4000 family uses a different pinion. Both can have a triangular Kubota face, so overall outline is not enough. Count the teeth and compare the face dimensions before accepting a replacement for either engine family.

Which face measurements are most useful for 028000-8840?

Check three Ø11 mounting holes, the 41°, 49° and 49° orientation, Ø89 locator, Ø146 face and 27 mm axial reference. A square photograph and direct bench measurements show the complete pattern. This is particularly helpful when the old Denso label is faded but the mounting nose remains measurable.

What if the KND3200E carries a rebuilt starter with no original label?

Provide the machine and engine plates, then document the pinion, face, locator, terminal side and installed cable direction. Elecdura can compare those features with the 028000-8840 configuration. The offer should remain tied to the measured unit and KND3200E application rather than to an unverified handwritten number on the rebuilt starter.

When should a Kubota dealer place seasonal 028000-8840 stock?

Review the number of active KND3200E machines, prior starter demand, field-service response time and inbound lead time before the busy repair period. Share the required arrival date with Elecdura. This allows the opening order and possible replenishment release to be planned before machine-down requests begin consuming branch inventory.

How should packaging protect a starter used in agricultural service?

The carton should prevent impact to the 11T pinion, triangular mounting face and terminals and should keep dirt and moisture away during storage. Ask for clear technical labeling with 028000-8840 and 11T. For dealer branches, destination or barcode marks can be added when the quantities and label format are supplied.

What information supports a dealer quotation for 028000-8840?

Send the KND3200E machine count or immediate repair requirement, complete reference numbers, old-unit photographs, quantity, destination, required date and packaging choice. Elecdura can then address fitment comparison, price, carton marking and delivery timing for the 12V 2.5kW 11T starter in one commercial response for seasonal service demand.

Request a 028000-8840 Starter Motor Wholesale Quote

Send 028000-8840 or the complete Denso and Kubota number, KND3200E machine and engine details, any readable old-label information, face, pinion and terminal photographs, quantity and destination. Elecdura will quote the 12V 2.5kW 11T CW starter for the confirmed legacy-equipment requirement.

For seasonal dealer stock, include the date inventory must reach the branch and the estimated number of active KND3200E machines so the opening quantity and replenishment timing can be discussed.
