028000-9260 Toyota 3Y 4Y Starter Motor Wholesale Supplier

028000-9260 Toyota Starter Motor Identification for B2B Distributors

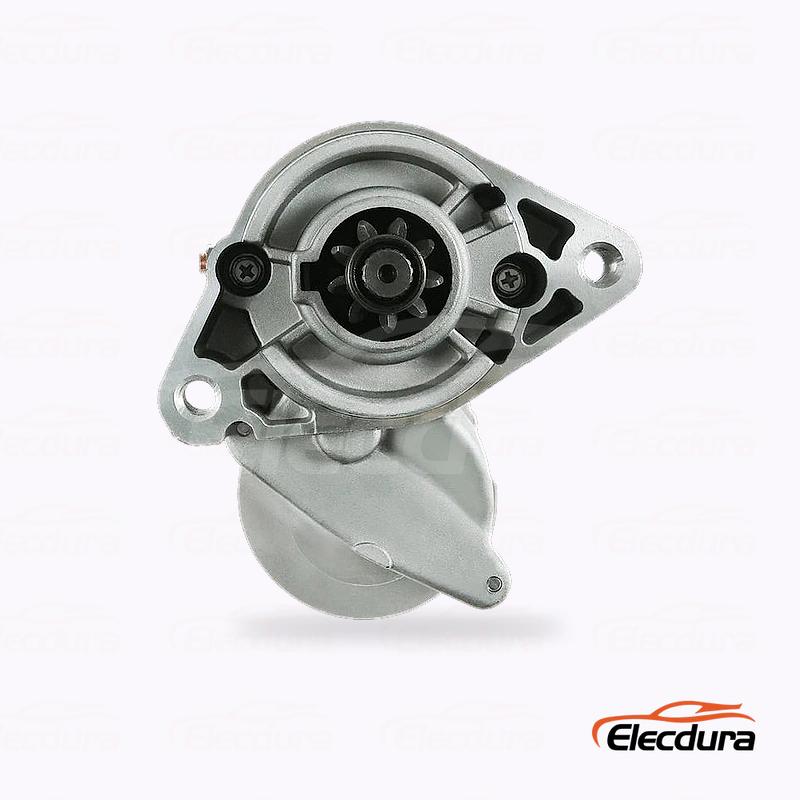

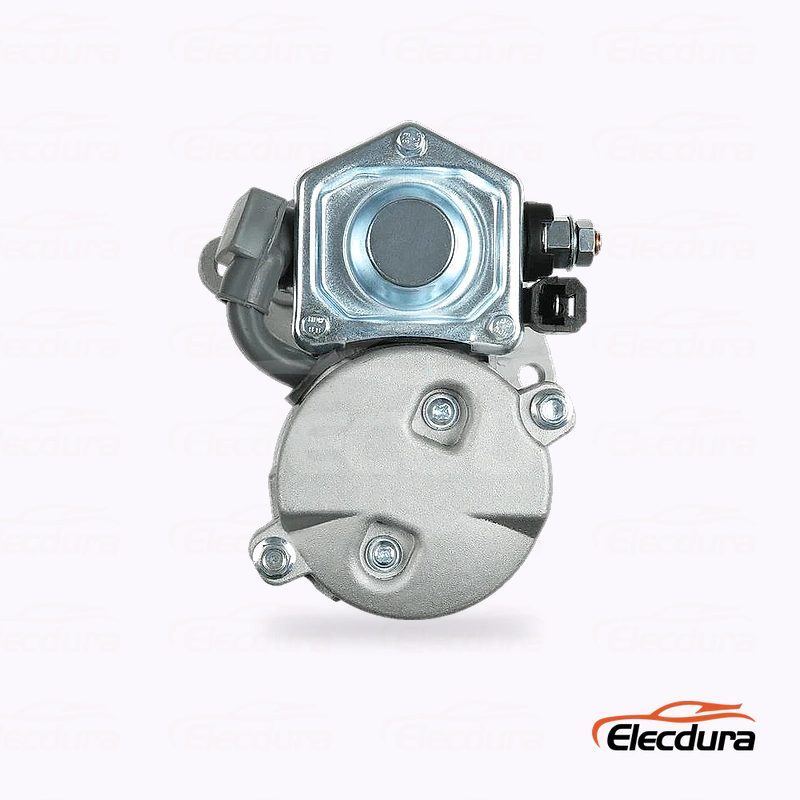

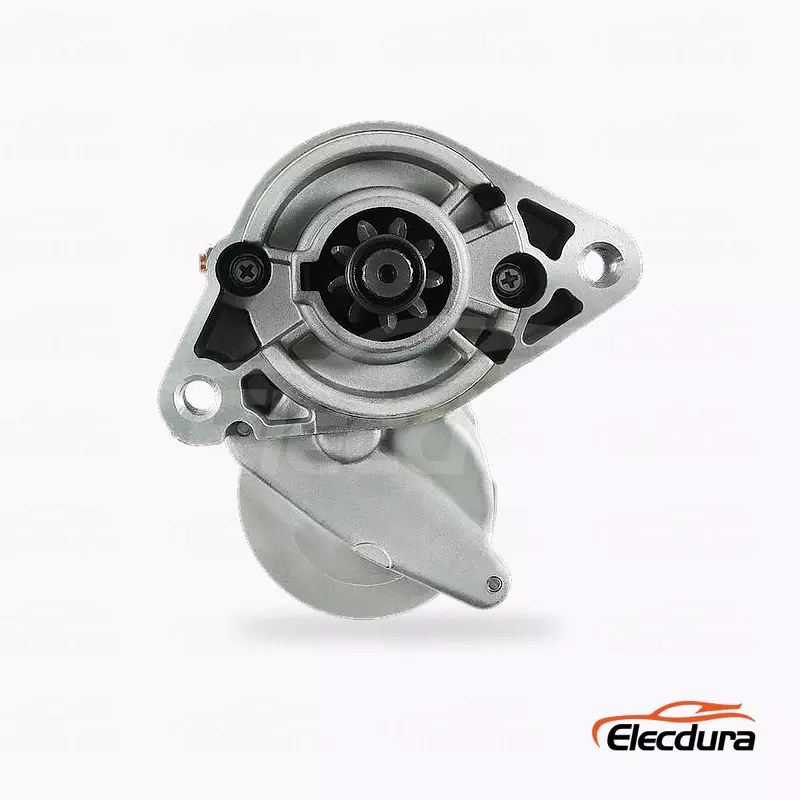

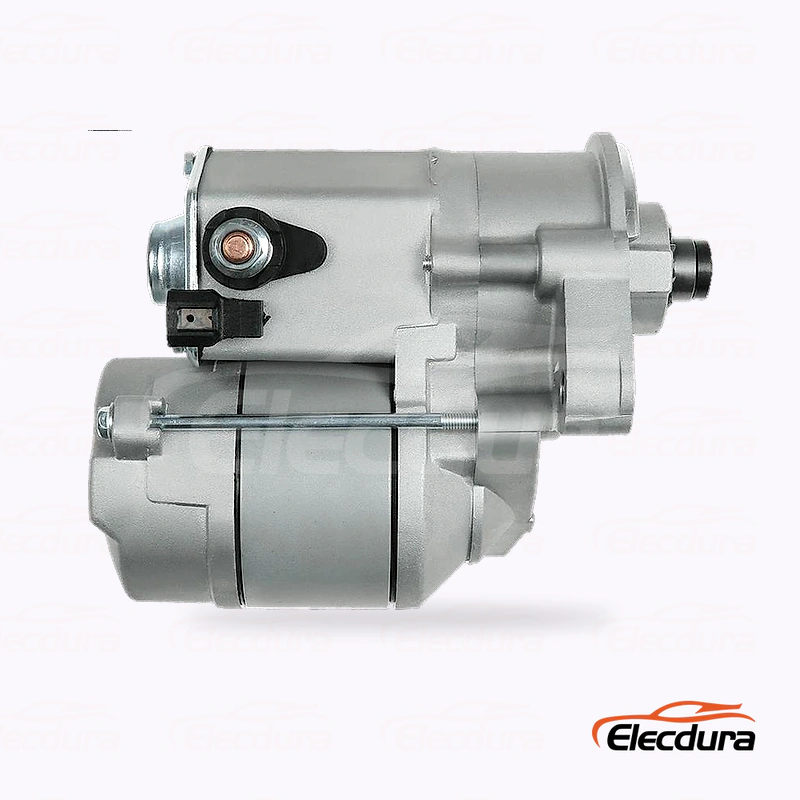

028000-9260 is a 12V, 1.4kW, 9T, CW-rotation starter motor for Toyota Hiace, Hilux and Model F plus selected Daihatsu and Volkswagen applications using 2Y, 3Y or 4Y engines. The page is structured for professional sourcing, where the target is not only to find a reference but to approve the correct electrical and physical version for repeat supply.

The 2Y/3Y/4Y engine family crosses more than one vehicle badge, so buyers need an engine and starter reference rather than a generic Hiace or Hilux description. Buyers should record the machine model, serial or PIN where available, engine details, full starter number and photographs of both ends. Confirm 1.4kW, 9 teeth, M10 × 1.25 mounting, Ø71 mm drive-end location and the terminal angle on the removed unit. This creates a useful commercial record even when the worn core label is incomplete.

028000-9260 Starter Motor Specifications for Wholesale Sourcing

028000-9260 verification reference for multi-brand light-commercial vehicle wholesalers; compare the labeled controls with the removed unit or signed sample before volume supply.

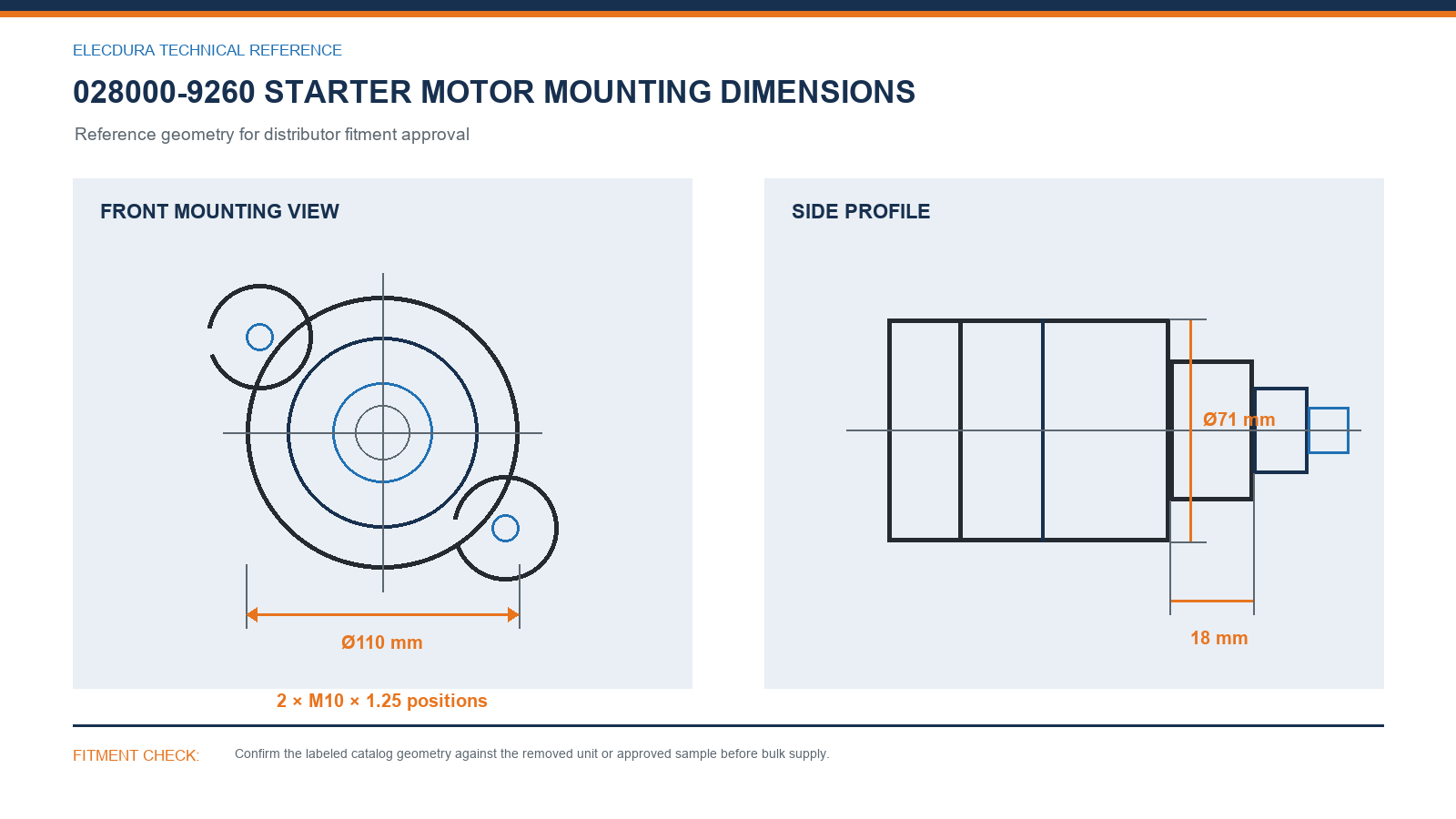

Key drawing references include Two M10 × 1.25 mounting positions, Ø110 mm mounting reference, Ø71 mm drive-end reference, 18 mm axial offset.

028000-9260 Starter Motor OE and Application Review for Wholesale Stocking

The purchasing group begins with 028000-9260, 028000-9261, 28100-72010, 28100-72030, 28100-72060, 28100-72080, with the full approved group listed in the table below. These numbers connect service records and rebuilt labels, but complete references remain necessary because missing suffixes can identify a different output, pinion or housing.

The 2Y/3Y/4Y engine family crosses more than one vehicle badge, so buyers need an engine and starter reference rather than a generic Hiace or Hilux description. The controlled application is Toyota Hiace, Hilux and Model F plus selected Daihatsu and Volkswagen applications using 2Y, 3Y or 4Y engines. Confirm 1.4kW, 9 teeth, M10 × 1.25 mounting, Ø71 mm drive-end location and the terminal angle on the removed unit.

028000-9260 Starter Motor Receiving and Supply Controls for B2B Buyers

A distributor receiving plan should check units from several cartons for consistent 028000-9260 labeling, 1.4kW output, 9T pinion and the approved physical arrangement. Verify terminal protection and drive-end cleanliness, compare a sample to the control unit, and quarantine any mixed reference before it reaches saleable stock.

Elecdura supplies this starter to multi-brand light-commercial vehicle wholesalers under confirmed aftermarket specifications. Starting MOQ is normally 20 pieces. Neutral cartons support routine distribution, while private-label packaging requires approved artwork and product labeling tied to 028000-9260. Lead time is commonly 7–15 days after final order confirmation.

Watch Elecdura starter-motor assembly and electrical testing below. Approval remains tied to 028000-9260, the Toyota application and this page's physical controls.

▶ Watch the Elecdura starter motor production and testing video

028000-9260 Starter Motor FAQ for B2B Procurement

What should a wholesale buyer verify for 028000-9260?

Toyota Hiace, Hilux and Model F plus selected Daihatsu and Volkswagen applications using 2Y, 3Y or 4Y engines defines the working application scope for this multi-brand engine-family review. Confirm 12V, 1.4kW, 9T and CW rotation, then apply this physical release: Confirm 1.4kW, 9 teeth, M10 × 1.25 mounting, Ø71 mm drive-end location and the terminal angle on the removed unit. Keep the final comparison with the customer account so repeat orders follow the same approved starter.

Which applications are controlled on the 028000-9260 page?

028000-9260 is positioned for Toyota Hiace, Hilux and Model F plus selected Daihatsu and Volkswagen applications using 2Y, 3Y or 4Y engines. The page does not extend that record to every Toyota product. A distributor should connect the 2Y / 3Y / 4Y engine designation, machine model and available serial information to the full starter number, then retain the result as the fitment boundary for this SKU.

Can cross-references alone release a 028000-9260 bulk order?

028000-9260, 028000-9261, 28100-72010, 28100-72030, 28100-72060, 28100-72080 are the principal identifiers reviewed for this Toyota starter group. They help reconcile service records and rebuilt labels, but they cannot cancel a difference in 1.4kW output, 9T drive, housing or terminals. Consolidate references only after the old unit and approved sample agree.

What electrical details matter for 028000-9260 starter selection?

The cataloged release is 12V, 1.4kW, 9T and CW rotation for 2Y / 3Y / 4Y applications. Count the pinion and read the voltage or power label before comparing battery and switch terminals. This sequence keeps an electrically similar starter with another drive or connection layout out of the 028000-9260 wholesale line.

How should the 028000-9260 mounting geometry be checked?

Review Two M10 × 1.25 mounting positions, Ø110 mm mounting reference, Ø71 mm drive-end reference, 18 mm axial offset. The technical graphic is a purchasing reference, not a drawing to scale. Place the removed starter beside the sample, check the mounting face and pinion rest position, and photograph the connection side. These controls give multi-brand light-commercial vehicle wholesalers a practical dimensional record before approving volume supply.

What information should accompany a 028000-9260 RFQ?

For this Toyota inquiry, provide the 2Y / 3Y / 4Y engine record, complete OE or cross-reference, machine model, serial or PIN where available, drive-end and terminal photographs, required quantity, destination and packaging request. Add mounting or nose measurements when the label is incomplete so the quotation remains tied to a verifiable unit.

How should distributors inspect the first 028000-9260 shipment?

multi-brand light-commercial vehicle wholesalers should sample cartons across the delivery and verify 028000-9260 labels, 9T pinions, mounting castings, solenoid orientation and terminal protection. Compare one unit with the approved Toyota sample, quarantine any mixed reference, and store receiving photographs with the SKU before branches receive saleable inventory.

Is private-label packaging available for 028000-9260?

Private-label presentation can be reviewed for qualified 028000-9260 programs, while neutral cartons support standard wholesale orders. Artwork, barcode, carton strength and pinion protection need approval before production. The product label should state 12V, 1.4kW, 9T and the controlled Toyota reference accurately, without suggesting universal fitment.

Request a 028000-9260 Starter Motor Distributor Supply Quote

Send 028000-9260 or the related OE, Toyota machine and 2Y / 3Y / 4Y engine details, old-starter photographs, quantity, destination and packaging request. Elecdura will review the 12V, 1.4kW, 9T configuration and sample requirements before quoting.
