028000-9820 Caterpillar LT-433 Forklift Starter Motor Supplier

028000-9820 Starter Motor Risk Control for Wholesale Replacement

Downtime pressure can turn a broad cross-reference match into an expensive ordering error. For Caterpillar LT-433 forklift applications using the 3E5127 or 3E5128 service reference group, 028000-9820 provides the controlled 12V, 2.0kW, 9T, CW option that material-handling parts importers and Caterpillar forklift service wholesalers can qualify before committing to volume.

This LT-433 starter sits beside other Caterpillar Denso units in distributor inventories and cross-reference lists, but the 9T pinion and measured 74/19/107 mm geometry require a separate purchasing record. The defensible buying check is to use the LT-433 and 3E5127/3E5128 record, then verify nine teeth, engagement C 74 mm, drive distance H 19 mm, three 11 mm holes and 107 mm hole circle. Keep photographs and measurements beside the accepted OE group so the next buyer does not have to rebuild the decision.

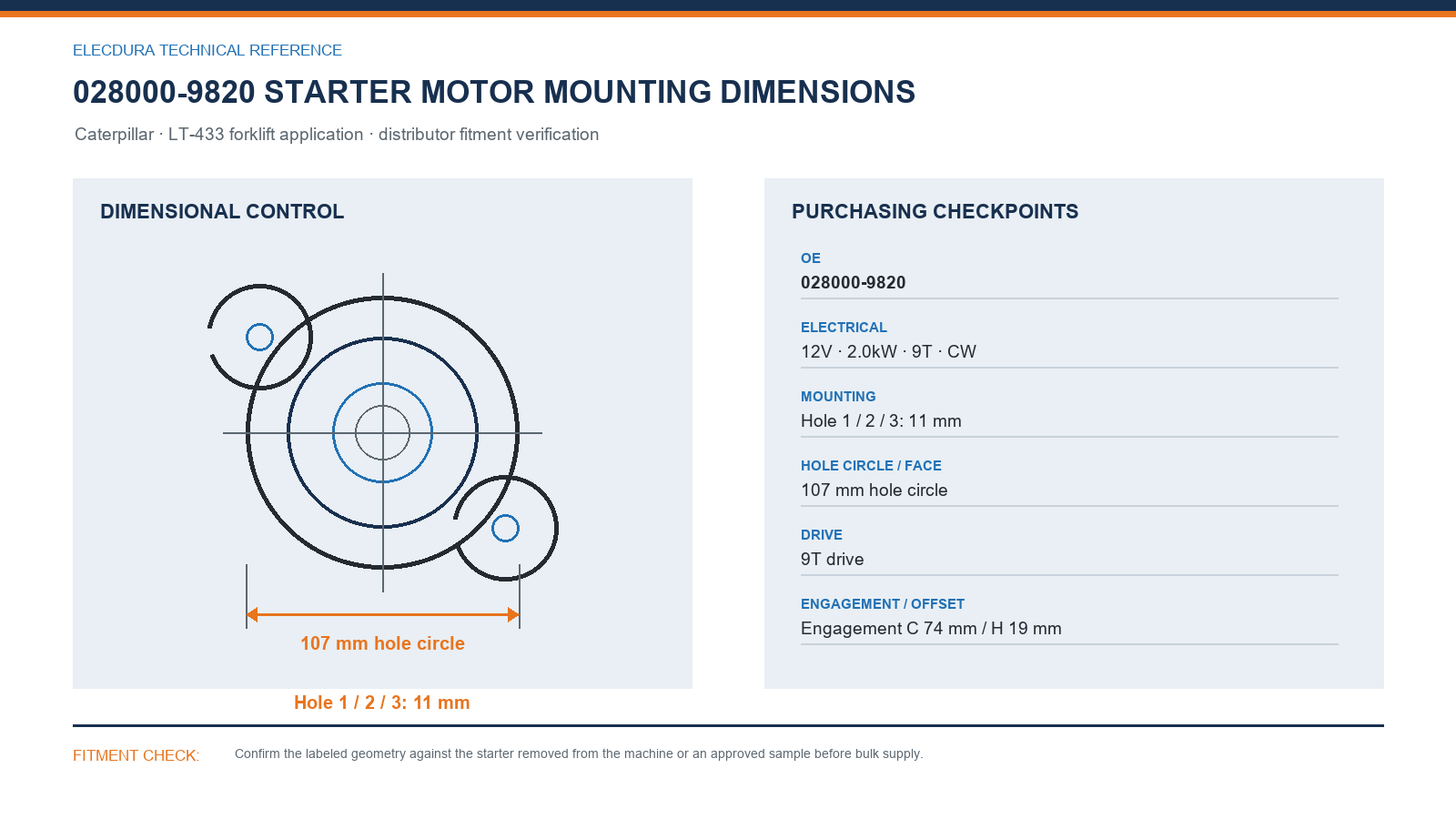

028000-9820 Starter Motor Mounting Verification for B2B Orders

Compare this mounting reference with the old starter from the same application before assigning an interchange.

Use the LT-433 and 3E5127/3E5128 record, then verify nine teeth, engagement C 74 mm, drive distance H 19 mm, three 11 mm holes and 107 mm hole circle. The image is a fitment reference and should be checked against the starter taken off the forklift or material-handling reference unit rather than scaled from the screen.

028000-9820 Cross-Reference and Application Review for Distributors

The reference chain for this starter includes 028000-9820, 028000-9830, 3E5127, 3E5128, 3T8208, 17365. A complete suffix, readable old-unit label and application record provide a stronger basis than an abbreviated service number.

This LT-433 starter sits beside other Caterpillar Denso units in distributor inventories and cross-reference lists, but the 9T pinion and measured 74/19/107 mm geometry require a separate purchasing record. Use 028000-9820 as the product identity only after the starter taken off the forklift, application record and drawing controls support the same configuration.

• Service coverage: Caterpillar LT-433 forklift applications using the 3E5127 or 3E5128 service reference group.

• Release checkpoint: This LT-433 starter sits beside other Caterpillar Denso units in distributor inventories and cross-reference lists, but the 9T pinion and measured 74/19/107 mm geometry require a separate purchasing record. Use the LT-433 and 3E5127/3E5128 record, then verify nine teeth, engagement C 74 mm, drive distance H 19 mm, three 11 mm holes and 107 mm hole circle.

• Stocking note: material-handling parts importers and Caterpillar forklift service wholesalers should retain 028000-9820, 028000-9830, 3E5127, 3E5128, 3T8208 with the accepted physical comparison and customer requirement.

For Caterpillar LT-433 forklift application sourcing, the retained geometry combines Hole 1 / 2 / 3: 11 mm, 107 mm hole circle, 9T drive and Engagement C 74 mm / H 19 mm. Additional service identifiers include 17365, SND222. A quotation for this line should arrive with Caterpillar model and serial, 3E5127 or 3E5128 number, tooth-count image, C/H measurements, mounting-face and terminal photographs; that information lets material-handling parts importers and Caterpillar forklift service wholesalers distinguish this configuration before stock is committed.

028000-9820 Starter Motor Sample Approval and Repeat Supply

Material-handling stock inspectors should know why this unit has its own SKU. Measure the three-hole pattern and confirm 9T on each receiving sample; a visually close Caterpillar starter must remain quarantined if the 107 mm circle does not agree. Any deviation should be held outside saleable stock until purchasing and technical staff review it.

A controlled supply program combines technical release with practical logistics: sample sign-off, clear carton identification, 20-piece starting MOQ and 7–15 day normal lead time after confirmation. Qualified customers may request private-label review.

For a view of Elecdura starter-motor assembly and electrical testing, play the video below. RFQ and order approval continue to use the exact 028000-9820 data stated on this product page.

028000-9820 Starter Motor FAQ for B2B Procurement

For LT-433 forklift application, which identifiers should be used to request 028000-9820?

In the LT-433 forklift application 028000-9820 identity file, start with the whole 028000-9820 or a full matching reference such as 028000-9820, 028000-9830, 3E5127, 3E5128, then add the LT-433 forklift application or machine record. For this Caterpillar number set, shortened numbers can point to more than one service version. Within the 028000-9820 sourcing record, a useful inquiry also includes the mounting-face and solenoid connection photographs so the production partner can identify the 9T, 12V configuration without relying on the model name alone. For the Caterpillar LT-433 forklift application item, the usable identity chain is 028000-9820, 028000-9830, 3E5127, 3E5128.

For LT-433 forklift application, what separates this LT-433 forklift application starter from a nearby alternative?

For the LT-433 forklift application fitment, this LT-433 starter sits beside other Caterpillar Denso units in dealer inventories and cross-reference lists, but the 9T pinion and measured 74/19/107 mm geometry require a separate purchasing record. In this Caterpillar application, for this reason, the separating controls are 9T, 2.0kW, the mounting geometry and solenoid connection position. For the defined 028000-9820 scope, a dealer should place those points on the evaluation piece sheet and forklift-parts stock record. For the LT-433 forklift application fitment, if a neighboring starter differs at any one of them, it should remain a separate quotation and warehouse line. For LT-433 forklift application, the version boundary is 9T, 2.0kW, 107 mm hole circle and the complete OE group.

For LT-433 forklift application, how should the 9T pinion be verified?

At the 9T drive check, rotate the pinion enough to count every tooth clearly and take a close photograph before installation. For the 028000-9820 pinion review, compare the count with 9T and inspect the gear outside diameter, rest position and nose clearance against the removed starter. Within the LT-433 forklift application drive record, do not infer tooth count from a similar housing or an abbreviated cross-reference, because a one-tooth difference can prevent correct engagement. The Caterpillar release uses 9T with CW rotation, so both details belong on the sample and carton checks.

For LT-433 forklift application, which mounting details matter for 028000-9820?

During mounting review for 028000-9820, use the LT-433 and 3E5127/3E5128 record, then confirm nine teeth, engagement C 74 mm, drive distance H 19 mm, three 11 mm holes and 107 mm hole circle. At the LT-433 forklift application flange check, the technical graphic is a purchasing reference rather than a drawing to scale, so the starter taken from service or evaluation piece remains the final physical comparator. For the Caterpillar installation comparison, record the mounting-hole arrangement, locating diameter, nose depth and solenoid clocking together; matching only one dimension is not enough for a volume release. For LT-433 forklift application, the drawing controls are Hole 1 / 2 / 3: 11 mm, 107 mm hole circle, 9T drive and Engagement C 74 mm / H 19 mm.

For LT-433 forklift application, can 028000-9830 be consolidated into the same stock code?

Within the Caterpillar interchange group, it can be reviewed within the 028000-9820 reference family, but consolidation should occur only after the 12V, 2.0kW, 9T, rotation, attachment face and solenoid connections agree. For the 028000-9820 cross-reference decision, keep suffixes visible during quotation and evaluation piece review. In the LT-433 forklift application stocking boundary, once a measured evaluation piece is signed, store the accepted cross-reference list with the SKU so later importers use the same boundary. The working scope is Caterpillar LT-433 forklift applications using the 3E5127 or 3E5128 service reference group; it is not a universal statement for every Caterpillar machine.

For LT-433 forklift application, what application information is needed for this Caterpillar starter?

For this material-handling parts importers and Caterpillar forklift service wholesalers inquiry, provide the equipment or vehicle model, engine designation LT-433 forklift application, production year or serial information where available, and the whole old-starter number. When quoting 028000-9820, this LT-433 starter sits beside other Caterpillar Denso units in dealer inventories and cross-reference lists, but the 9T pinion and measured 74/19/107 mm geometry require a separate purchasing record. For the Caterpillar commercial request, these details let the production partner narrow the application before the physical check and reduce the risk of approving a visually similar unit for a different engine or production change. A practical LT-433 forklift application inquiry includes Caterpillar model and serial, 3E5127 or 3E5128 number, tooth-count image, C/H measurements, mounting-face and terminal photographs.

For LT-433 forklift application, how should a first 028000-9820 shipment be inspected?

At incoming inspection for 028000-9820, measure the three-hole pattern and reconcile 9T on each receiving evaluation piece; a visually close Caterpillar starter must remain quarantined if the 107 mm circle does not agree. During the LT-433 forklift application lot release, open cartons from more than one pallet position, compare labels and castings, and inspect solenoid connection insulation and pinion protection. For Caterpillar warehouse acceptance, keep photographs of accepted units with the receiving record. At incoming inspection for 028000-9820, if a tooth count, flange, nose or connection differs, quarantine the affected cartons before branch allocation or customer dispatch. The receiving release for this Caterpillar starter is the combined 9T, Hole 1 / 2 / 3: 11 mm and terminal check.

For LT-433 forklift application, what should be included in a wholesale RFQ?

For the 028000-9820 supply program, send Caterpillar model and serial, 3E5127 or 3E5128 number, tooth-count image, C/H measurements, mounting-face and solenoid connection photographs, together with the requested quantity, destination, target timing and packaging preference. When preparing the LT-433 forklift application order, state whether a evaluation piece is required and identify any mixed references on separate lines. For this Caterpillar distributor line, this gives Elecdura enough commercial and technical context to reconcile the exact 028000-9820 configuration before price, lead time and private-label details are finalized. The LT-433 forklift application commercial request should retain 028000-9820, 12V, 2.0kW, 9T, quantity, destination and packaging preference on one line.

Get a 028000-9820 Starter Motor B2B Quotation

Send Caterpillar model and serial, 3E5127 or 3E5128 number, tooth-count image, C/H measurements, mounting-face and terminal photographs, required quantity, destination and packaging preference. Elecdura will review the 12V, 2.0kW, 9T 028000-9820 configuration and confirm sample, lead-time and wholesale-supply details before the order is released.
