03111-5050 Kia Starter Motor Wholesale Supply 12V 2.5kW 14T

03111-5050 Kia Starter Motor Application Support for Distributors

03111-5050 gives Kia parts distributors a clearly defined 12V, 2.5kW replacement line with a 14-tooth pinion and counterclockwise rotation. Those two mechanical details matter because a starter with the same general body shape can still drive in the wrong direction or use a different gear.

For a quotation, provide the Kia machine or vehicle model, the full number on the removed starter and straight photographs of the mounting and terminal sides. Elecdura compares the rotation, pinion, locating diameter and cable positions so the buyer receives one configuration that can be checked at the workshop and at incoming inspection.

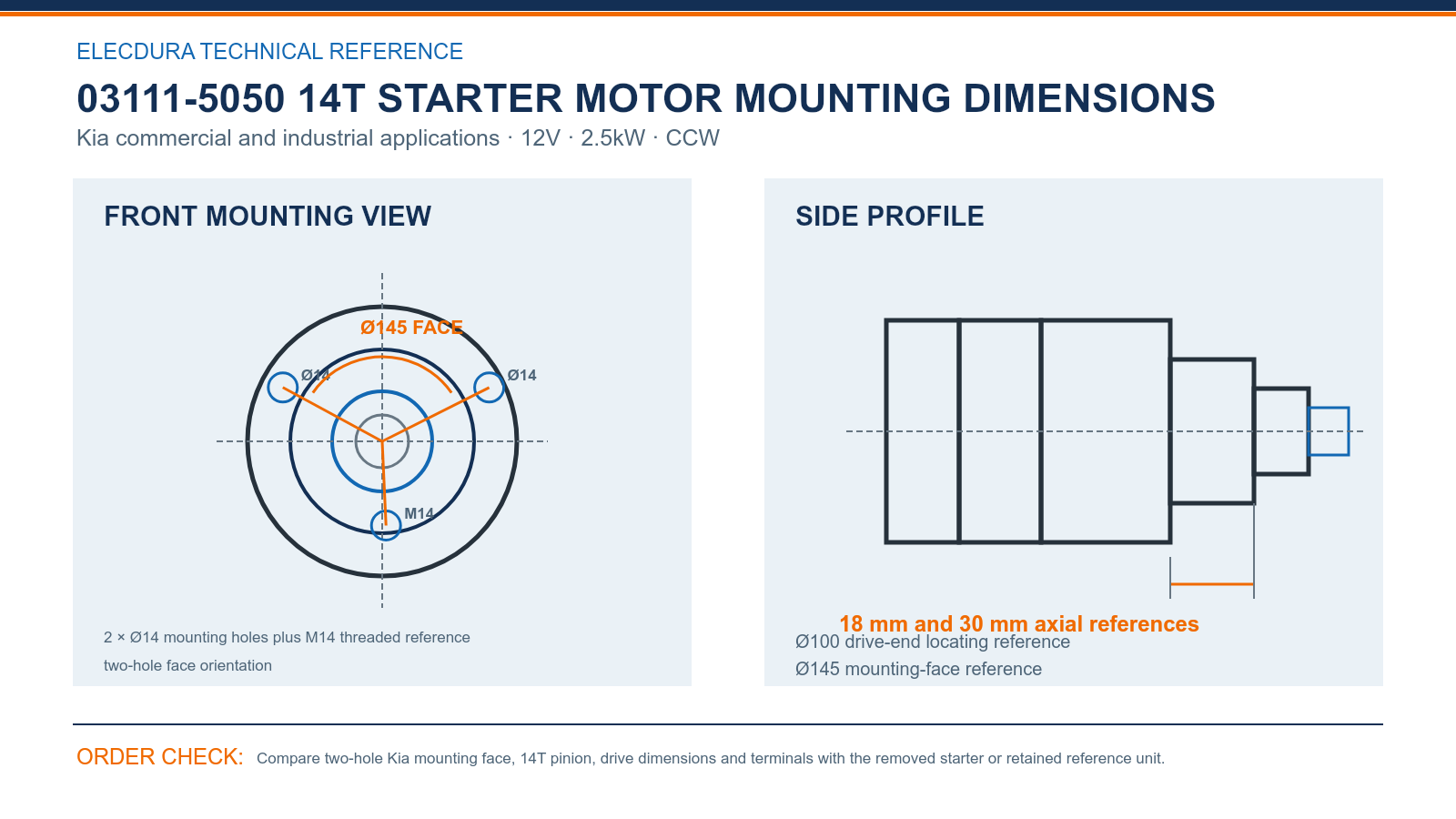

03111-5050 Starter Motor Specifications and B2B Fitment Drawing

03111-5050 14T starter motor mounting and drive-end dimensions for buyer-side comparison.

Kia distributors should confirm the uncommon 14-tooth CCW drive before adding this unit to branch stock. Compare 2 × Ø14 mounting holes plus M14 threaded reference, Ø100 drive-end locating reference, Ø145 mounting-face reference and 18 mm and 30 mm axial references with the removed starter rather than relying on the motor-body shape.

A square drive-end photograph and a terminal-side photograph help the workshop confirm two-hole face orientation, pinion position and cable clearance. These checks give purchasing and receiving teams the same measurable basis for the 03111-5050 order.

03111-5050 Starter Motor Cross-Reference Checks for Import Orders

Purchasing records may show 03111-5050, 03111-5051, S9122, UD02126S or 190-25244. Keep the complete reference that belongs to each customer request and use the other numbers as cross-reference leads, rather than combining every Kia starter into one warehouse SKU.

• Electrical identity: record 12V and 2.5kW from the old label.

• Drive identity: count all 14 teeth and confirm CCW rotation.

• Housing identity: compare both Ø14 holes, the M14 position and terminal clearance.

03111-5050 Starter Motor Wholesale Programs for Kia Parts Buyers

Importers can begin with a trial quantity tied to the identified Kia application, then move to branch stock after the mounting face, engagement and cranking performance have been recorded. Neutral cartons suit mixed replacement orders, while private-label packaging can be reviewed for qualified quantities and defined artwork.

During receiving, select units from different cartons and compare the 14-tooth drive, face casting, solenoid position and label specification with the retained reference unit. This gives warehouse and claims teams the same practical identity when later shipments arrive.

The video presents Elecdura starter-motor assembly and electrical testing. Send the Kia application, old-unit number, face and terminal photographs, required quantity and destination so the commercial reply can cover the correct 14-tooth CCW unit, trial quantity, packaging and delivery terms.

03111-5050 Starter Motor Wholesale FAQ

Why must 03111-5050 rotation be confirmed before ordering?

The specified configuration turns counterclockwise, so a visually similar opposite-rotation starter is not an acceptable replacement. Confirm the direction shown on the old label or service information and compare the drive mechanism with the removed unit. The workshop should also check clean engagement during the initial installation before the distributor releases stock to additional branches.

Which numbers can support a 03111-5050 cross-reference search?

Useful leads include 03111-5051, S9122, UD02126S and 190-25244. Preserve the complete number shown by the customer and confirm 12V, 2.5kW, 14 teeth and CCW rotation before quotation. Cross-references help purchasing teams find the family, but the face, drive depth and terminals still determine whether the physical starter matches.

What Kia application details should a buyer provide?

Send the vehicle, machine or engine model, year or serial information where available, and the complete reference from the removed starter. Add photographs of the label, mounting face, pinion and terminal side. This information lets Elecdura narrow the request to one Kia configuration instead of treating 03111-5050 as a universal starter for every Kia application.

How should the 14-tooth pinion be checked?

Clean the pinion, count every tooth and photograph it from the drive end so the count is visible. Compare the resting position and the 18 mm and 30 mm axial references with the removed unit. During the trial installation, listen for clean engagement and stop if there is grinding, delayed disengagement or abnormal ring-gear contact.

Which mounting points identify this Kia starter?

Use the two Ø14 mounting holes, the M14 threaded reference and the Ø100 locating feature as a combined identity. Measure the removed unit rather than scaling the online technical image. A starter can share voltage and tooth count while using another face, so the quotation should not proceed until the mounting positions and cable clearance agree.

What should be inspected in the first 03111-5050 delivery?

Open cartons from different parts of the shipment and check full reference labels, 14-tooth drives, the two-hole face, threaded position, terminal protection and carton condition. Compare the findings with the retained reference unit and record the lot. Hold any unit with another rotation, pinion or casting before it reaches saleable stock.

Can Elecdura provide private-label packaging for 03111-5050?

Private-label cartons can be reviewed when the buyer confirms quantity, artwork, barcode format and destination requirements. The technical label should retain the complete reference, voltage and traceable lot identity even when customer branding is added. Neutral packaging is normally more efficient for trials or mixed orders that do not yet justify dedicated printed materials.

What information speeds up a wholesale quotation?

Provide the complete OE or cross-reference, Kia model and serial details, old-unit label, clear face, drive and terminal photographs, required quantity, delivery country and requested date. State whether neutral or branded packaging is needed. A complete RFQ lets Elecdura quote one defined 12V 2.5kW 14T CCW product without repeated fitment questions.

Request a 03111-5050 Starter Motor Wholesale Quote

Send 03111-5050 or the complete related reference, Kia application details, old-unit label, mounting, pinion and terminal photographs, quantity, destination and packaging request. Elecdura will return a quotation for the 12V 2.5kW 14T CCW configuration with practical comparison points and delivery terms.

If the order serves several workshops, list the application assigned to each quantity and the incoming checks used by the branches. Elecdura can keep the technical identity, carton labels and reorder references consistent across the distribution program.
