0K638-18-400 Hyundai/Kia Forklift Starter Motor Wholesale

0K638-18-400 Forklift Starter Motor Help for Hyundai/Kia Parts Buyers

0K638-18-400 is intended for industrial buyers sourcing a Hyundai or Kia forklift starter, not a general passenger-vehicle unit. The 12V, 2.5kW and 13-tooth specification narrows the electrical version, while the asymmetric triangular face and terminal side identify the installation.

Provide the forklift model, engine or serial record, complete old-unit number and photographs of both ends. Elecdura will compare the mounting centers, drive depth, pinion and cable connections so a workshop can install the sample without modifying the bellhousing or wiring.

0K638-18-400 Starter Motor Fitment Checks for Forklift Distributor Orders

Service documents may show 0K63818400, 0K638-18-400, 03111-5070 or 031115070. Those numbers guide the search, but the triangular mounting face is especially important when the forklift plate is missing or the old label is worn.

Measure the 80 mm mounting-center references and 42 mm drive-end length, then photograph the two visible Ø12.5 positions and the third mounting point. Keep that comparison with the forklift serial information for repeat service orders.

0K638-18-400 Starter Motor Supply for Forklift Service Networks

Forklift distributors often need a small workshop trial before placing stock across several service depots. Elecdura can support that sequence, followed by neutral-carton supply or a qualified private-label program with the confirmed reference and barcode.

• Sample stage: install on the identified forklift and record cable clearance.

• Receiving stage: verify the 13T drive and triangular casting.

• Reorder stage: quote against the saved serial and sample record.

See how Elecdura assembles and tests starter motors for aftermarket supply. For this forklift program, send the machine details, measurements and mounting photos with the inquiry; the reply can then cover the correct sample, depot quantity, packaging and delivery plan.

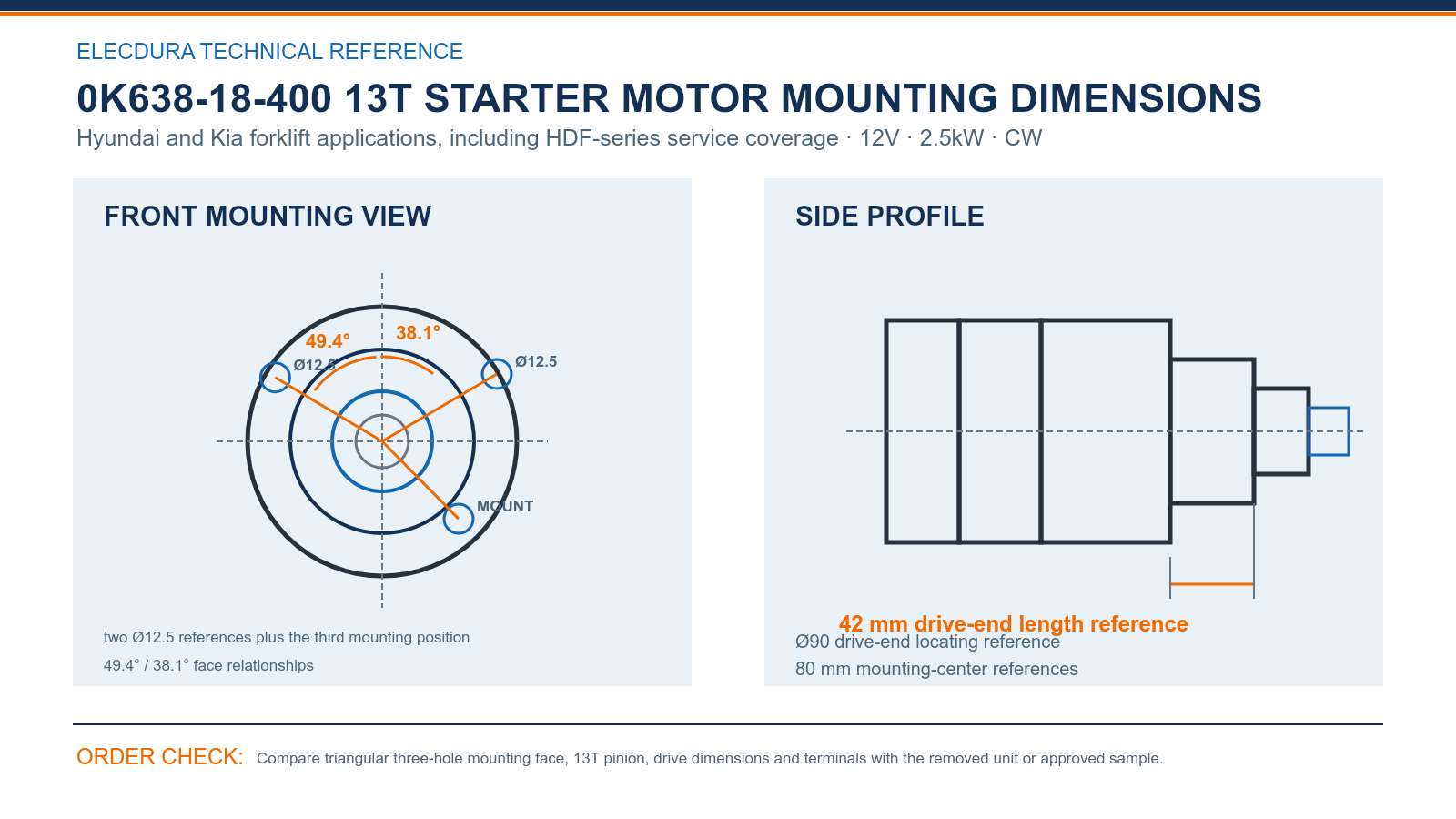

0K638-18-400 Starter Motor Specifications and B2B Fitment Drawing

0K638-18-400 13T starter motor mounting and drive-end dimensions for buyer sample comparison.

Forklift service buyers often work from an incomplete truck or machine record, so the triangular mounting face is a practical second identifier for 0K638-18-400. The Ø90 locating reference, 42 mm drive-end length and 80 mm mounting-center dimensions help distinguish the correct compact industrial unit.

Ask the workshop for a straight face image and actual measurements of the two Ø12.5 positions and the third mounting point. These checks are especially useful when Hyundai- and Kia-associated cross-references arrive under different local service labels.

0K638-18-400 Starter Motor Wholesale FAQ

Why should 0K638-18-400 be ordered as a forklift starter?

The application context changes the information needed for confirmation. A forklift buyer should provide the machine model, serial number and engine details in addition to the OE. The triangular mounting face, compact cable routing and drive depth must suit the industrial installation. Treating the number as a broad Hyundai vehicle starter can lead to an incorrect housing or terminal arrangement.

Which reference formats may appear for 0K638-18-400?

The same inquiry may arrive as 0K638-18-400, 0K63818400, 03111-5070, 031115070, S9133 or STR7501. Preserve every character shown on the old unit and service record. Then compare 12V, 2.5kW, 13 teeth and the mounting geometry, because a shortened or reformatted number alone cannot prove that the drive end is identical.

What mounting measurements are useful for this Hyundai/Kia forklift unit?

Measure the triangular mounting centers, the approximately 80 mm references shown in the technical image, the locating feature and the 42 mm drive-end length. Photograph the face straight on so perspective does not distort the distances. These points help confirm the housing even when the old starter has been rebuilt and no longer carries a reliable label.

How can a service depot confirm the 13-tooth drive?

Clean the pinion sufficiently to count every tooth and photograph it perpendicular to the gear. Check the resting position and compare the drive-end depth with the approved sample. Do not infer tooth count from a side image or from engine family alone. Recording the count at installation gives the purchasing team a dependable reference for the next depot order.

What should be checked during the first forklift installation?

Confirm that the mounting face seats without force, the pinion has suitable engagement, the solenoid and cable terminals clear nearby structures, and the starter operates without abnormal noise. Record cranking voltage and installation photographs. If bolts are needed to pull the housing into alignment, stop; that suggests the face or locating diameter is not the approved configuration.

How should multiple forklift branches manage repeat orders?

Assign the accepted sample to a branch SKU that includes the complete reference and forklift model. Store mounting, terminal and label photographs with the receiving result. Other branches should compare their removed unit with that record before ordering. This prevents a central purchasing team from assuming every Hyundai or Kia forklift in the fleet uses the same starter.

Can Elecdura supply private-label cartons for 0K638-18-400?

Private-label packaging can be reviewed when the order volume, artwork and destination are known. The carton should protect the drive end and terminals while displaying the reference, voltage and traceable lot information. Neutral cartons remain the practical choice for trials or mixed forklift orders. Agree barcode and label content before production so depots can receive the product accurately.

Which details should be included in a 0K638-18-400 RFQ?

Include the complete OE, forklift make and model, engine or serial record, quantity, delivery country and required date. Attach label, mounting-face, pinion and terminal photographs and state whether a sample, neutral carton or branded package is needed. Elecdura can then answer with one defined 12V 2.5kW 13T product and clear commercial terms.

Request a 0K638-18-400 Starter Motor Wholesale Quote

Send 0K638-18-400 or the full old-unit number, Hyundai/Kia forklift model, engine or serial details, mounting and terminal photographs, quantity and destination. Elecdura will review the 12V 2.5kW 13T configuration and return sample, packing and lead-time terms.

If several forklift models are involved, list each machine separately and mark which old starter belongs to it. Elecdura can then quote the sample quantity, neutral packaging and service-network replenishment plan without combining different mounting faces.
