0R4316 Caterpillar 236B 10T Starter Motor Wholesale

0R4316 Starter Motor Buying for Caterpillar Skid-Steer Fleets

Skid-steer fleets often source by machine model during downtime, but the 236B, 246B and 252B ranges can overlap several service references. The complete 0R4316, 112-1767 or Denso number should accompany the machine serial and old starter photographs.

Elecdura compares the specified 10T drive, three-hole face, locator and terminals before preparing a distributor offer. This gives field-service teams practical fitment points and gives purchasing a clearly identified unit that can be replenished across depots.

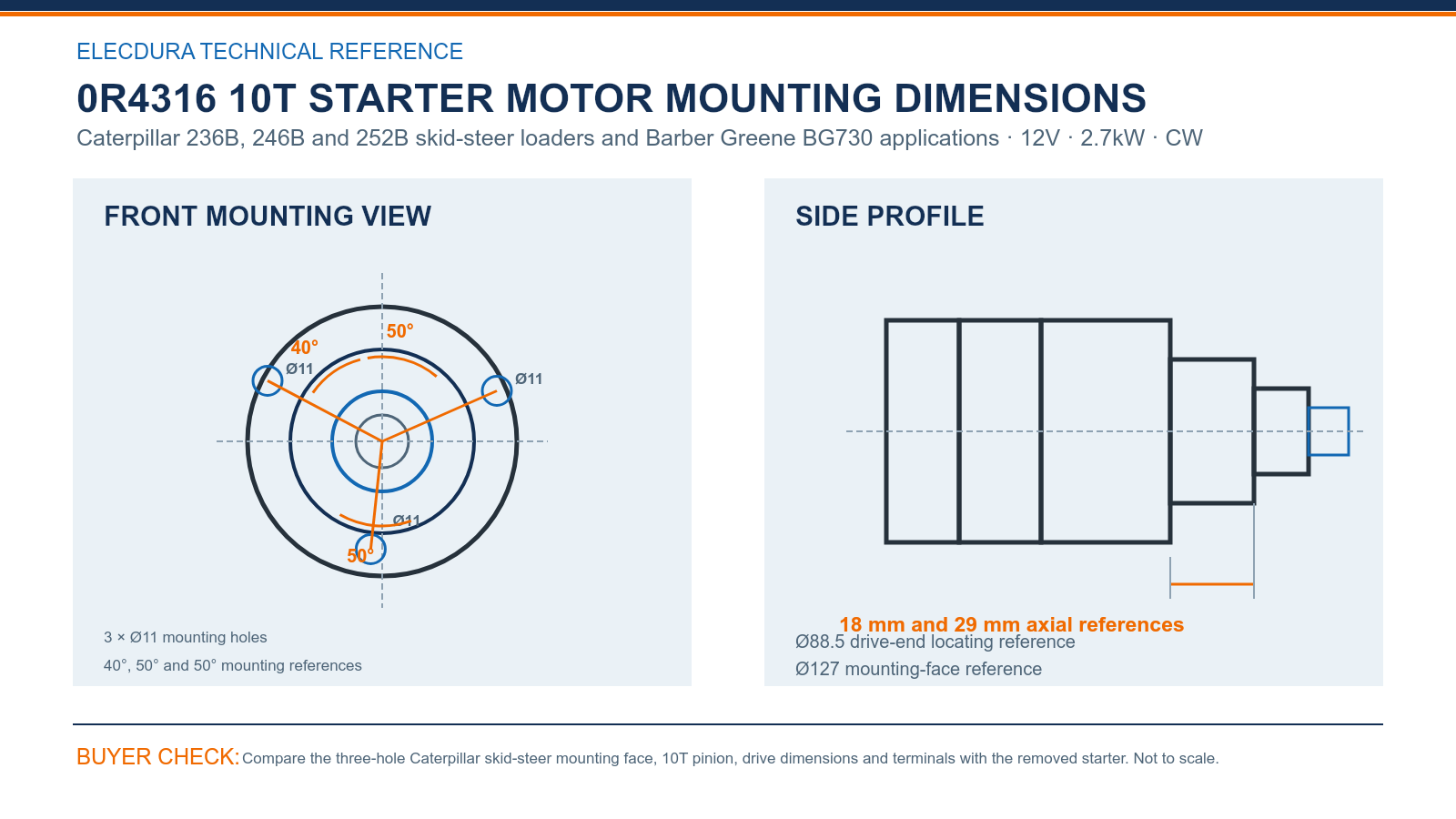

0R4316 Starter Motor Mounting Drawing for Caterpillar Fleet Buyers

0R4316 10T starter motor mounting and drive-end dimensions for buyer-side comparison.

The 0R4316 drive end uses three Ø11 mounting holes on an Ø127 face, with an Ø88.5 locating reference and 18 mm and 29 mm axial points. The 40°, 50° and 50° references describe the skid-steer mounting clocking that service teams should compare before carrying the unit to a machine.

Use the drawing with the Caterpillar machine serial and a clean 10-tooth pinion photograph. Confirm terminal clearance during the first installation, then retain those checks for depot replenishment and incoming lot inspection.

0R4316 Starter Motor Interchange Checks for Construction B2B Stock

Caterpillar 0R4316 and 0R4319 connect with 112-1767, 142-0539 and 143-0538, while Denso numbers include 228000-1350 and 228000-1420 through -1422. Keep the exact number on the removed starter and the machine serial with the inquiry.

• Powertrain check: confirm the machine and installed engine.

• Drive check: verify 10 teeth, module 3.175 and CW.

• Nose check: compare the three Ø11 holes, Ø88.5 locator and axial points.

0R4316 Starter Motor Wholesale Supply for Multi-Depot Service

Construction fleets can install one unit on an identified skid steer, document cable clearance and cranking performance, and use the result for depot stocking. Elecdura can review neutral or customer-branded cartons and scheduled delivery needs for established programs.

1. Label each unit with the full Caterpillar and Denso group.

2. Protect the pinion and studs from freight impact.

3. Inspect more than the top carton before distributing the lot to field depots.

The video shows Elecdura assembly and electrical testing. Send the Caterpillar model and serial, complete old reference, mounting and terminal images, quantity and depot plan for a focused quotation.

0R4316 Starter Motor Wholesale FAQ

How should 0R4316, 112-1767 and 143-0538 be used together?

Treat them as connected Caterpillar purchasing references and preserve the complete number found on the machine or old starter. Then confirm the skid-steer model and serial, 12V, 2.7kW, 10 teeth, clockwise rotation and three-hole face. The reference chain helps sourcing, while the machine and physical checks confirm the offered configuration.

Why is the skid-steer serial important for an 0R4316 order?

A model family can cover production changes, engine options and service replacements. The serial narrows the exact machine behind the request and helps the distributor retain a dependable fitment history. Send it with the old label and mounting photographs so Elecdura can compare the specified drive end instead of selecting by 236B or 246B alone.

Which three-hole dimensions identify the 0R4316 drive end?

Compare three Ø11 holes on the Ø127 face, the Ø88.5 locating feature, 18 mm and 29 mm axial references and the 40°, 50° and 50° clocking. Measure the removed starter directly and photograph the face square. These points reveal a different nose even when the motor and solenoid resemble another Caterpillar unit.

What should a fleet check before blaming the starter for downtime?

Check battery charge and capacity, cable voltage drop, grounds, switch signal and engine mechanical freedom. A slow or single-click condition can come from the machine circuit. Recording those checks with the machine serial prevents an unnecessary starter change and gives the supplier useful information if the confirmed 0R4316 still shows a concern.

What matters during the first field installation?

Confirm that the locator seats without force, all three bolts enter normally and cables clear the frame and hot components. Check clean 10-tooth engagement, cranking voltage and prompt release after start. Photograph the final terminal routing and label, then share the result with the fleet parts team before additional units are distributed to depots.

How should a multi-depot fleet label 0R4316 stock?

Use the full 0R4316 and related Caterpillar references, plus 10T and the three-hole description. Include a shipment lot and link the item to the confirmed model and serial range. Avoid a generic “Cat skid-steer starter” bin, because remote depots may support several models with similar motor bodies but different drive ends.

What pallet sampling is suitable for an 0R4316 delivery?

Select cartons from the top, middle and lower pallet positions, then verify labels, 10-tooth pinions, three-hole castings, terminal caps and packing condition. Compare a selected unit with the confirmed fleet measurements and note the lot. Quarantine any different output, nose or connector before units are split among service depots.

What belongs in an 0R4316 fleet quotation request?

Send the complete Caterpillar or Denso number, machine model and serial, engine information, old-unit label, pinion, face and terminal photographs, quantity by location, delivery country, target date and packing needs. Elecdura can then state the specified 12V 2.7kW 10T starter, MOQ, normal lead time, warranty and depot-label options.

Request a 0R4316 Starter Motor Wholesale Quote

Send 0R4316 or the complete Caterpillar or Denso reference, skid-steer model and serial, engine details, old-unit photographs, quantity by depot, destination and packaging request. Elecdura will quote the 12V 2.7kW 10T starter with fitment and delivery terms.

For fleets covering 236B, 246B and 252B machines, separate quantities by model and serial range so every depot receives the same verified three-hole configuration.
