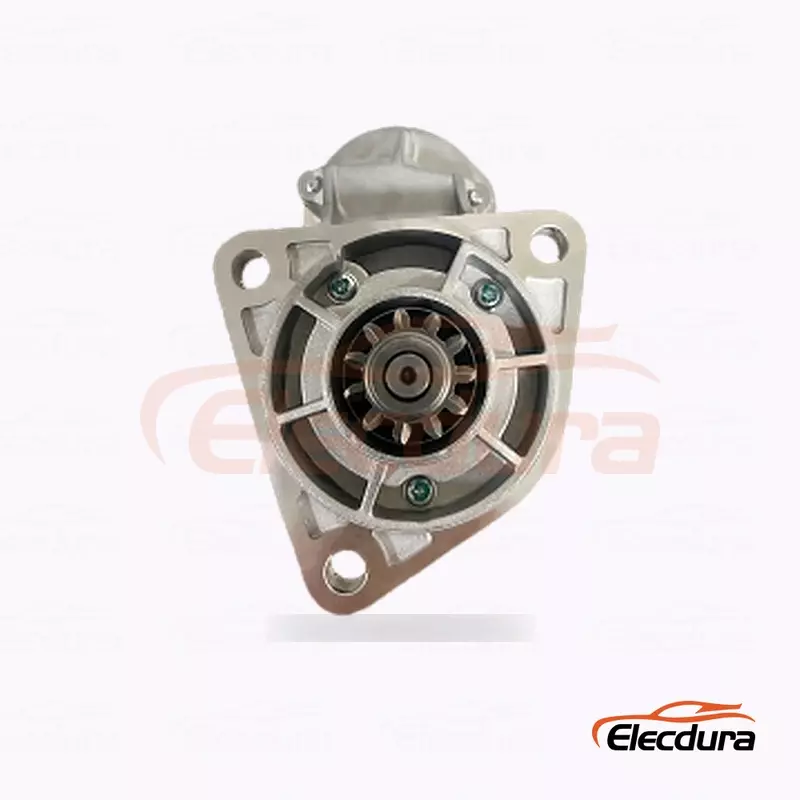

1-81100-191-0 Isuzu 6BB1 Starter Motor 24V 4.5kW 11T

1-81100-191-0 Isuzu 6BB1 Starter Motor Distributor Supply and Fitment Control

For repeat wholesale supply, 1-81100-191-0 should remain tied to Isuzu 6BB1, 6BD1 and 6BG1 diesel engines in excavators, generators and industrial equipment and the exact 24V, 4.5kW, 11-tooth clockwise configuration. Record the accepted old-unit label and physical sample so purchasing, receiving and warranty teams do not mix an adjacent starter variant with the approved item.

1-81100-191-0 Starter Motor B2B Production and Test Video for B2B Supply

This video introduces Elecdura starter-motor production and supply capabilities. Use the specification, cross-reference details and fitment checks on this page when evaluating 1-81100-191-0.

1-81100-191-0 Starter Motor Distributor Specifications for Aftermarket Buyers

1-81100-191-0 Starter Motor OE Cross-Reference Review for Fleet Replacement

Use 1-81100-191-0 as the primary purchasing reference and cross-check 1-81100-253-0, 2-1951-ND, 18100. These numbers identify the candidate starter family, but approval still requires the exact suffix, electrical rating, drive end, mounting geometry, pinion and terminal layout to match the removed unit or signed sample.

1-81100-191-0 Starter Motor Bulk Fitment Approval for Wholesale Supply

Before accepting 1-81100-191-0 as a replacement, obtain the full vehicle, machine or engine record and compare machine serial range, engine plate, mounting nose, pinion position, terminal clocking and installed clearance. Cross-reference overlap is useful for finding the family, but it cannot replace a physical match. Store the approved label and four-angle photo set with the account so later orders use the same configuration.

1-81100-191-0 Starter Motor Wholesale Receiving Inspection for Distributor Sourcing

Receiving control should link the carton, unit label and inspection sample to 1-81100-191-0. Verify electrical rating, drive-end geometry, mounting bores, terminal position, housing protection and lot identity; photograph deviations and keep affected units separate while the supplier responds. Batch evidence makes repeat purchases more predictable and gives warranty teams a clear record if field feedback appears.

1-81100-191-0 Starter Motor MOQ and Private-Label Supply for Bulk Procurement

1-81100-191-0 Starter Motor Distributor FAQ for B2B Supply

Which applications should buyers confirm for the 1-81100-191-0 starter motor?

The specified application is Isuzu 6BB1, 6BD1 and 6BG1 diesel engines in excavators, generators and industrial equipment. Because a model or engine family can include production changes, confirm the machine, vehicle or engine record and the complete old-unit suffix before promising fitment. Keep the approved record tied to one physical starter configuration.

Which electrical and drive specifications define 1-81100-191-0?

The specified configuration is 24V, 4.5kW, 11-tooth clockwise configuration. Voltage must match the electrical system, while power, tooth count and rotation affect cranking performance and ring-gear engagement. Put all four values on the sample-approval sheet and verify the physical pinion before releasing a distributor quantity.

Why is suffix-level verification important for 1-81100-191-0?

Confirm the complete 1-81100-191-0 / 1-81100-253-0 / 2-1951-ND / 18100 group together with the 24V, 4.5kW, 11-tooth clockwise configuration. Similar appearance or a shared partial number is not enough; compare machine serial range, engine plate, mounting nose, pinion position, terminal clocking and installed clearance against the removed unit or approved sample and keep the signed sample with the purchase record.

What physical fitment checks are required for 1-81100-191-0?

Measure and compare the machine serial range, engine plate, mounting nose, pinion position, terminal clocking and installed clearance with the removed starter. Check bolt-hole spacing, locating diameter, starter clocking, pinion rest position and rear-terminal clearance instead of judging from the outer housing alone. Never pull a misaligned unit into place with mounting bolts. A measured or photographed fitment record is especially valuable when nearby references share the same voltage and tooth count but use another drive-end or solenoid orientation.

What receiving checks protect a 1-81100-191-0 bulk order?

Tie every carton and sampled unit to 1-81100-191-0, the approved cross-reference set and the supplier lot. Inspect electrical rating, drive-end geometry, mounting bores, terminal position, housing protection and lot identity, then compare the sampled unit with the signed photos or dimensional document. Record pass and fail quantities before the stock is mixed. Quarantine any different rating, pinion, mounting face or terminal layout, because a fitment error can immobilize a machine, trigger emergency freight and extend paid downtime on site. This receiving discipline is cheaper than sorting returns after distribution.

Should a visually similar starter be sold as 1-81100-191-0?

A substitute is acceptable only when its complete OE relationship, 24V system, 4.5kW rating, 11T, rotation and mounting geometry agree with the approved unit. Similar appearance or a shared partial number is not enough. Ask for application and old-unit evidence, then test or approve a sample before changing the order line. Keep materially different versions separate in inventory so warehouse staff cannot fulfil one inquiry with the wrong variant.

What should be diagnosed before replacing a 1-81100-191-0 starter motor?

Check battery bank balance, cranking voltage, cable and ground drop, control relay, ring gear and engine drag before condemning the starter. Record battery voltage at rest and during the start command, then measure voltage drop under load; a weak supply or poor ground can imitate starter failure. Inspect the mounting surface and gear engagement as well. Attach these results, the old-unit label and failure symptoms to the claim so the supplier can distinguish a product defect from an upstream electrical or mechanical problem.

How should a distributor request B2B pricing for 1-81100-191-0?

Send 1-81100-191-0 and all visible OE numbers, the full application or engine record, required quantity, destination and target delivery date. Add clear photos of the label, drive end, mounting face and terminals, plus any dimensional drawing available. State packaging, private-label, sample and inspection requirements at the start. A technically complete RFQ lets the supplier quote one verified configuration and reduces clarification delays after price approval.

What approval sequence is recommended for 1-81100-191-0 procurement?

The standard MOQ is 20 pieces, subject to final order confirmation, and a sample or pre-production approval should precede volume release when fitment information is incomplete. Mark the approved sample with 1-81100-191-0, buyer application and revision date. Repeat orders should reference that same approval plus any packaging specification. If the supplier, suffix or physical design changes, treat it as a new approval rather than assuming the previous decision still applies.

Request a B2B Quote for 1-81100-191-0 Starter Motors

Send the complete reference, Isuzu 6BB1, 6BD1 and 6BG1 diesel engines in excavators, generators and industrial equipment, old-unit photos, quantity, destination and packaging or inspection requirements. Elecdura will use that evidence to review one defined aftermarket starter configuration for your quotation.
