111350 Belarus Tractor 9T Starter Motor Bulk Supply

111350 Starter Motor Wholesale Fitment for Belarus tractor applications

Agricultural distributors supporting Belarus tractor fleets often buy against a tractor description, so the 9T version needs a clear item identity before bulk replenishment is planned. The 111350 and 24063708000 number family contains a neighboring ten-tooth configuration; combining them under one tractor listing can create an avoidable field-fit issue.

• Application record: Belarus tractor applications

• Version control: retain 111350 with the 9T drive.

• Commercial use: maintain a repeatable item definition for Belarus tractor parts importers and agricultural wholesale networks.

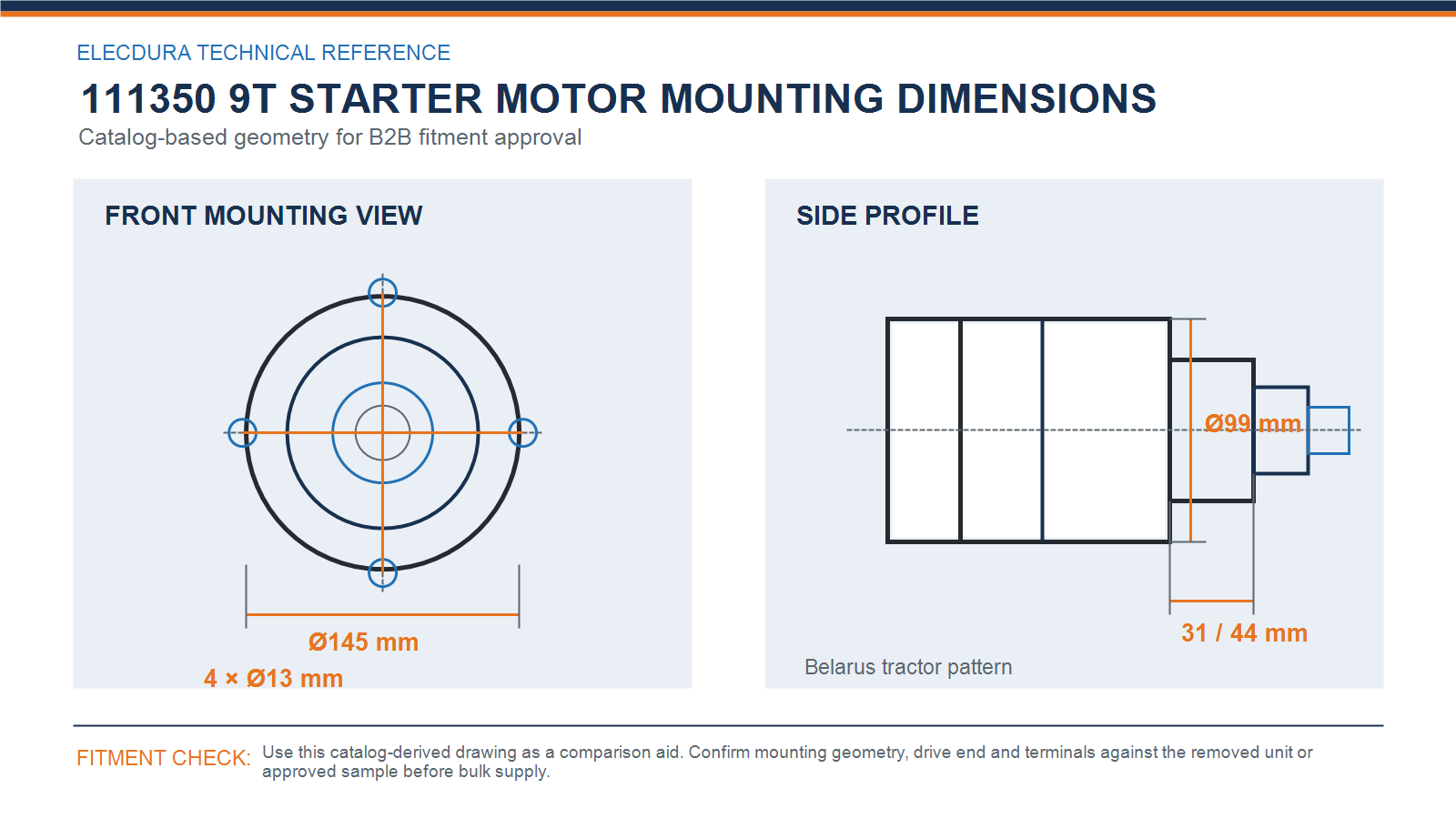

111350 Starter Motor Technical Drawing for Distributor Approval

Technical mounting reference for comparison with the approved unit before sample or volume release.

For Belarus tractor applications, use the illustration to frame a sample comparison: A practical incoming check documents nine teeth, four Ø13 mm holes, the 99 mm side reference and 31/44 mm axial arrangement across samples from the lot. Do not scale a screen image to make an installation decision.

111350 Starter Motor OE Control for B2B Procurement

Maintain the 111350 reference with 9T and CW in the purchasing file, then compare the four-hole mounting pattern and 145 mm face reference on a master sample.

The 111350 and 24063708000 number family contains a neighboring ten-tooth configuration; combining them under one tractor listing can create an avoidable field-fit issue.

1. Keep 111350 with the full Belarus tractor applications record.

2. Compare the 9T drive, mounting face and terminals with the approved unit.

3. Release only the matching version to the relevant warehouse stock code.

111350 Starter Motor Bulk Supply, Sampling and Video

For a Belarus tractor RFQ, provide the complete reference, 9T requirement, tractor series, quantity, delivery country and any carton, label or private-brand requirements.

Standard MOQ begins at 20 pieces. Neutral packing is available, and qualified private-label programs can be reviewed after the approved label, barcode, carton strength and protective inserts are confirmed for this exact item.

The video below introduces Elecdura starter-motor production and electrical-testing capability. The unit supplied under this page remains the 111350 configuration identified by the listed application, 9T drive and physical checks.

111350 Starter Motor Buyer FAQ for Wholesale Orders

How should a Belarus tractor parts importers and agricultural wholesale networks distinguish 111350 within the Belarus tractor applications service family?

For an engine-parts distribution decision, begin the 111350 inquiry with the complete reference and the stated Belarus tractor applications scope. Maintain the 111350 reference with 9T and CW in the purchasing file, then compare the four-hole mounting pattern and 145 mm face reference on a master sample. Keep the machine or engine record beside the 111350 request because a shortened number or a housing photo does not define a reliable bulk-order configuration.

What separates the 9T 111350 drive from adjacent versions for Belarus tractor applications?

The key separator for this 111350 configuration is the 9T pinion with 12V, 2.2kW and CW rotation. The 111350 and 24063708000 number family contains a neighboring ten-tooth configuration; combining them under one tractor listing can create an avoidable field-fit issue. Count the 111350 teeth on the removed unit and include a drive-end photo before approving a replacement or combining adjacent references in one stock code.

Which face and drive-end checks belong beside the 111350 dimensional image?

Use the 111350 technical image as a comparison aid, not as a scaled installation drawing for Belarus tractor applications. A practical incoming check documents nine teeth, four Ø13 mm holes, the 99 mm side reference and 31/44 mm axial arrangement across samples from the lot. The removed starter or approved 111350 master sample remains the final reference for mounting face, nose profile, connection position and drive engagement.

Can the 111350 cross-reference list be used without the Belarus tractor applications engine record?

The references 111350, 24063708000, 243708000 can locate demand for 111350, but they must remain tied to the defined Belarus tractor applications record. Maintain the 111350 reference with 9T and CW in the purchasing file, then compare the four-hole mounting pattern and 145 mm face reference on a master sample. If a 111350 physical control differs, quote it on a separate line rather than turning it into a universal interchange claim.

How should a first 111350 shipment be sampled for an engine-parts warehouse?

For initial 111350 acceptance, document the 9T drive, mounting arrangement, terminal orientation, labels and carton protection on a sample. A practical incoming check documents nine teeth, four Ø13 mm holes, the 99 mm side reference and 31/44 mm axial arrangement across samples from the lot. The approved 111350 sample gives procurement and warehouse teams one consistent release definition.

What information turns a Belarus tractor applications enquiry into a usable 111350 RFQ?

A useful 111350 enquiry needs more than a vehicle or machine name. For a Belarus tractor RFQ, provide the complete reference, 9T requirement, tractor series, quantity, delivery country and any carton, label or private-brand requirements. Those Belarus tractor applications details allow the supplier to review the exact 111350 configuration without assumptions from a broad application family.

What packaging controls suit a repeat 111350 distribution program?

Neutral cartons can support standard 111350 wholesale orders, while private-label work starts after label, barcode, carton strength and protective inserts are agreed for this configuration. Belarus tractor parts importers and agricultural wholesale networks should retain the 111350 version-specific references on purchase orders and warehouse labels.

Why is the 111350 video not a substitute for engine-side identification?

The product video introduces Elecdura starter-motor production and testing capability; it does not establish 111350 fitment. For Belarus tractor applications, the 111350 release decision remains tied to the full OE reference, 9T drive and the physical comparison saved for the order.

How can a buyer keep the 111350 9T version distinct in future orders?

For a repeat 111350 purchase, archive approved sample photos, reference list and inspection result with the item master. The 111350 and 24063708000 number family contains a neighboring ten-tooth configuration; combining them under one tractor listing can create an avoidable field-fit issue. That Belarus tractor applications record prevents the same fitment question being reopened when a customer supplies an abbreviated number or a different description.

Request 111350 Starter Motor Wholesale Pricing

For a Belarus tractor RFQ, provide the complete reference, 9T requirement, tractor series, quantity, delivery country and any carton, label or private-brand requirements. Elecdura will review the 12V, 2.2kW, 9T and CW configuration with the supplied application information before confirming sample, lead-time and wholesale-supply details.
