116930A1 Case 450C 580C Starter Motor Wholesale Supply

116930A1 Case Starter Motor Coverage for Construction Parts Dealers

116930A1 gives Case parts dealers a defined replacement for 450C crawler and 580C loader-backhoe service. These machines are often maintained long after labels have faded, so the useful identity combines the machine model, 12V 2.5kW rating, 13-tooth drive and the large three-hole nose.

Send the model, serial information and photographs of the removed starter from the face, drive and terminal sides. Elecdura compares the Ø127 hole circle, Ø89 locating reference, 48 mm axial point and terminals so the dealer can order without guessing from a general Case description.

116930A1 Starter Motor Specifications and B2B Fitment Drawing

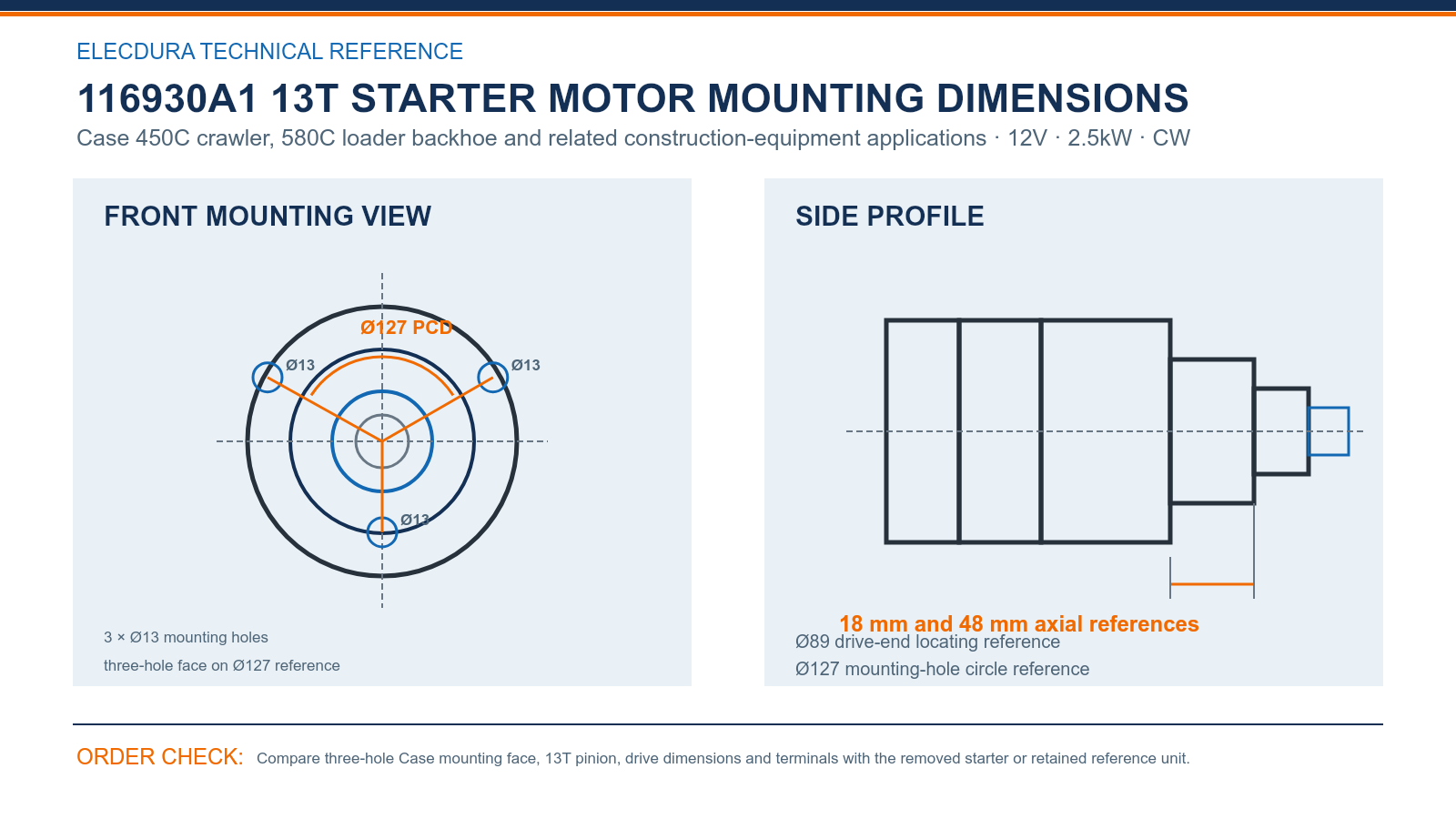

116930A1 13T starter motor mounting and drive-end dimensions for buyer-side comparison.

Case 450C and 580C machines may retain rebuilt starters with unreadable labels, making the drive-end casting especially important. Compare 3 × Ø13 mounting holes, Ø127 mounting-hole circle reference, Ø89 drive-end locating reference and 18 mm and 48 mm axial references with the removed unit.

Photograph all mounting positions, count the 13 pinion teeth and check cable reach on the identified machine. This gives construction-equipment distributors practical evidence for selecting 116930A1 without guessing from a broad Case application name.

116930A1 Starter Motor Cross-References for Backhoe Supply

Service and aftermarket references can include A47496, R39341, Denso 028000-5880 through related suffixes, and Prestolite 35259620. Keep the full number found on each machine and use the group to connect older purchasing documents without ignoring tooth count or mounting geometry.

1. When the label is readable: submit the complete number and electrical rating.

2. When the label is unreadable: compare the three Ø13 holes, Ø89 locating feature and 13-tooth pinion.

3. Before quotation: add the solenoid clocking and cable connections so the service shop can compare the offered replacement.

116930A1 Starter Motor Wholesale Support for Case Repair Networks

Backhoe and crawler repair networks can test one unit on a named machine, document fit, cranking and terminal clearance, and then purchase stock for repeat service. Elecdura can supply neutral cartons and can discuss branded packaging or account labels when volume and artwork are confirmed.

Because older machines may have received rebuilt starters over time, incoming teams should compare the 13-tooth drive and three-hole nose rather than relying only on the carton number. Retaining the installation photos helps the sales counter answer future 450C and 580C requests consistently.

The video shows Elecdura starter-motor manufacturing and electrical testing. Provide the Case machine model and serial details, complete old-unit reference, mounting images, order quantity and packing request so the quotation can address the correct 116930A1 configuration and supply plan.

116930A1 Starter Motor Wholesale FAQ

Which Case machines are associated with 116930A1?

The main applications include the Case 450C crawler and 580C loader backhoe, together with related equipment using the same confirmed physical configuration. Provide the exact model and serial number for each request. Older Case machines may have received replacement engines or rebuilt starters, so compare the current removed unit with the actual machine before ordering.

How should A47496 and R39341 be used in a quotation?

They are useful cross-reference leads connected to the 116930A1 buying group. Preserve the number supplied by the customer and confirm 12V, 2.5kW, 13 teeth, clockwise rotation and the three-hole face. If a machine carries a different rebuilt housing or pinion, submit it as a separate request so the quotation remains specific to that machine.

What identifies the Case three-hole mounting face?

Check the three Ø13 holes on the Ø127 circle, the Ø89 locating feature and the 18 mm and 48 mm axial references. Use actual measurements and a straight face photograph. This combination helps distinguish the correct long-nose arrangement from other Case starters that share a similar motor body and solenoid position.

Why is the 13-tooth pinion important for 116930A1?

The pinion must match the ring gear and the specified drive. Clean the old gear, count every tooth and compare the resting position and axial depth. During installation, listen for smooth engagement and disengagement. A starter with another tooth count or depth can bolt in yet create grinding, partial mesh or ring-gear damage.

What should a backhoe workshop send when the label is unreadable?

Send the Case model and serial, engine information if available, overall starter photographs, a straight mounting-face image, pinion count, locating and axial measurements, and terminal details. Include any earlier invoice number. These physical measurements let Elecdura narrow the product even when years of rebuilding have removed the original manufacturer label.

How should the initial 116930A1 unit be tested?

Confirm that the face seats fully and bolts enter without side load, then check cable reach, cranking speed and pinion sound. Measure battery voltage and circuit voltage drop to separate electrical-system weakness from a starter issue. Save installation photographs and the machine serial so later orders can use the same confirmed fitment points.

What is useful during incoming inspection?

Inspect cartons from multiple positions and compare labels, 13-tooth pinions, the three-hole casting, terminal protection and packaging condition. Measure a selected unit against the dimensions confirmed on the identified machine and note the lot. Hold any starter with another nose, pinion or cable arrangement before it is issued to the repair network.

What details support a fast 116930A1 wholesale quote?

Provide the complete OE or cross-reference, Case model and serial, required quantity, destination and requested delivery date. Add old-unit label, face, pinion and terminal photographs and the packaging requirement. Elecdura can then quote the defined 12V 2.5kW 13T product and state MOQ, lead time and warranty without repeated clarification.

Request a 116930A1 Starter Motor Wholesale Quote

Send 116930A1 or the complete related number, Case 450C or 580C model and serial details, old-unit label, mounting, pinion and terminal photographs, quantity and destination. Elecdura will quote the 12V 2.5kW 13T unit with comparison, delivery and packaging terms.

If the buyer supports both crawlers and loader backhoes, list each machine model, serial and requested quantity separately. Elecdura can keep the technical identity and carton labeling clear for service-counter replenishment.
