128000-0210 Cummins 3.9L 5.9L Starter Motor B2B Supply

128000-0210 Starter Motor Planning for Cummins Parts Dealers

Agricultural demand often rises before planting or harvest, when a delayed starter can idle both equipment and labor. The 128000-0210 line should be planned around the identified Cummins 3.9L or 5.9L machine, 13T drive and two-hole face rather than a broad engine-size description.

Ask branches to supply the machine model, engine data plate, complete old-unit number and mounting photographs. Elecdura can use those details to prepare a focused quotation and help the distributor decide whether the item belongs in central stock or regional service inventory.

128000-0210 Starter Motor Dimensions for Agricultural Supply

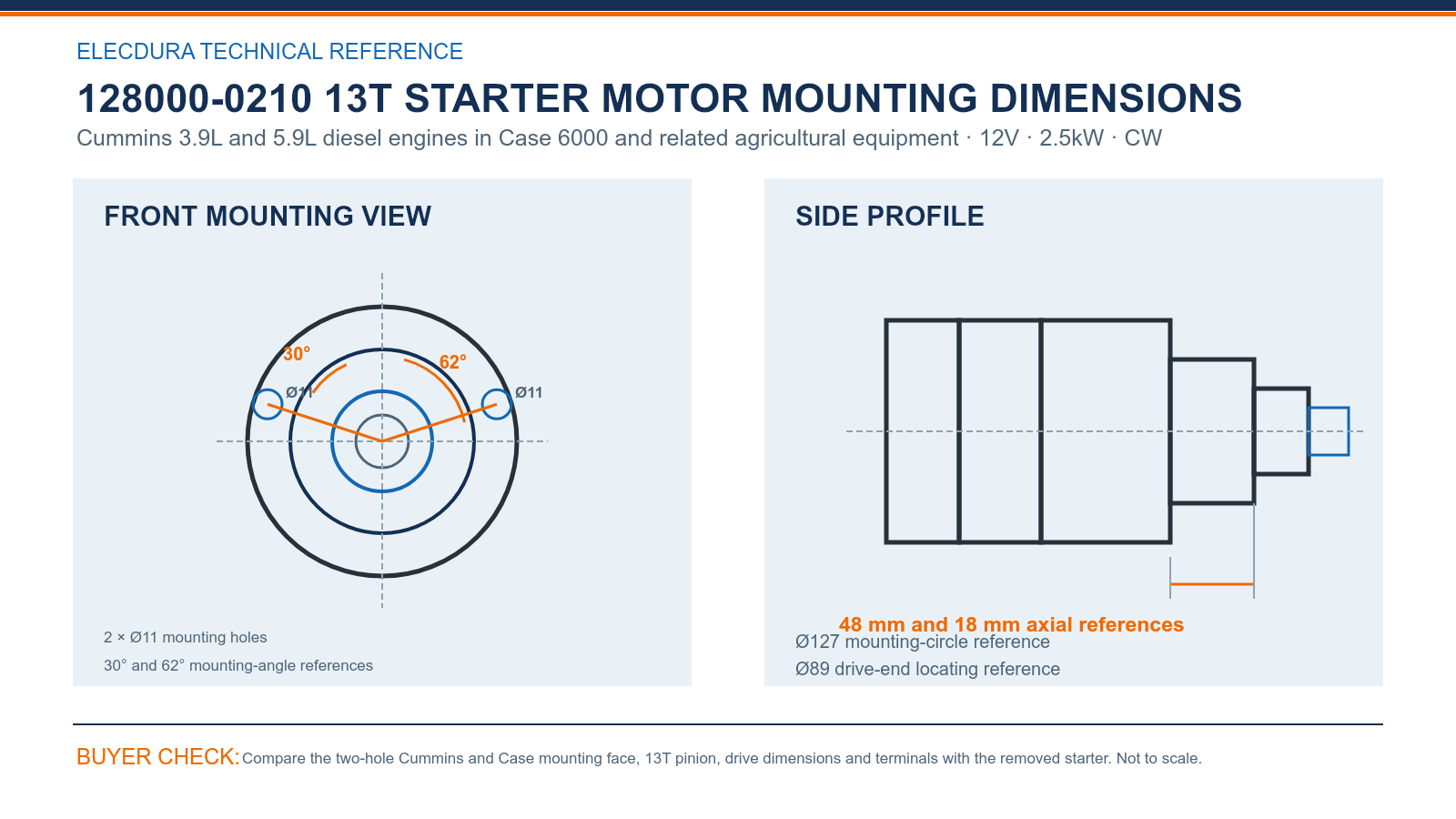

128000-0210 13T starter motor mounting and drive-end dimensions for buyer-side comparison.

The 128000-0210 drive end uses two Ø11 mounting holes on an Ø127 circle, an Ø89 locating reference and 48 mm and 18 mm axial points. The 30° and 62° references help agricultural service teams compare mounting clocking before a unit is sent to a remote machine.

Use the drawing with the engine plate and a clear photograph of the 13-tooth pinion. Confirm terminal reach on the first identified machine, then retain those checks for seasonal replenishment and branch receiving.

128000-0210 Starter Motor OE Checks for Case 6000 Orders

The Denso sequence extends from 128000-0210 through nearby suffixes, while Cummins 3904466 and 3920403, Lester 16990 and Lucas S9920 may appear in purchasing systems. Keep the exact old-unit suffix visible.

• Engine: identify the 3.9L or 5.9L installation and machine.

• Drive: confirm 13 teeth, module 2.54 and clockwise rotation.

• Face: compare two Ø11 holes, clocking and drive depth.

128000-0210 Starter Motor Seasonal Supply for Farm Networks

Distributors can use pre-season sales history and active machine counts to set a sensible regional quantity. Elecdura can discuss neutral cartons, customer labels and scheduled replenishment after the exact 128000-0210 configuration and destination plan are clear.

Before dispatching stock to branches, sample the full label, 13T pinion, two-hole nose, terminal position and packing condition. Retain the shipment lot with the verified engine and machine range so a later field request can be answered quickly.

The video shows Elecdura starter-motor assembly and electrical testing. Send the Cummins engine plate, Case or other machine details, old-unit number, quantity by branch and delivery schedule for a practical supply proposal.

128000-0210 Starter Motor Wholesale FAQ

Which Cummins applications belong in a 128000-0210 inquiry?

The product is intended for identified 3.9L or 5.9L Cummins installations, including Case 6000 agricultural equipment and related machines. Provide the machine model, serial and engine data plate rather than relying on displacement alone. That information connects the 13T starter to the actual equipment and improves both quotation accuracy and later branch support.

What electrical checks help before a seasonal replacement order?

Confirm the machine uses 12V and inspect batteries, grounds, cable voltage drop and switch signal on the failed unit. State the 2.5kW requirement and any cranking symptom with the engine plate. This helps the distributor distinguish a true starter need from a weak supply circuit before urgent seasonal stock is consumed.

How should the 128000-0210 suffix group be used?

Numbers through 128000-0216 can appear in the same purchasing trail, along with 3904466, 3920403, 16990 and S9920. Preserve the complete old-unit suffix and confirm 13 teeth, module 2.54, clockwise rotation and the two-hole face. A family-level search should start the comparison, not replace the physical checks.

How can a distributor set pre-season quantity?

Review active machine counts, prior emergency sales, branch consumption and replenishment lead time. Separate Case 6000 and other Cummins applications by confirmed OE and physical version. A central reserve with smaller branch quantities can reduce idle inventory while still providing faster response during planting or harvest when transport delays carry a higher cost.

Which mounting dimensions identify this Case and Cummins unit?

Compare two Ø11 holes on the Ø127 circle, the Ø89 locating reference, 48 mm and 18 mm axial points and the 30° and 62° clocking. Measure the removed starter directly and photograph the face square. Together with the 13T drive, these values distinguish the nose from other Cummins starter families.

How should a starter be packed for a remote farm branch?

Protect the pinion, solenoid and terminals, prevent movement inside the carton and keep the full 128000-0210 identity visible. For mixed shipments, use line-specific labels and a packing list that states 13T. The receiving branch should inspect the face and terminal condition before the unit is sent farther to a field service vehicle.

What information helps with an agricultural warranty review?

Provide the shipment label, machine and engine identity, installation date, cranking voltage, cable voltage-drop readings and photographs of the fitted unit. Describe operating hours and the exact symptom. These details help Elecdura assess whether the concern relates to the starter, supply circuit, ring gear, installation or another engine condition and respond efficiently.

What should a Case 6000 wholesale RFQ include?

Send the complete Denso, Cummins or Case number, machine model and serial, engine plate, old-unit label, 13T pinion and face photographs, quantity by branch, destination, target date and packing needs. Elecdura can then state the specified configuration, MOQ, normal lead time, warranty and available labeling for the planned supply period.

Request a 128000-0210 Starter Motor Wholesale Quote

Send 128000-0210 or the full Cummins, Case, Denso or Lucas reference, machine model, 3.9L or 5.9L engine plate, old-unit photographs, quantity by location, destination and required date. Elecdura will quote the 12V 2.5kW 13T starter.

For pre-season programs, include expected monthly usage and branch destinations so packing, labeling and delivery timing can be discussed with the product configuration.
