128000-1150 John Deere 3TNA72 Starter Motor Wholesale Supply

128000-1150 John Deere Starter Motor Identification for Wholesale Buyers

128000-1150 is a 12V, 1.4kW, 11T, CW-rotation starter motor for John Deere F925, F935, 755 and selected compact equipment using compatible Yanmar 3TNA72 engines. The page is structured for professional sourcing, where the target is not only to find a reference but to approve the correct electrical and physical version for repeat supply.

This group needs to remain separate from neighboring service options even when they are promoted for similar John Deere and Yanmar equipment. A controlled RFQ therefore starts with John Deere, Yanmar 3TNA72, 128000-1150 and a readable old-unit label. Release the 1.4kW, 11-tooth unit only after the machine PIN, 3TNA72 engine suffix, AM or TY reference and mounting geometry agree. The resulting record gives purchasing, sales and receiving teams the same release standard.

128000-1150 Starter Motor Specifications for Distributor Approval

128000-1150 verification reference for turf-equipment and compact-tractor distributors; compare the labeled controls with the removed unit or signed sample before volume supply.

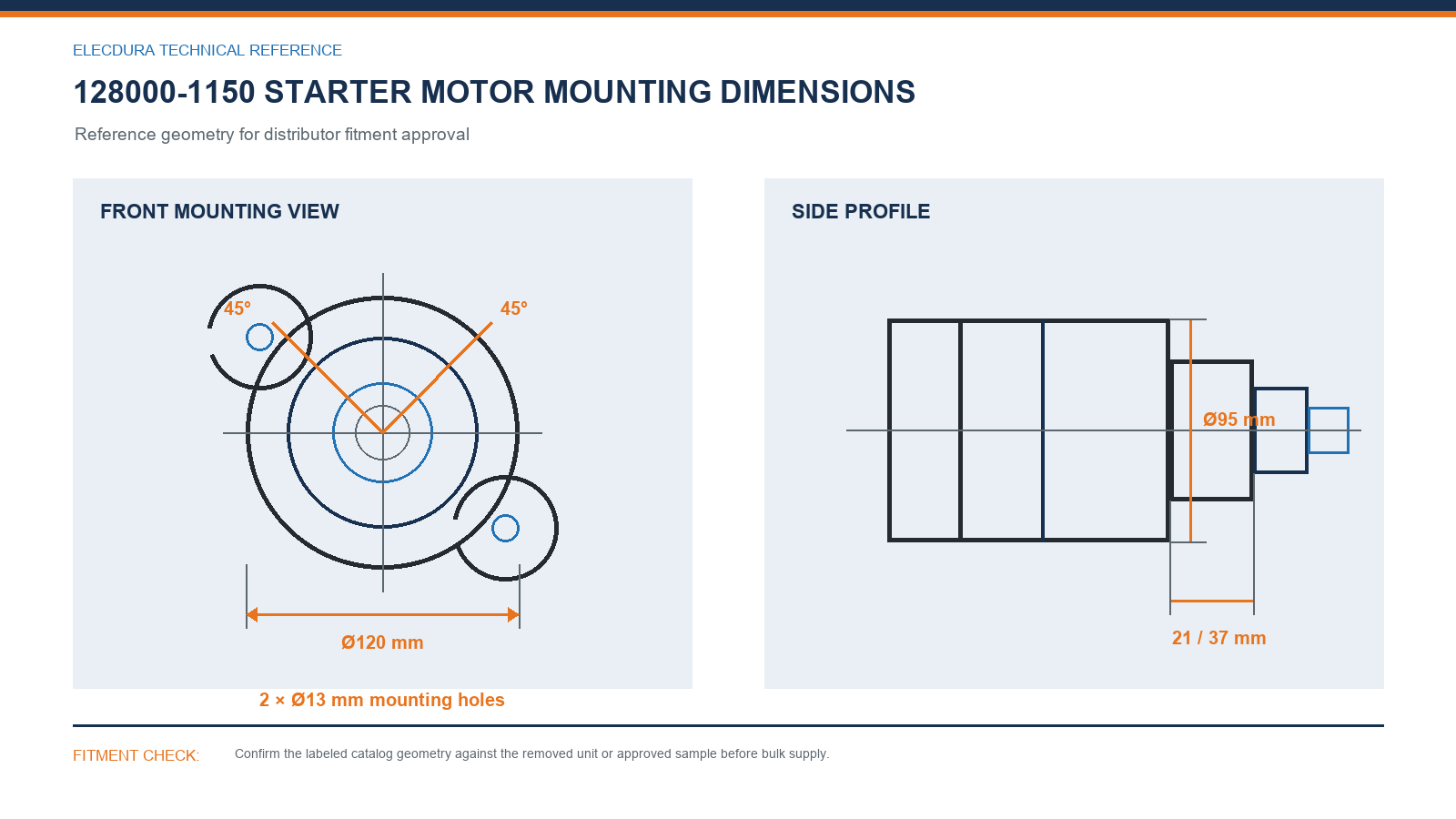

Key drawing references include Two Ø13 mm mounting holes, 45° mounting-hole reference, Ø120 mm mounting reference, Ø95 mm drive-end reference, 21 mm axial offset, 37 mm secondary reference.

128000-1150 Starter Motor OE and Application Review for B2B Supply

The purchasing group begins with 128000-1150, 128000-1151, 128000-1152, 128000-1153, 128000-1154, 228000-3610, with the full approved group listed in the table below. These numbers connect service records and rebuilt labels, but complete references remain necessary because missing suffixes can identify a different output, pinion or housing.

This group needs to remain separate from neighboring service options even when they are promoted for similar John Deere and Yanmar equipment. The controlled application is John Deere F925, F935, 755 and selected compact equipment using compatible Yanmar 3TNA72 engines. Release the 1.4kW, 11-tooth unit only after the machine PIN, 3TNA72 engine suffix, AM or TY reference and mounting geometry agree.

128000-1150 Starter Motor Receiving and Supply Controls for Distributors

Before warehouse release, inspect the label group, 11T pinion, drive-end casting and rear connection layout on samples taken across the delivery. Record packaging damage, mixed labels or geometry differences immediately. A retained approval unit is the fastest reference for repeat 128000-1150 replenishment and reduces disagreement after installation.

This 128000-1150 program is intended for professional distributors and service networks that order from controlled application data. MOQ starts from 20 pieces, subject to specification and schedule confirmation. Packaging, private-label presentation and delivery timing are agreed only after the exact 11T configuration and reference group are approved.

Watch Elecdura starter-motor assembly and electrical testing below. Approval remains tied to 128000-1150, the John Deere application and this page's physical controls.

▶ Watch the Elecdura starter motor production and testing video

128000-1150 Starter Motor FAQ for B2B Procurement

What should a wholesale buyer verify for 128000-1150?

John Deere F925, F935, 755 and selected compact equipment using compatible Yanmar 3TNA72 engines defines the working application scope for this machine-PIN-controlled selection. Confirm 12V, 1.4kW, 11T and CW rotation, then apply this physical release: Release the 1.4kW, 11-tooth unit only after the machine PIN, 3TNA72 engine suffix, AM or TY reference and mounting geometry agree. Keep the final comparison with the customer account so repeat orders follow the same approved starter.

Which applications are controlled on the 128000-1150 page?

128000-1150 is positioned for John Deere F925, F935, 755 and selected compact equipment using compatible Yanmar 3TNA72 engines. The page does not extend that record to every John Deere product. A distributor should connect the Yanmar 3TNA72 engine designation, machine model and available serial information to the full starter number, then retain the result as the fitment boundary for this SKU.

Can cross-references alone release a 128000-1150 bulk order?

128000-1150, 128000-1151, 128000-1152, 128000-1153, 128000-1154, 228000-3610 are the principal identifiers reviewed for this John Deere starter group. They help reconcile service records and rebuilt labels, but they cannot cancel a difference in 1.4kW output, 11T drive, housing or terminals. Consolidate references only after the old unit and approved sample agree.

What electrical details matter for 128000-1150 starter selection?

The cataloged release is 12V, 1.4kW, 11T and CW rotation for Yanmar 3TNA72 applications. Count the pinion and read the voltage or power label before comparing battery and switch terminals. This sequence keeps an electrically similar starter with another drive or connection layout out of the 128000-1150 wholesale line.

How should the 128000-1150 mounting geometry be checked?

Review Two Ø13 mm mounting holes, 45° mounting-hole reference, Ø120 mm mounting reference, Ø95 mm drive-end reference, 21 mm axial offset, 37 mm secondary reference. The technical graphic is a purchasing reference, not a drawing to scale. Place the removed starter beside the sample, check the mounting face and pinion rest position, and photograph the connection side. These controls give turf-equipment and compact-tractor distributors a practical dimensional record before approving volume supply.

What information should accompany a 128000-1150 RFQ?

For this John Deere inquiry, provide the Yanmar 3TNA72 engine record, complete OE or cross-reference, machine model, serial or PIN where available, drive-end and terminal photographs, required quantity, destination and packaging request. Add mounting or nose measurements when the label is incomplete so the quotation remains tied to a verifiable unit.

How should distributors inspect the first 128000-1150 shipment?

turf-equipment and compact-tractor distributors should sample cartons across the delivery and verify 128000-1150 labels, 11T pinions, mounting castings, solenoid orientation and terminal protection. Compare one unit with the approved John Deere sample, quarantine any mixed reference, and store receiving photographs with the SKU before branches receive saleable inventory.

Is private-label packaging available for 128000-1150?

Private-label presentation can be reviewed for qualified 128000-1150 programs, while neutral cartons support standard wholesale orders. Artwork, barcode, carton strength and pinion protection need approval before production. The product label should state 12V, 1.4kW, 11T and the controlled John Deere reference accurately, without suggesting universal fitment.

Request a 128000-1150 Starter Motor Wholesale Quote

Send 128000-1150 or the related OE, John Deere machine and Yanmar 3TNA72 engine details, old-starter photographs, quantity, destination and packaging request. Elecdura will review the 12V, 1.4kW, 11T configuration and sample requirements before quoting.
