128000-2070 Yanmar 4D88 John Deere Starter Motor Wholesale

128000-2070 Starter Motor Selection for Professional B2B Buyers

128000-2070 supports Yanmar 4D88 industrial engines and selected John Deere equipment using AT110818 or the approved 15T Denso family. It is positioned for professional replacement supply where the buyer needs the correct unit to arrive, install and remain repeatable across later orders; the fixed electrical release is 12V, 2.0kW, 15T and CW.

Yanmar and John Deere service records can cite different engine or equipment descriptions, so the complete OE, 15T drive, 50° ear relationship and mounting geometry must remain together. Agricultural and compact-equipment distributors should also retain the equipment serial and cable-clearance photographs because an engine-family match alone does not show whether the starter can be installed and connected inside the available chassis space. A reliable order file should state exactly how the unit was separated from its neighbors: Confirm 128000-2070, AT110818 or 171353-77010, count fifteen teeth, and compare the 50° mounting relation, Ø120 mm face, Ø95 mm drive end and 20/33 mm references.

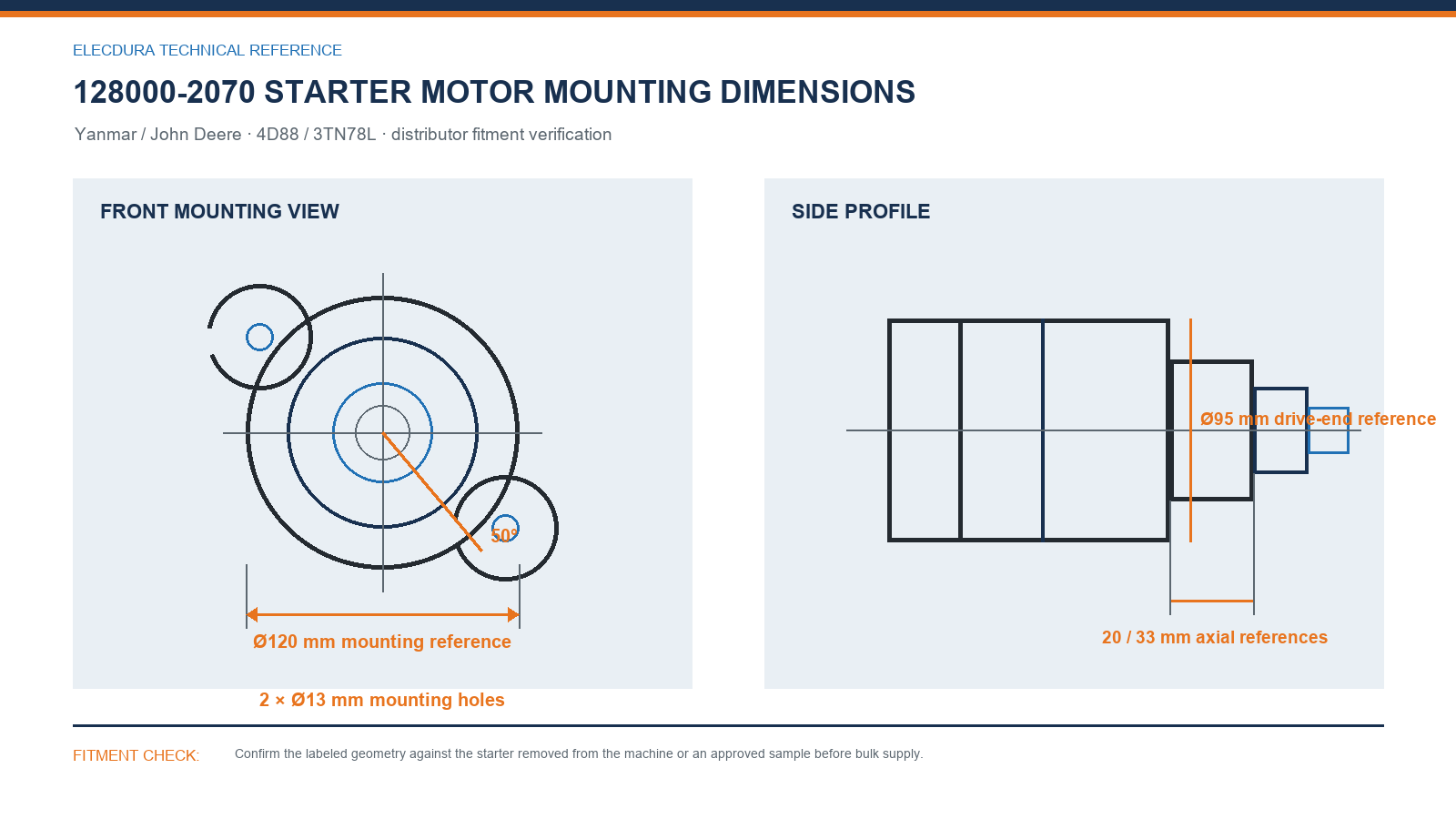

128000-2070 Starter Motor Specification Matrix and Technical Drawing

For purchasing and warehouse quality team, the key geometry is summarized in a single reference image below.

Confirm 128000-2070, AT110818 or 171353-77010, count fifteen teeth, and compare the 50° mounting relation, Ø120 mm face, Ø95 mm drive end and 20/33 mm references. The image is a fitment reference and should be checked against the equipment-side comparison unit or released fitment sample rather than scaled from the screen.

128000-2070 Yanmar / John Deere Application Control for Wholesale Supply

Cross-reference breadth is useful only when it does not erase the version boundary. For 128000-2070, the principal buying identifiers include 128000-2070, 9712809-207, AT110818, 171353-77010, 17387, while Yanmar 4D88 industrial engines and selected John Deere equipment using AT110818 or the approved 15T Denso family defines the working application scope.

Confirm 128000-2070, AT110818 or 171353-77010, count fifteen teeth, and compare the 50° mounting relation, Ø120 mm face, Ø95 mm drive end and 20/33 mm references. If any of those points disagree, quote the alternatives separately instead of presenting a broad universal-fit claim.

• Application limit: Yanmar 4D88 industrial engines and selected John Deere equipment using AT110818 or the approved 15T Denso family.

• Mismatch control: Yanmar and John Deere service records can cite different engine or equipment descriptions, so the complete OE, 15T drive, 50° ear relationship and mounting geometry must remain together. Agricultural and compact-equipment distributors should also retain the equipment serial and cable-clearance photographs because an engine-family match alone does not show whether the starter can be installed and connected inside the available chassis space. Confirm 128000-2070, AT110818 or 171353-77010, count fifteen teeth, and compare the 50° mounting relation, Ø120 mm face, Ø95 mm drive end and 20/33 mm references.

• Distributor traceability: Yanmar engine-parts wholesalers and John Deere compact-equipment distributors should retain 128000-2070, 9712809-207, AT110818, 171353-77010, 17387 with the accepted physical comparison and customer requirement.

For Yanmar / John Deere 4D88 / 3TN78L sourcing, the retained geometry combines 2 × Ø13 mm mounting holes, Ø120 mm mounting reference, Ø95 mm drive-end reference and 20 / 33 mm axial references. Additional service identifiers include 17387N, 410-52180, SND0383, 190-571. A quotation for this line should arrive with Yanmar or John Deere OE, engine model, equipment model and serial, 15T photograph, mounting-face image and quantity; that information lets Yanmar engine-parts wholesalers and John Deere compact-equipment distributors distinguish this configuration before stock is committed.

128000-2070 Starter Motor Warehouse Release and Order Support

Retain the engine and OE information with the 15T sample, then inspect tooth count, ear angle and pinion protection before John Deere or Yanmar stock release. Add carton condition, terminal protection and pinion protection to the receiving record because transit damage can create the same customer downtime as a wrong fitment.

Commercial preparation includes sample confirmation, 20-piece starting MOQ, order-specific lead-time review and neutral or qualified private-label packing. The carton label should carry the exact OE and 15T configuration, not a broad brand-only description.

The embedded production video supports supplier qualification for wholesale programs. The commercial release for this item remains tied to 128000-2070, 12V, 2.0kW, 15T and the confirmed mounting arrangement.

128000-2070 Starter Motor FAQ for B2B Procurement

For 4D88 / 3TN78L, what proves that an inquiry belongs to the 128000-2070 group?

In the 4D88 / 3TN78L 128000-2070 identity file, the strongest working record combines a fully stated reference such as 128000-2070, 9712809-207, AT110818, 171353-77010, the 4D88 / 3TN78L or machine identity, 12V/2.0kW, 15T, CW and a matching physical approval unit. For this Yanmar / John Deere number set, no single field should override a visible mismatch. Within the 128000-2070 sourcing record, store the final cross with the customer and SKU so later orders reproduce the same product definition. For the Yanmar / John Deere 4D88 / 3TN78L item, the usable identity chain is 128000-2070, 9712809-207, AT110818, 171353-77010.

For 4D88 / 3TN78L, what customer downtime risk does this page address?

For the 4D88 / 3TN78L fitment, yanmar and John Deere service records can cite different engine or equipment descriptions, so the fully stated OE, 15T drive, 50° ear relationship and mounting geometry must remain together. In this Yanmar / John Deere application, agricultural and compact-equipment importers should also retain the equipment serial and cable-clearance photographs because an engine-family match alone does not show whether the starter can be installed and connected inside the available chassis space. For the defined 128000-2070 scope, a starter that arrives with the wrong drive or flange face creates another service interruption even if the invoice number looks plausible. For the 4D88 / 3TN78L fitment, check 128000-2070, AT110818 or 171353-77010, count fifteen teeth, and compare the 50° mounting relation, Ø120 mm face, Ø95 mm drive end and 20/33 mm references. In this Yanmar / John Deere application, completing that check before dispatch is less costly than freight, labor and a delayed machine restart after installation begins. For 4D88 / 3TN78L, the version boundary is 15T, 2.0kW, Ø120 mm mounting reference and the complete OE group.

For 4D88 / 3TN78L, how should the equipment-side comparison unit be measured?

At the 15T drive check, clean the flange face, count the pinion teeth and measure the locating diameter, hole layout, nose depth and pinion rest position from consistent reference surfaces. For the 128000-2070 pinion review, photograph the cable points and solenoid orientation. Within the 4D88 / 3TN78L drive record, use the technical graphic to organize those readings, but keep the starter taken from service or approval unit as the physical authority for 128000-2070. The Yanmar / John Deere release uses 15T with CW rotation, so both details belong on the sample and carton checks.

For 4D88 / 3TN78L, which 9712809-207 details should remain on the order?

During mounting review for 128000-2070, retain the full reference including prefixes and suffixes, then add the 4D88 / 3TN78L application and 15T configuration. At the 4D88 / 3TN78L flange check, the alternate can be listed beside 128000-2070 after the approval unit agrees, but it should not replace the primary customer-supplied number. For the Yanmar / John Deere installation comparison, this preserves traceability when purchasing, receiving and after-sales teams review the order. For 4D88 / 3TN78L, the drawing controls are 2 × Ø13 mm mounting holes, Ø120 mm mounting reference, Ø95 mm drive-end reference and 20 / 33 mm axial references.

For 4D88 / 3TN78L, what is checked before sample sign-off?

Within the Yanmar / John Deere interchange group, check 12V, 2.0kW, 15T and CW; then check 128000-2070, AT110818 or 171353-77010, count fifteen teeth, and compare the 50° mounting relation, Ø120 mm face, Ø95 mm drive end and 20/33 mm references. For the 128000-2070 cross-reference decision, inspect insulation, cable point hardware and pinion protection as well. In the 4D88 / 3TN78L stocking boundary, the approval unit should carry a unique label and photographs so the production lot can be compared against the same electrical and physical standard. The working scope is Yanmar 4D88 industrial engines and selected John Deere equipment using AT110818 or the approved 15T Denso family; it is not a universal statement for every Yanmar / John Deere machine.

For 4D88 / 3TN78L, how can sales staff qualify this application efficiently?

For this Yanmar engine-parts wholesalers and John Deere compact-equipment distributors inquiry, ask for Yanmar or John Deere OE, engine model, equipment model and serial, 15T photograph, mounting-face image and quantity. When quoting 128000-2070, these fields are specific enough for technical review but practical for a repair shop or fleet customer to provide. For the Yanmar / John Deere commercial request, avoid asking only whether the machine is a Yanmar / John Deere; the detailed record separates this 128000-2070 starter from visually similar alternatives and supports a confident commercial response. A practical 4D88 / 3TN78L inquiry includes Yanmar or John Deere OE, engine model, equipment model and serial, 15T photograph, mounting-face image and quantity.

For 4D88 / 3TN78L, what should warehouse quality team do with a mixed carton?

At incoming inspection for 128000-2070, stop the release and isolate the affected cartons. During the 4D88 / 3TN78L lot release, retain the engine and OE information with the 15T approval unit, then inspect tooth count, ear angle and pinion protection before John Deere or Yanmar stock release. For Yanmar / John Deere warehouse acceptance, compare labels, tooth count, flange and cable points against the approval unit, then document quantities by variant. At incoming inspection for 128000-2070, do not relabel or merge the units until purchasing and technical staff check whether the variation is acceptable or belongs to another product code. The receiving release for this Yanmar / John Deere starter is the combined 15T, 2 × Ø13 mm mounting holes and terminal check.

For 4D88 / 3TN78L, are sample and private-label orders supported?

For the 128000-2070 supply program, a approval unit can be arranged when fitment confirmation is needed before service-network quantity. When preparing the 4D88 / 3TN78L order, standard MOQ begins at 20 pieces, and qualified private-label programs can be reviewed after the 128000-2070, 15T, barcode and carton protection are approved. For this Yanmar / John Deere distributor line, include quantity, destination and artwork requirements with the technical RFQ to receive aligned commercial terms. The 4D88 / 3TN78L commercial request should retain 128000-2070, 12V, 2.0kW, 15T, quantity, destination and packaging preference on one line.

Discuss 128000-2070 Starter Motor Samples and service-network quantity

Send Yanmar or John Deere OE, engine model, equipment model and serial, 15T photograph, mounting-face image and quantity, required quantity, destination and packaging preference. Elecdura will review the 12V, 2.0kW, 15T 128000-2070 configuration and confirm sample, lead-time and wholesale-supply details before the order is released.
