128000-5370 Komatsu PC200-6 Starter Motor Wholesale Supply

128000-5370 Komatsu Starter Motor Support for Excavator Parts Buyers

128000-5370 is a 12V, 2.5kW and 10-tooth starter for Komatsu PC200-6 excavator applications. Because related numbers can appear in other equipment channels, include the PC200-6 machine plate and removed starter details with the purchasing request.

Elecdura compares the three Ø11 mounting holes, Ø127 circle, Ø89 locating reference, 48 mm axial point, pinion and terminals. This gives an excavator-parts buyer measurable checks before the unit is placed into workshop or fleet stock.

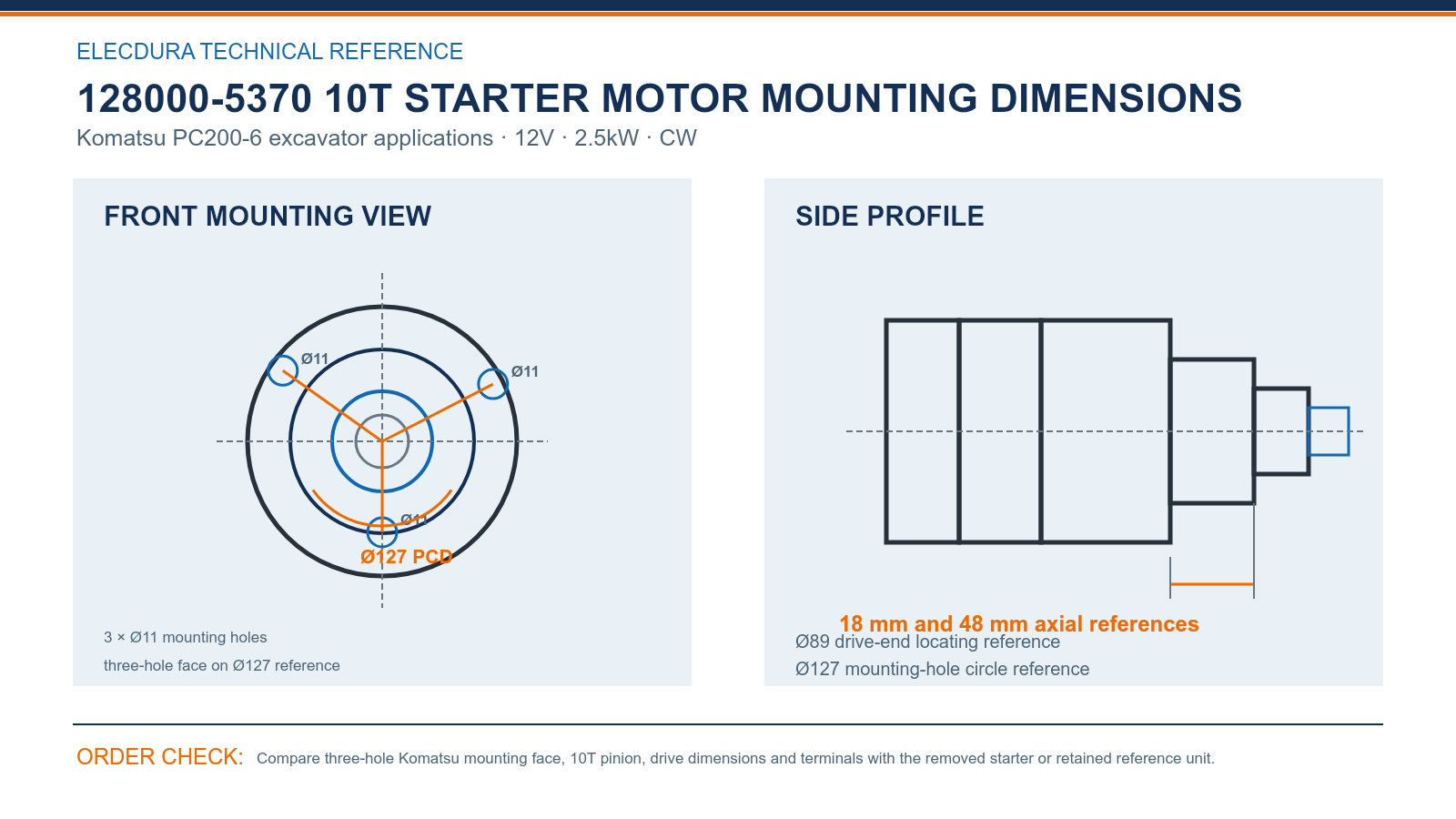

128000-5370 Starter Motor Specifications and B2B Fitment Drawing

128000-5370 10T starter motor mounting and drive-end dimensions for buyer-side comparison.

Komatsu PC200-6 fleet buyers can use the drawing to confirm the three-hole drive end before sending a starter to the excavator workshop. Start with 3 × Ø11 mounting holes and Ø127 mounting-hole circle reference, then verify Ø89 drive-end locating reference and 18 mm and 48 mm axial references on the removed unit.

Include the excavator serial, face and terminal photographs, old-unit label and 10-tooth pinion count. These inputs help Elecdura quote the 128000-5370 configuration and give the workshop clear receiving checks for later orders.

128000-5370 Starter Motor Reference Checks for Komatsu Orders

Related buying references include 228000-5310, 228000-5311, 18508N and STR70091. Include every number visible on the old unit and service documents while keeping the PC200-6 application and specified 12V 2.5kW 10T configuration visible on the RFQ.

If the removed starter shows another rating, application or mounting arrangement, submit its photographs as another product request. Elecdura can then return a separate quotation without transferring unrelated information into the PC200-6 order.

128000-5370 Starter Motor Wholesale Supply for Excavator Fleets

A fleet workshop can install a trial unit on the identified PC200-6, confirm seating, pinion engagement and cable clearance, and keep the machine serial with the result. Elecdura can supply neutral cartons for normal orders and review customer branding when volume and label requirements are established.

• Before dispatch: compare the full reference and specified rating.

• At installation: check the face, terminals and cranking performance.

• At receiving: count 10 teeth and verify the three-hole nose across cartons.

Using the same checkpoints for the first machine and later cartons helps an excavator fleet avoid mixing another Komatsu drive-end configuration into repeat orders.

The video shows Elecdura starter-motor assembly and electrical testing. Send the PC200-6 machine serial, complete old-unit data, mounting photographs, order quantity and delivery destination so the response can state the specified 128000-5370 configuration and supply terms.

128000-5370 Starter Motor Wholesale FAQ

Which Komatsu information is needed for 128000-5370?

Provide the PC200-6 model and machine serial, engine information where available, and every number shown on the removed starter. Add label, mounting, pinion and terminal photographs. These details keep the quotation tied to the stated PC200-6 application and give Elecdura enough physical information to compare the offered three-hole configuration with the actual excavator.

How should 228000-5310 and 18508N be handled?

Use them as related references within the same buying group and preserve the complete number found by the buyer. Confirm the PC200-6 application, 12V, 2.5kW, 10 teeth, clockwise rotation and mounting geometry. If a service document or old label points to another machine or output, place it in a separate inquiry rather than altering this product line.

What mounting measurements identify this unit?

Measure the three Ø11 holes on the Ø127 circle, the Ø89 locating feature and the 18 mm and 48 mm axial references. Include a straight-on face photograph. These points define the drive-end housing more accurately than the outer motor body and allow the workshop to identify a different nose before attempting installation.

Why should the 10-tooth drive be counted?

The product specification requires ten teeth and module 3.175. Clean the old pinion, count every tooth and compare its resting position and depth. During installation, check for smooth engagement and release. A starter can share the bolt pattern yet use another drive, which can create noise, incomplete mesh or damage to the excavator’s ring gear.

What should be checked during the first PC200-6 installation?

Confirm the machine serial, face seating, bolt alignment, terminal clearance, cable connection and cranking behavior. Measure battery voltage and circuit drop if performance is questioned. Save photographs of the installed unit and the full label. This creates a concrete fleet reference for later orders and helps troubleshoot the electrical system separately from the starter.

What if the removed starter shows a different output?

Photograph the old label and mounting, note the PC200-6 serial and submit a unit with another output as a separate request. Keeping the two specifications on separate RFQ lines lets Elecdura review each physical configuration and prevents a fleet buyer from receiving mixed electrical ratings under one warehouse code.

How should incoming excavator stock be inspected?

Select units from different cartons and verify full references, ten-tooth drives, three-hole castings, terminal protection, electrical labels and packing condition. Compare one unit with the measurements confirmed on the PC200-6 and note the shipment lot. Isolate any starter with another rating, nose or connector before it is issued to the fleet workshop.

What information supports a wholesale quotation?

Send the complete primary or related reference, Komatsu PC200-6 machine serial, old-unit label, mounting, pinion and terminal photographs, quantity, destination, requested date and packaging preference. Elecdura can then quote the defined 12V 2.5kW 10T product and state MOQ, normal lead time, warranty and carton options.

Request a 128000-5370 Starter Motor Wholesale Quote

Send 128000-5370 or the complete related reference, Komatsu PC200-6 machine serial, old-unit label, face, pinion and terminal photographs, quantity and destination. Elecdura will quote the specified 12V 2.5kW 10T unit with comparison, packaging and delivery terms.

For fleet supply, identify the excavator used for the first fitment check and the incoming checks used by the workshop. Elecdura can keep later cartons and repeat-order references tied to that exact PC200-6 configuration.
