128000-8640 Toyota 1HZ 12T Starter Motor Wholesale

128000-8640 Toyota 1HZ Starter for Off-Road Parts Supply

Land Cruiser and off-road diesel buyers commonly search this unit through Denso 128000-8640, Lester 18197 or a Toyota 28100-series number. The commercial requirement is the 12V, 2.5kW, 12T, CW version for 1HZ and 1HD-T applications, not simply any starter listed for a Toyota diesel.

For remote-service markets, the cost of a wrong starter includes more than the return shipment. Confirming the 12T pinion and the wide two-ear face before dispatch protects workshop schedules and helps the distributor keep a reliable replenishment SKU.

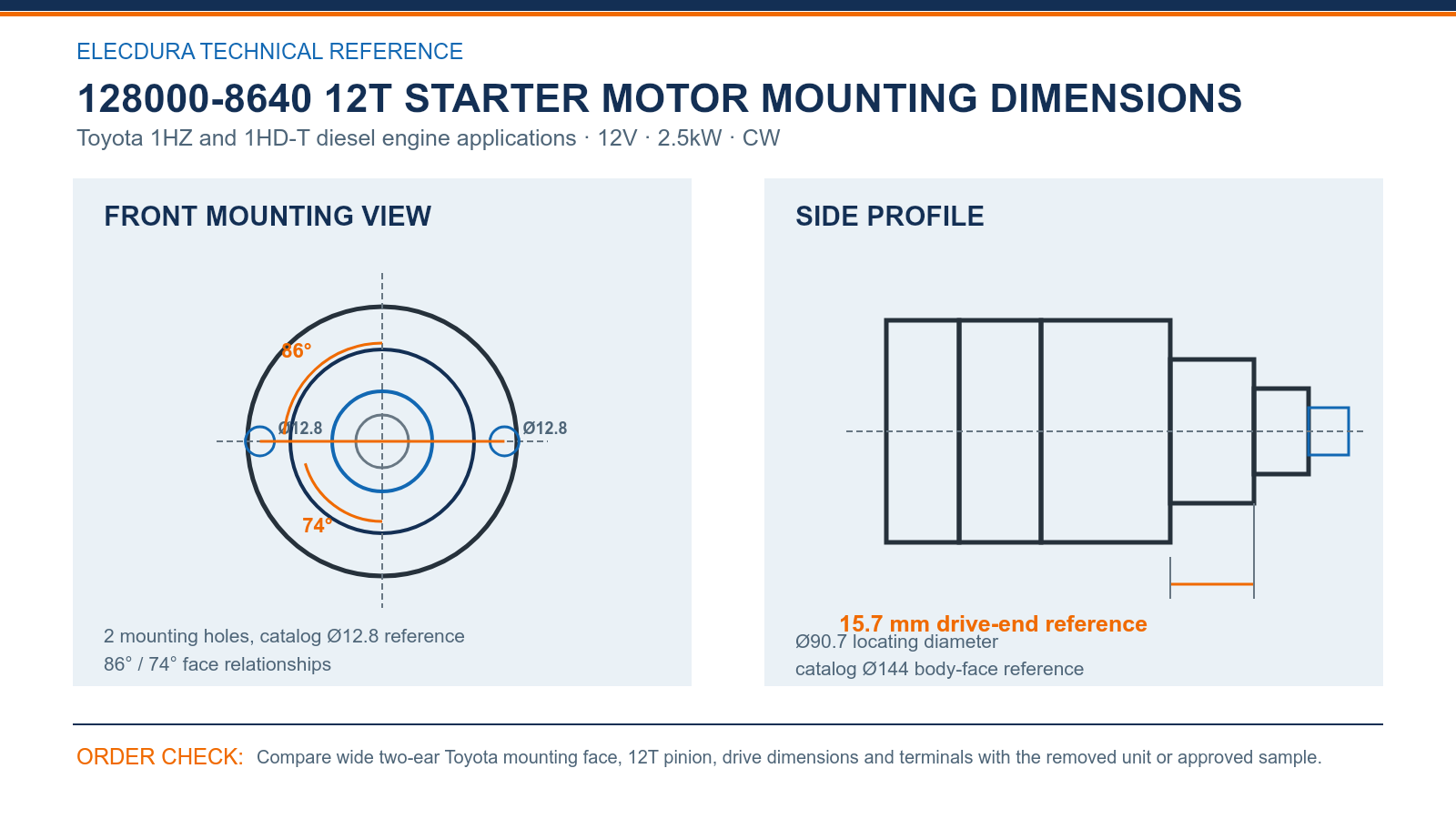

128000-8640 12V 2.5kW Starter Motor Specifications and B2B Fitment Drawing

128000-8640 12T starter mounting and drive-end reference for B2B sample review.

The 128000-8640 technical image is intended for B2B fitment review, especially when the old label is incomplete. Check 2 mounting holes, catalog Ø12.8 reference, 86° / 74° face relationships, Ø90.7 locating diameter and 15.7 mm drive-end reference on the actual unit.

Use the drawing to choose inspection points, then verify those points on the physical starter before bulk production.

128000-8640 Starter Distributor Ordering and Packing Support

Elecdura supplies wholesale buyers with neutral packaging and can review private-label requirements for qualified programs. Submit the sales region, expected quantity, carton and barcode requirements, plus any inspection form required by the distributor.

The standard commercial offer can include sample confirmation, normal production lead time and an 18-month warranty under agreed sales terms. Warranty review is faster when the buyer preserves the approved sample record and can provide installation and electrical-system information for any claim.

The embedded video introduces Elecdura production and electrical testing for starter motors. Supplier capability does not replace product identification: the order should still reference 128000-8640, the Toyota 1HZ or 1HD-T application, 12T drive and confirmed mounting face.

128000-8640 Starter 12T Drive for B2B Fitment Review

The drawing records two mounting holes, Ø12.8 hole references, an Ø90.7 locating feature, 86°/74° face relationships and a 15.7 mm drive-end reference. These details should be checked against the removed starter when a vehicle record does not include the complete Toyota or Denso number.

The 12-tooth count deserves its own receiving check. It is a direct way to prevent this line from being confused with the 11T Toyota industrial starter listed nearby in many aftermarket catalogs.

128000-8640 Toyota 1HZ and 1HD-T diesel engine Starter Motor Wholesale FAQ

Is 128000-8640 suitable for both Toyota 1HZ and 1HD-T engines?

This 12V, 2.5kW, 12T starter is listed for Toyota 1HZ and 1HD-T applications. Buyers should still provide the complete Toyota or Denso reference and compare the old starter’s mounting face and terminals. Engine family alone cannot confirm every production-year or vehicle variation in a wholesale order.

Which OE numbers should be included with an 18197 inquiry?

Useful references include 128000-8640, 128000-8641, 228000-1610, 228000-1611, 28100-17010 and 28100-17040. Send whichever complete number appears on the old unit or purchasing record, then add the Toyota engine and vehicle details. Elecdura uses the number group with physical controls rather than accepting a shortened 18197 request by itself.

Why must buyers confirm twelve pinion teeth?

The 12T drive separates this 128000-8640 version from nearby Toyota starter families with a different tooth count. Incorrect pinion selection can prevent proper ring-gear engagement. A clear drive-end photo and counted tooth total are simple controls for quotation, sample approval and receiving inspection across later stock orders.

What mounting details are shown for the 128000-8640 starter?

The catalog drawing shows a wide two-ear face, two Ø12.8 mounting-hole references, an Ø90.7 locating feature, 86° and 74° relationships, an Ø144 face reference and a 15.7 mm drive-end dimension. Compare those points with the actual starter whenever the vehicle documentation is incomplete or the old label cannot be read.

What information is most useful for remote off-road service customers?

Ask the customer for the complete label, Toyota model, engine, electrical system and photos of the installed or removed starter. Include the mounting face, pinion and terminals. Remote workshops often cannot absorb a second freight cycle, so a few controlled images before ordering are more valuable than a broad application statement.

Can 20513034 be reviewed as a cross-reference for this unit?

Yes, the catalog includes Prestolite 20513034 in this product’s reference group. It should be submitted together with the 1HZ or 1HD-T application and physical starter photos. Elecdura will compare the 12V, 2.5kW, 12T specification and mounting geometry before confirming it for the 128000-8640 supply line.

How should a distributor approve the first 128000-8640 sample?

Confirm the label and reference group, count twelve teeth, check 12V and 2.5kW requirements, and compare both mounting ears, locating face, drive projection and terminals with the removed Toyota unit. Save the accepted photographs and measurements in the product file so future production can be checked against a known version.

What B2B packaging options are available for this Toyota starter?

Elecdura can quote neutral cartons for normal wholesale supply and review private-label cartons, product labels and barcodes for qualified orders. Provide the quantity, destination, artwork, language and receiving standard before order confirmation. The package specification should always remain tied to the approved 128000-8640 12T configuration.

Request a 128000-8640 Starter Motor Wholesale Quote

Submit the Toyota 1HZ or 1HD-T application, full OE number, twelve-tooth drive image, mounting-face view, quantity and delivery country. Elecdura will review the first-sample requirements and quote the 128000-8640 starter for wholesale or distributor supply.

If the order supports remote workshops, share the field photos that sales staff will use for future identification. Elecdura can build the quotation around that approved 12T Toyota control set.
