1280006440 Isuzu Kubota Starter Motor Distributor Supply

1280006440 Isuzu Kubota Starter Motor Value for Distributors

Compact-equipment and agricultural distributors may encounter this reference under both Isuzu and Kubota demand. A useful enquiry identifies the actual engine, machine and removed starter so the shared product description does not become a broad brand-wide fitment claim.

The thirteen-tooth drive and two-hole flange are important separators within the 24V market. Buyers should not substitute a three-hole housing or another tooth count because the body length and output appear close in product photographs.



1280006440 Starter Motor Specifications and Two-Hole Drawing

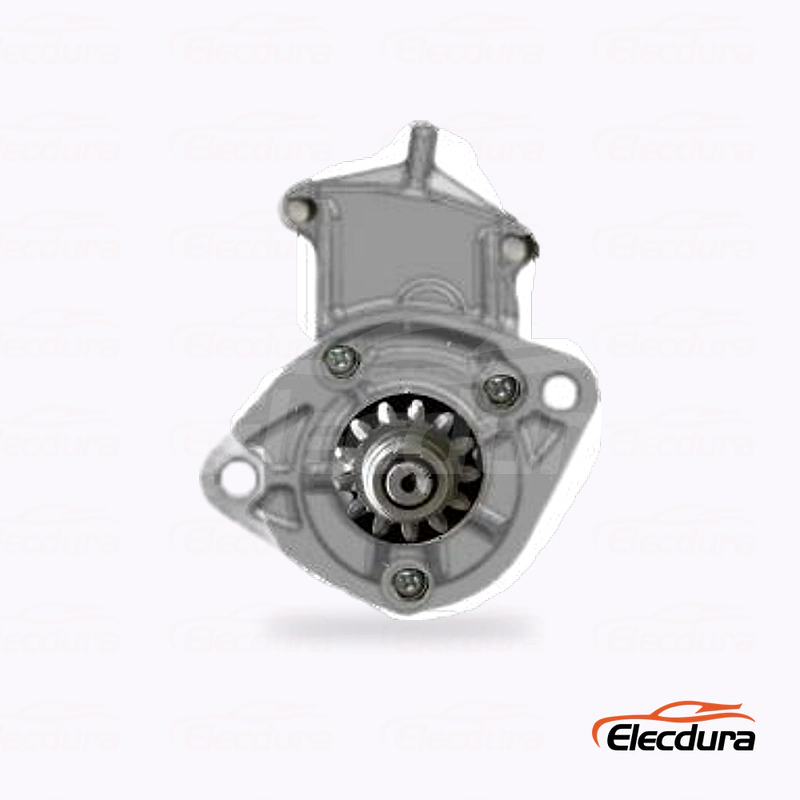

This unit is specified at 24V, 4.5kW, 13T, module 2.54 and clockwise rotation. These values define the electrical platform and gear interface; they should be checked together whenever the original label is worn or incomplete.

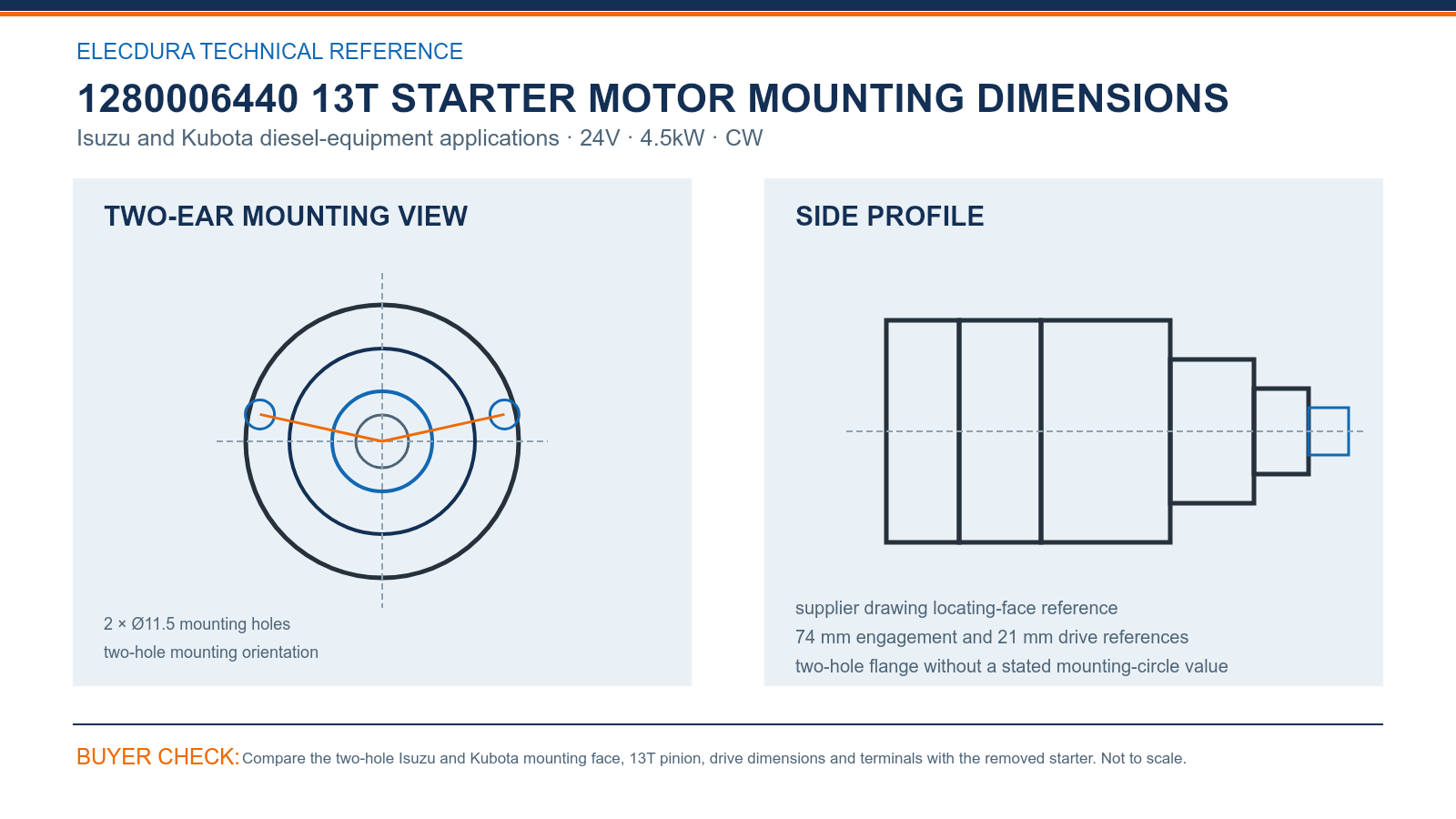

1280006440 Starter Motor Dimensions for Isuzu and Kubota Buyers — compare the drawing with the removed starter before placing a volume order.

The technical drawing gives two Ø11.5 mounting holes, a 74 mm engagement reference and a 21 mm drive reference. It does not state a mounting-circle value, so the description leaves that dimension unstated rather than inventing one.



1280006440 Starter Motor Application Matching for Equipment Buyers

Denso 128000-6440 and 128000-6441, together with the listed Krauf references, provide the main search set. Pair them with the Isuzu or Kubota engine plate and square old-unit photographs before confirming a distributor order.

Wholesalers serving both brands can keep separate application notes and forecasts while using one confirmed physical product. This supports clear branch allocation and prevents the Isuzu demand history from being mixed into an unrelated Kubota service request.



1280006440 Starter Motor Wholesale Supply and Production Video

On receipt, compare the two mounting holes, engagement position, thirteen-tooth pinion, terminal side and overall housing outline. Store the accepted views with the product reference so future replenishment and after-sales discussion begin from the same evidence.

Elecdura's factory video introduces starter assembly and electrical testing for equipment-parts buyers. It complements the two-hole drawing while importers define batch identification, export packing, delivery timing and consistent incoming measurements.



1280006440 Starter Motor FAQs for B2B Buyers

How should buyers separate Isuzu demand from Kubota demand?

State engine brand and model, machine, serial details and the removed-starter identity on the enquiry before discussing quantity. Link that information to 1280006440 and photographs showing the 13T drive, two-hole flange, engine identity and terminal layout. This keeps each customer application traceable even when one product serves both channels Preserve the Isuzu and Kubota diesel-equipment applications fitment and mounting comparison in the customer's reorder notes.



Which numbers belong to the 1280006440 search group?

Cross-reference review should begin with 128000-6440, 128000-6441, STN2863ML and STN9863ML. Keep the numbers attached to Isuzu and Kubota diesel-equipment applications and verify the 13T drive, two-hole flange, engine identity and terminal layout before purchasing. This supports cross-reference search while preserving the exact engine and flange Carry the agreed 1280006440 identity through packing and branch-transfer documents.



What physical values can be confirmed from the two-hole drawing?

Measure 2 × Ø11.5 mounting holes, 74 mm engagement and 21 mm drive reference on the removed starter or a trusted sample. For 1280006440, keep square front and side photographs showing the 13T drive, two-hole flange, engine identity and terminal layout. This provides measurable fitment points without adding an unstated mounting circle Retain the 1280006440 comparison photographs with the delivery lot for after-sales review.



Why are 13T and module 2.54 both important?

Keep 13 teeth, module 2.54 and clockwise rotation together in the 1280006440 product description and purchase order. Compare the 1280006440 pinion details, CW rotation and measured mounting interface rather than relying on one headline value. This separates the required gear form from a similar two-hole starter Include the confirmed 1280006440 configuration in later forecasts and repeat purchases.



How can compact-equipment distributors keep this line clear in stock?

Plan and label 1280006440 stock from Isuzu or Kubota label, 1280006440, 13T and the accepted two-hole image. Keep the 13T drive, two-hole flange, engine identity and terminal layout visible on cartons, bin cards and branch transfers so urgent demand does not create a wrong substitution. This improves picking accuracy when several small diesel starters share shelf space Preserve the confirmed brand, engine and two-hole comparison in the 1280006440 reorder record.



What should be measured on the first 1280006440 delivery?

Receiving staff should record both holes, engagement position, drive length, pinion, terminal orientation and housing outline against the 1280006440 shipment lot. The check should show the 13T drive, two-hole flange, engine identity and terminal layout clearly enough for repeat deliveries and after-sales comparison. This creates a physical receiving reference for future lots Attach the confirmed 1280006440 comparison to the quotation so receiving can check the same product.



Which electrical checks belong in a pre-replacement report?

Before replacing the starter, check 24V battery bank, cables, grounds, start-command voltage and cranking voltage drop. Keep the readings with the 1280006440 request for Isuzu and Kubota diesel-equipment applications so the circuit, ring gear and starter can be considered separately. This helps distinguish circuit problems from a starter fault Keep the matched 1280006440 images with branch stock details for future replenishment.



What should an Isuzu or Kubota buyer send for a useful quotation?

A quotation request should include engine and machine data, full photo set, quantity, packing requirement, destination and schedule. Keeping those details with 1280006440 lets sales address the product match and commercial terms in one response. This combines fitment evidence with the commercial inputs needed for pricing Use the confirmed 1280006440 combination on the purchase order and receiving sheet.



Request 1280006440 Starter Motor B2B Pricing from Elecdura

Email the Isuzu or Kubota engine model, machine and serial details, complete old-unit photographs, quantity, packing request and destination to info@elecdurauto.com. Elecdura will review the 1280006440 match and provide distributor pricing.
