1280007600 Volvo TD60B 9T Starter Motor Wholesale

1280007600 Wholesale Starter Motor for Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive

Volvo F6 and F7 parts buyers sourcing the nine-tooth TD60B starter configuration should match 1280007600 through the 9T version of 1280007600, not the eleven-tooth companion product. That check matters because a shared reference can lead a warehouse to pick the wrong pinion when the tooth count is omitted from search and labels.

1280007600 9T Starter Motor Dimensions for Volvo TD60B Fleet Buyers

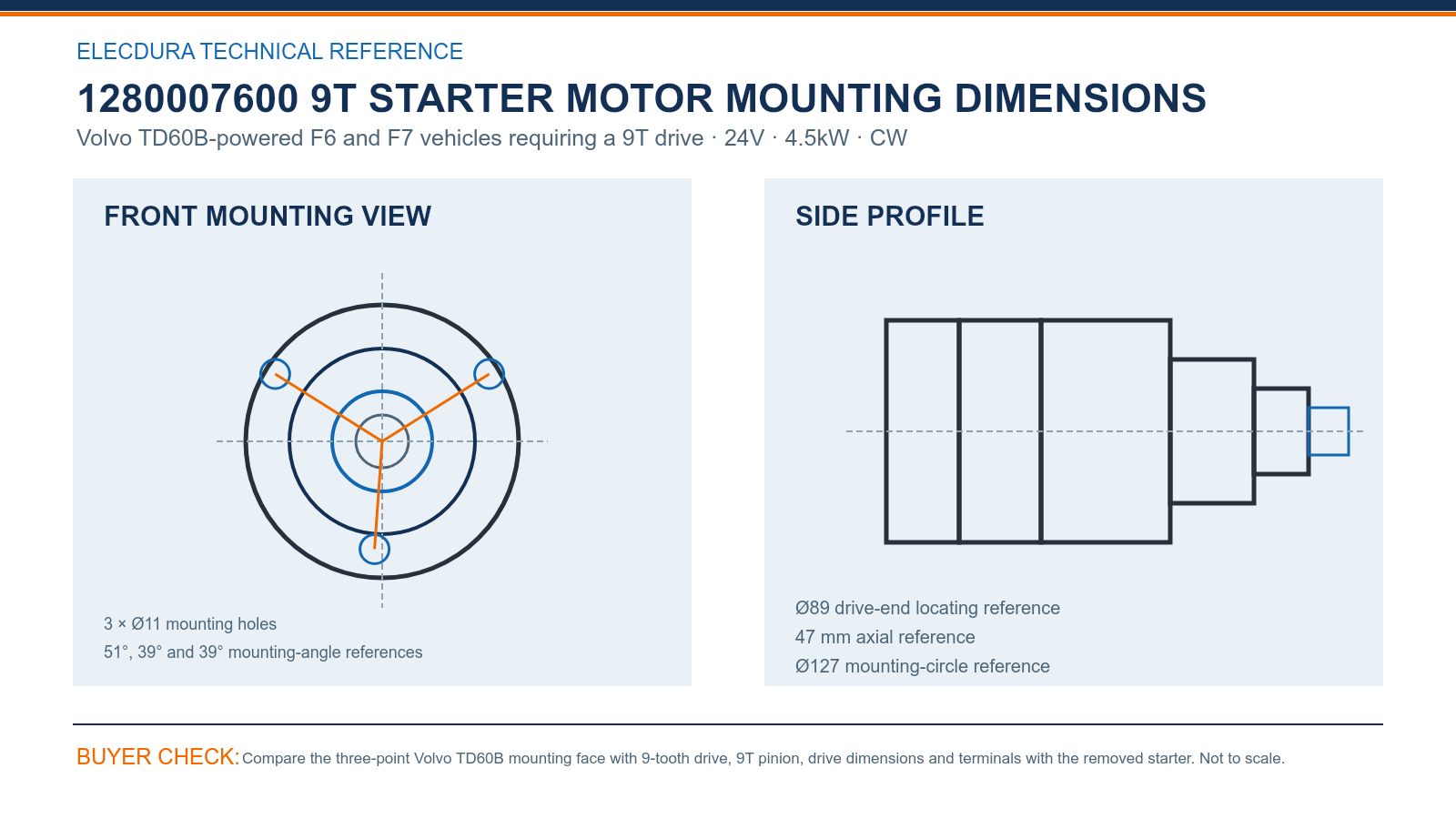

1280007600 Volvo TD60B 24V 4.5kW 9T starter mounting dimensions.

The 1280007600 9T drawing highlights 3 × Ø11 mounting holes together with Ø127 mounting-circle reference. Those fixed points are more useful than overall motor shape when checking Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive.

Bench comparison for 1280007600 9T should retain 24V, 4.5kW, 9T, module 3, CW. Receiving staff should verify nine teeth first, then the three Ø11 holes, Ø127 circle, 47 mm drive reference and cable connections, using the old unit or confirmed sample for the final physical check.

1280007600 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with 1280007600 9T and record every complete number on the removed unit. Related references help locate 1280007600 9T, but buyers must still confirm the 9T version of 1280007600, not the eleven-tooth companion product.

2. Purchase-order detail: State 1280007600, Volvo F6 and F7 commercial vehicles using the TD60B diesel engine and a 9-tooth starter drive, 24V, 4.5kW, 9T, module 3, CW and the destination. Use the removed starter or confirmed sample to review any alternative before volume supply for Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive.

1280007600 Starter Motor MOQ, Lead Time and Export Supply

Elecdura supports 1280007600 9T wholesale orders from 20 pieces, normally 7–15 days after confirmation, with an 18-month warranty under agreed terms. Place 9T in the item name, shelf label and branch-transfer document, with no combined stock balance for the 11T version.

Elecdura's 1280007600 9T production video presents starter assembly and electrical testing for B2B supply. It supports supplier evaluation, while the order for Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive remains tied to the buyer's fitment and delivery details.

1280007600 Starter Motor FAQs for Volvo Parts Buyers

How can buyers distinguish 1280007600 9T from a similar starter?

A shared reference can lead a warehouse to pick the wrong pinion when the tooth count is omitted from search and labels. Confirm 1280007600 9T by comparing the 9T version of 1280007600, not the eleven-tooth companion product against the old unit's label, pinion and terminals. Keep Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive on the enquiry; a matching rating or housing is not enough.

Which details are needed for a 1280007600 9T wholesale quotation?

Send truck chassis, TD60B engine detail, full old-unit number, clear pinion count, mounting photo, quantity, destination and target date for 1280007600 9T. For Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive, split breakdown demand from scheduled purchasing and identify any branch-specific packing. Elecdura can then price 24V, 4.5kW, 9T, module 3, CW with MOQ, timing, warranty and freight options for 1280007600.

What drive-end dimensions should be compared for 1280007600 9T?

For 1280007600 9T, compare 3 × Ø11 mounting holes, Ø89 drive-end locating reference and 47 mm axial reference. Relate those dimensions to Ø127 mounting-circle reference and the 9T pinion for Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive. Use a straight drive-end photograph, to avoid perspective masking hole position, pilot diameter or pinion depth for Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive.

How should distributors plan stock for 1280007600 9T?

Place 9T in the item name, shelf label and branch-transfer document, with no combined stock balance for the 11T version. Calculate the 1280007600 9T reserve from supported machines, recent withdrawals and transfer time. Keeping the Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive and drive description on the bin helps branches avoid issuing another Volvo starter during an urgent repair.

Which electrical checks should precede starter replacement on Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive?

Measure battery load performance and cable drop, then compare ring-gear and pinion contact patterns after removal. After removing the old starter from Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive, review the mounting face, pinion wear and ring-gear engagement. Those readings on Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Volvo starter?

Verify nine teeth first, then the three Ø11 holes, Ø127 circle, 47 mm drive reference and cable connections. Match the 1280007600 9T label and 24V, 4.5kW, 9T, module 3, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive.

What should remain on a repeat order for Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive?

Keep 1280007600 9T, Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps preserve a clean nine-tooth supply line for TD60B vehicles that cannot use the related 11T unit.

Which records support an after-sales review for Volvo buyers?

Provide chassis, mileage, delivery lot, installed hours, electrical test sheet and paired pinion photographs for a 1280007600 9T review. For Volvo TD60B-powered F6 and F7 vehicles requiring a 9T drive, add the working conditions and pre-removal test values, with comparable images of the original and returned starters.

Request 1280007600 Starter Motor Wholesale Pricing

Email truck chassis, TD60B engine detail, full old-unit number, clear pinion count, mounting photo, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote 1280007600 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 9T, module 3, CW unit.
